Key Features
- 3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.)
- Grease Filter
- LED Task Lighting
- 65K BTU Cooktop Threshold
- 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)
Product Overview

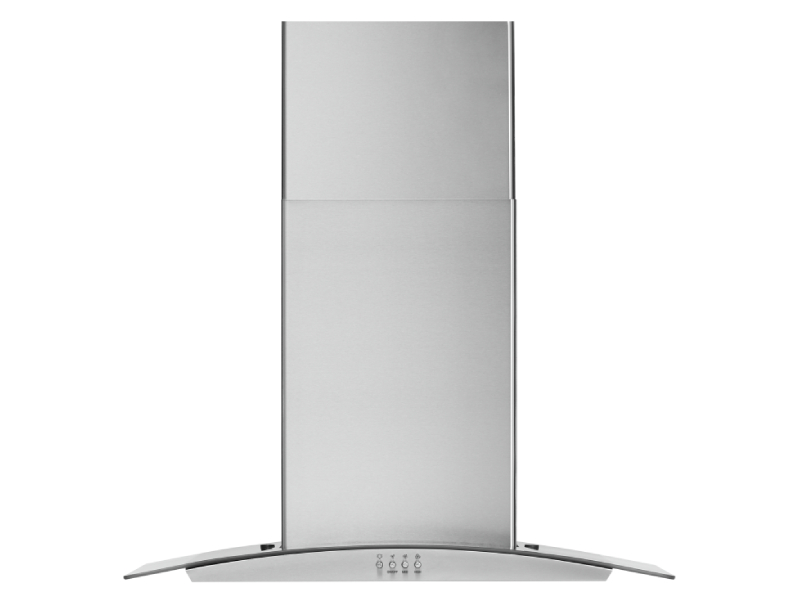

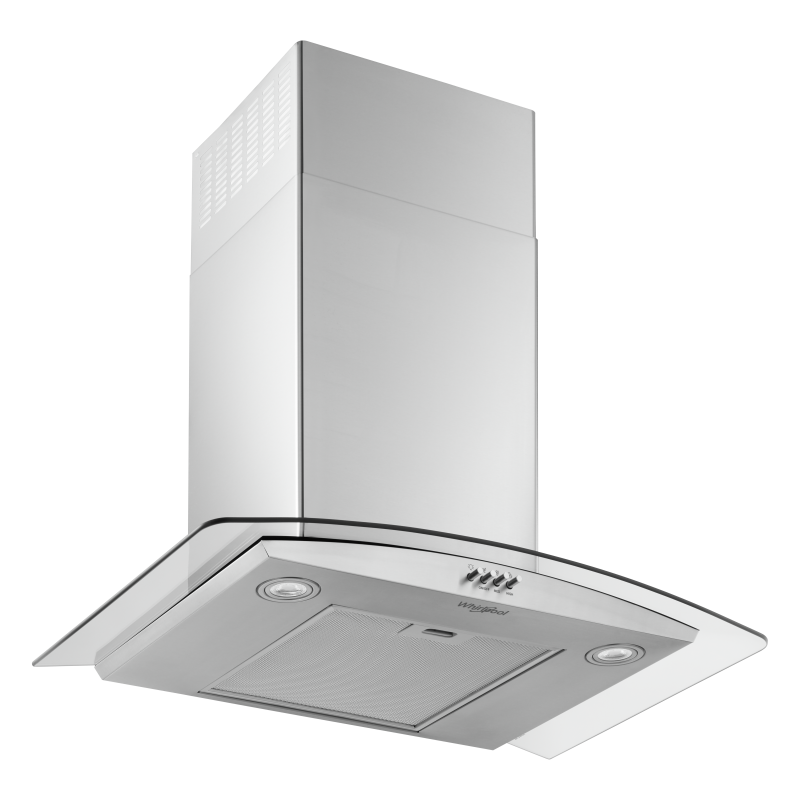

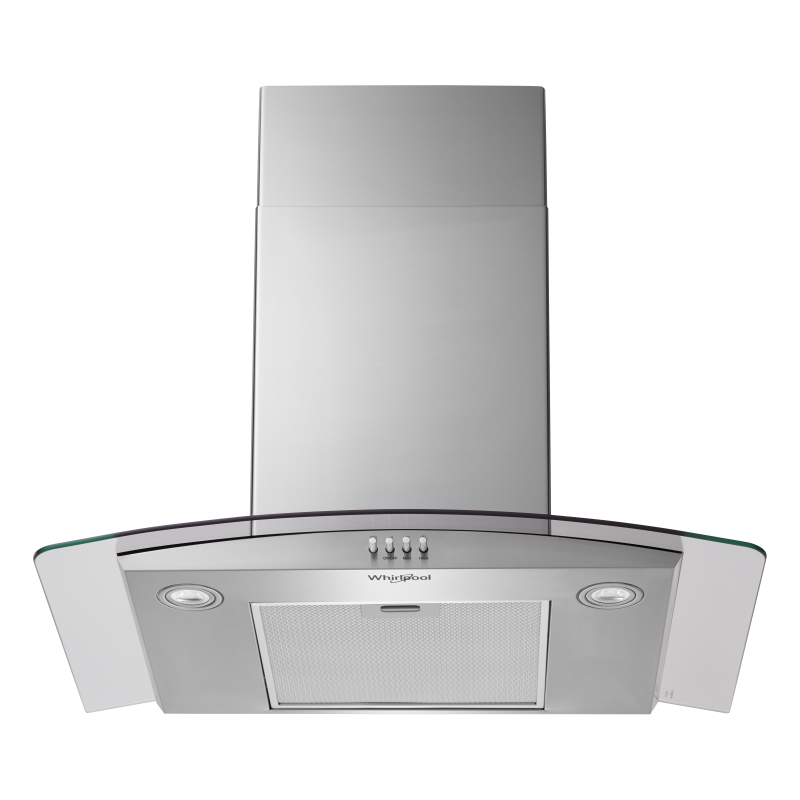

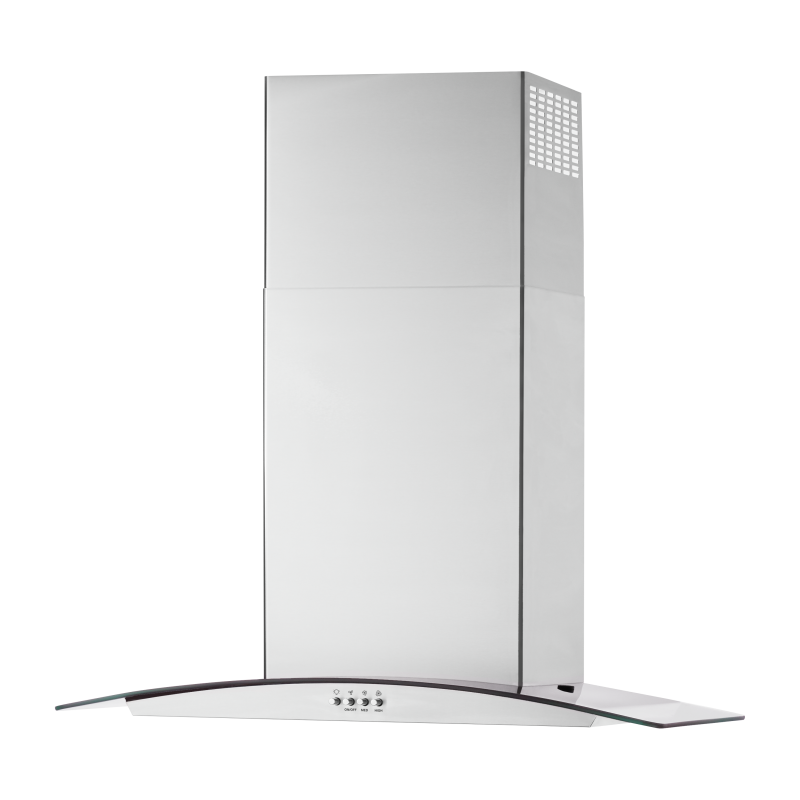

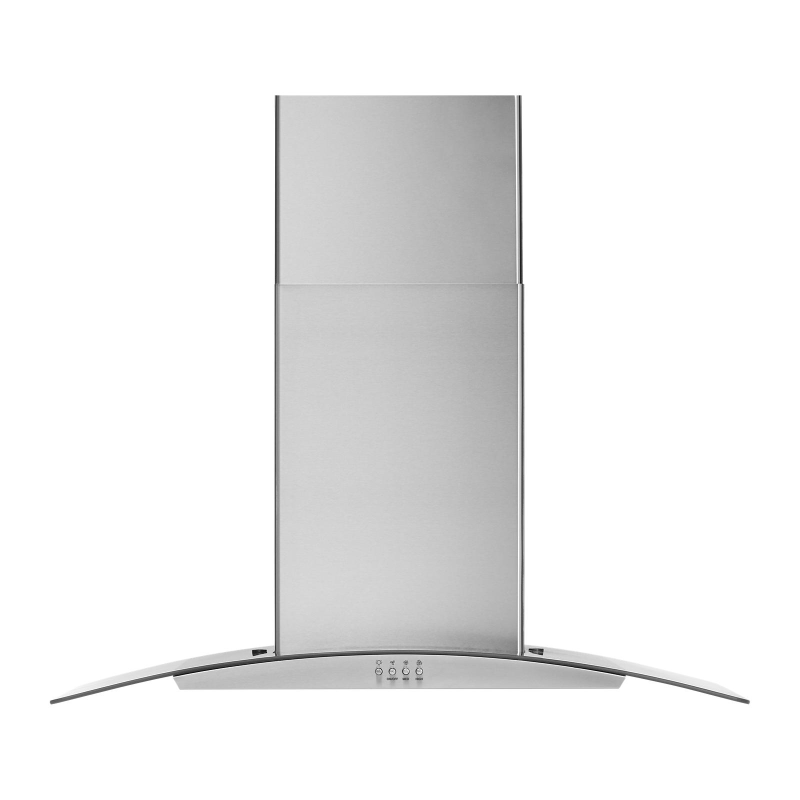

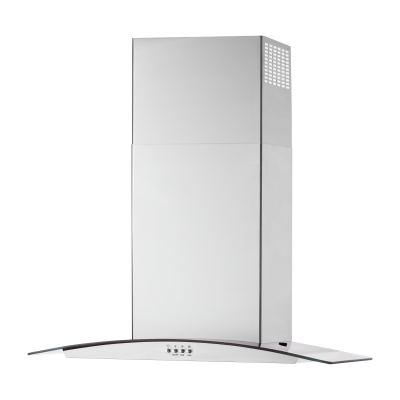

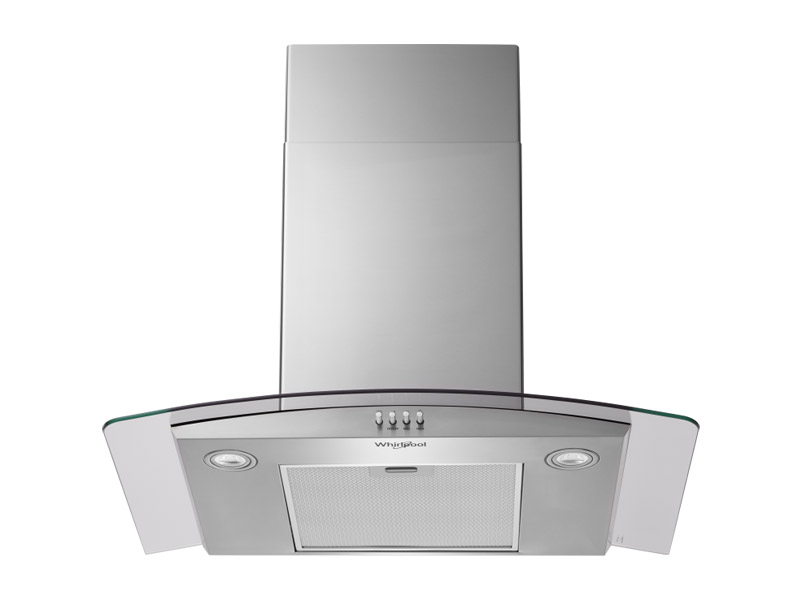

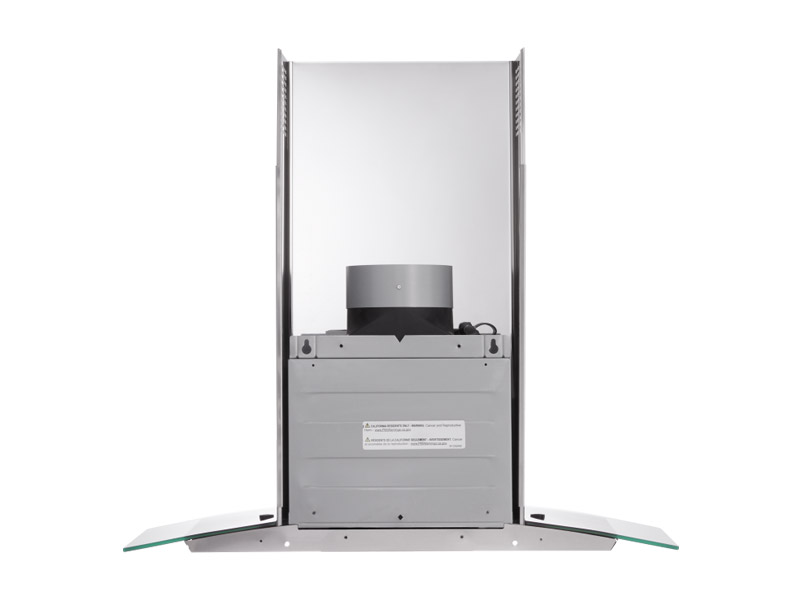

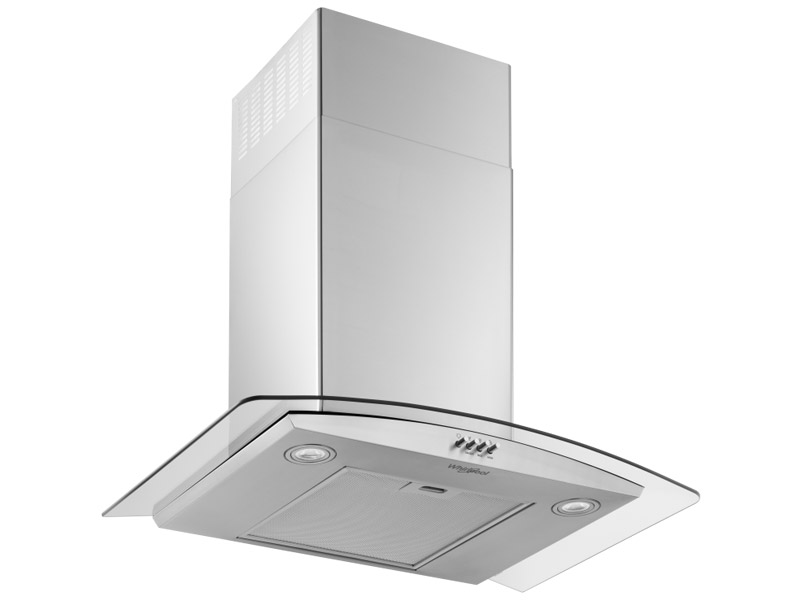

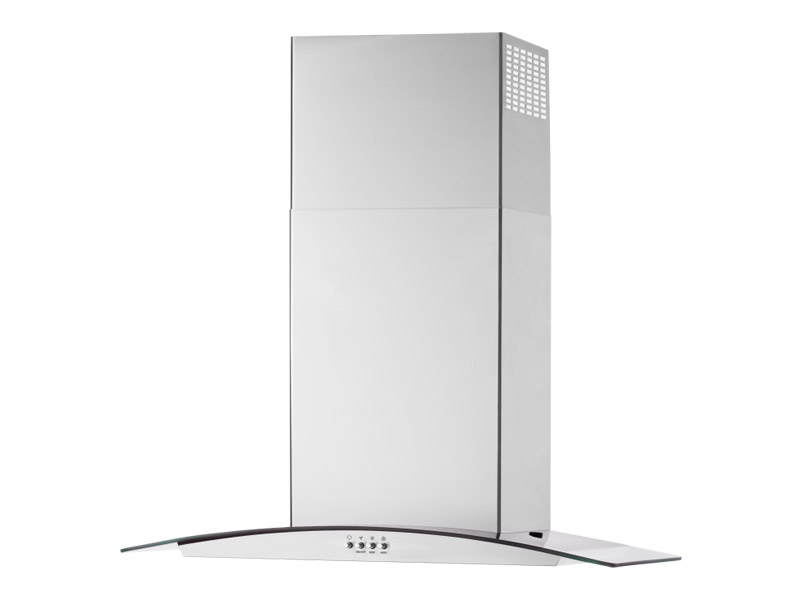

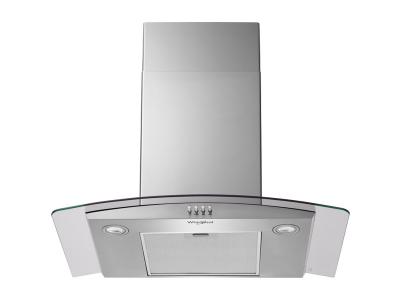

30" Curved Glass Wall Mount Range Hood
Easily vent smoke and odors with this 400 CFM Motor Class range hood that comes equipped with a 3-speed kitchen exhaust fan for powerful ventilation. This 30" wall mount range hood also comes with a detachable grease filter for convenient cleaning, LED range hood lights and a 65K BTU cooktop threshold. (Performance varies based oninstallation. Resources available at aham.org.)
Additional Features
3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.)
Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.
Grease Filter
Help trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.
LED Task Lighting
Efficient LED task lighting makes it easy to see what you're cooking by casting an even and bright glow on your cooktop.
65K BTU Cooktop Threshold
Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)
Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.

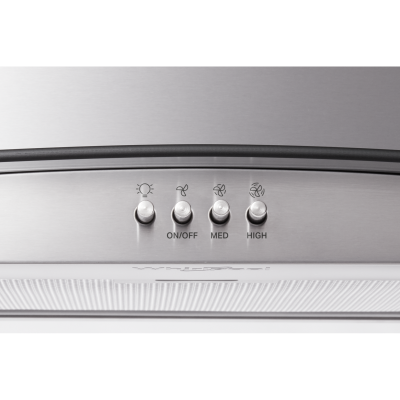

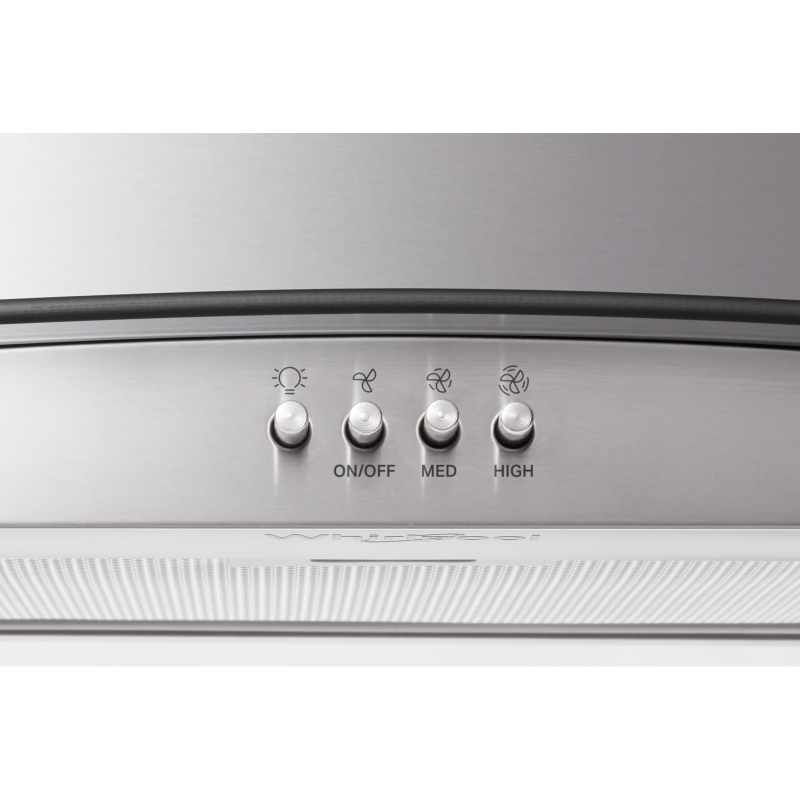

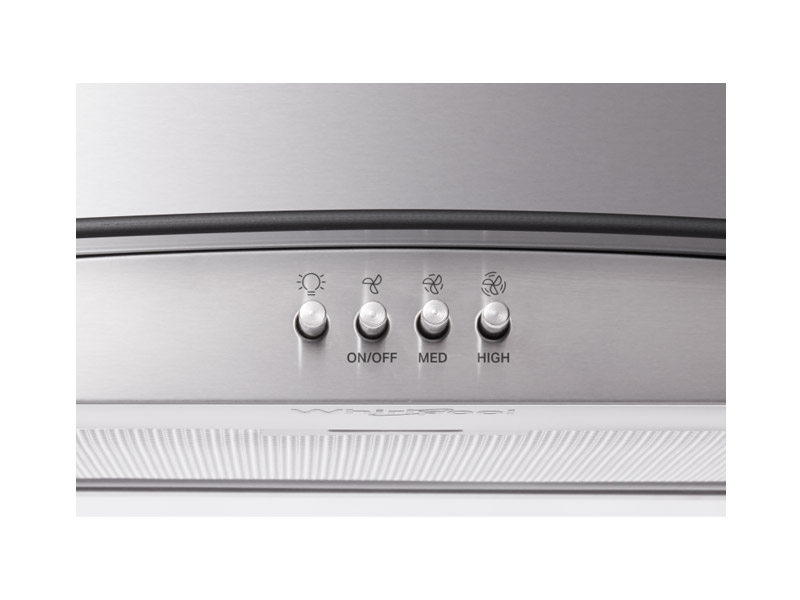

Push Button Controls
Use Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
Description | |
---|---|
Size | 30 |
Dimensions | |
Canopy Height | 10-13/16 in |
Cutout Height | 10-13/16 in |
Depth | 17-11/16 in |
Maximum Height | 45-1/8 in |
Minimum Height | 27-1/8 in |
Width | 30.0 in |
Configuration and Overview | |
Installation Type | Wall-Mount Canopy |
CONTROLS | |
Control Type | Push Button |
Features | |
Auto On | No |
Lighting Control Type | Push Button |
Night Light | No |
Night Light Type | N/A |
Number of Task Light Settings | 1 |
Task Lighting | Yes |
Details | |
Task Light Type | LED |
VENTILATION SYSTEM | |
Blower Motor | NA |
Blower Type | Centrifugal |
CFM Motor Class | 400.0 |
Duct Direction | Vertical |
Duct Length | 45-1/2 |
Duct Outlet Size | 6 |
Duct Type | Round |
Exhaust Vent Location | Top |
Maximum Motor Exhaust Rating Cubic Feet per Minute | 340 |
Minimum Motor Exhaust Rating Cubic Feet per Minute | 80 |
Number of Speeds | 3 |
Sound Max Speed | 7.0 |
Sound Min Speed | 0-3/5 |
Vent Material | Metal |
Venting | Exterior or Recirculating |
Certifications | |
Energy Star | No |
UL | Yes |
Electrical | |
Amps | 2 |
Hz | 60 |
Power Cord Included | No |
Volts | 120 |
