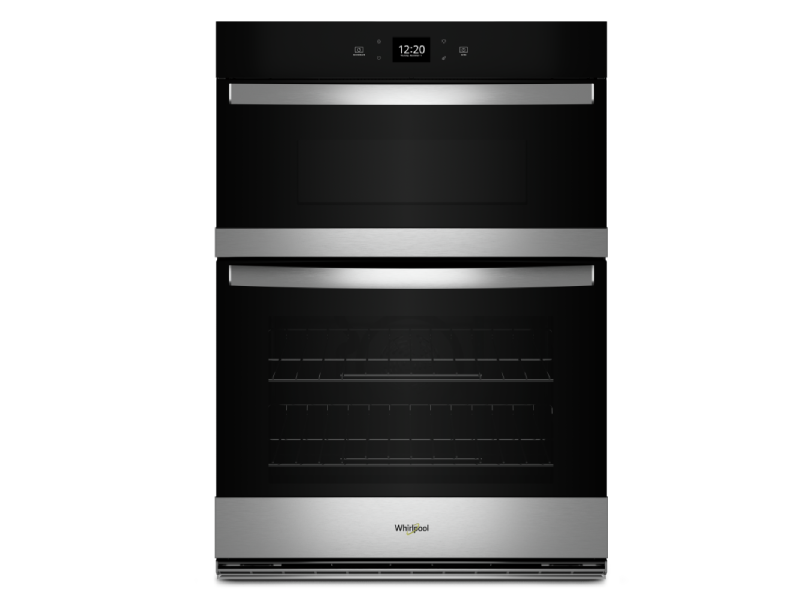

29" Whirlpool 6.4 Cu. Ft. Combo Wall Oven with Air Fry in Stainless Steel - WOEC5030LZ
You may also like
Key Features
- Smart Wall Oven
- 6-in-1 Wall Oven with Fan Convection
- 6.4 Cu. Ft. Total Capacity
- Air Fry Mode When Connected
- Automatic* Feature Updates When Connected
Product Overview
6.4 Total Cu. Ft. Combo Wall Oven with Air Fry When Connected
Take on every meal with a smart wall oven microwave combo with air fryer built for multitasking. Get crispy results in this combo wall oven with Air Fry Mode (available via Automatic Feature Updates* when appliance is connected), while Fan Convection Cooking and Frozen Bake™ Technology let you get meals to the table easily. Clean everyday spills with the Steam Clean Option.
Smart Wall Oven
When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command*. *Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

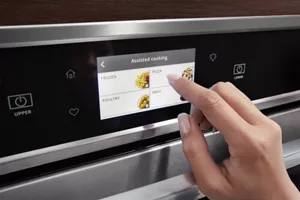

Touchscreen
Get instant access to the settings you use most with an all-new touchscreen that learns, adapts and suggests customized presets based on your family's routines.
Additional Features
6-In-1 Wall Oven With Fan Convection
Cook however you want with six cooking modes in one wall oven: Frozen Bake™ Technology, Keep Warm, Broil, Convect Broil, Bake and Convect Bake. For even more cycles like Air Fry Mode, connect your appliance to receive Automatic Feature Updates*. *Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
6.4 Cu. Ft. Total Capacity
Easily cook a whole meal with 6.4 Cu. Ft. Total Capacity.
Air Fry Mode When Connected
Air fry chicken nuggets, wings, fries and more to get crispy results right in your oven when your appliance is connected.* Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.*Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Automatic* Feature Updates When Connected
Select Whirlpool® Smart Appliances get smarter over time with new cycles like Air Fry Mode and automatic updates* to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they’re released. *Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Dishwasher-Safe Air Fry Basket (Sold Separately)
For easy cleaning, put the Dishwasher-Safe Air Fry Basket (Sold Separately) right in the dishwasher when it gets messy.
1.4 Cu. Ft. Microwave Capacity
Fit most dishes for your family meals with 1.4 Cu. Ft. Microwave Capacity.
Fan Convection Cooking
Cook meals with a fan in the back of the oven that distributes hot air more evenly than traditional baking, so you can bake on multiple racks at once.
Steam Clean Option
Clean up after everyday light spills using only heat and 1-1/4 cups of water—no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent traditional high heat self-clean cycles.
Adjustable Self-Clean Cycle
Clean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.
Keep Warm Setting
Keep dishes from getting cold with this setting that delivers low heat to the oven while you finish preparing your meal.
Broil
When you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
Convect Broil
When cooking thicker cuts of meat like bone-in chicken or steaks over an inch thick, use the Convect Broil setting to brown the top while still keeping the hot air circulating around the food in the oven to cook your food.
Bake
Make your favorite treats like cookies, pies, cakes or muffins with the Bake setting that uses heat from the radiant element in the oven to cook food.
Convect Bake
Convect Bake uses the bake and broil heating elements and a fan to achieve more even heating when cooking on multiple racks.*
Rapid Preheat
Rapid Preheat uses all of the elements to heat the oven quickly and efficiently. Ideal for single rack baking, this option saves cooking time and energy.
Touchscreen
Get instant access to the settings you use most with an all-new touchscreen that learns, adapts and suggests customized presets based on your family's routines.
Favorites
Make your favorite cooking settings easy to access by creating and saving them right in the Whirlpool® App or directly on your appliance.*
Assisted Cooking
Assisted Cooking cycles calculate and set the ideal cooking time and temperature for common foods like casseroles, meat, fish, vegetables, pizza and some baked goods.

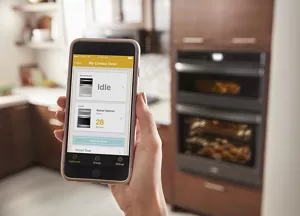

Remote Start
When set to remote enable, use your smartphone or tablet to remotely turn your oven on so it’s heated up and ready to cook meals when you are.*
Multi-Step Cooking
Make multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven all at once.* The temperature automatically adjusts based on the recipe you enter for great results.
Hidden Bake Element
A concealed bake element placed under the floor of the oven creates a smooth surface at the bottom of the oven for easy cleaning.
Delay Start
Program the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.
Control Lock Mode
Disable the control panel to avoid unintended use.
Extra-Large Oven Window
See and savor. A bigger view lets you check on food without having to open the oven door.
Sabbath Mode
Use Sabbath Mode to keep the oven on the Bake setting at a set temperature which allows for cooking or warming food until it’s turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.
CleanRelease® Non-Stick Interior
Help prevent spills from sticking in the microwave with the CleanRelease® Non-Stick Interior, which lets you easily clean up with the simple wipe of a damp cloth.
Sensor Cooking
Take out the guesswork with sensors that track the cooking progress of your food in the microwave and automatically adjust cook times.
Turntable On/Off Option
Choose whether the microwave turntable rotates or not to accommodate a wide range of dish sizes.
900-Watt Cooking Power
Get quick cooking with 900 watts of cooking power in the microwave.
Add 30 Seconds Option
Quickly set the microwave timer to 30 seconds or add it to already in-progress cooking time with the touch of a button.
FIT System Limited Guarantee
If your new wall oven doesn't fit, Whirlpool brand will pay up to $300 toward cabinet modification.
Certifications | |
---|---|
ADA Compliant | No |
CUL | Yes |
Star K Certified | Star K Certified |
UL | Yes |
Exterior Details | |
Door Lock | Yes |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Oven Cavity Details | |
Bake Element Power | 2800W/2427W |
Broiler Element Power | 3600 W/3120 W |
Broiler Location | Top of Oven |
Convection | No |
Convection Element Power | 2500 W/2167 W W, 2500 W/2167 W W, 2500 W/2167 W W, 2500 W/2167 W W |
Convection Element Type | Single-Fan |
Convection Functions | Bake, Broil, Convection Conversion |
Cooking Power | 900 W, 900 W, 900 W, 900 W |
Door Broil Position | Closed |
Door Lock | Yes |
Hidden Bake Element | Yes |
Interior Coating | Porcelain |
Interior Color | Grey |
Number of Oven Lights | 2 |
Number of Oven Racks | 2 |
Number of Rack Guides | 6 |
Oven Cleaning Type | Self-Cleaning |
Oven Light Type | Halogen |
Dimensions | |
Capacity | 181.12 l, 6.4 cu. ft. |
Common Size | 6.20 cm, 30 in |
Cutout Depth | 60.96 cm, 24 in |
Cutout Height | 104.94 cm, 41-313/1000 in |
Cutout Width | 72.39 cm, 28-1/2 in |
Depth | 67.15 cm, 26-7/16 in |
Depth Closed Including Handles | 67.15 cm, 26-219/500 in |
Depth With Door Open 90 Degree | 117.32 cm, 46-47/250 in |
Gross Weight | 103.42 kg, 228 lbs |
Height | 106.04 cm, 41-3/4 in |
Microwave Interior Depth | 41.91 cm, 16-1/2 in |
Microwave Interior Height | 20.96 cm, 8-1/4 in |
Microwave Interior Width | 44.77 cm, 17-5/8 in |
Minimum Height | 106.04 cm, 41-3/4 in |
Net Weight | 101.15 kg, 223 lbs |
Oven Capacity | 141.50 l, 5 cu. ft. |
Oven Interior Depth | 48.26 cm, 19 in |
Oven Interior Height | 45.72 cm, 18 in |
Oven Interior Width | 63.50 cm, 25 in |
Width | 75.56 cm, 29-3/4 in |
Microwave Details | |
Door Release | Handle |
Grill | No |
Microwave Capacity | 39.62 l, 1.4 cu. ft. |
Microwave Interior Depth | 41.91 cm, 16-1/2 in |
Microwave Interior Height | 20.96 cm, 8-1/4 in |
Microwave Interior Light | Halogen |
Microwave Interior Width | 44.77 cm, 17-5/8 in |
Sensor Cooking | Yes - Microwave |
Turntable Diameter Size | 35.88 cm, 14-1/8 in |
Smart Compatibility | |
Connectivity | Amazon Alexa, Android, Google Assistant, iOS |
Smart Appliance | Yes |
Works With | App, Remote Access, Voice Controlled, WiFi |
CONTROLS | |
Control Type | Glass Touch Digital Display |
Display Color | Full Color |
Electronic Display Type | LCD Touch Screen |
Language Conversion | English/French/Spanish |
Microwave Selections | Add 30 Seconds, Add A Minute, Beverage, Control Lock, Cook, Cook Power, Cook Time, Defrost, Dinner Plate, End of Cycle Signal, Fresh Vegetable, Frozen Vegetable, Keep Warm, Off/Cancel, Pizza, Popcorn, Potato, Reheat, Soften/Melt, Sound On/Off, Soup, Steam, Time Cook, Timer |
Details | |
Door Release | Handle |
Flush Installation Approved | Yes |
Fuel Type | Electric |
Grill | No |
Microwave Interior Light | Halogen |
Number of Microwave Racks | 0 |
Oven Automatic Shut-Off | Yes |
Oven Selections | Air Fry, when connected, Auto On, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake, Keep Warm/Warm Hold, Language Conversion, Rapid Preheat, Sabbath Mode, Stop Time, Timer |
Oven Type | Combination |
Turntable | Yes |
Turntable Diameter Size | 35.88 cm, 14-1/8 in |
Electrical | |
Amps | 30 |
Hz | 60 |
Power Cord Included | No |
Volts | 240 |
Watts | 900 |
