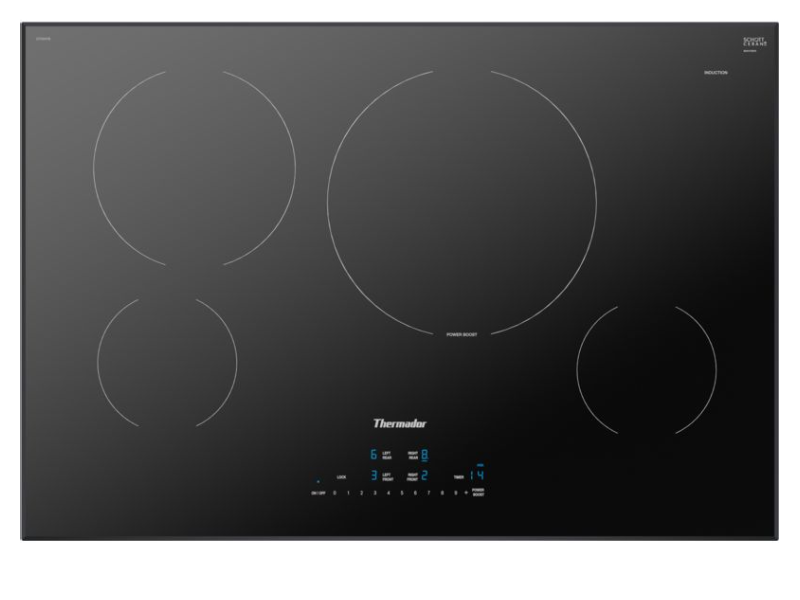

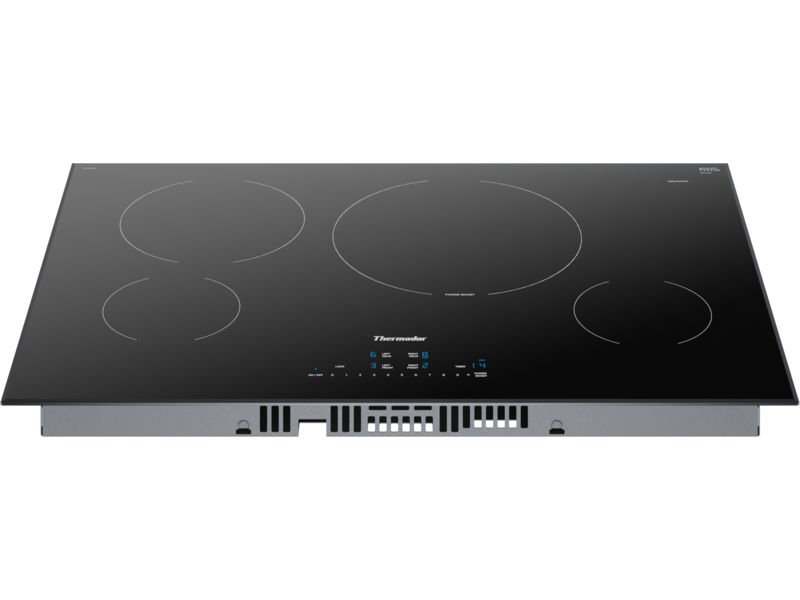

30" Thermador Induction Cooktop in Black Surface Mount without Frame - CIT304YB
$5,329.00 CAD
Thermador PROMO Dream Kitchen Sales Event See Details
Dream Kitchen Sales Event
Receive a Bonus gift with the purchase of a complete qualifying kitchen suite.
Literature
You may also like
Highlights
- PowerBoost feature increases element power by up to 50%, saving time to heat up pots or cook large quantities
- Illuminated touch controls with 17 power settings is highly precise and allows for easy cleaning
- Illuminated touch control panel offers intuitively simple selection of 17 power levels and allows for easy cleaning
Performance
- 4 induction cooking elements
- 17 power levels
- Powerful 3,700 W, 11" element for larger pots and pans
- PowerBoost setting
- Automatic pan recognition
- 2 stage residual heat indicators

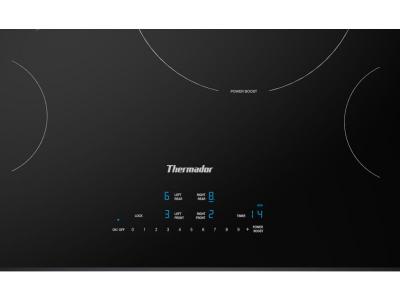

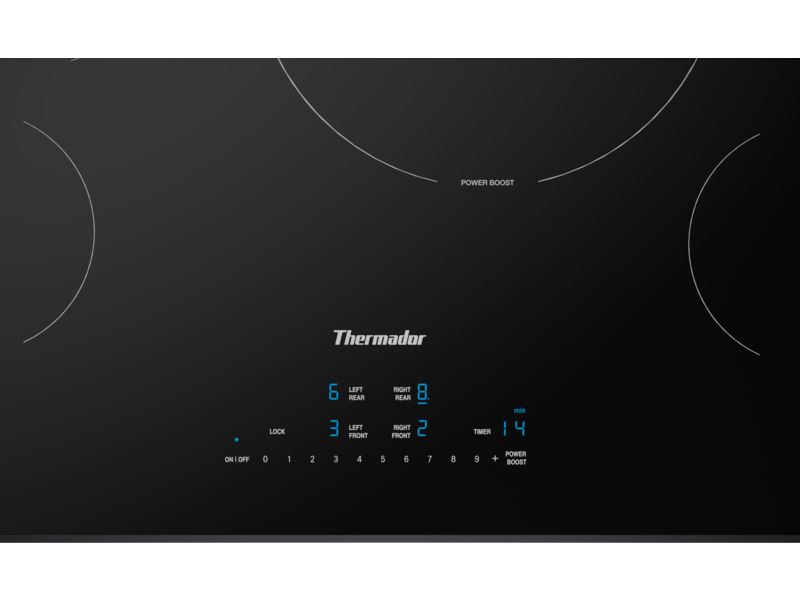

- Illuminated touch controls
- Child safety lock
Design

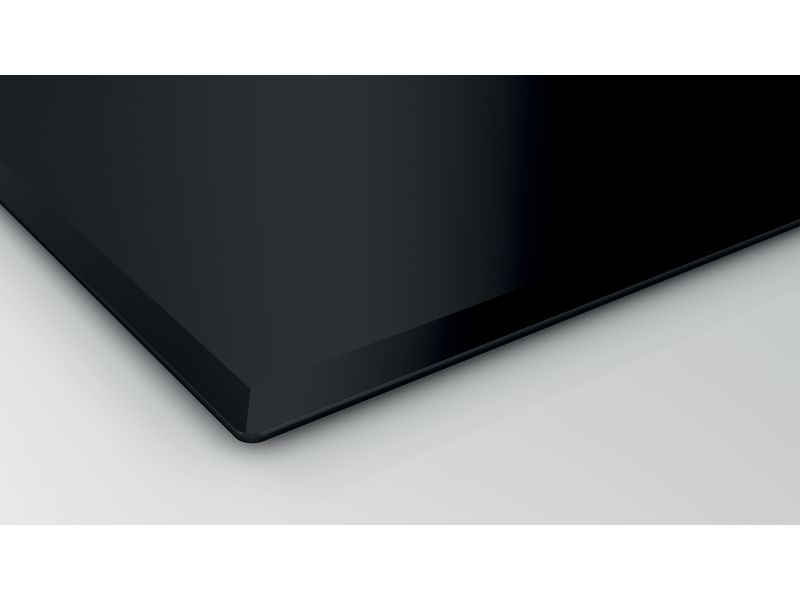

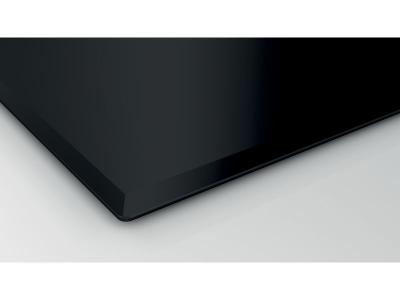

- Frameless design
| Cooking zone 7 | |
|---|---|
| Energy consumption of 7th heating element | 175.0 Wh/kg |
| Type of 7th heating element | Induction heating |
| Power of 7th heating element (kW) | 1.4 kW |
| Location of 7th heating element | front right |
| Dimension of 7th heating element | 145 mm |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Safety | |
| Residual heat indicator | Separate |
| Safety device | childproof lock, Key Lock, pan recognition, Power management function, Safety time-switch-off |
| General | |
| Dimensions of the heating elements | 1 x 21,0 cm Ø, 1 x 28,0 cm Ø, 2 x 14,5 cm Ø |
| Number of Burner | 4 |
| Type of appliance width | 80 cm |
| Self-sufficient cooker control | Self-sufficient induction hobs |
| Cooktop type | Induction cooktop |
| Power of the heating elements | 1 x 2.2 (3.6) kW, 1 x 2.6 (3.6) kW, 2 x 1.4 (2.2) kW |
| Basic surface material | Ceramic |
| Frame type | Facet |
| Colour | Black |
| Energy consumption of hob | 175.0 Wh/kg |
| Technical Overview | |
| Heating Technology | Electric |
| Number of electric cooking zones | 4 |
| Width of the product | 788 mm |
| Control Type | Electronic |
| Watts | 6,240 W |
| Construction type | |
| Installation type | Built-in |
| Color of surface | Black |
| Number of electric cooking zones | 4 |
| Type of frame | 4 Facettes |
| Installation Type | Built-in |
| Number of Burner | 4 |
| Number of electric elements | 0 |
| Number of gas burners | 0 |
| Number of electric warming zones | 0 |
| Number of radiant elements | 0 |
| Number of halogen elements | 0 |
| Size and Weight | |
| Dimensions | 98 x 788 x 540 mm |
| Minimum height for installation | 505 mm |
| Maximum height for installation | 508 mm |
| Maximum width for installation | 734 mm |
| Minimum width for installation | 731 mm |
| Appliance height above the worktop | 10.0 mm |
| Depth for installation | 98 mm |
| Connection | |
| Power cord length | 96 cm |
| Heating Technology | Electric |
| Frequency | 60 Hz |
| Cooking zone 1 | |
| Dimension of heating element | 145 mm |
| Power of heating element (W) | 1.4 kW |
| Location of 1st heating element | front left |
| Type of heating element | Induction heating |
| Energy consumption of heating element | 175.0 Wh/kg |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Dimension of 3rd heating element | 210 mm |
| Energy consumption of 3rd heating element | 175.0 Wh/kg |
| Type of 3rd heating element | Induction heating |
| Power of 3rd heating element (W) | 2.2 kW |
| Location of 3rd heating element | back left |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 5 | |
| Energy consumption of 5th heating element | 175.0 Wh/kg |
| Type of 5th heating element | Induction heating |
| Power of 5th heating element (W) | 2.6 kW |
| Location of 5th heating element | back right |
| Dimension of 5th heating element | 280 mm |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
