24" JennAir Panel Ready Fully Integrated Dishwasher with Precise Fit 3rd Rack for Cutlery - JDAF3924RX

Category : Dishwashers
SKU : JDAF3924RX


Literature

Top Features

38 dBA Tranquility System*

Never settle for just quiet. At 38 dBA, JennAir is the quietest luxury dishwasher brand*, all without sacrificing performance on all 3 racks.*Based on Normal Cycle. Models JDAF5924RL, JDAF5924RM, JDAF5924RX

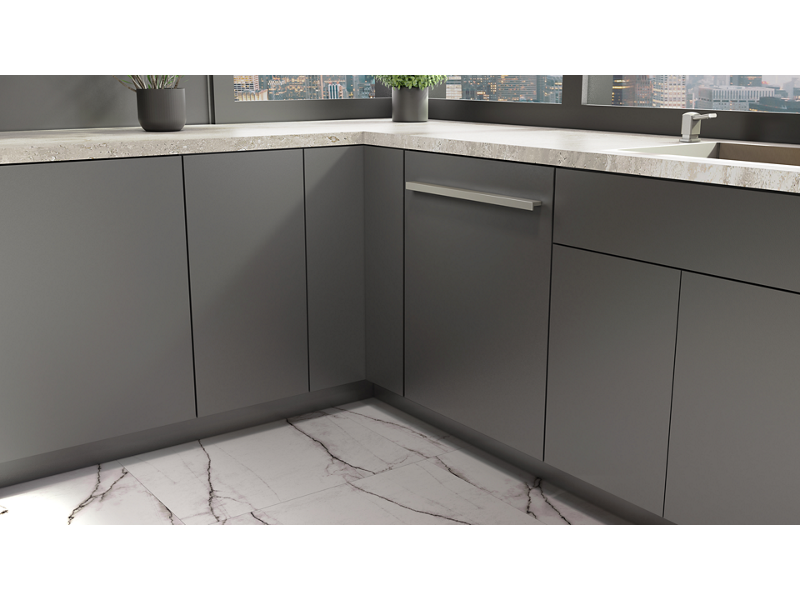

Fully Flush & Integrated Design

Effortlessly integrate with seamless design. This flush to cabinet dishwasher blends into your cabinets for a clean, finished look.

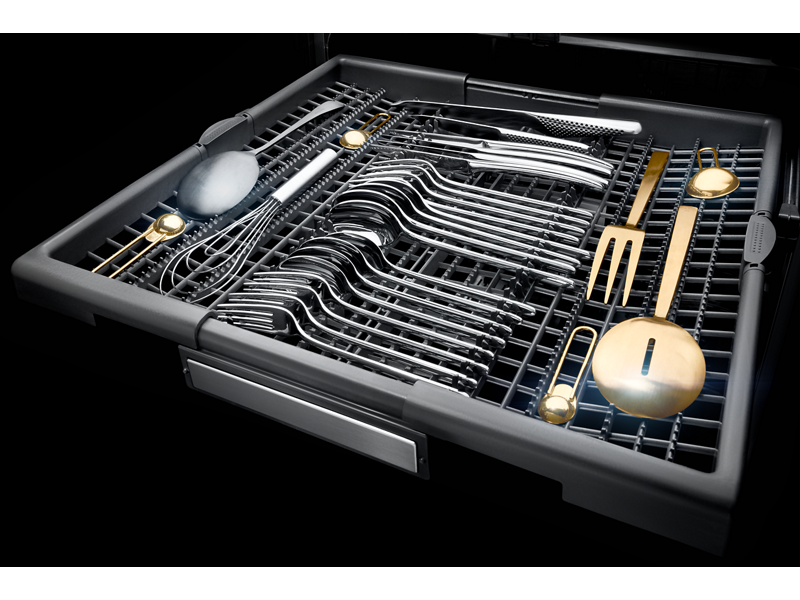

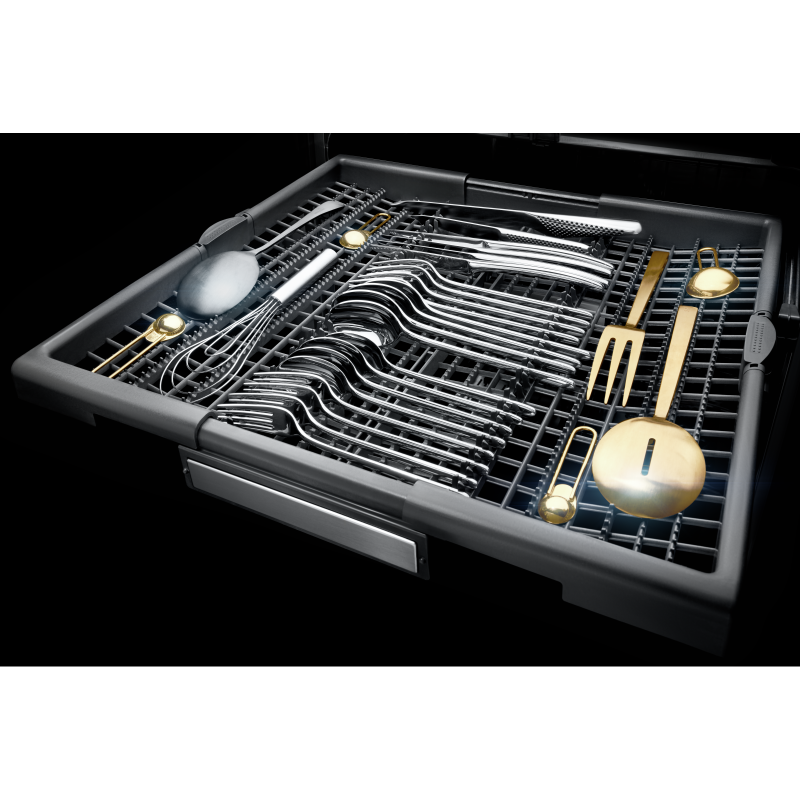

Precise Fit Flexible 3rd Rack for Cutlery

This slim profile, 3rd level rack organizes extra utensils and overflow silverware without sacrificing storage space below.

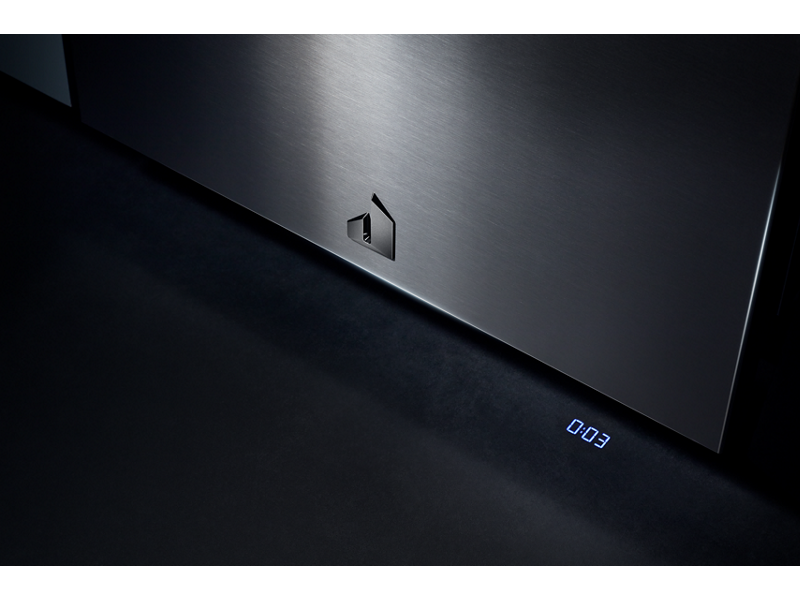

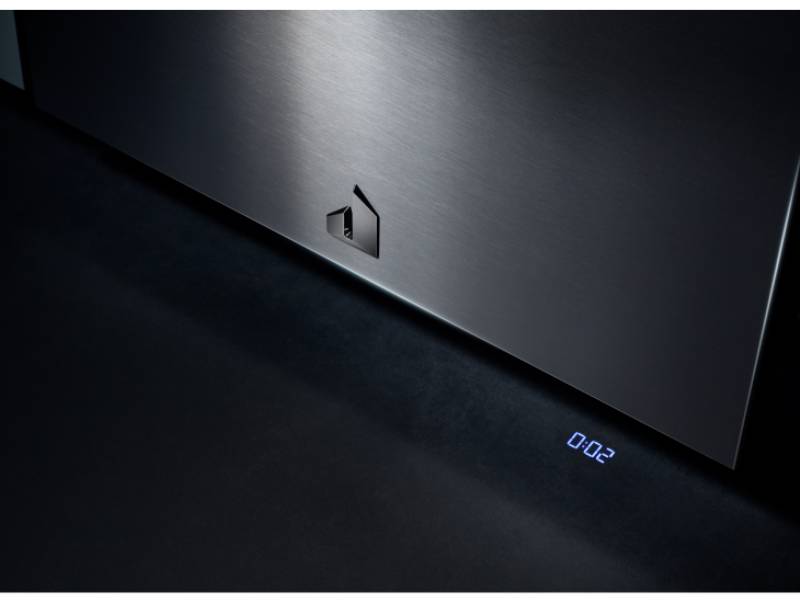

Time on Floor

Never miss an update. The dishwasher keeps you informed by projecting cycle status on the floor.



Door Open Dry

At the end of the cycle, the door automatically opens to vent out hot air.



ADA Compliant

Designed to meet ADA standards when installed according to the ADA guidelines.



Additional Features

Rapid Wash Cycle

This quick wash cycle is ideal for any get-together, diversion or date night in.

Refresh Cycle

Pre-rinse dishes without detergent when you’re not planning to immediately run a full wash load. Or, refresh clean dishes before guests arrive.



1 to 24-Hour Delay Start Option

Postpone the start of your wash cycle in 1-hour increments for up to 24 hours. Start your wash cycle on your terms.

Bottom Rack Wash Option

This selectable option washes dishes on the bottom rack only and can be used with most wash cycles.



Hi-Temp Wash Option

The Hi-Temp Wash Option provides increased water temperature during washing for hard-to-remove soils.

Sanitize Rinse Option

When selected, the final rinse water is heated to 155°F (68.3°C), eliminating 99.999% of food soil bacteria, meeting national requirements for household sanitization.



Extended Dry

This drying option dries dishes and glassware with heated water for optimal drying performance.

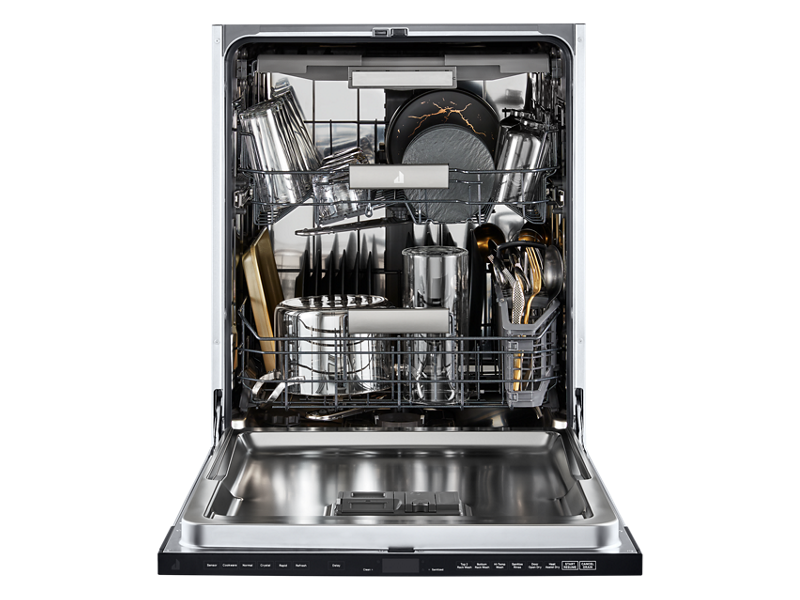

14 Place Setting Capacity

Clean up after every gathering, large or small. With enough capacity for a service of 14, there’s always room for one more.



2 Position Fold-Away™ Tines

Adjustable tines in the middle and lower racks allow space reconfiguration to handle uncommon cookware on special occasions or adapt to the every day.

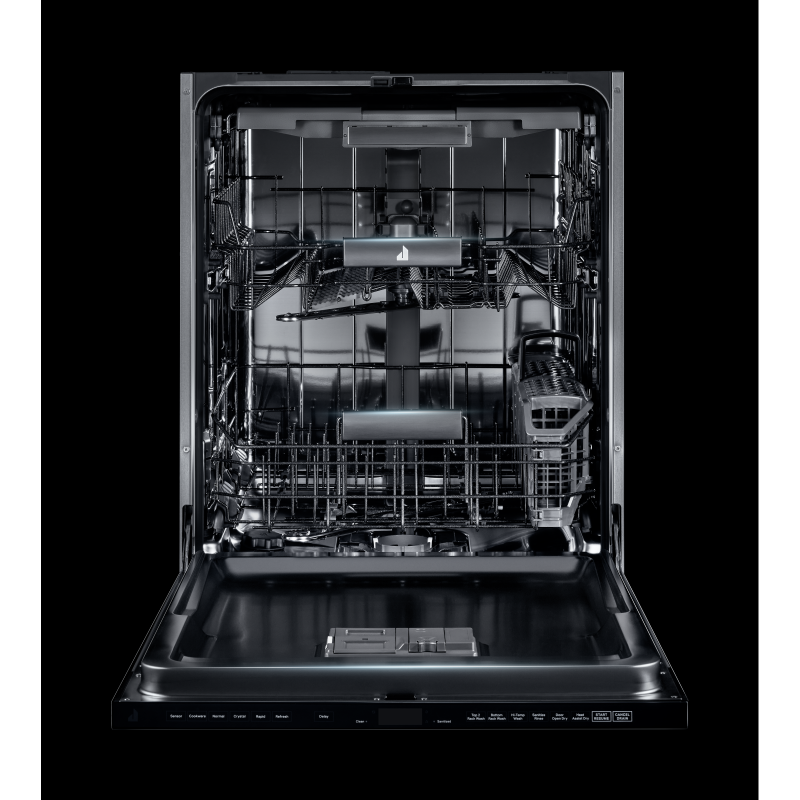

Daring Obsidian Racks

A JennAir® signature, these dramatic black racks are inspired by the beauty of volcanic glass—showcasing clean dishes in striking contrast.



Superior Glide Middle Rack

Strong and stable. The middle rack glides smoothly and quietly, even when fully loaded. Each rail features 52 ball bearings for quiet operation.

3-Stage Filtration

A coarse filter, large filter screen and fine filter cup keep oversized and fine food particles out of the pump and helps prevent them from being recirculated onto dishware.



Emotive Feedback

With emotive exterior indicator lights and distinctive tones, feedback is always intuitive and sensory. All tones, aside from warning tones, may be disabled for an even quieter experience.

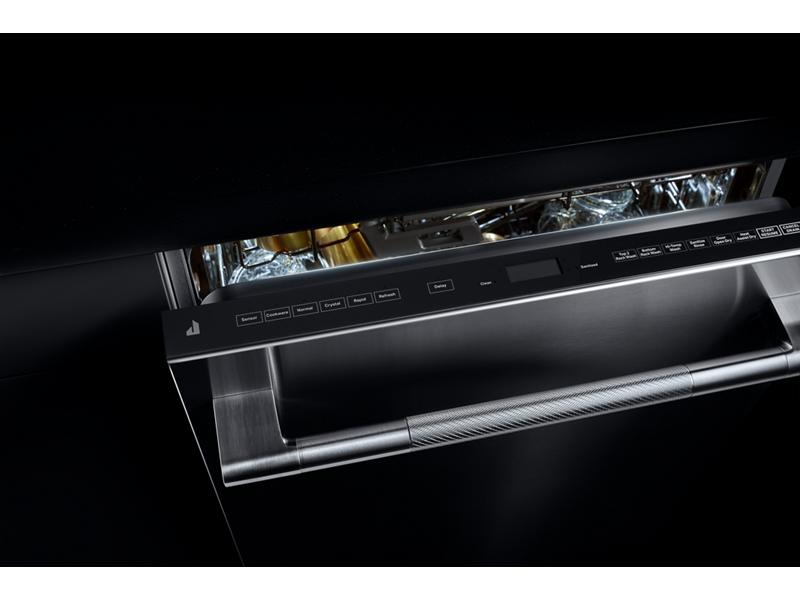

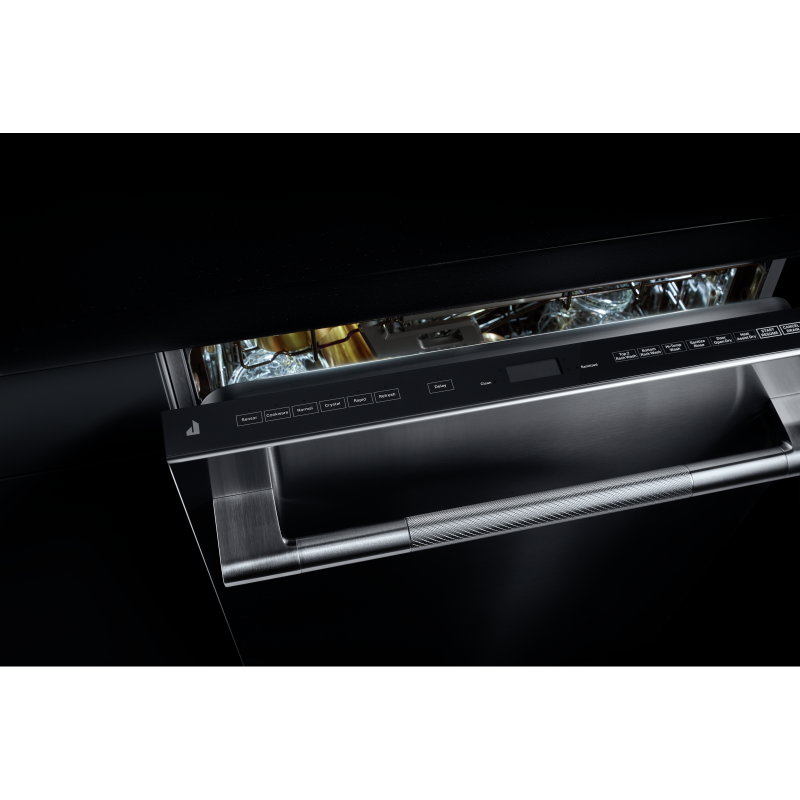

Concealed Controls

Hidden, touch-activated controls sit flush on the door’s top for a seamless expression that blends with your kitchen.



Adjustable Silverware Basket

Remove sections of this basket to create more room on the bottom rack for large pots and pans. Or, add them back in to accommodate a variety of sizes of silverware and hold chopsticks securely.

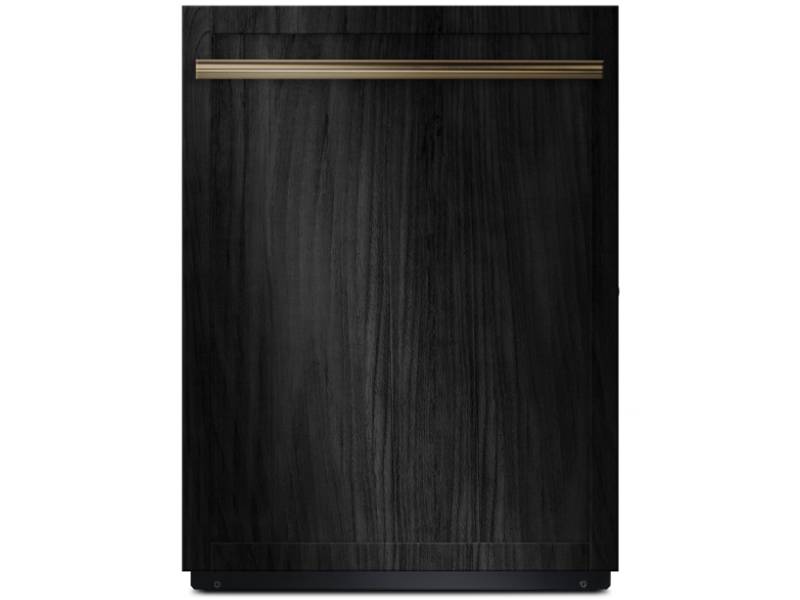

Panel Ready

Break free with custom panel options that can disappear into the background or stand out in an unapologetic style expression. Custom panels and handles must be purchased separately.



ENERGY STAR® Certified

ENERGY STAR® Certified models exceed government standards to help reduce energy use.

Premium Rack Adjusters

Take customization to the next level. Easily raise or lower the middle rack with your thumbs and forefingers.



Cup Shelf with Stemware Holders

A folding nylon-coated wire shelf on the middle rack secures stemware or can serve as a second shelf for cups.

Stainless Steel Spray Arms

Two pressure-optimizing stainless steel wash arms deliver powerful cleaning spray to cookware and dishes, cleaning them effectively.



Stainless Steel Tub

Packed with sturdy stainless steel. Made to handle high heat, the stainless steel materials also resist stains to help keep your dishwasher looking good for years to come.

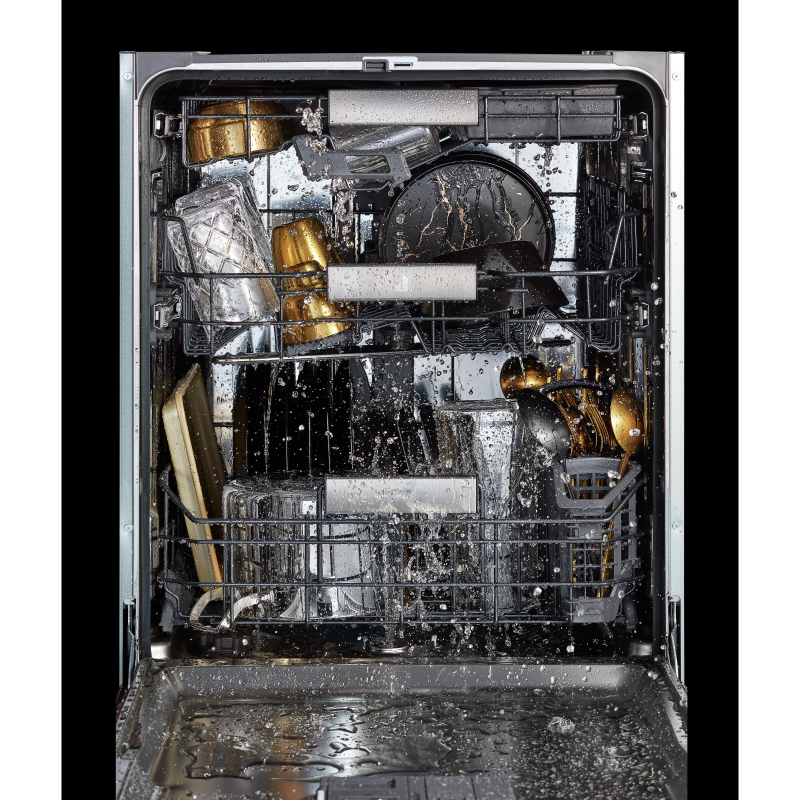

TriFecta™ Wash System

No need to choose between brilliant cleaning, energy efficiency or quiet operation—our dishwashers deliver all three. Three-stage filtration, pressurized wash arms and alternating wash action in four wash zones work together to wash dishes with clean water.



True Hold Door

The door holds true at any angle between fully closed and fully open, making loading and unloading simple.

Waterlock Leak Detection System

Assists in detecting most types of leaks. If a leak is identified, the dishwasher can stop filling, drain the tub and alert you.**Will not detect leaks from the water inlet or tub drain connections and hoses or leaks due to cracked tubs or doors



Experts at the Ready

Our crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you—from sales to installation to ownership.

Serviced by a Select Few

We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.



Overview

Inside, a storm rages as relentless power brings every dish and glass to a state of refined cleanliness. Outside, tranquility, with sleek lines wrapped in high design. With a 3rd rack designed for cutlery and a seamless flush to cabinet design, the quietest luxury dishwasher brand* never sacrifices performance.*Based on Normal Cycle.

Dimensions
Cutout Height32-313/1000 in, 32-313/1000 in
Cutout Width23-5/8 in, 23-5/8 in
Depth21-7/8 in, 21-7/8 in
Depth Closed Excluding Handles21-7/8 in, 22-5/8 in
Depth Closed Including Handles24-5/8 in, 24-5/8 in
Depth Excluding Doors20-3/4 in
Depth With Door Open 90 Degree47-1/4 in, 47-1/4 in
Gross Weight86-1/5 lbs, 86-1/5 lbs
Height32-5/16 in, 32-5/16 in
Width23-9/16 in, 23-9/16 in
Net Weight81-49/50 lbs, 81-49/50 lbs
Cutout Depth22-7/8 in, 22-7/8 in
Details
Built-In Water SoftenerYes, Yes
Decibel Level38
Design ExpressionPanel-Ready, Panel-Ready
Dishwasher Cycle SelectionCookware, Crystal, Normal, Rapid, Refresh, Sensor, Cookware, Crystal, Normal, Refresh, Sensor, Sensor
Dishwasher Option SelectionsBottom Rack Wash, Delay, Door Open Dry, Extended Dry, Hi Temp Wash, Sani Rinse, Top 2 Racks Wash, Bottom Rack Wash, Delay, Door Open Dry, Extended Dry, Hi Temp Wash, Sani Rinse, Top 2 Racks Wash
DispensersDetergent and Rinse Aid, Detergent and Rinse Aid
Dishwasher TypeBuilt-In, Built-In
Drying System TypeOpen Door System, Open Door System
Leak DetectYes
Motor Horsepower9/10 HP
Number of Place Settings14, 14
Number of Racks3, 3
Number of Wash Levels3, 3
Number of Washarms3, 3
Rack MaterialNylon, Nylon
Rinse Aid Dispenser Level IndicatorYes, Yes
SensorYes, Yes
Sound PackageYes, Yes
True Hold DoorYes, Yes
Tub MaterialStainless Steel, Stainless Steel
Tub StyleBuilt-in Tall Tub 24in.
Wash SystemFilter, Filter
Wash System TypeRemovable Filter
Water FiltrationYes, Yes
WindowNo
Certifications
ADA CompliantYes (US Only), Yes (US Only)
CULYes, Yes
Energy Star QualifiedENERGY STAR® Qualified, ENERGY STAR® Qualified
NSF CertifiedYes, Yes
Smart Compatibility
ConnectivityNo, No
Works WithNo, No
Installation Considerations
Hoses IncludedYes, Drain + Inlet Hose, Yes, Drain + Inlet Hose
INTERIOR DETAILS
Interior LightNo, No
Cycles
Number of Wash Cycles6, 6
Rack Details
Culinary BasketYes
Lower Rack Cushion-Tip TinesNo, No
Lower Rack ExtrasCulinary Caddy®, Culinary Caddy®
Lower Rack GlidesBall Bearings
Lower Rack Utility BasketNo
Second Level Rack AdjustableYes, Yes
Second Level Rack Cushion-Tip TinesYes, Yes
Second Level Rack Extras6 Stemware Holders, Stainless Steel Wash Arm, 6 Stemware Holders, Stainless Steel Wash Arm
Second Level Rack Fold-Down Tines1 Row 4 Foldable Tines, 1 Row 6 Position
Second Level Rack GlidesSmooth Glide
Silverware Basket CoversYes
Silverware Basket LocationBottom Rack
Silverware Basket TypeFull Length Splittable
Third Level Rack AdjustableNo, No
Third Level Rack GlidesBall Bearings
Third Level Rack RemovableYes, Yes
Third Level Rack TypeToss and Go, Toss and Go
CONTROLS
Automatic Temperature ControlsYes, Yes
Control LocationTop Hidden, Top Hidden
Control TypeElectronic Touch, Electronic Touch
End of Cycle SignalYes, Yes
Status LightTime on Floor, Time on Floor
Exterior Details
Control Panel ColorBlack
Door StyleFlat, Flat
Magnetic DoorYes, Yes
WindowNo, No
Electrical
Power Cord IncludedNo, No
Silverware Basket Details
Silverware Basket CoversYes
Silverware Basket LocationBottom Rack
