Features

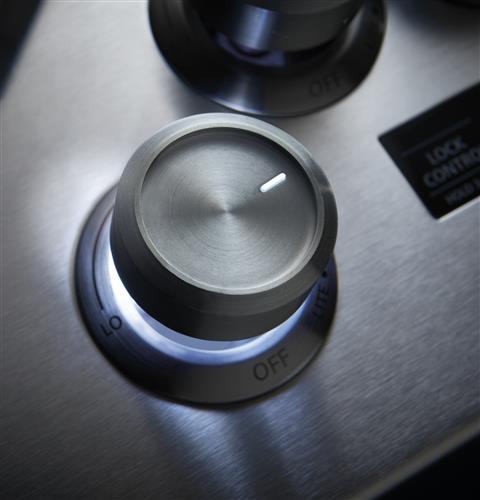

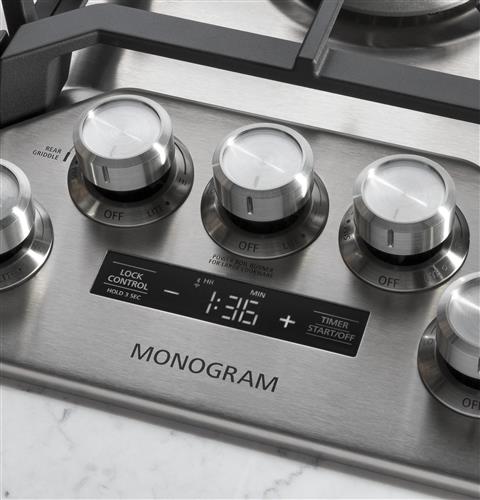

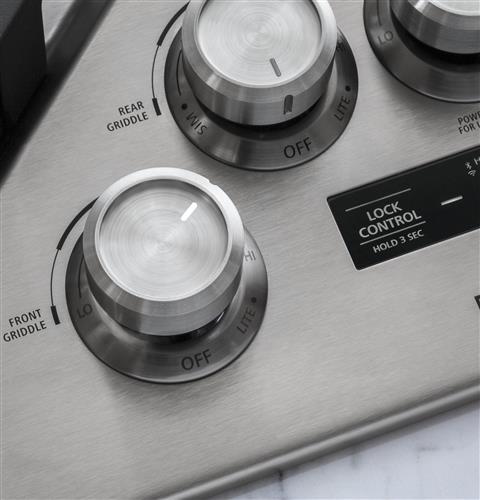

Precision knobs
With embedded sapphire glass illuminate each knob making it easy to view and select heat settings

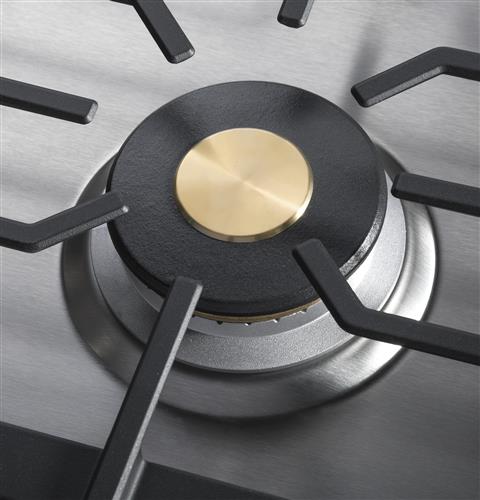

Brass burners accents
For the ultimate in elegant styling

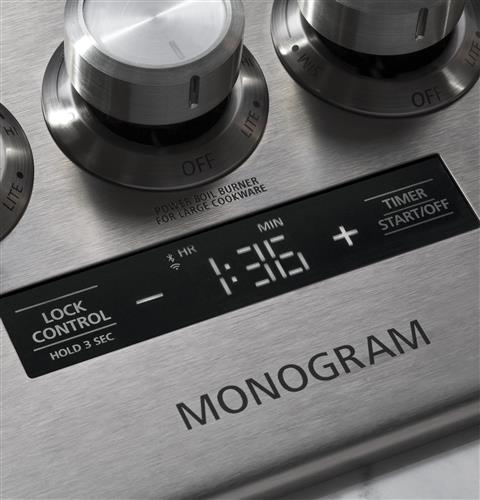

Electronic kitchen timer
Built in to the cooktop for meal preparation
Dual-flame stacked burners
Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning

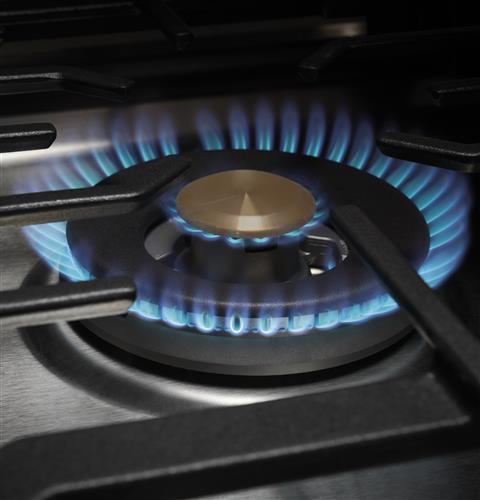

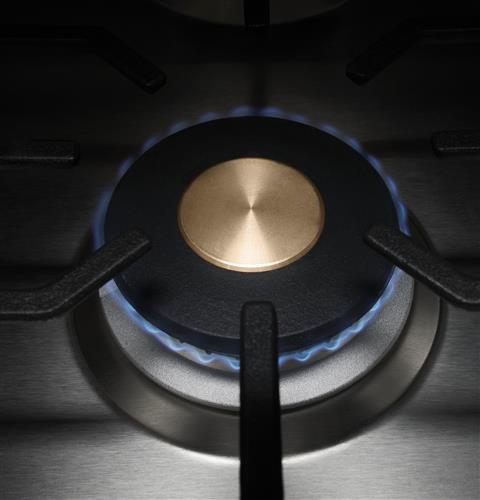

Tri-ring burner
Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and saut ing

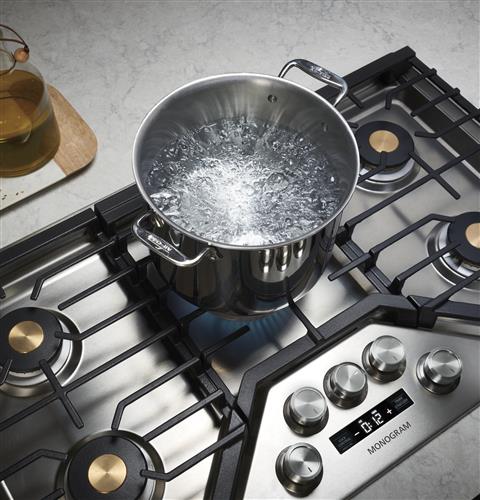

High-output cooking
Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs
Remote connectivity via WiFi
Allows you to wirelessly control gas cooktop functions from your smartphone
Bluetooth connectivity
Bluetooth technology pairs your Monogram gas cooktop and hood for proper cooking ventilation

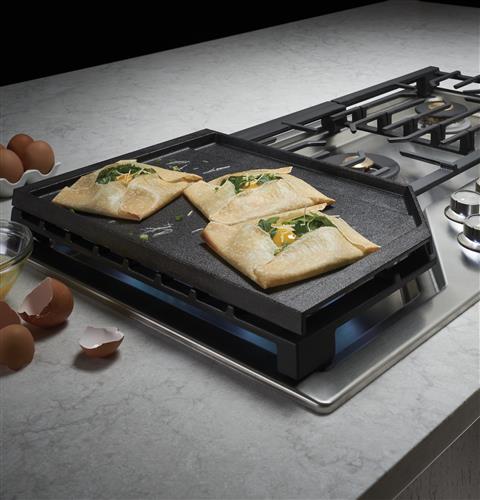

Heavy-duty, cast-iron griddle
Designed to fit the Monogram gas cooktop
| Weights & Dimensions | |
|---|---|
| Net Weight | 59.0 |
| Cutout Dimensions (Width x Depth) (In.) | 33-7/8 x 19-1/8 |
| Cabinet Width | 36.0 |
| Approximate Shipping Weight | 65.0 |
| Overall Depth | 21.0 |
| Overall Height | 3.25 |
| Overall Width | 36.0 |
| Appearance | |
| Installation | Over Advantium Built-In 120V, Over Single Wall Oven (except Single-Double), Over Warming Drawer |
| Control Knobs | Stainless Steel |
| Color Appearance | Stainless Steel |
| Inputs & Outputs | |
| Valves (Degree of Turn) | 270 |
| Heating Technology | Natural Gas (factory set) |
| Cooktop Burner Grate Material | Cast-Iron; Porcelainized |
| Cooktop Burner Grate Features | Continuous Grates |
| Burner Indicator Light | Yes - in Knob |
| WiFi Connect | Built-In |
| Control Location | Front Center |
| Cooktop Control Features | Control Lock Capability, Kitchen timer |
| Control Type | Glass Touch Controls |

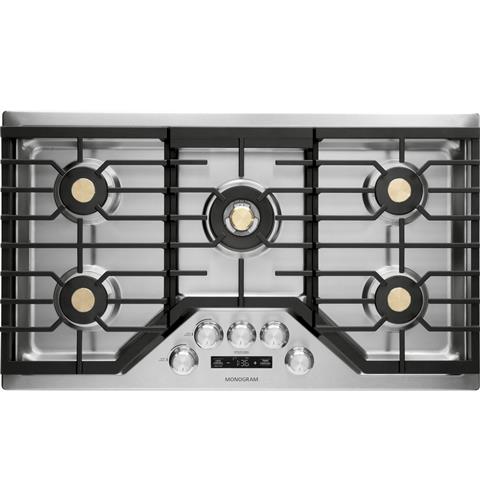

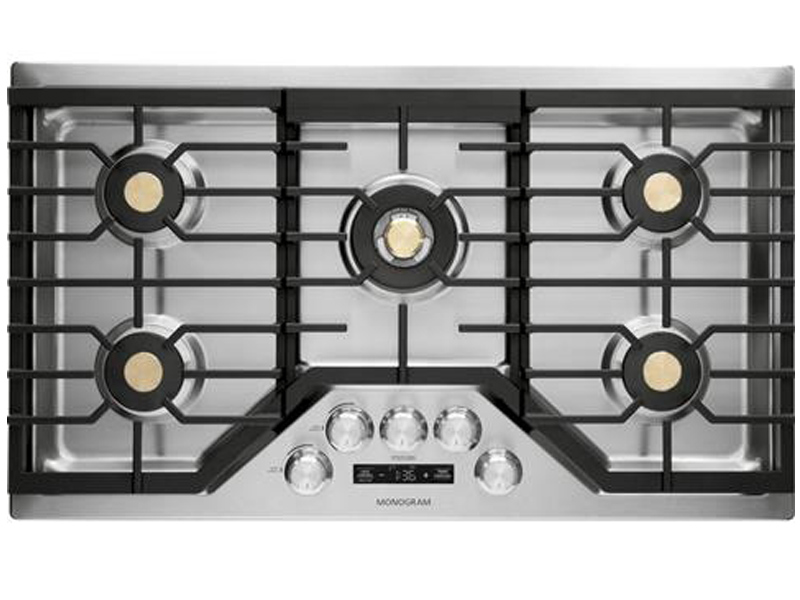

| Configuration | 5 Sealed Cooktop Burners |
| Dual Flame Stacked Burners | 5 |
| 140 Deg. Simmer Burner | 5 |
| Burner - Center | 20,000 BTU Tri-ring (Brass Cap) |
| Burner - Right Rear | 10,000 BTU Dual Brass Center |
| Burner - Right Front | 12,000 BTU Dual Brass Center |
| Burner - Left Rear | 10,000 BTU Dual Brass Center |
| Burner - Left Front | 10,000 BTU Dual Brass Center |
| Automatic Re-Ignition | Yes |
| Ignition System | Direct Electronic Ignition |
| Surface | Stainless Steel |
| Number of Burner | 5 Sealed |
| Power / Ratings | |
| Volts/Hertz/Amps | 120V; 60Hz; 5.0A |
| Accessories | |
| Conversion Kit | Included - Nat. Gas to LP |
| Cooktop Cleaning | Included |
| Griddle | JXGRIDL236 (Included) |
| Warranty | |
| Parts Warranty | Limited 2-year entire appliance |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| FILTER | |
| App Filter - WiFi Connect | Built-In |
