Features
Dual-blower ventilation with 920 CFM
Provides the power necessary to capture the smoke and oily fumes produced by high-performance cooking equipment

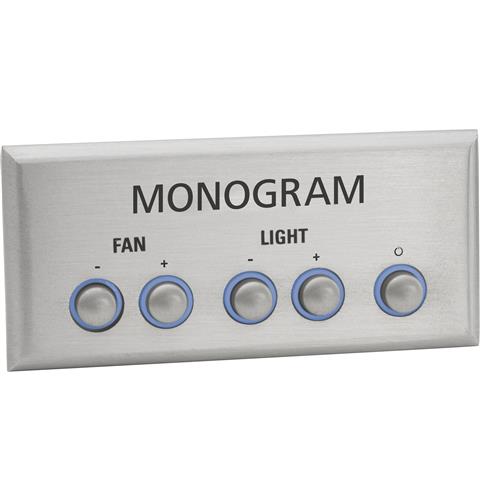

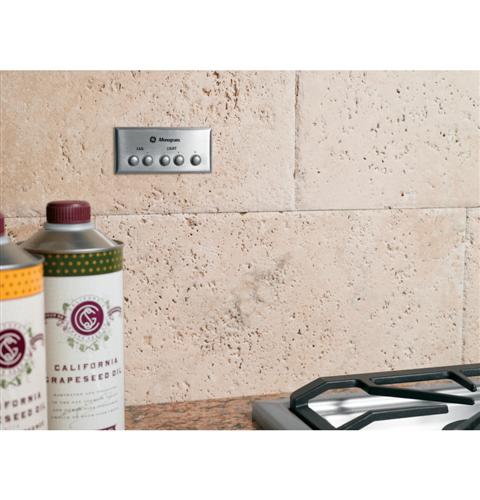

Control panel with remote-mount option
Offers added flexibility for wall or countertop installation

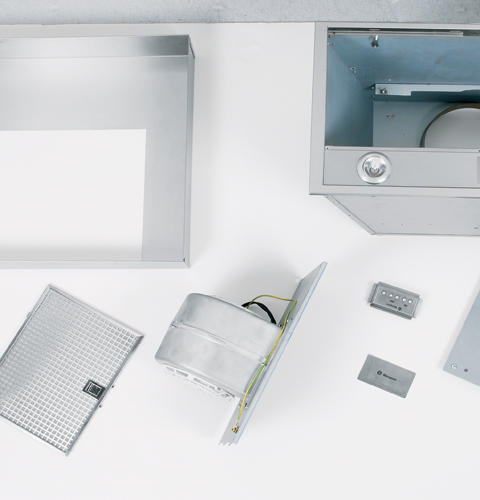

Blower, liner and filters included
No additional components or accessory kits required
Three halogen lights
Illuminate the cooktop surface
| Inputs & Outputs | |
|---|---|
| Blower Levels | 4 |
| Control Type | Electronic, Pushbutton |
| Cooktop Lighting | 3, Halogen |
| Dual Blowers | Yes |
| Exhaust Options | 8" Round Duct |
| Lighting Levels | 4 |
| Recirculating Capable | No |
| Removable Filter | Yes |
| Removable Stainless Steel Filters | 3 |
| Required Duct Size | 8-in. Round |
| Sones Rating : Top Exhaust-Round | 10.5 |
| Variable Speed Fan | Yes |
| Vertical Exhaust Blower Rating (CFM) | 920 |
| Welded / Finished Seams | Yes |
| Indicator Lights | "ON" |
| Appearance | |
| Color Appearance | Stainless Steel |
| Custom Insert | Yes |
| Design Style | Custom Panel |
| Weights & Dimensions | |
| Approximate Shipping Weight | 121.0 |
| Cabinet Width | 48.0 |
| Net Weight | 97.0 |
| Overall Depth | 21.25 |
| Overall Height | 18.0 |
| Overall Width | 46.5 |
| Power / Ratings | |
| Amp Rating at 120V | 10.34 |
| Amps at 110V | 9.50 |
| Warranty | |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
