Features

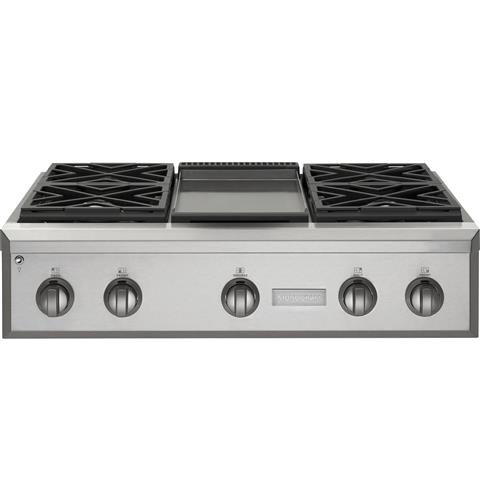

Authentic professional appearance

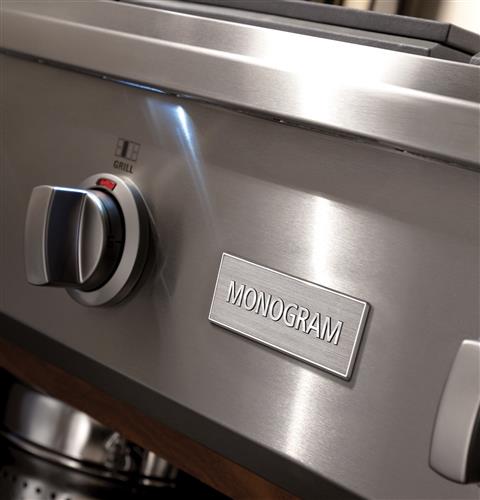

Stainless steel with smoothly finished edges and large electronic control knobs

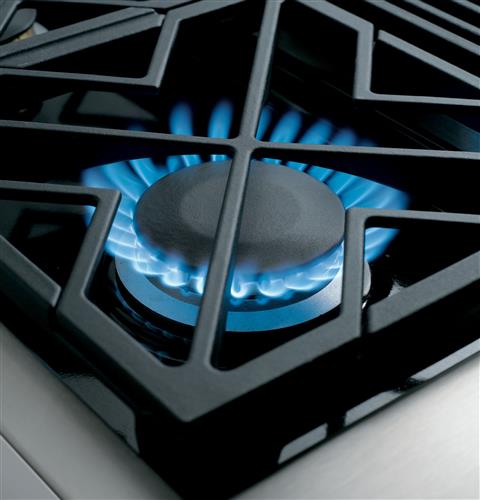

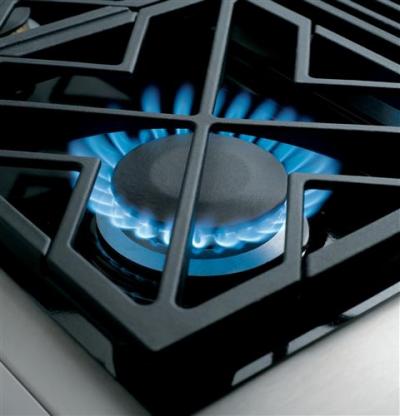

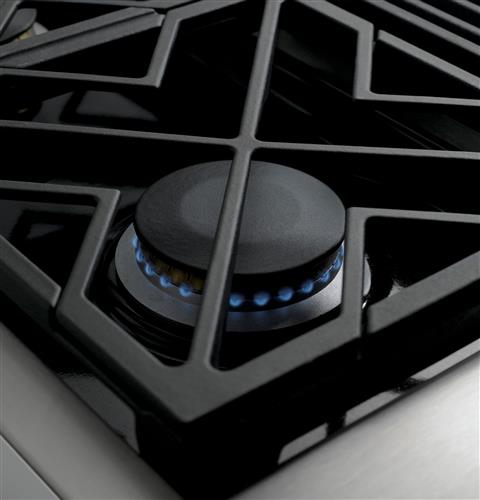

Sealed, dual-flame stacked burners
Deliver a full spectrum of heat settings, from an ultra-low 140
| Inputs & Outputs | |
|---|---|
| Cooktop Burner Type | 4 Sealed, Dual Flame Stacked |
| Ignition System | Electronic |
| Automatic Re-Ignition | Yes |
| 140 Deg. Simmer Burner | All Burners - Adjustable |

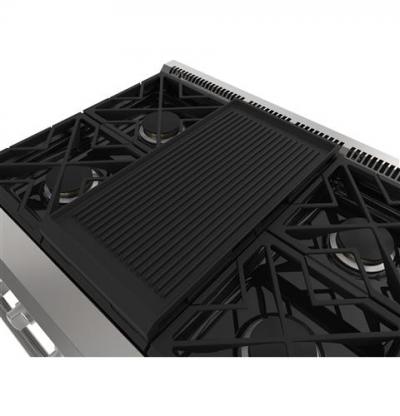

| Configuration | 4 Burners; Griddle |
| Control Location | Upfront |
| Burner Indicator Light | Yes |

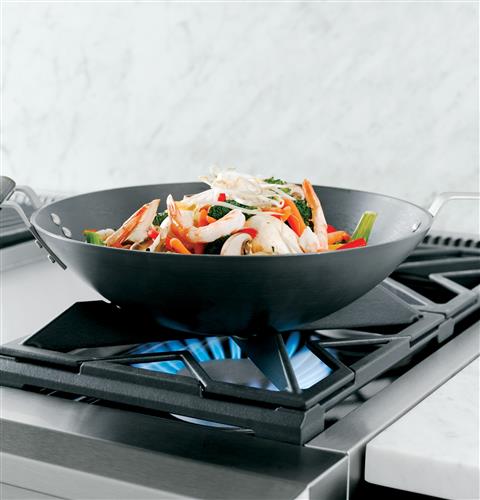

| Cooktop Burner Grate Features | Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Fuel Type | Natural Gas (factory set) |
| Lighting | LED Bullnose Task Lighting |

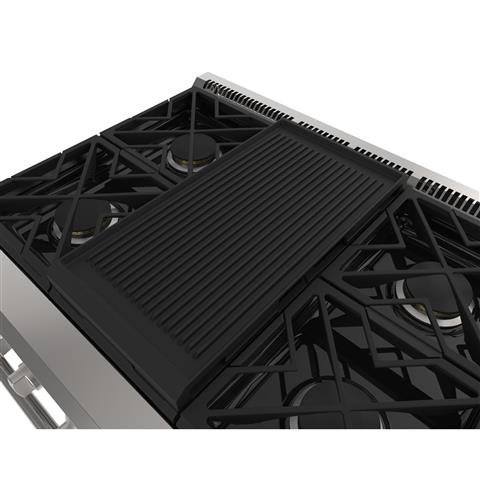

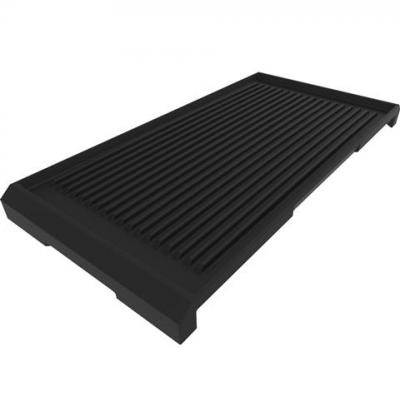

| Stainless Steel Grill / Griddle Covers | 1 |

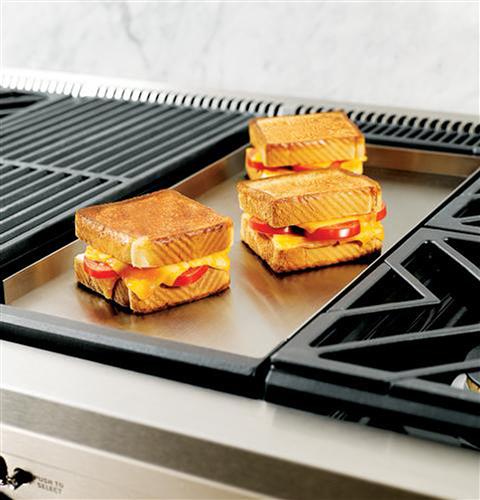

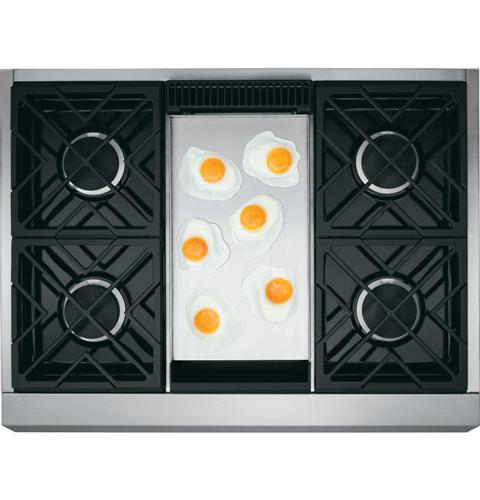

| Griddle | 18,000-BTU, Stainless Steel and Aluminum Clad, Thermostatically Controlled |
| Appearance | |
| Color Appearance | Stainless Steel |
| Control Knobs | Diecast Metallic (Included) |
| Design Style | Professional Stainless Steel |
| Installation | Flush Installation Capable |
| Weights & Dimensions | |
| Approximate Shipping Weight | 163.0 |
| Cabinet Width | 36.0 |
| Net Weight | 135.0 |
| Overall Depth | 27.5 |
| Overall Height | 8.5 |
| Overall Width | 35.875 |
| Power / Ratings | |
| Burner BTU Ratings (000's/BTU) - LP Gas | (4) 15.0; 140 Degree simmer |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (4) 18.0; 140 Degree simmer |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Accessories | |
| Conversion Kit | Included - Nat. Gas to LP |
| Factory-installed island backguard | yes |
| High Altitude Kit | WB28K10553 |
| Optional Backguard | 12" stainless steel backsplash (ZX12B36PSS), 30"-36" adjustable stainless steel backsplash with warming shelf (ZXADJB36PSS) |
| Warranty | |
| Parts Warranty | Limited 2-year entire appliance, Limited 5-year gas surface burners |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
