Features
1.9 cu. ft capacity
"On" indicator light
Infinite setting temperature control
75 Degrees to 230 Degrees
Variable humidity control
Crisp to moist

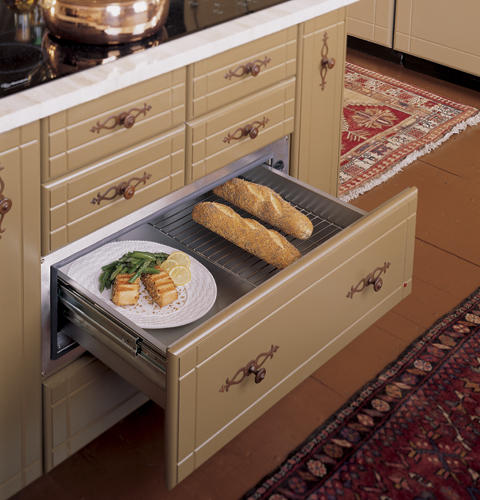

Removable half rack
Accepts 3/4" trimless custom panel and custom handle with trim kit

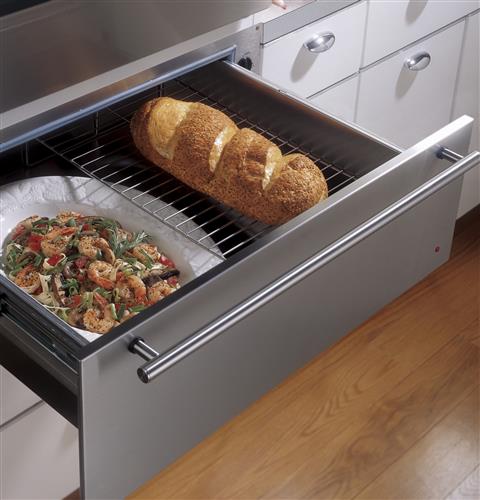

Full extension drawer on ball bearing glides

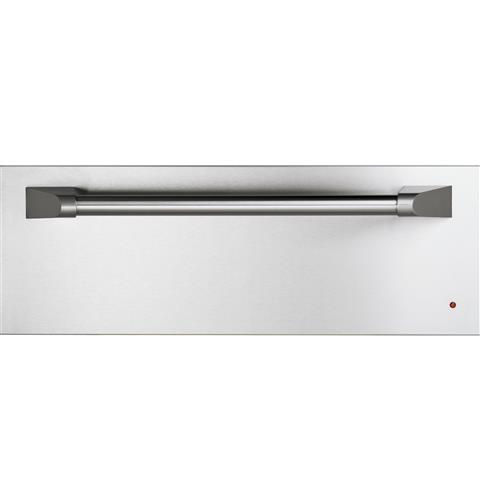

Accepts optional professional panel kit
Variable installation options
On/Off rocker switch
| Capacity | |
|---|---|
| Total Capacity (cubic feet) | 1.9 |
| Inputs & Outputs | |
| Full Extension Ball Bearing Glides | Yes |
| Half Rack | Yes |
| Power Cord Length | 4' 8" |
| Receptacle Type | 3-Prong Grounding |
| Variable Humidity Control | Crisp - Moist |
| Variable Temperature Control | Proof(80)/Low(140)/Med(170)/High(210) |
| Control Type | On/Off Rocker Switch |
| Indicator Lights | "ON" |
| Custom Panel Ready | 3/4-Inch Overlay Panels |
| Appearance | |

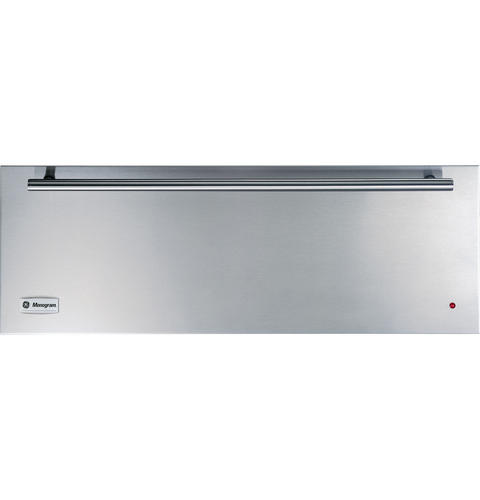

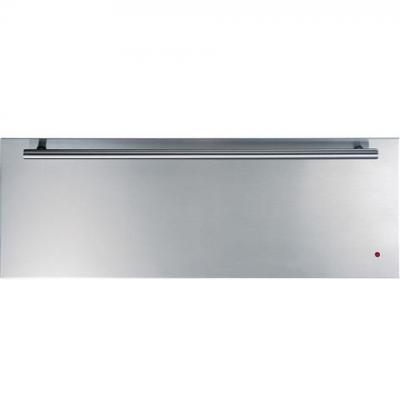

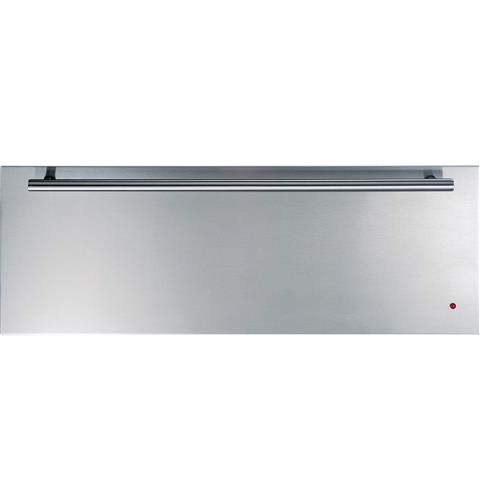

| Color Appearance | Stainless Steel |
| Handle | Tubular |

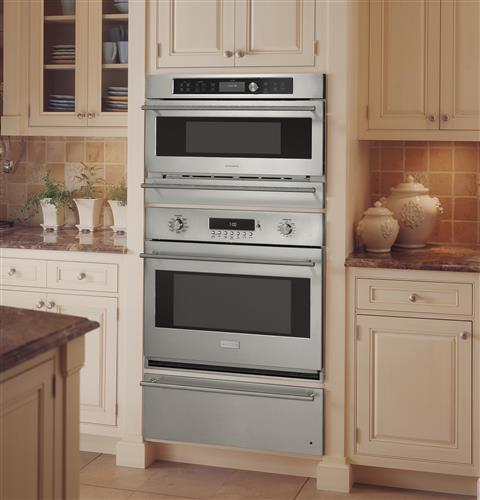

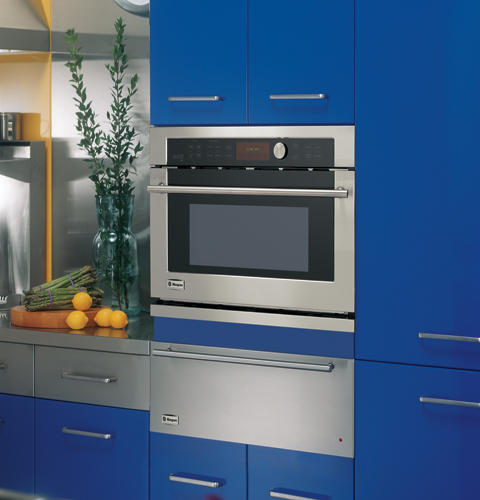

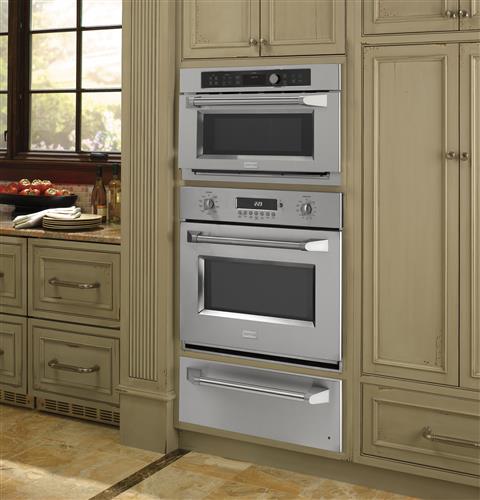

| Installation | Under Cooktop, Under Wall Oven |
| Panel Capability | ZXD30B Custom Panel Kit, ZXD9030P Professional Panel Kit |
| Weights & Dimensions | |
| Approximate Shipping Weight | 65.0 |
| Cabinet Width | 30.0 |
| Cutout Dimensions (w x h x d) (in.) | 28-1/2 x 9-1/4 x 23-1/2 |
| Interior Dimensions (w x h x d) (in.) | 23-7/8 x 6-1/4 x 22-1/16 |
| Net Weight | 59.0 |
| Overall Depth | 23.25 |
| Overall Height | 10.5 |
| Overall Width | 30.0 |
| Power / Ratings | |
| Heating Element Wattage | 450W |
| Volts/Hertz/Amps | 120V/60Hz/15Amps |
| Warranty | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
