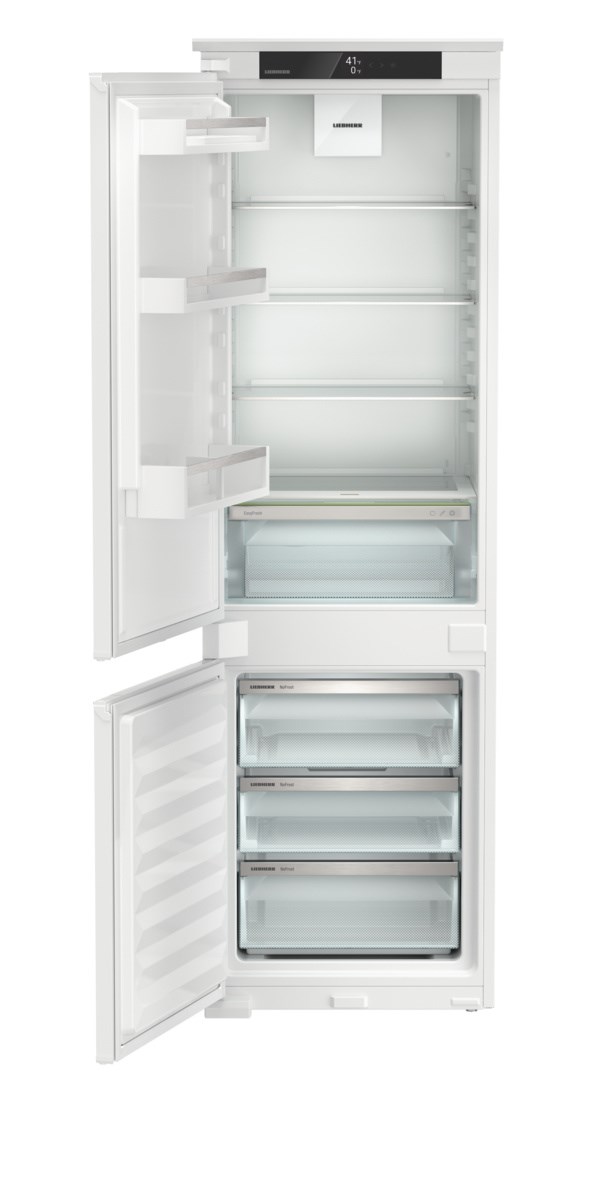

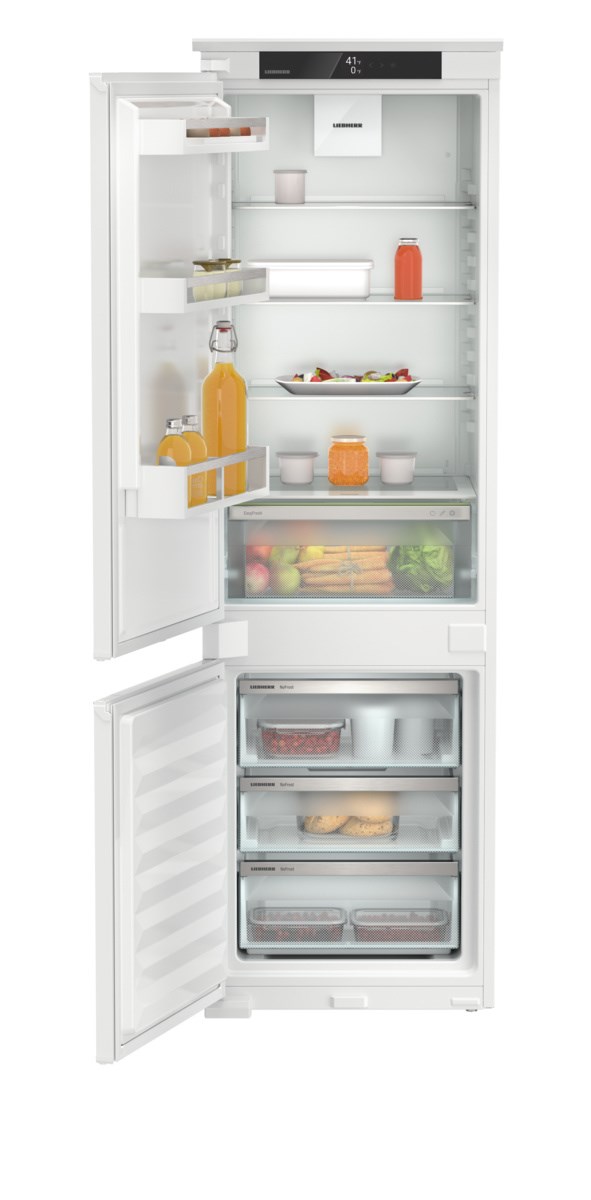

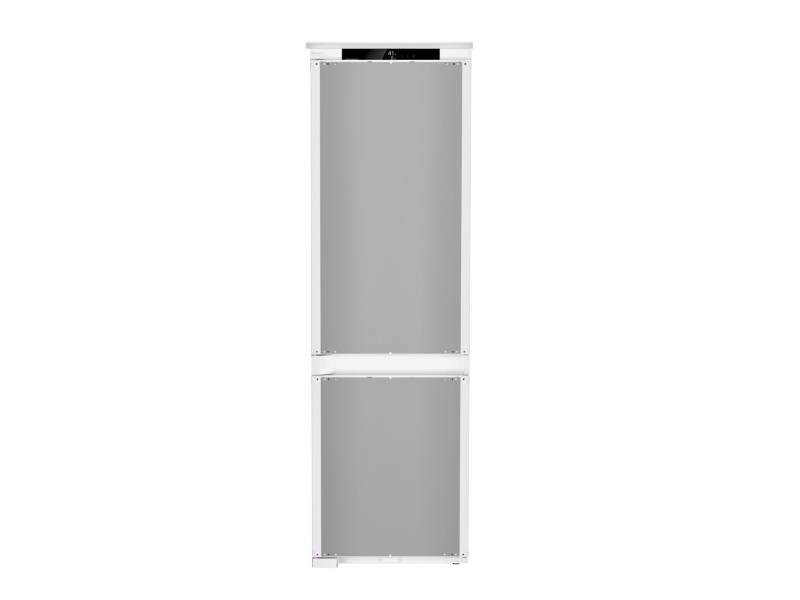

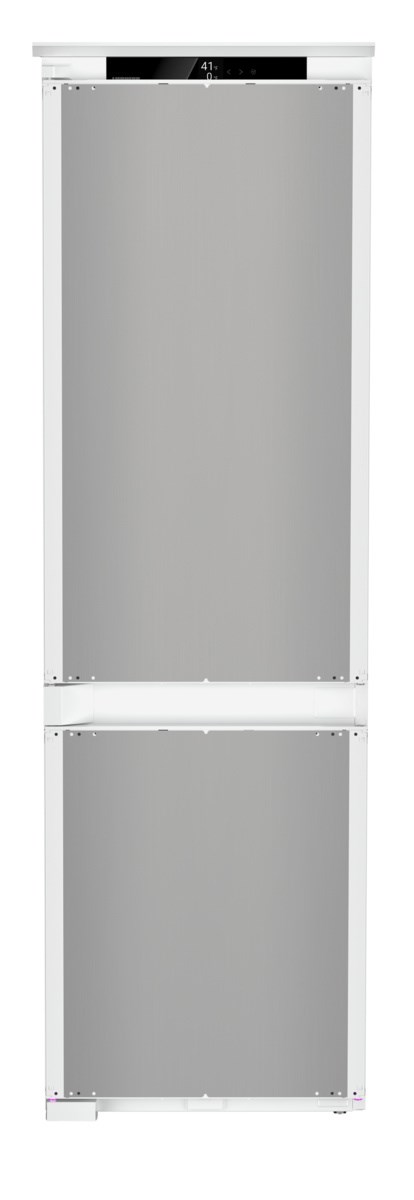

22" Liebherr Integrated 8.9 Cu. Ft. Fridge-Freezer with EasyFresh and NoFrost - ICS5101
![](/img/brandlogo/brand_logo_31.png)
Features
![](/desc_images/5202/ICS5101_0.jpg)
German Engineering
Our superior products offer premium quality, cutting edge design and innovative features that fit with your busy lifestyle. Plus, exclusive components and materials along with the latest production processes ensure energy efficiency and performance for years to come.
![](/desc_images/5202/ICS5101_1.jpg)

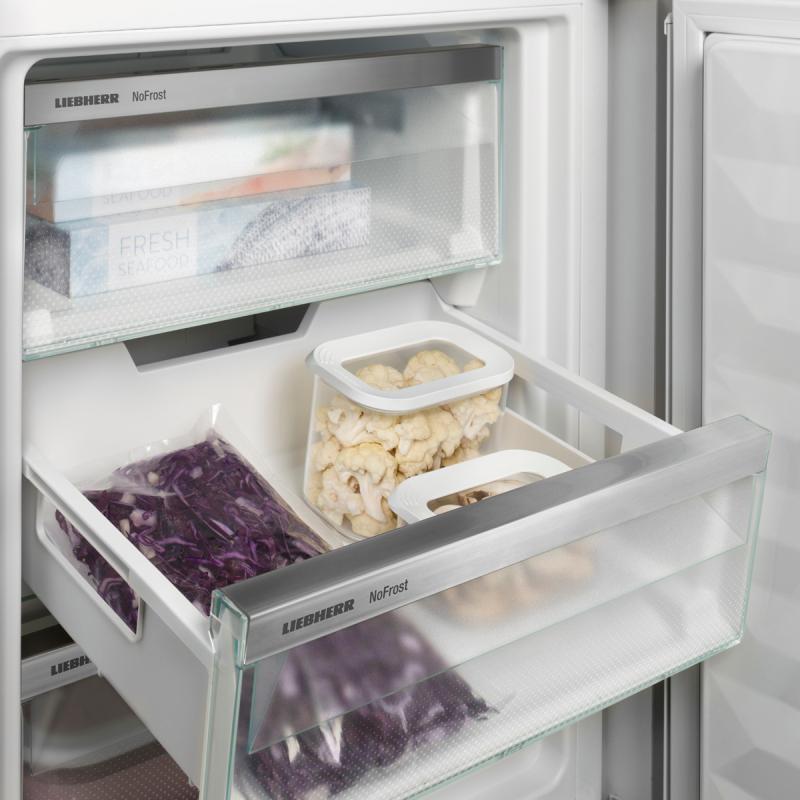

NoFrost
When you open your freezer, you want to see frozen food – and certainly not ice and frost. NoFrost protects the freezer compartment from unwanted icing, which consumes a lot of energy and can be expensive. NoFrost means no more tedious and time-consuming defrosting of the freezer compartment, more time for other things – and saving money.
![](/desc_images/5202/ICS5101_2.jpg)

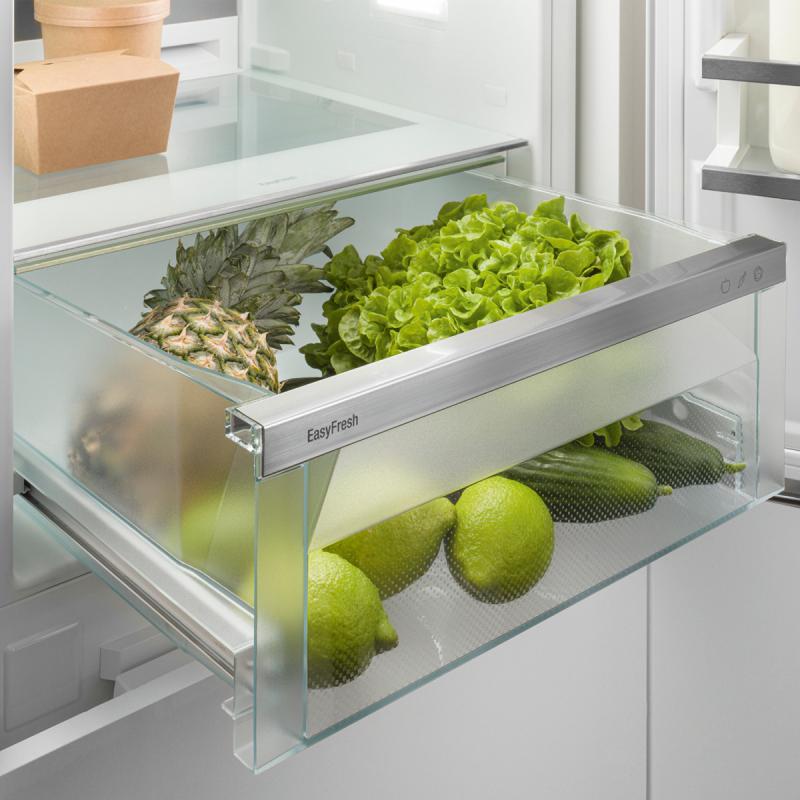

EasyFresh
The guarantee of market freshness in the home is our EasyFresh-Safe. Whether it’s unpackaged vegetables or fruit, this ensures optimal storage for everything. Thanks to the air-tight closure, the food causes the humidity in the safe to rise. This keeps the food fresh for a long time.
![](/desc_images/5202/ICS5101_3.jpg)

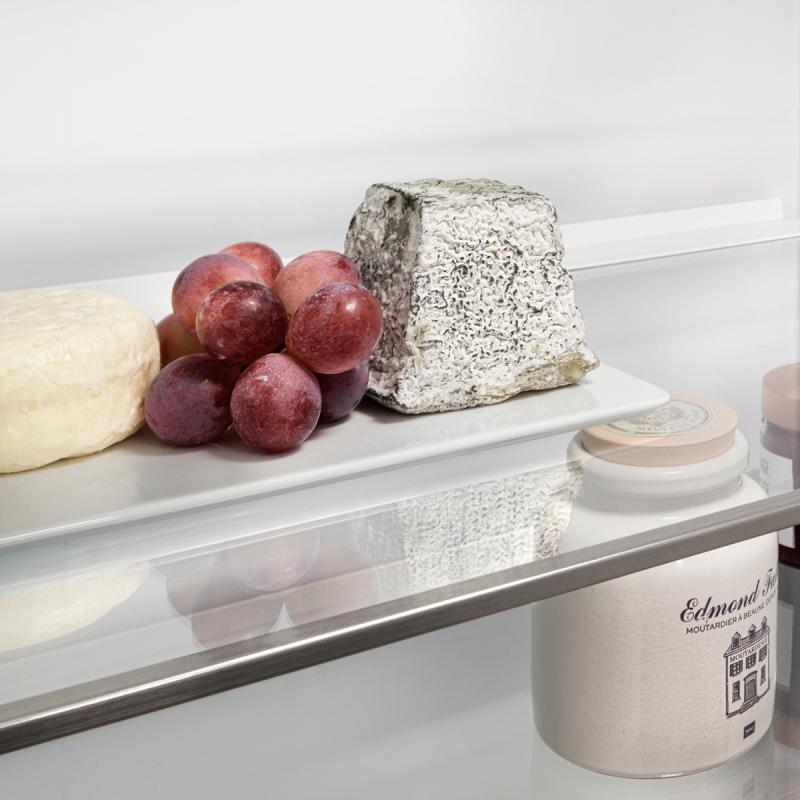

DuoCooling
DuoCooling uses two completely separate refrigeration circuits to ensure no air is exchanged between the fridge and freezer compartments. The food neither dries out nor is odour transferred. This means throwing less away, shopping less often, but saving more and greater enjoyment.
![](/desc_images/5202/ICS5101_4.jpg)

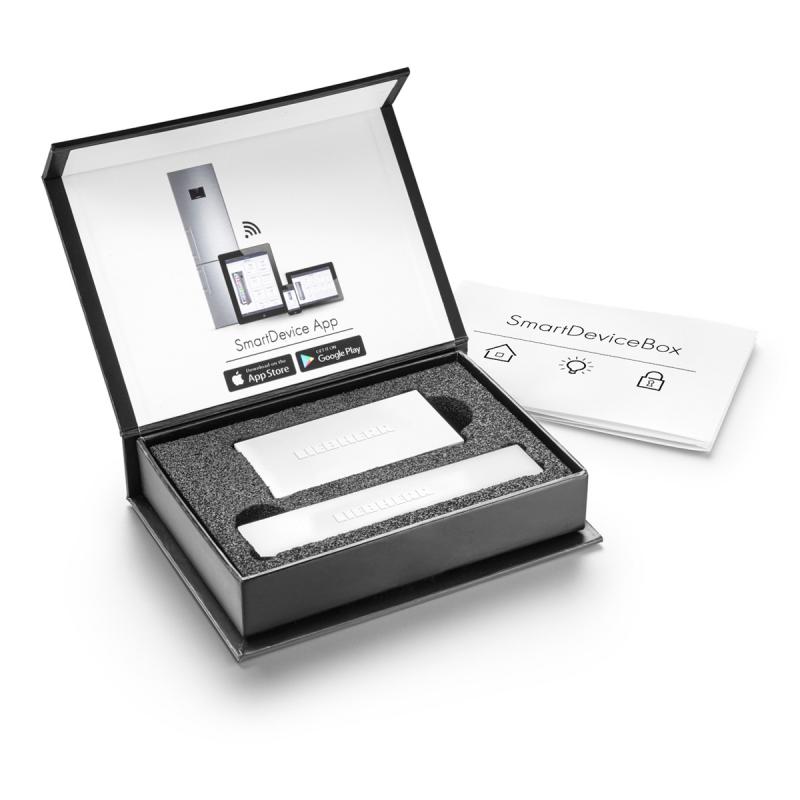

Retrofitable SmartDeviceBox
Want to be prepared for the future of the Smart Home? Your Liebherr will be happy to help. You can retrofit it with a SmartDeviceBox which will connect your Liebherr to the Internet. The SmartDeviceBox can be installed in just a few steps and will open up the whole world of digital possibilities to you today.
![](/desc_images/5202/ICS5101_5.jpg)

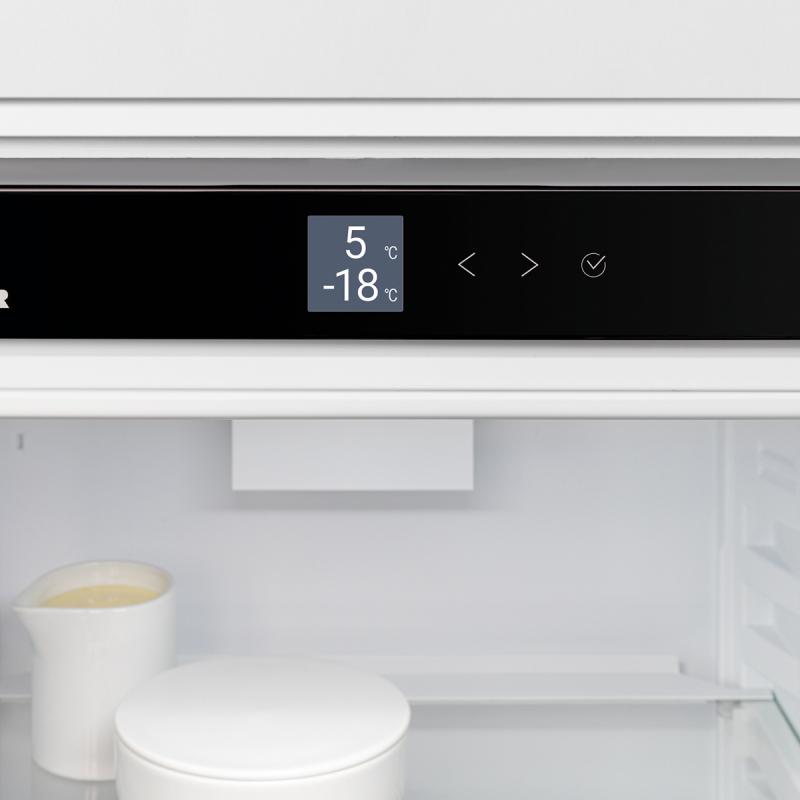

Touch display
Fingertip control: the touch display enables easy and intuitive operation of your Liebherr. All functions are clearly arranged on the display. By gently tapping a finger, for example, you can easily select the functions or check the current temperature of your refrigerator.
![](/desc_images/5202/ICS5101_6.jpg)

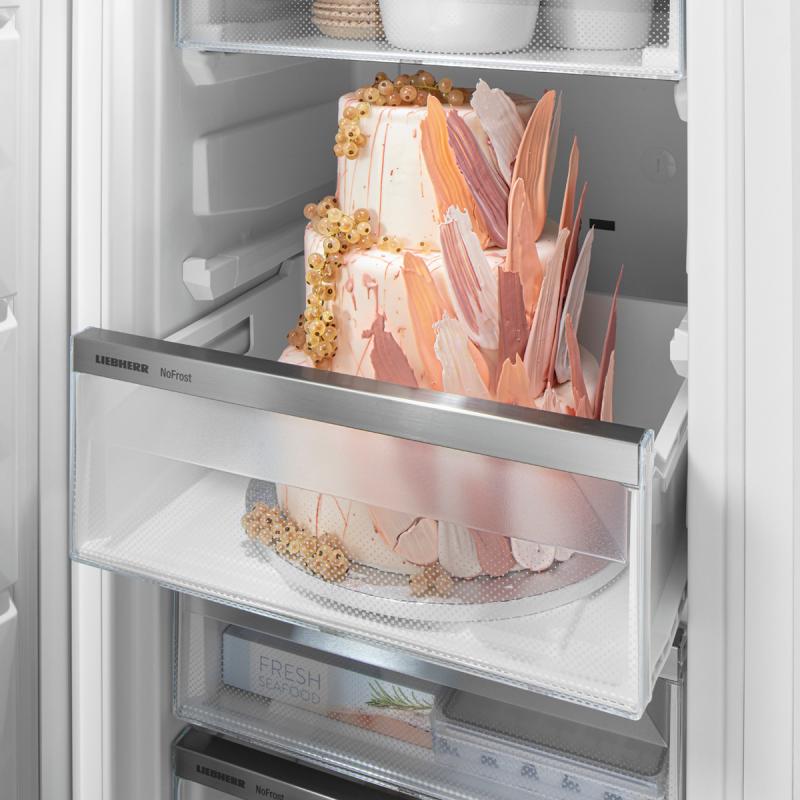

VarioSpace
Want to store a multi-layer ice cream cake safely until the summer party? No problem for your Liebherr freezer: Sometimes you just need more space and it’s prepared for just that. With VarioSpace you can remove individual freezer drawers and the horizontal glass dividers (only for appliances of the Peak series) below them, and hey presto, you have an extra large storage space.
![](/desc_images/5202/ICS5101_7.jpg)

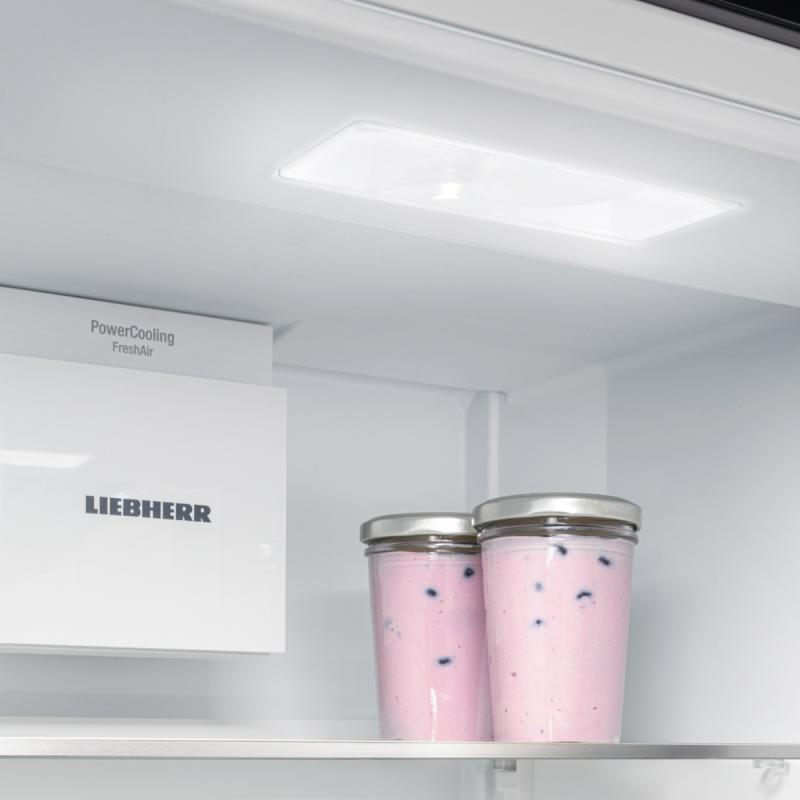

SuperSilent
Shhh – listen carefully. Your Liebherr is so quiet that you have to strain your ears to hear it. How is this achieved? All refrigeration components such as compressors, valves, fans and evaporators are optimised and perfectly adapted to one another. This means you only hear what you want to hear in your kitchen.
![](/desc_images/5202/ICS5101_8.jpg)
LED ceiling lighting
The LED ceiling lighting illuminates the interior from above – providing a good overview of your food. Another highlight: the LEDs are positioned in front of the glass shelves so that even a full refrigerator is well lit.
![](/desc_images/5202/ICS5101_9.jpg)

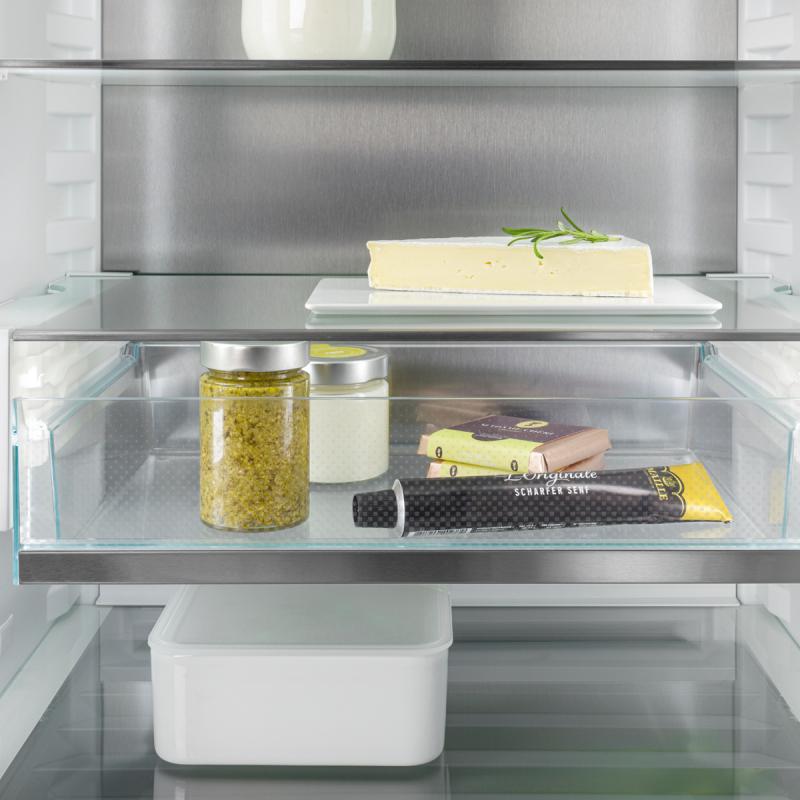

VarioSafe
Do you want a clearly arranged place for small food items such as yoghurt pots, jam jars or tubes? Your Liebherr provides this with the VarioSafe. It not only creates order, but is also highly adaptable. Simply place the two-stage height-adjustable VarioSafe in the refrigerator where it suits you best.
![](/desc_images/5202/ICS5101_10.jpg)

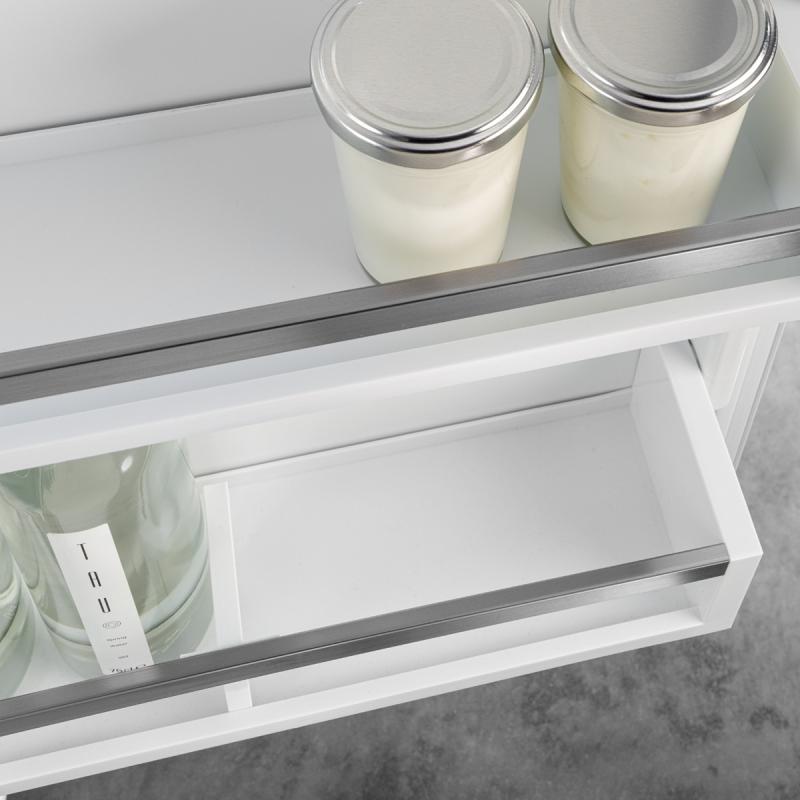

Door shelf
Do you want a safe storage area for your drinks or food? And do you still want to reach them easily? Our door shelves offer you both. They are height-adjustable and therefore meet all your requirements. The sliding and removable bottle holder is also convenient. This holds your bottles securely at all times.
![](/desc_images/5202/ICS5101_11.jpg)

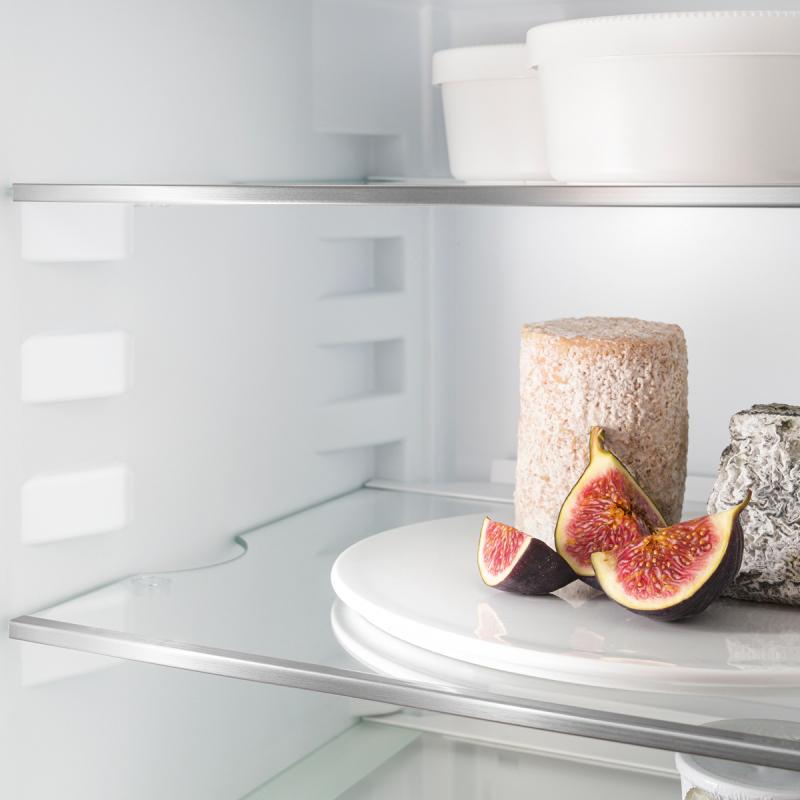

Convenient height adjustment for glass shelves
Do you need a large container to go in the fridge? If so, simply adjust the heights at which you insert the glass shelves. The convenient height adjustment means this can be done quickly and individually – even with food stored on the shelves.
![](/desc_images/5202/ICS5101_12.jpg)

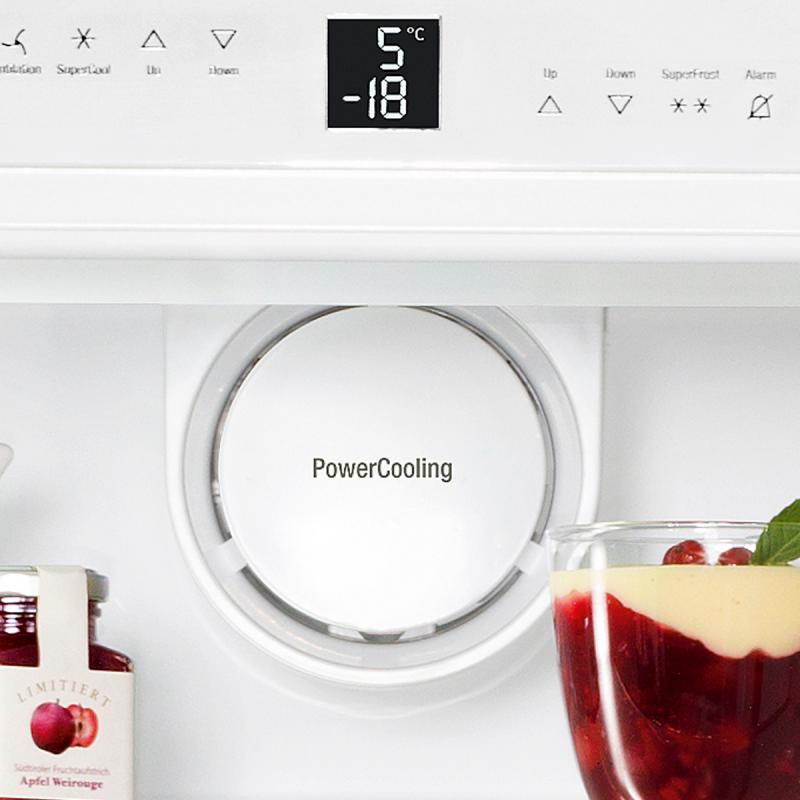

Separate temperature control
Every food item has its optimum temperature – whether frozen or chilled. Your fridge-freezer combination therefore has separate refrigeration circuits. This allows you to control the temperatures in the fridge and freezer compartments independently of each other. Choose exactly the right temperature for your food in every situation. Very simple and reliable.
![](/desc_images/5202/ICS5101_13.jpg)

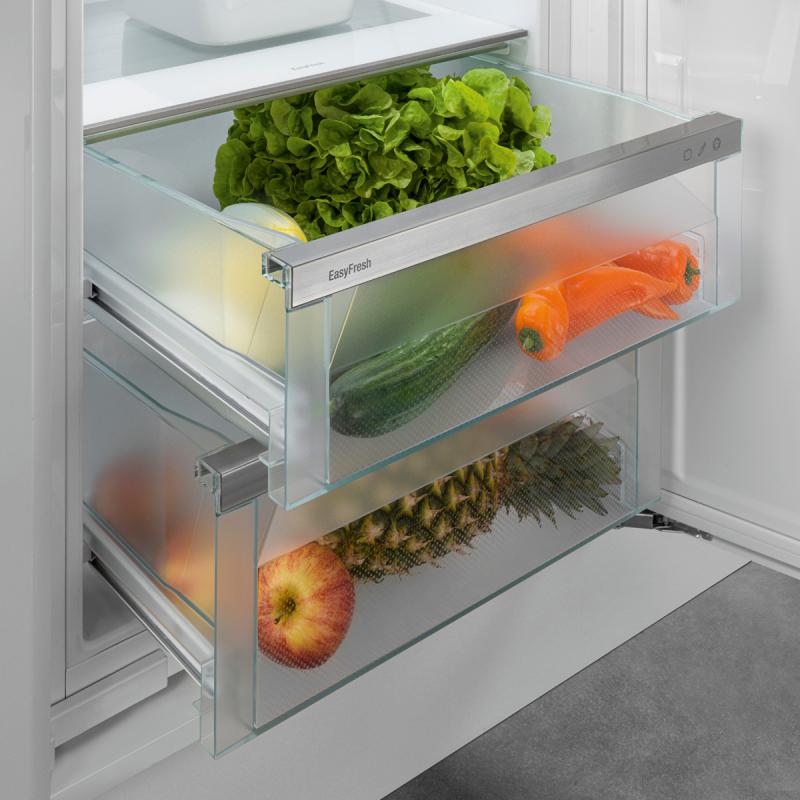

EasyFresh with integrated drawer runner
The integrated drawer slides with pull-out stop mean your EasyFresh safe can be opened and closed really easily. A further plus in terms of convenience: the running rails close the safe reliably. This means your chilled food is always stored under optimum conditions.
![](/desc_images/5202/ICS5101_14.jpg)
PartyMode
Now you're ready for the guests to come – because your Liebherr is also in a party mood. PartyMode activates functions such as SuperCool and SuperFrost. After 24 hours, your Liebherr automatically returns to its normal mode.
![](/desc_images/5202/ICS5101_15.jpg)

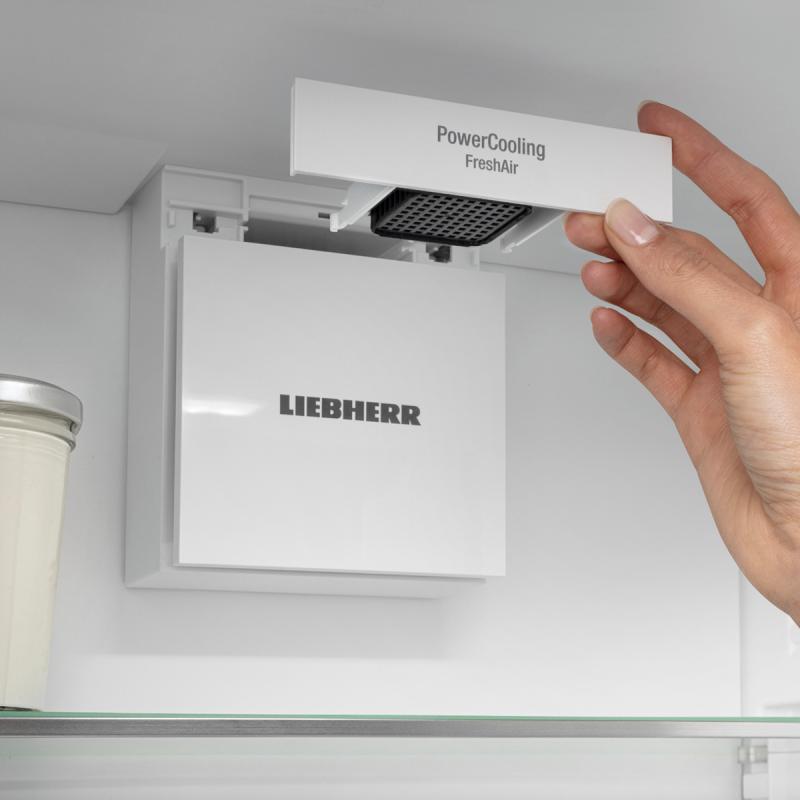

FreshAir activated charcoal filter
The smell of some foods is sometimes less pleasant. However, this is no problem for your Liebherr. Thanks to FreshAir activated carbon filters, there is always fresh air in the interior. The filter is located right on the air flow in the fan housing and neutralises odours as far as possible. The display reminds you to change the filter.
![](/desc_images/5202/ICS5101_16.jpg)

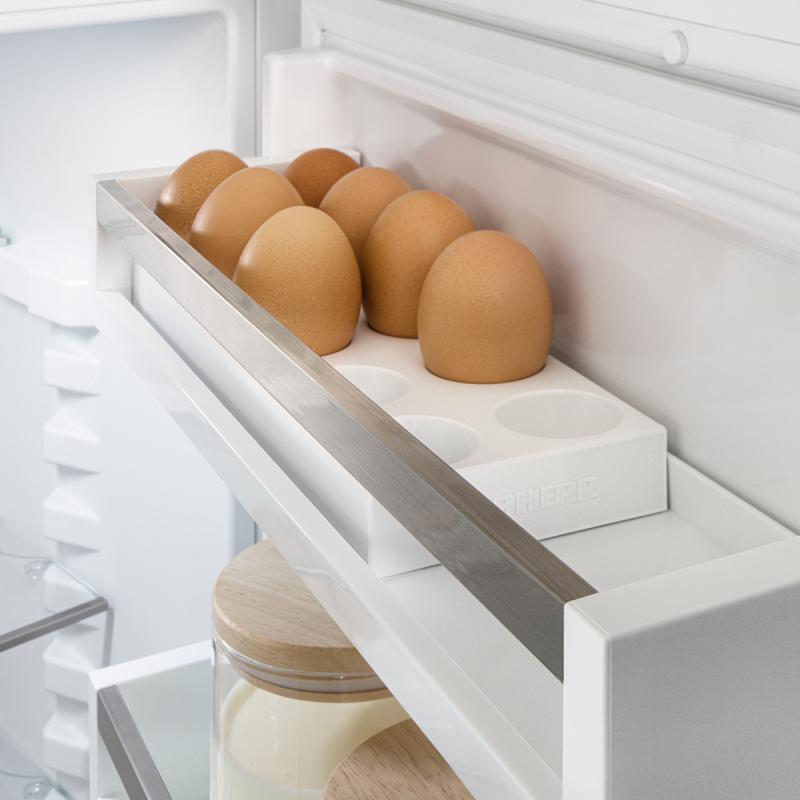

Egg tray
Do you want to store eggs in your refrigerator safely and without a box? This is no problem with the egg tray. This will store up to 10 chicken eggs, keeping them stable and protected, and well cooled. The tray fits both in the inside door and on the glass shelves.
![](/desc_images/5202/ICS5101_17.jpg)

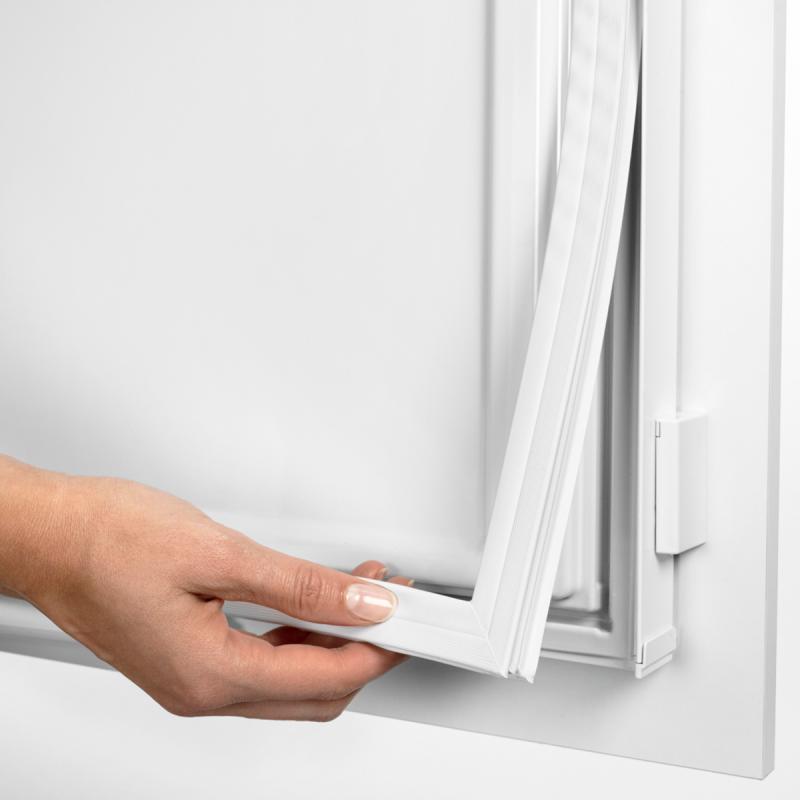

Replaceable door seal
Do you think the door seal on your Liebherr needs to be replaced after a few years? This is very easy to do yourself. The replaceable door seal can be removed in a few simple steps – and the new seal is just as easy to insert. As a result, this part of the refrigerator is always spotless and hygienically clean.
![](/desc_images/5202/ICS5101_18.jpg)

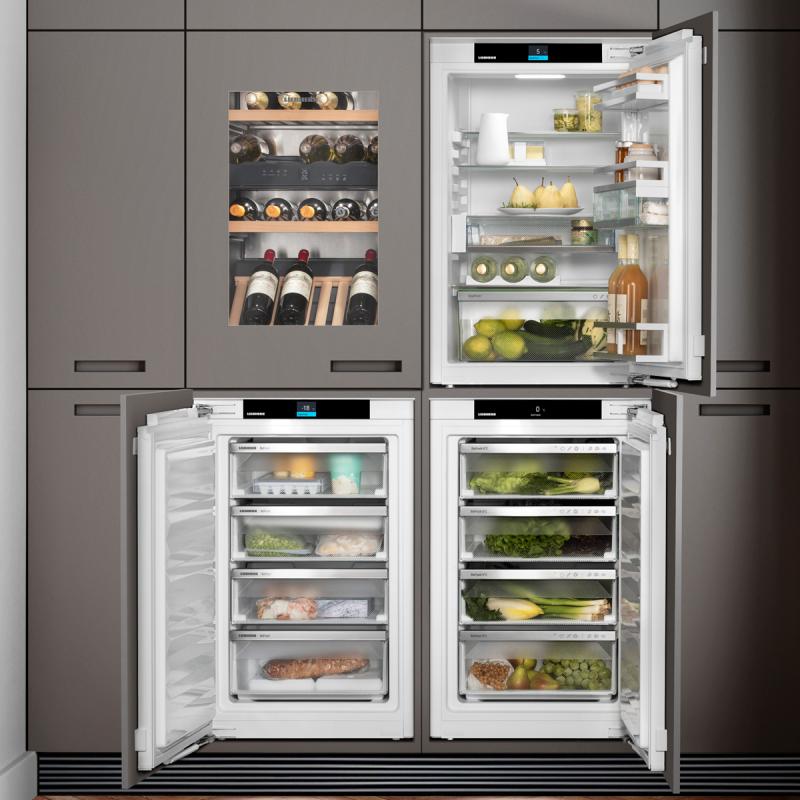

Side-by-side concept
Whether they’re next to or on top of one another, you can position your modular Liebherr appliances however you want. Create your own personal freshness centre from a combination of fridge, freezer, wine storage cabinets or full-space BioFresh. Typical Liebherr quality: A special technology in the ceiling and the side walls prevents condensation between the appliances – keeping the furniture fully protected.
![](/desc_images/5202/ICS5101_19.jpg)
Dishwasher-safe features
The features of your Liebherr are practical in two ways: Not only do they simplify everyday use, they are also very easy to clean. Does the butter dish, FlexSystem or ice cube tray need to be cleaned? Just put them in the dishwasher. Then you’ll have more time for other things.
Specifications | |
---|---|
of which BioFresh | 0.0cubic feet |
Gross volume of the fridge compartment | 0.0cubic feet |
Total gross volume | 0.0cubic feet |
Weight (with packaging) | 174.2pounds |
Weight (without packaging) | 145.50pounds |
Dimensions packed hwd in inches | 72 1/16 | 21 7/8 | 24 1/2inch |
Exterior dimensions height/width/depth | 7|-|-inch |
Range of appliance width | 22 1/16 - 22 1/2inch |
Min. depth | 21 11/16inch |
Aperture height | 69 13/16 - 70 7/16 inch |
of which cellar-temperature compartment | 0.0cubic feet |
Gross volume of the freezer compartment | 0.0cubic feet |
Filter by Category | Bottom Mount Refrigerator |
Set-up and installation | |
Plug type | USA |
Ventilation | Ventilation grates |
Levelling bars | - |
Door opening angle | 115° |
Door seal | Replaceable |
Door hinge replacement | Possible for customer |
Door assembly | Sliding door |
Design and materials | |
Material adjustable shelves freezer compartment | Glass |
Inner door décor | - |
Storage shelf material, refrigerator compartment | Glass |
Freezer compartment | |
IceTower | - |
Ice cube tray | - |
Icemaker | No |
IceMaker safe lighting | - |
4-star freezer compartment | - |
VarioSpace | Yes |
Interior light | - |
Drawer pull-out system, freezer compartment | Drawer on safety glass |
FrostSafe | Drawers closed on all sides with transparent front |
No. of drawers in freezer compartment | 3 |
Freezing capacity in 24 h in pounds | 0.0pounds |
Freezer compartment position | Bottom |
Defrost | automatic |
Adjustable temperature range | +5 °F to -15 °F |
Cooling technology | NoFrost |
Refrigerator compartment | |
Height-adjustable inner door shelf | Gradual adjustment |
Storage rack | Bottle and can rack |
Bottle rack | 1 |
Number of can racks | 2 |
Bottle storage | - |
of which height-adjustable | 3 |
Interior light | LED ceiling lighting |
Number of storage shelves | 4 |
Pull-out system drawer, refrigerator compartment | Integrated drawer guide |
Defrost | automatic |
FreshAir filter | in valve |
Refrigerator compartment climate zones | EasyFresh |
Moisture regulation | DuoCooling |
Control and functions | |
Position of control unit | behind the door |
Display lock | Adjustable on appliance |
IceCubeTimer | - |
NightMode | Adjustable on app |
Door alarm | - |
BottleTimer | Adjustable on app |
Door alarm, cooling | Adjustable on appliance and via app |
Door alarm, freezing | Adjustable on appliance and via app |
SuperFrost | Adjustable on appliance and via app |
SuperCool | Adjustable on appliance and via app |
Front frame heating | Freezer compartment |
Number of regulated refrigeration circuits | 2 |
Number of temperature zones | 2 |
Control unit | Touch |
Control | Monochrome LC display , touch display |
Output and consumption | |
Connection rating | 3.0 A 183 W |
Voltage | 115 V ~ |
Frequency | 60 Hz |
Humidity range | - |
Climate class | SN-T |
Energy consumption per year | 300kWh/a |
Energy consumption in 24h | 0.821kWh / 24h |
General product information | |
Series | Pure |
GTIN | 4016803086277 |
Model type | Integrated fridge-freezer with EasyFresh and NoFrost |
