ADA Compliant with Low-Profile Installation
Great for 34" counter top heights and raised subfloors
Autosense Cycle
A beam of light measures soil levels and water temperature to adjust to the ideal cycle time
Piranha hard food disposer with removable filter
To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms
Sanitize option (NSF Certified)
High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes
3-Level Wash
Expect exceptionally clean table-ready dishes with powerful wash arms
dBA 47
Warranty | |
---|---|
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
WEIGHTS DIMENSIONS | |
Overall Depth | 22 1/2 in |
Overall Width | 17 3/4 in |
Height w/Legs Extended - Maximum Height | 34 5/8 in |
Overall Height | 32 1/2 in |
Height w/ Legs Retracted - Minimum Height | 32 1/2 in |
Approximate Shipping Weight | 83 lb |
Net Weight | 71 lb |
Cabinet Width | 18 in |
Power / Ratings | |
Calrod Heater Watts | 1100 |
Electrical Requirements | 120V ; 60 Hz ; 8.9 A |
Economical / Quiet | |
Door Insulation | Insulation,Mastic |
Outer Wrap | U-Blanket |
Quiet Features | Sealed Toe Kick,Tub Collar Trim |
Motor Type | Single Speed |
Quiet Package | 47 dBA |
Appearance | |
Handle Color | Color-Matched |
Handle Design | Recessed |
Handle | Pocket Handle |
Colour | Stainless Steel |

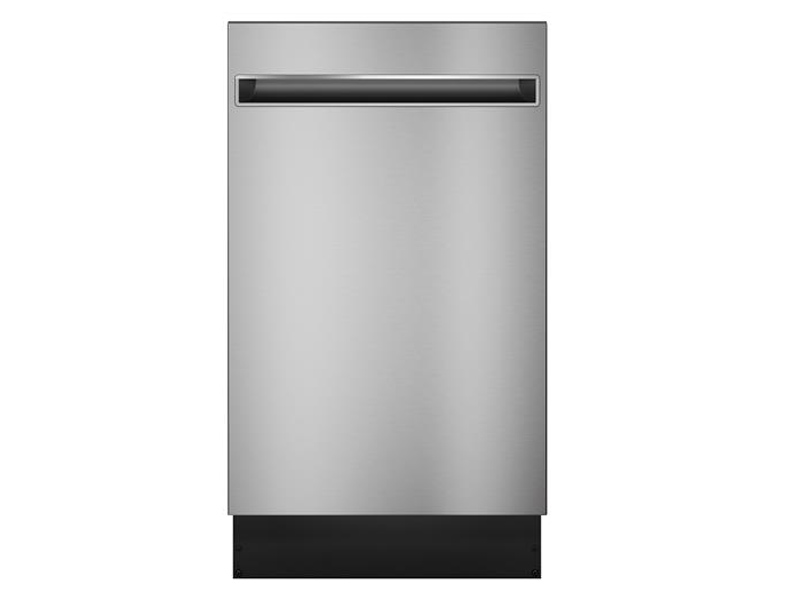

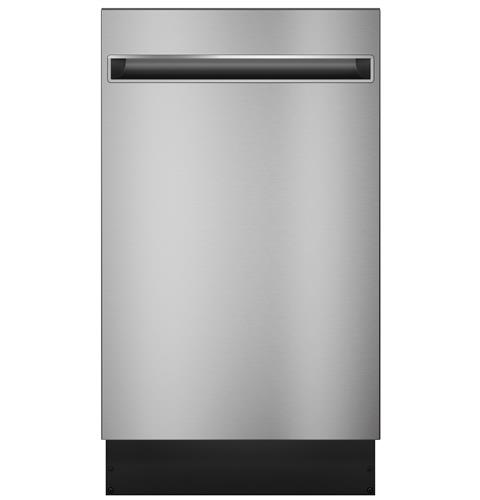

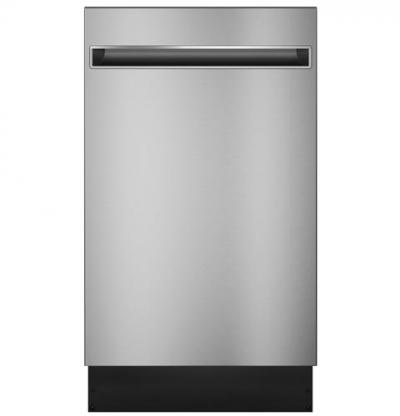

Door Style | Stainless Full-Length Flat Door |
Inputs & Outputs | |
Connected Capabilities | Amazon Alexa,IFTTT,The Google Assistant |
Exterior Style | 18" Wide |
WiFi Connect | Optional (Requires part no. PBX10W00Y0) |
Leveling System | Leveling Legs |
Latch | Center Pull |
Lower Rack | 1 Rack handle,Nylon |
Dishwasher Drying Features | Condensate Dry |
Upper Rack | 1 Rack handle,Adjustable,Nylon |
Number of Place Settings | Up to 8 |

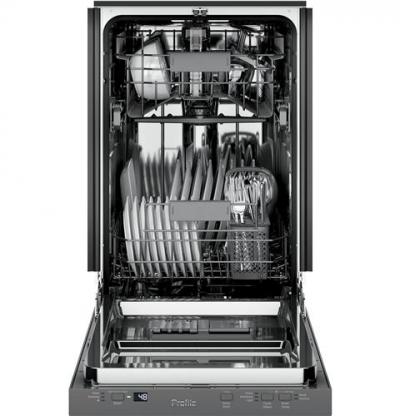

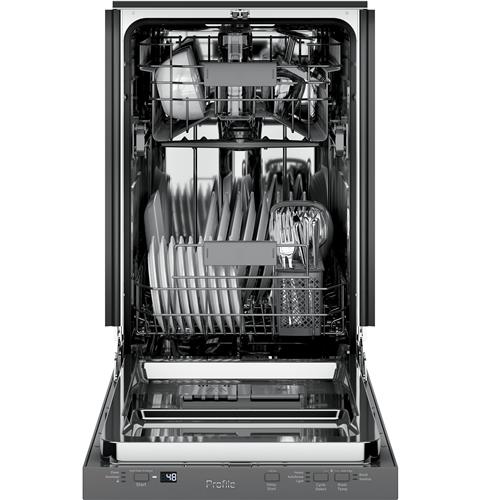

Rack Features | 1 Piece Mid Silverware Basket w/ 1 Cell Cover,1 Plastic Utility Shelf - Upper,Ball-Tipped Tines,Fold-Down Tines - Lower,Stem Safe |
Racking System | Gray |
Number of Cycles | 3 |
Dishwasher Cycles | Auto Sense,Heavy Wash,Light Wash |
Number of Options | 5 |
Dishwasher Options | Child Lock,Delay Start 1-12 Hr.,Sani (NSF 184 Certified),Start/Reset,TempBoost |
Water Filtration System | 3-Stage Manual Clean Filtration |
Dispenser | Rinse Aid with Indicator and Adjustment |
Wash Arms | 2 with Upper Nozzle |
Sensor | Clean Sensor |
Wash System Features | Automatic HotStart,Automatic Temperature Control,Dual Pump,Flood Control System,Piranha™ Hard Food Disposer |
Wash System | 3-Level,Standard |

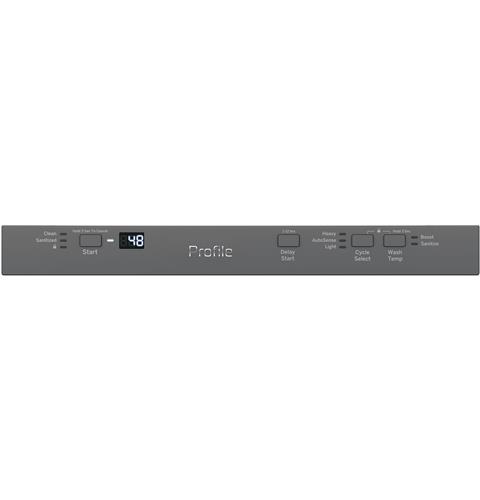

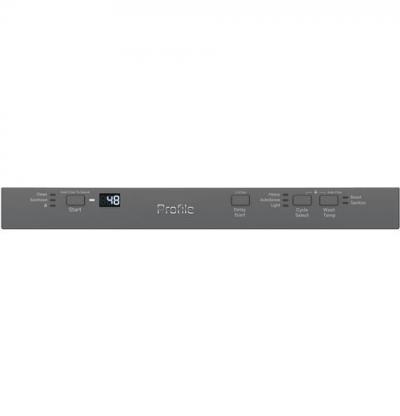

Dishwasher Control Features | 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators,Audible End-of-Cycle Signal,Cycle Countdown,Last Cycle Memory,Start/Reset Pad |
Control Location | 4 Pushbuttons,Fully Integrated Electronic,Top Controls |
Tub and Door Liner | Stainless Steel |
Style | Built-In,Spacemaker |
