ADA Compliant with Low-Profile Installation
Great for 34" counter top heights and raised subfloors
Autosense Cycle
A beam of light measures soil levels and water temperature to adjust to the ideal cycle time
Piranha hard food disposer with removable filter
To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms
Sanitize option (NSF Certified)
High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes
3-Level Wash
Expect exceptionally clean table-ready dishes with powerful wash arms
dBA 47
| Economical / Quiet | |
|---|---|
| Outer Wrap | U-Blanket |
| Motor Type | Single Speed |
| Quiet Package | 47 dBA |
| Quiet Features | Sealed Toe Kick,Tub Collar Trim |
| Door Insulation | Insulation,Mastic |
| Appearance | |
| Handle Color | Color-Matched |
| Handle Design | Recessed |
| Handle | Pocket Handle |
| Colour | White |
| Door Style | Full-Length Flat Door |
| Inputs & Outputs | |
| Exterior Style | 18" Wide |
| Connected Capabilities | Amazon Alexa,IFTTT,The Google Assistant |
| WiFi Connect | Optional (Requires part no. PBX10W00Y0) |
| Latch | Center Pull |
| Leveling System | Leveling Legs |
| Dishwasher Drying Features | Condensate Dry |

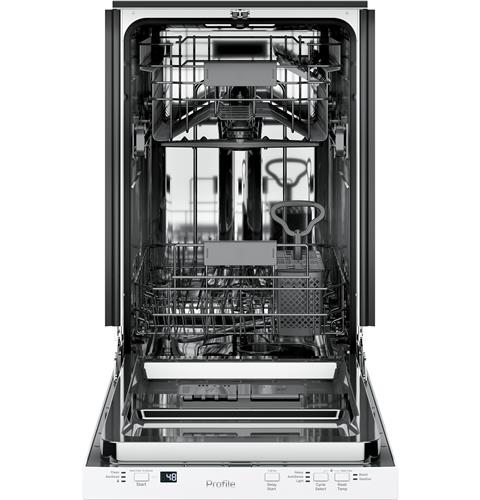

| Upper Rack | 1 Rack handle,Adjustable,Nylon |
| Lower Rack | 1 Rack handle,Nylon |
| Number of Place Settings | Up to 8 |
| Racking System | Gray |
| Rack Features | 1 Piece Mid Silverware Basket w/ 1 Cell Cover,1 Plastic Utility Shelf - Upper,Ball-Tipped Tines,Fold-Down Tines - Lower,Stem Safe |
| Dishwasher Options | Child Lock,Delay Start 1-12 Hr.,Sani (NSF 184 Certified),Start/Reset,TempBoost |
| Number of Options | 5 |
| Dishwasher Cycles | Auto Sense,Heavy Wash,Light Wash |
| Number of Cycles | 3 |
| Dispenser | Rinse Aid with Indicator and Adjustment |
| Water Filtration System | 3-Stage Manual Clean Filtration |
| Wash Arms | 2 with Upper Nozzle |
| Sensor | Clean Sensor |
| Wash System Features | Automatic HotStart,Automatic Temperature Control,Dual Pump,Flood Control System,Piranha™ Hard Food Disposer |
| Wash System | 3-Level,Standard |

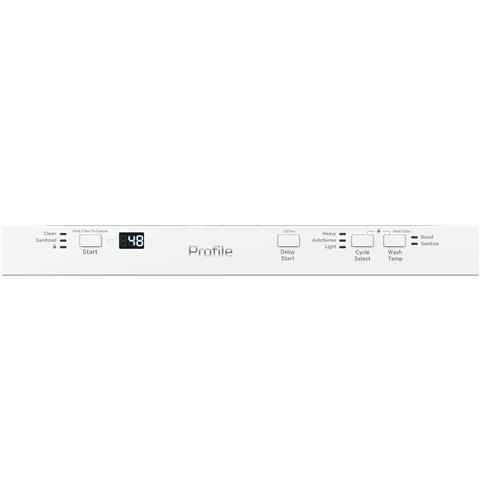

| Dishwasher Control Features | 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators,Audible End-of-Cycle Signal,Cycle Countdown,Last Cycle Memory,Start/Reset Pad |
| Control Location | 4 Pushbuttons,Fully Integrated Electronic,Top Controls |
| Tub and Door Liner | Stainless Steel |
| Style | Built-In,Spacemaker |
| WEIGHTS DIMENSIONS | |
| Cabinet Width | 18 in |
| Approximate Shipping Weight | 85 lb |
| Net Weight | 72 lb |
| Overall Height | 32 1/2 in |
| Height w/ Legs Retracted - Minimum Height | 32 1/2 in |
| Height w/Legs Extended - Maximum Height | 34 5/8 in |
| Overall Depth | 22 1/2 in |
| Overall Width | 17 3/4 in |
| Power / Ratings | |
| Calrod Heater Watts | 1100 |
| Electrical Requirements | 120V ; 60 Hz ; 8.9 A |
| Warranty | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
