ADA Compliant with Low-Profile Installation
Great for 34" counter top heights and raised subfloors
Autosense Cycle
A beam of light measures soil levels and water temperature to adjust to the ideal cycle time
Piranha hard food disposer with removable filter
To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms
Sanitize option (NSF Certified)
High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes
3-Level Wash
Expect exceptionally clean table-ready dishes with powerful wash arms
dBA 51
Warranty | |
---|---|
Warranty Notes | See written warranty for full details |
Labor Warranty | Limited 1-year entire appliance |
Parts Warranty | Limited 1-year entire appliance |
Power / Ratings | |
Calrod Heater Watts | 1100 |
Electrical Requirements | 120V ; 60 Hz ; 8.9 A |
WEIGHTS DIMENSIONS | |
Height w/Legs Extended - Maximum Height | 34 5/8 in |
Overall Width | 23 3/4 in |
Height w/ Legs Retracted - Minimum Height | 32 1/4 in |
Overall Depth | 23 1/2 in |
Overall Height | 32 1/4 in |
Cabinet Width | 24 in |
Approximate Shipping Weight | 96 lb |
Net Weight | 81 lb |
Economical / Quiet | |
Door Insulation | Insulation,Mastic |
Motor Type | Single Speed |
Outer Wrap | U-Blanket |
Quiet Features | Sealed Toe Kick,Tub Collar Trim |
Quiet Package | 51 dBA |
Appearance | |
Handle Design | Recessed |
Door Style | Stainless Full-Length Flat Door |
Handle | Pocket Handle |
Handle Color | Color-Matched |
Colour | Stainless Steel |
Inputs & Outputs | |
Exterior Style | Built-In |
Connected Capabilities | Amazon Alexa,IFTTT,The Google Assistant |
WiFi Connect | Optional (Requires part no. PBX10W00Y0) |
Latch | Center Pull |
Dishwasher Drying Features | Condensate Dry |
Leveling System | Leveling Legs |

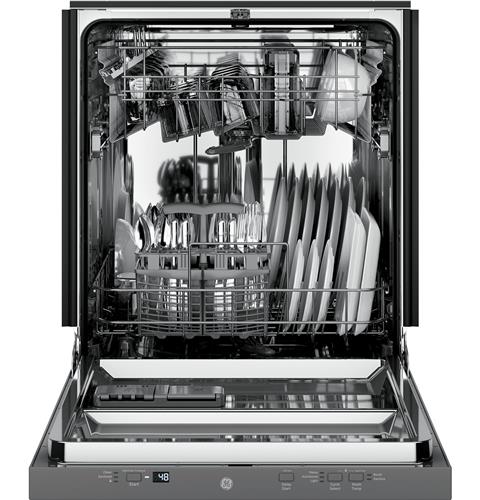

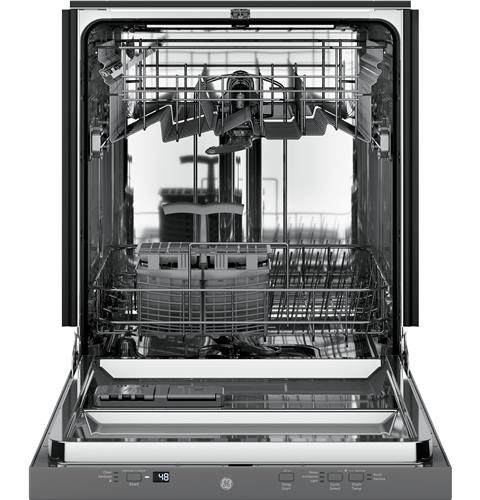

Upper Rack | Adjustable,Nylon |
Lower Rack | Nylon |
Number of Place Settings | Up to 12 |
Rack Features | 1 Plastic Utility Shelf - Upper,2 Piece Silverware Basket with Cell Covers,Ball-Tipped Tines,Stem Safe |
Dishwasher Cycles | Auto Sense,Heavy Wash,Light Wash |
Racking System | Gray |
Dishwasher Options | Child Lock,Delay Start 1-12 Hr.,Sani (NSF 184 Certified),Start/Reset,TempBoost |
Number of Options | 5 |
Number of Cycles | 3 |
Dispenser | Rinse Aid with Indicator and Adjustment |
Wash Arms | 2 with Upper Nozzle |
Water Filtration System | 3-Stage Manual Clean Filtration |
Sensor | Clean Sensor |
Wash System | 3-Level,Standard |
Wash System Features | Automatic HotStart,Automatic Temperature Control,Dual Pump,Flood Control System,Piranha™ Hard Food Disposer |
Dishwasher Control Features | 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators,Audible End-of-Cycle Signal,Cycle Countdown,Last Cycle Memory,Start/Reset Pad |

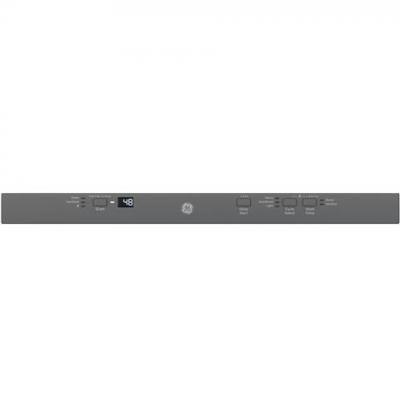

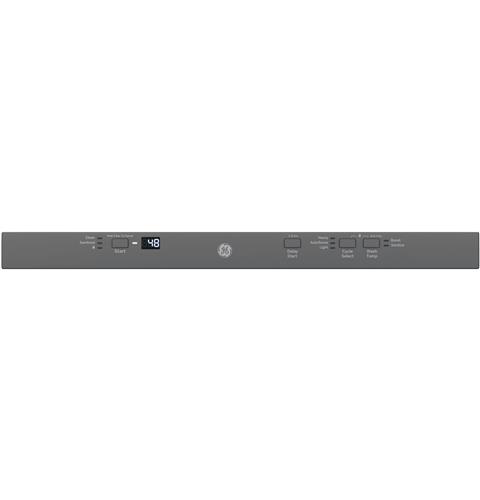

Control Location | 4 Pushbuttons,Fully Integrated Electronic,Top Controls |
Tub and Door Liner | Stainless Steel |
Style | Built-In |
