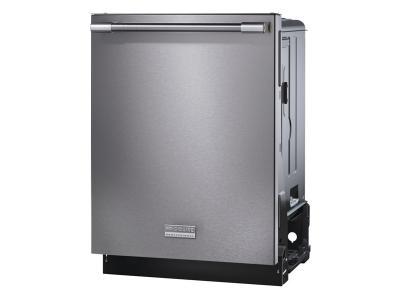

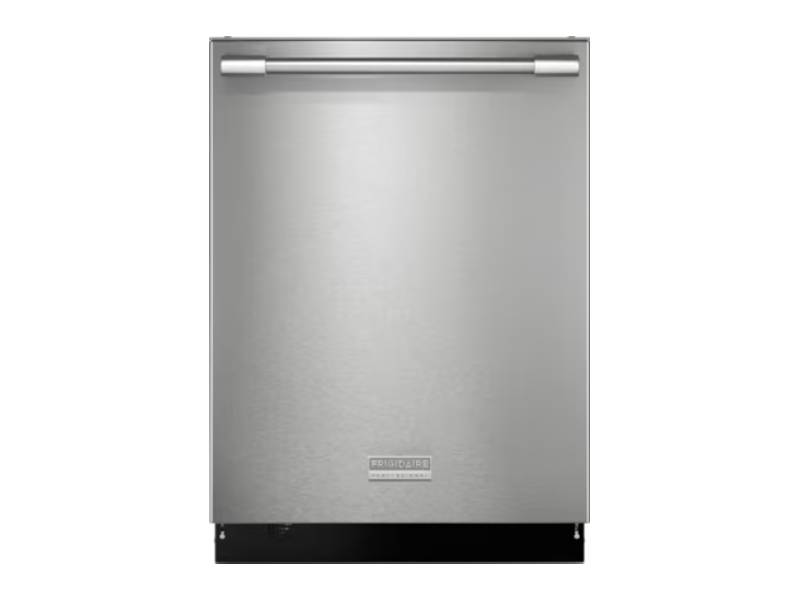

24" Frigidaire Professional Stainless Steel Tub Built-In Dishwasher with CleanBoost - PDSH4816AF
Features
Get better cleaning results with CleanBoost technology
Our patented CleanBoost Technology premixes water and detergent, dissolving detergent 6x faster helping to remove hard-to-clean and baked-on foods. 1
Sanitize Option
Remove 99.9% of common household bacteria with NSF-Certified Sanitize Option. 2
Enhanced drying results with MaxBoost Dry
MaxBoost Dry technology uses heat and a fan to direct moisture out and pull in fresh air that dries your dishes.
Saves over 4000 gallons of water every year
By avoiding hand washing and putting your dishes straight in the dishwasher, not only will you get great cleaning results, you can save over 4000 gallons of water per year. 3
DishSense Sensor Technology
Skip pre-rinsing with our DishSense sensor technology that adjusts cleaning performance based on the soil level of your dishes.

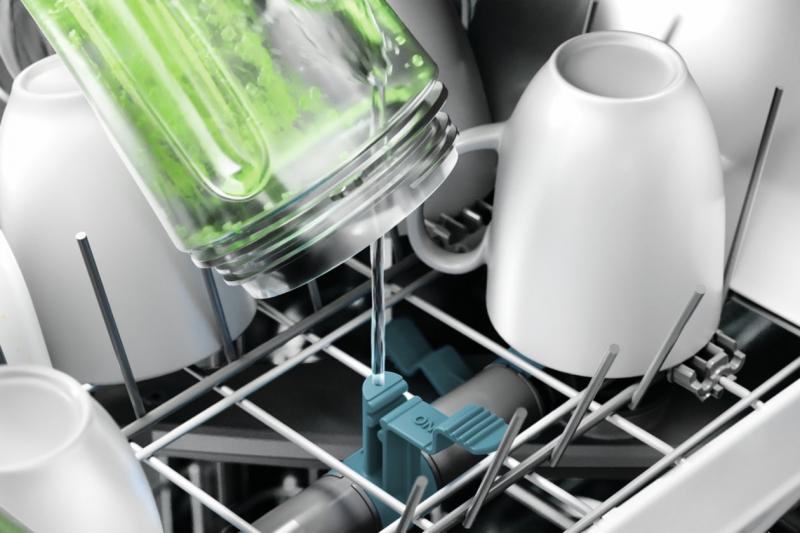

Cleans Hard-to-Reach Spots
Clean hard-to-reach spots with our Target Spray Zones that target tough spots for the ultimate clean.

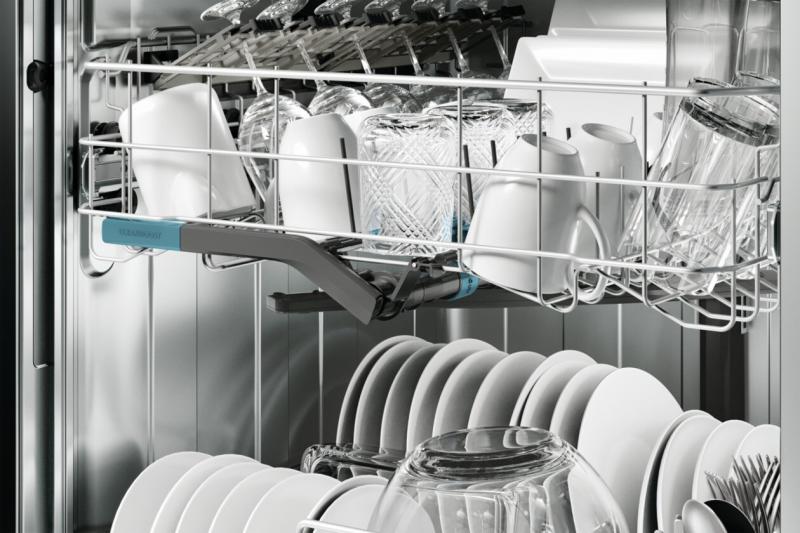

Complete clean from every angle with OrbitClean
OrbitClean wash system uses a rotating wash arm with multi-directional spray patterns to provide maximum coverage without using more water.
Powerful 30-Minute Clean
Get a powerful clean, fast in just 30 minutes.
ENERGY STAR Certified
Maximize your water, energy and dollar savings with ENERGY STAR Certified appliances.
Keep your kitchen quiet with 47 dBA
Keep your kitchen quiet and the noise inside your dishwasher where it belongs with extra, quality insulation.

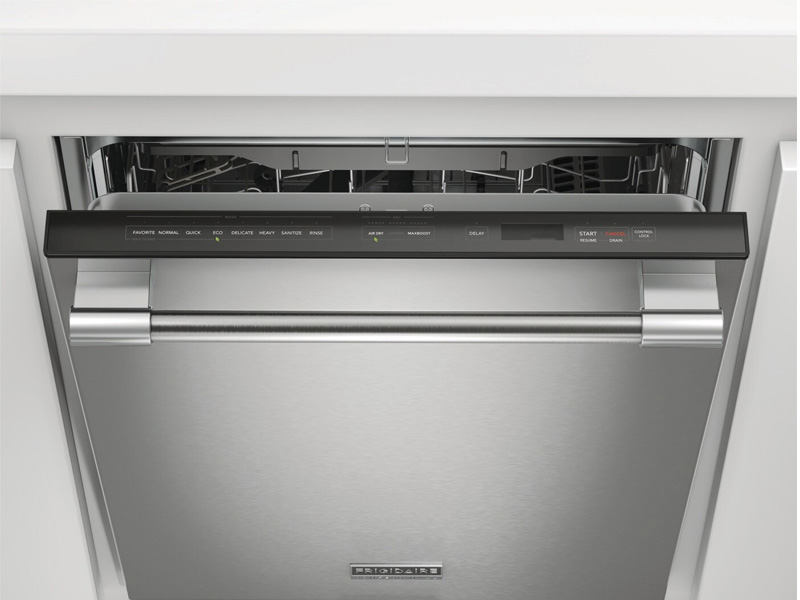

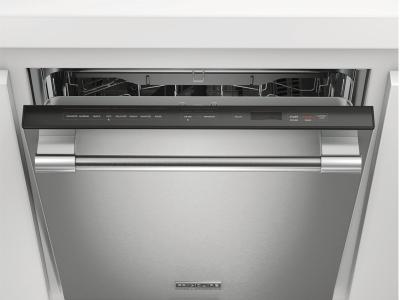

Premium Capacitive Touch User Interface
Our sleek designed capacitive multi-touch user interface is intuitive and helps you to easily select the right program for your dishes.

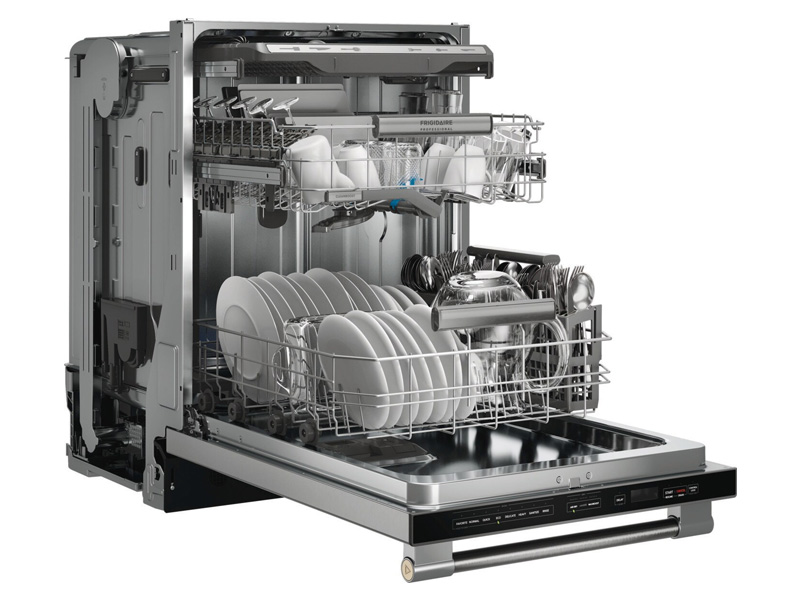

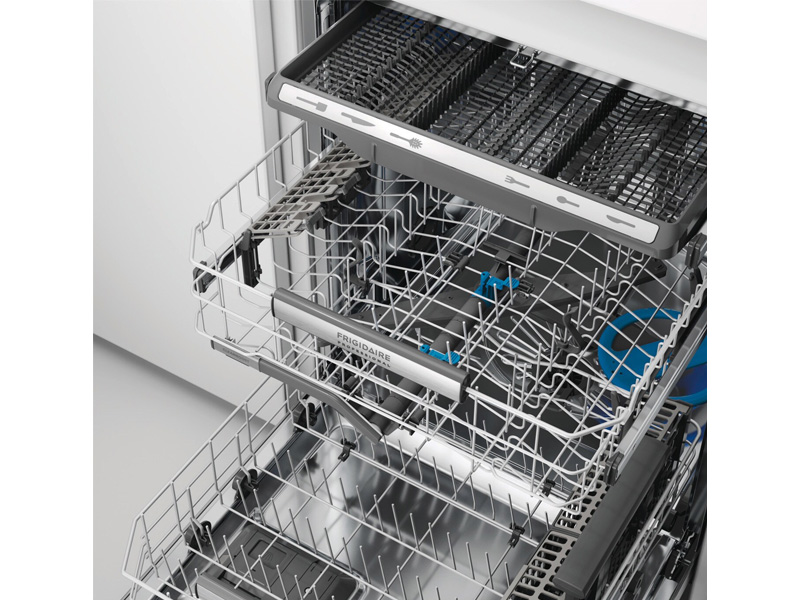

Third Level Rack
Save time loading and unloading with a third level rack that easily fits silverware, cooking utensils and tools.

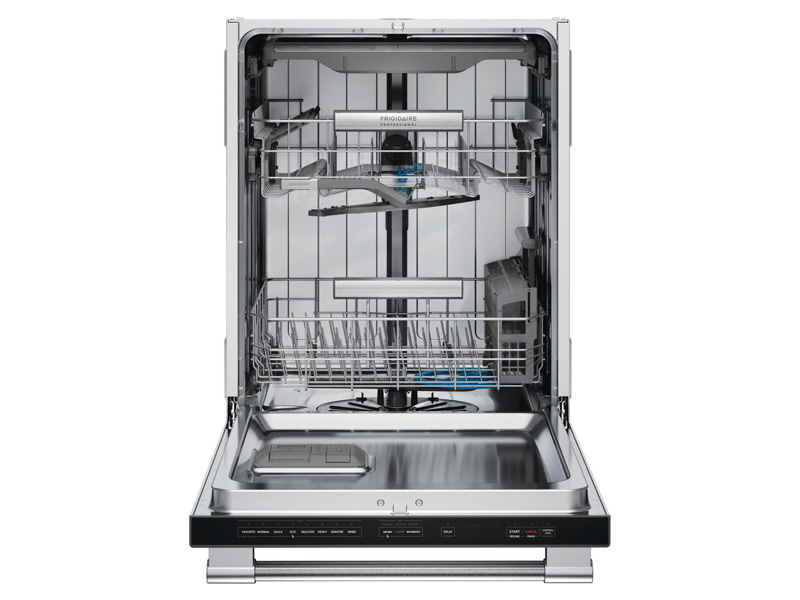

Easily fits dishes of all sizes with an adjustable rack
Make loading the dishwasher easier with an adjustable rack and enough space to fit large items.
Convenient status indicator floor light
Convenient LED floor light shows cycle status- blue when your dishes are washing and white when they are clean.
Smudge-Proof Stainless Steel
Resists fingerprints and cleans easily.
Protecting your floors against water leaks
In the event of a leak a sensor is triggered stopping the cycle and containing overflowed water in a tray at the bottom of the dishwasher.
| Certifications and Approvals | |
|---|---|
| NSF Certified | Yes |
| cUL Listed | Yes |
| Meets ASSE 1006 Requirements | Yes |
| CEE Tier | Tier 1 |
| Energy Star | Yes |
| UL Listed | Yes |
| ADA Compliant | No |
| Installation | |
| Number of Leveling Legs | 3 |
| Dimensions and Volume | |
| Depth With Handle | 26 69/100 |
| Depth | 24 1/4 |
| Depth With Door Open | 50 1/4 |
| Width | 24 |
| Maximum Height | 35 3/4 |
| Minimum Height | 33 3/4 |
| ELECTRICAL SPECIFICATIONS | |
| Amps @ 120 Volts | 15 Amps |
| Voltage Rating | 120 V |
| Exterior | |
| Exterior Finish | Smudge-Proof Stainless Steel |
| Door Type | StayPut |
| Door Latch | Pull |
| Door and Handle Design | Handle |
| CONTROLS | |
| Rinse Aid Indicator | Yes |
| Digital Display | Yes |
| Control Lock | Yes |
| Control Location | Top |
| Delay Start Hours | 1-12 Hours |
| General Specifications | |
| Warranty - Parts | 1 Year |
| Warranty - Labor | 1 Year |
| Prop 65 Label | No |
| Sound Level | 47 dBA |
| Annual Energy | 240 kWh |
| Product Weight | 86 lbs |
| Third Level Rack | |
| Rack Coating | Nylon |
| Third Level Rack | Yes |
| Rack Handles | No |
| UPPER RACK | |
| Targeted Wash Zone | Yes |
| Stemware Holder | Yes |
| Rack Type | Deluxe |
| Rack Handles | Yes |
| Rack Coating | Nylon |
| Minimum Height Clearance | 8 1/2 |
| Maximum Height Clearance | 10 3/8 |
| Fold-Down | Yes |
| Cup Shelf | Yes |
| Lower Rack | |
| Rack Type | Deluxe |
| Rack Coating | Nylon |
| Number of Silverware Basket Lids | 2 |
| Number of Silverware Basket | 1 |
| Minimum Height Clearance | 11 1/4 |
| Maximum Height Clearance | 13 1/4 |
| Fold-Down | Yes |
| Dishwasher Options | |
| Start/Cancel | Yes |
| Heated Dry | Yes |
| Drying System | Even Dry |
| Dry - Max | Yes |
| Dry - Heat | Yes |
| Dry - Air | Yes |
| Air Dry | Yes |
| Dishwasher Cycles | |
| Rinse Only | Yes |
| Sanitize | Yes |
| Number of Cycles | 8 |
| Quick | Yes |
| Favorite | Yes |
| Heavy | Yes |
| Normal | Yes |
| Energy Saver | Yes |
| China Crystal | Yes |
| DISHWASHER | |
| Wash Levels | 5 |
| Wash System | Direct Feed |
| Tub Material | Stainless Steel |
| Tub Design | Tall Tub |
| Colour | Stainless Steel |
| Status Indicator Floor Beam | Yes |
| Upper Spray Arm | Spray Arm |
| Middle Spray Arm | Bi-Beam |
| Rinse Aid Dispenser | Yes |
| Smart Soil Sensor | Yes |
| Place Setting Capacity | 14 |
| Motor Speeds | Multi-Speed |
| Leak Detection System | Yes |
| Interior Light | No |
| Hard Food Disposer or Filtration | Yes |
| Filtered Water | 100 % |
| Filter Trap | Removable |
| Filter Material | Stainless Steel |
| Detergent Dispenser | Yes |
| Automatic Temperature Control | No |
| Lower Spray Arm | Orbit |
