Features
Consistent Results with the EvenTemp Cooktop Element
With our EvenTemp cooktop technology, heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

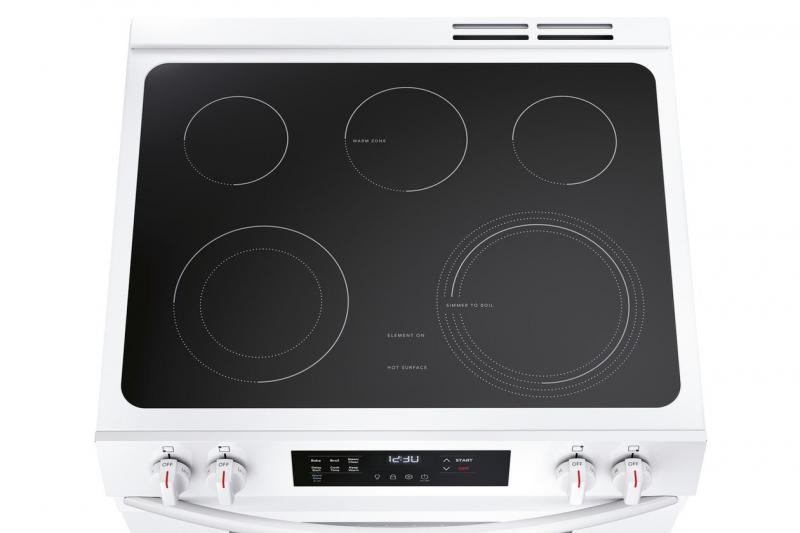

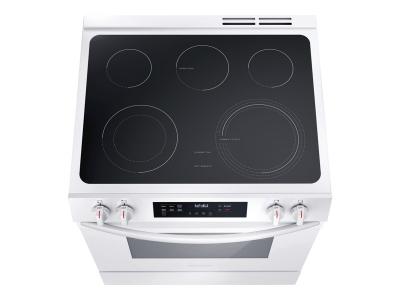

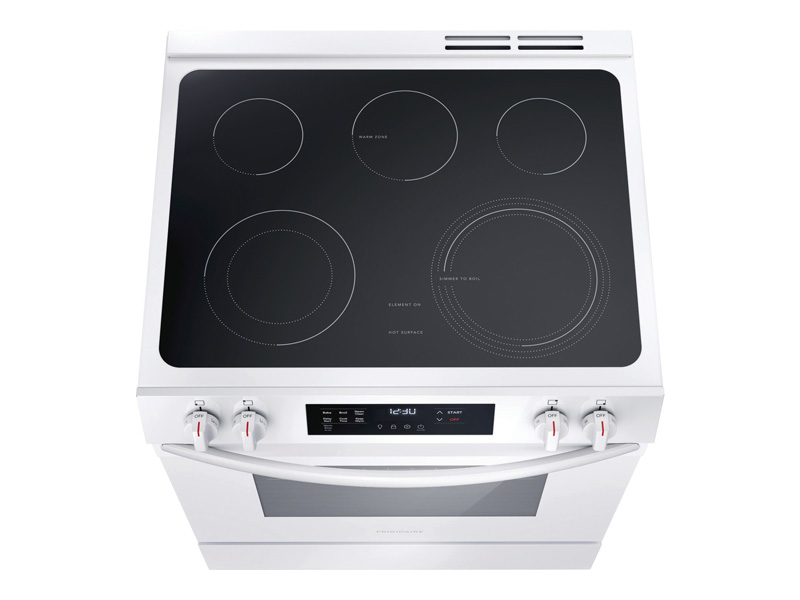

Flexible Five Element Cooktop
With five elements, this cooktop is designed to handle all of your cooking needs, including our powerful 3,200 Watt EvenTemp element, a Dual Expandable Element and a convenient Warm Zone.
Even Baking Technology
Designed to deliver even baking results, every time.

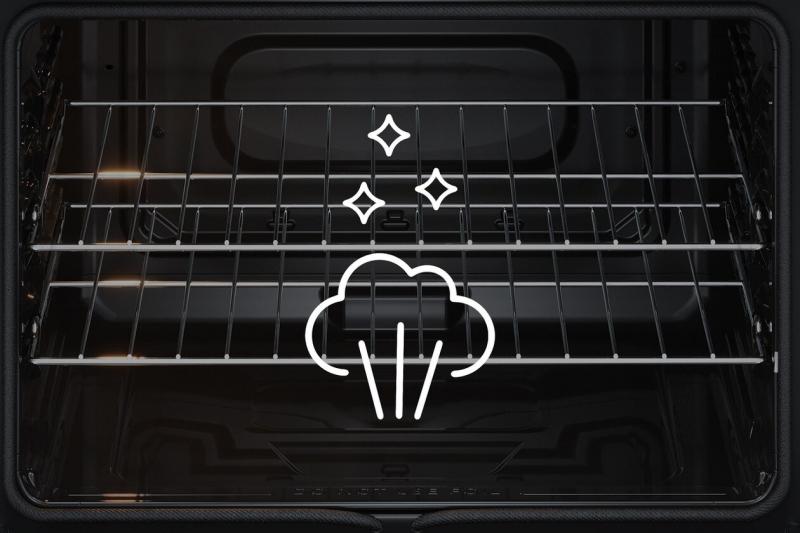

Fast Steam Cleaning Option
A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.

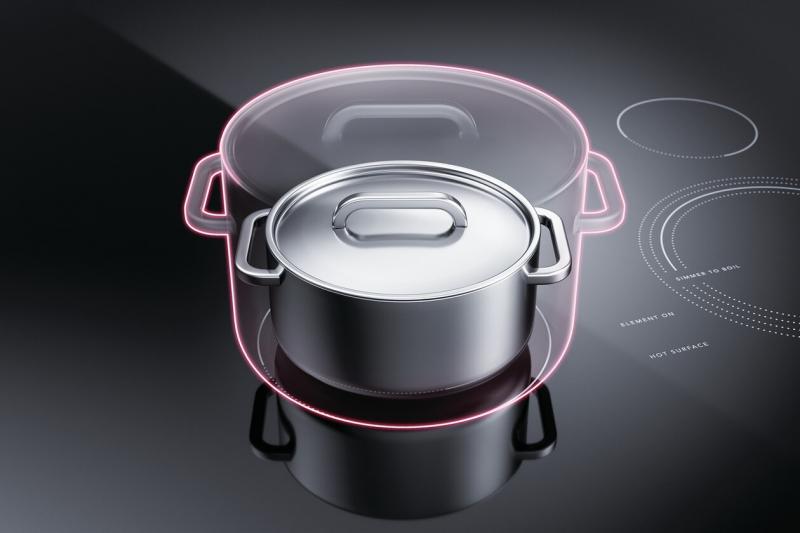

SpaceWise Dual Expandable Element
Our convenient 2-in-1 element expands from 6" for smaller pots to 9" for larger cookware, providing more cooktop flexibility.

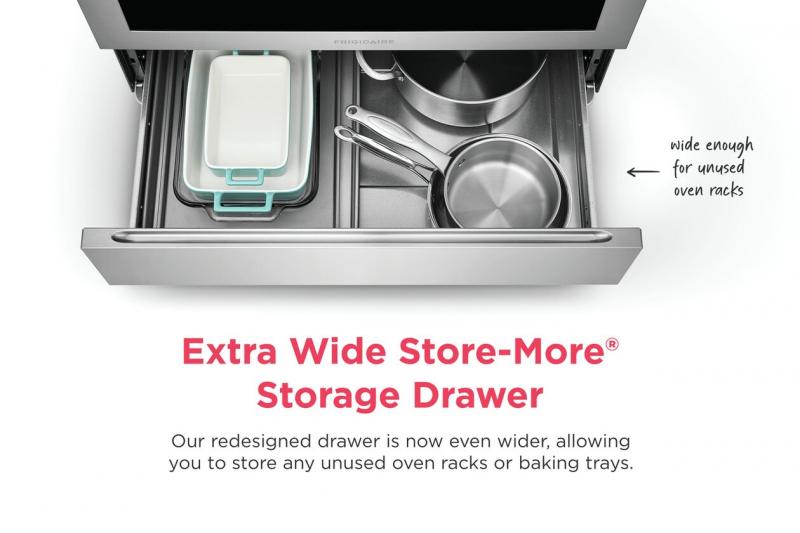

Extra Wide Store-More Storage Drawer
Our redesigned Store-More Storage drawer is now even wider - allowing you to store any unused oven racks or baking trays.

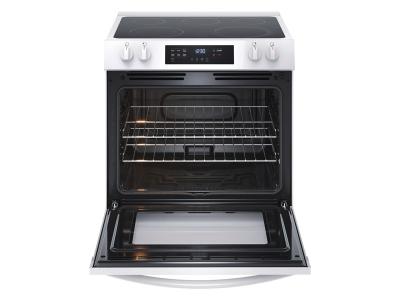

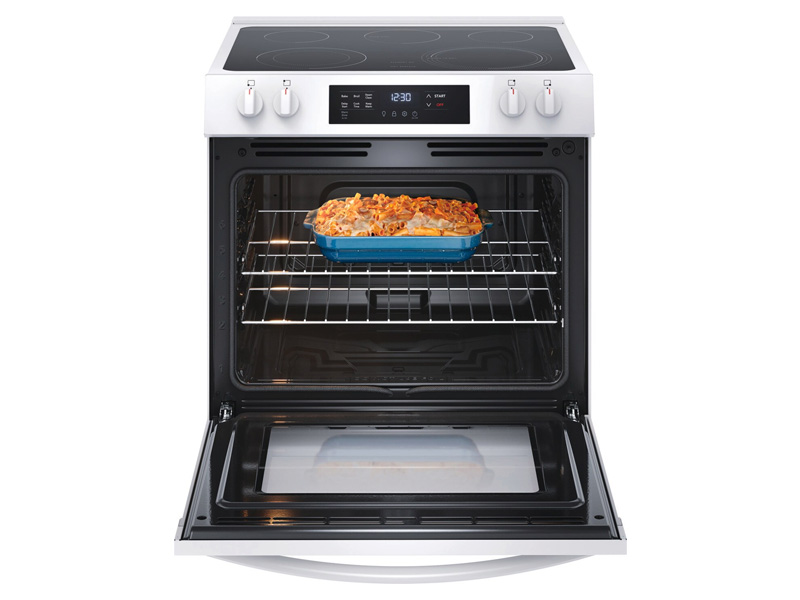

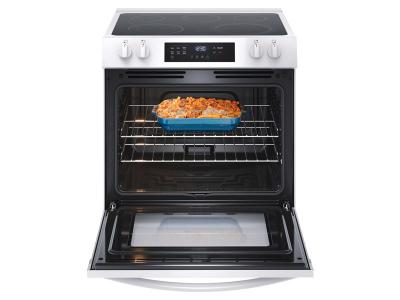

Extra-Large Oven Capacity
Cook more at once with our extra-large 5.3 cu.ft. capacity oven.
Upgrade your Kitchen with a Built-in Look

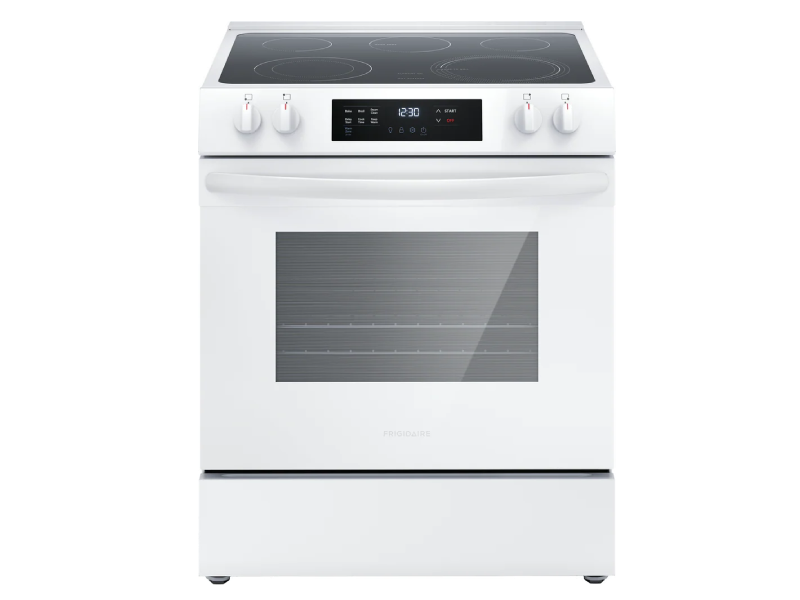

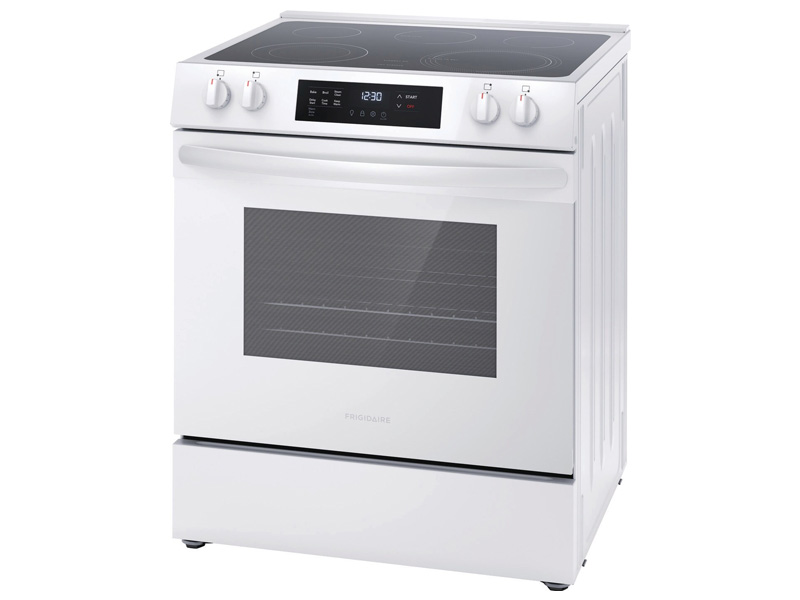

Get the look of a built-in range, without the remodel. This Front Control Range easily fits the space of your existing 30" range.
Peace of Mind with the Frigidaire Fit Promise
We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop. 1
Cleanup is easier with Hidden Bake
Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready.
COOKTOP | |
---|---|
Hot-Surface Indicator Light | Yes |
Element On Indicator Light | Yes |
Cooking Surface Type | Smooth |
OVEN | |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Rack Position Type | Embossed |
Oven Light Watts | 40 Watts |
Oven Light Type | Halogen |
Oven Light Quantity | 1 |
Oven Interior Color | Midnight Black |
Number of Rack Positions | 6 |
Cleaning System | Yes |
Broil Element Pass | 4 |
Broil System | Yes |
Broil Element | 3,000 Watts |
Bake System | Yes |
Bake Element Type | Hidden |
Bake Element Pass | 8 |
Bake Element | 2,500 Watts |
Cooking Controls Function | |
Silent Control Panel | Yes |
Program Fahrenheit or Celsius | Yes |
Delayed Bake | Yes |
ELECTRICAL SPECIFICATIONS | |
Voltage Rating | 240 V |
Minimum Circuit Required | 40 Amps |
Connected Load @ 240V | 13 kW |
Cooking Controls | |
Warm Zone | Yes |
Timer On / Off | Yes |
Timed Bake | Yes |
Steam Clean | Yes |
Temperature Display | Yes |
Preheat | Yes |
Probe | No |
Oven Light | Yes |
On / Off (for each element) | Yes |
Lockout | Yes |
Kitchen Timer | Yes |
Delay Start | Yes |
Keep Warm | Yes |
Clock | Yes |
Cook Time | Yes |
Clear Off | Yes |
Broil | Yes |
Cancel | Yes |
Bake | Yes |
CONTROLS | |
Sabbath Mode | No |
Control Lock | No |
Cooktop Performance | |
Center Rear Element Burner | 100 Watts |
Left Rear Element Burner | 1,200 Watts |
Left Front Element Burner (Large) | 3,000 Watts |
Left Front Element Burner (Small) | 1,400 Watts |
Right Rear Element Burner | 1,200 Watts |
Left Rear Element Burner Size | 6" |
Right Front Element Burner | 3,200 Watts |
Left Front Element Burner Size (Large) | 9" |
Left Front Element Burner Size (Small) | 6" |
Right Rear Element Burner Size | 6" |
Right Front Element Burner Size | 9" |
General Specifications | |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Prop 65 Label | Yes |
Product Weight | 150 lbs |

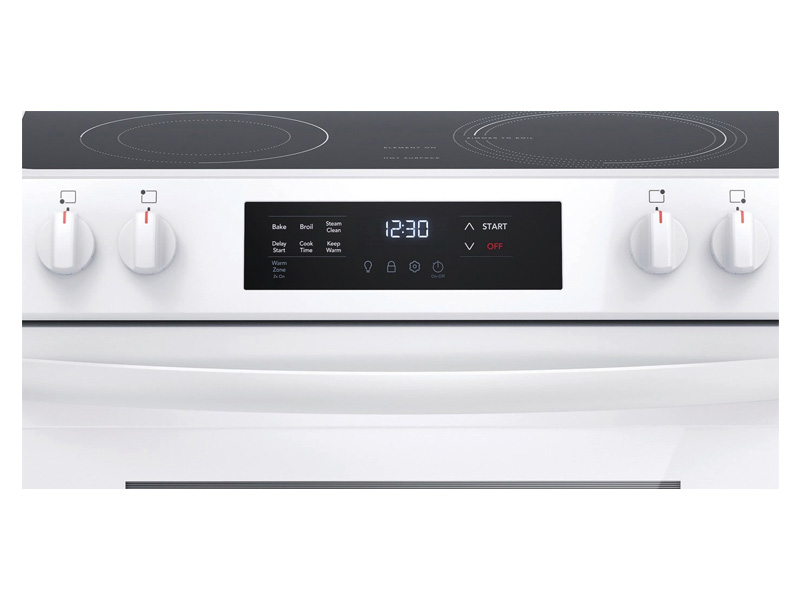

Display | |
Display Type | Capacitive Touch |
Display Interface Color | White |
Control Location | Front |
Dimensions and Volume | |
Capacity | 5.3 Cu. Ft. |
Oven Interior Depth | 19 7/8" |
Oven Interior Width | 25 3/16" |
Oven Interior Height | 18 1/8" |
Depth With Handle | 28 1/2" |
Depth With Door 90° Open | 47 5/16" |
Depth | 26" |
Width | 30" |
Maximum Height | 36 3/81" |
Minimum Height | 35 5/8" |
Certifications and Approvals | |
ADA Compliant | Yes |
UL Listed | Yes |
cUL Listed | Yes |
DRAWER | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
