Features
Consistent Results with the EvenTemp Cooktop Element
With our EvenTemp cooktop technology, heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

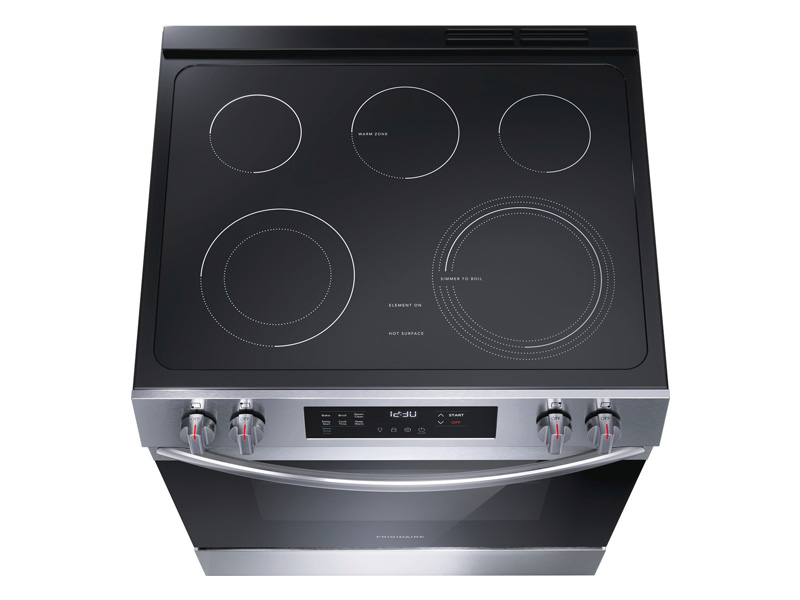

Flexible Five Element Cooktop
With five elements, this cooktop is designed to handle all of your cooking needs, including our powerful 3,200 Watt EvenTemp element, a Dual Expandable Element and a convenient Warm Zone.
Even Baking Technology
Designed to deliver even baking results, every time.
Fast Steam Cleaning Option
A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.
SpaceWise Dual Expandable Element
Our convenient 2-in-1 element expands from 6" for smaller pots to 9" for larger cookware, providing more cooktop flexibility.
Extra Wide Store-More Storage Drawer
Our redesigned Store-More Storage drawer is now even wider - allowing you to store any unused oven racks or baking trays.
Extra-Large Oven Capacity
Cook more at once with our extra-large 5.3 cu.ft. capacity oven.
Upgrade your Kitchen with a Built-in Look
Get the look of a built-in range, without the remodel. This Front Control Range easily fits the space of your existing 30" range.
Peace of Mind with the Frigidaire Fit Promise
We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop. 1
Cleanup is easier with Hidden Bake
Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready.
| Display | |
|---|---|
| Display Type | Capacitive Touch |
| Display Interface Color | White |
| Control Location | Front |
| General Specifications | |
| Product Weight | 150 lbs |
| Prop 65 Label | Yes |
| Warranty - Parts | 1 Year |
| Warranty - Labor | 1 Year |
| Cooktop Performance | |
| Right Front Element Burner Size | 9" |
| Right Rear Element Burner Size | 6" |
| Left Front Element Burner Size (Small) | 6" |
| Left Front Element Burner Size (Large) | 9" |
| Left Rear Element Burner Size | 6" |
| Right Front Element Burner | 3,200 Watts |
| Right Rear Element Burner | 1,200 Watts |
| Left Front Element Burner (Small) | 1,400 Watts |
| Left Front Element Burner (Large) | 3,000 Watts |
| Left Rear Element Burner | 1,200 Watts |
| Center Rear Element Burner | 100 Watts |
| CONTROLS | |
| Control Lock | No |
| Sabbath Mode | No |
| Cooking Controls | |
| Bake | Yes |
| Broil | Yes |
| Cancel | Yes |
| Clear Off | Yes |
| Cook Time | Yes |
| Clock | Yes |
| Delay Start | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Lockout | Yes |
| On / Off (for each element) | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Probe | No |
| Steam Clean | Yes |
| Temperature Display | Yes |
| Timed Bake | Yes |
| Timer On / Off | Yes |
| Warm Zone | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Connected Load @ 240V | 13 kW |
| Voltage Rating | 240 V |
| Minimum Circuit Required | 40 Amps |
| Cooking Controls Function | |
| Delayed Bake | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
| OVEN | |
| Bake Element | 2,500 Watts |
| Bake Element Type | Hidden |
| Bake Element Pass | 8 |
| Bake System | Yes |
| Broil Element | 3,000 Watts |
| Broil System | Yes |
| Broil Element Pass | 4 |
| Cleaning System | Yes |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| COOKTOP | |
| Cooking Surface Type | Smooth |
| Element On Indicator Light | Yes |
| Hot-Surface Indicator Light | Yes |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| UL Listed | Yes |
| cUL Listed | Yes |
| DRAWER | |
| Drawer Handle Style | Integrated |
| Drawer Type | Storage |
| Dimensions and Volume | |
| Capacity | 5.3 Cu. Ft. |
| Oven Interior Depth | 19 7/8" |
| Oven Interior Width | 25 3/16" |
| Oven Interior Height | 18 1/8" |
| Depth With Handle | 28 1/2" |
| Depth With Door 90° Open | 47 5/16" |
| Depth | 26" |
| Width | 30" |
| Maximum Height | 36 3/8" |
| Minimum Height | 35 5/8" |
