Features

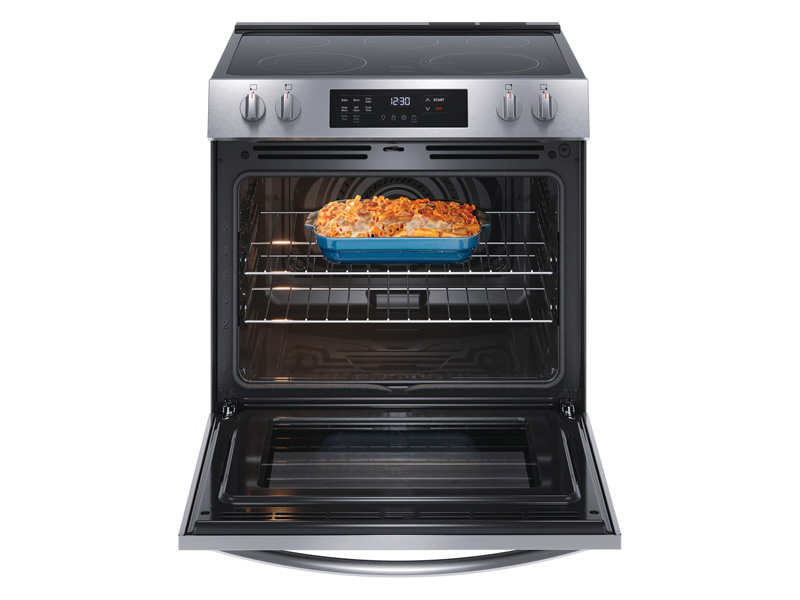

Achieve better baking results with Convection Bake
Get faster, more even baking results with our fan convection baking system.
Consistent Results with the EvenTemp Cooktop Element
With our EvenTemp cooktop technology, heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

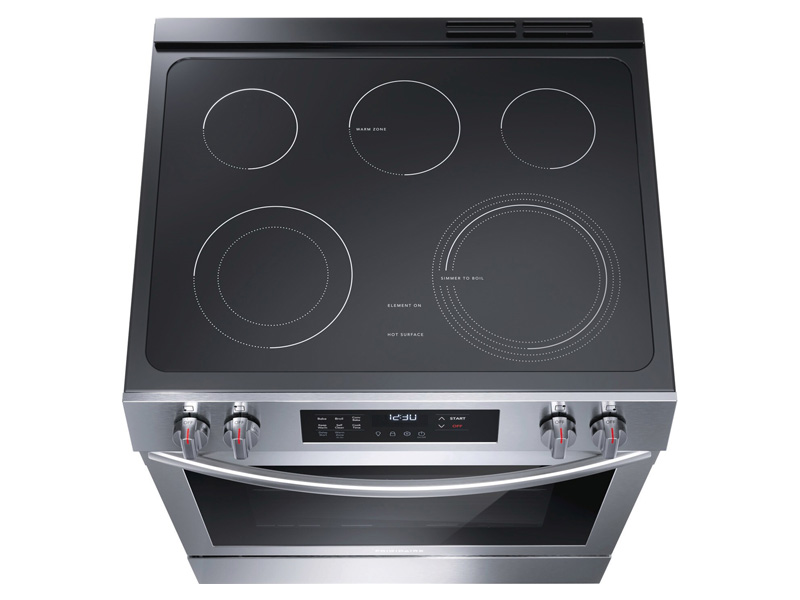

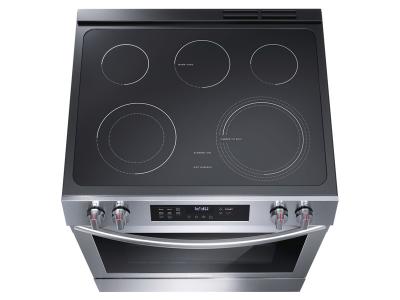

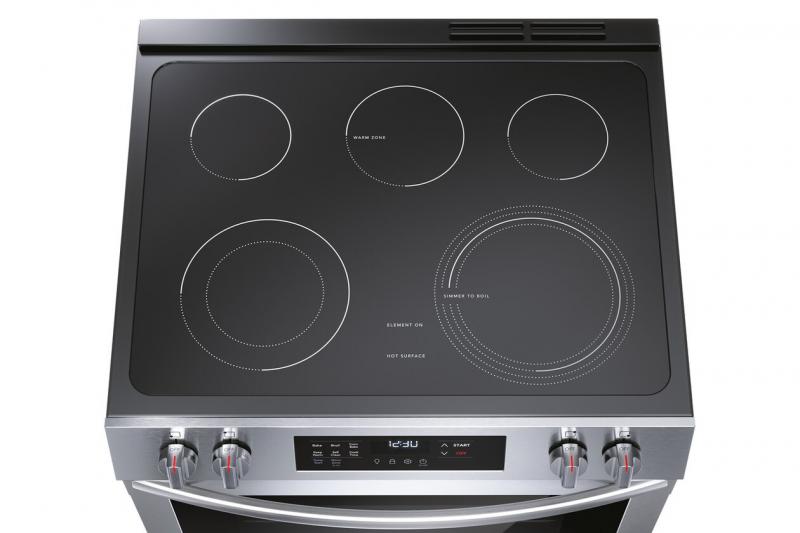

Flexible Five Element Cooktop
With five elements, this cooktop is designed to handle all of your cooking needs, including our powerful 3,200 Watt EvenTemp element, a Dual Expandable Element and a convenient Warm Zone.
One-Touch Self Clean
A convenient 3-hour self clean cycle cleans your oven, so you don't have to.

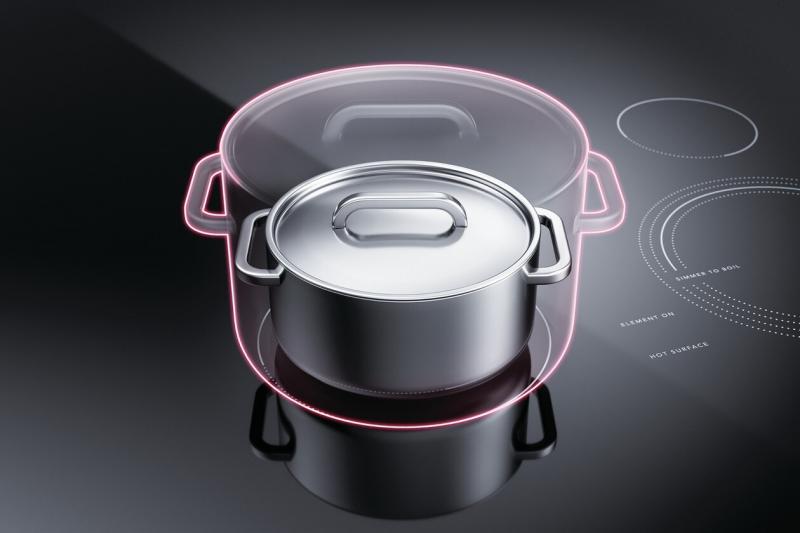

SpaceWise Dual Expandable Element
Our convenient 2-in-1 element expands from 6" for smaller pots to 9" for larger cookware, providing more cooktop flexibility.

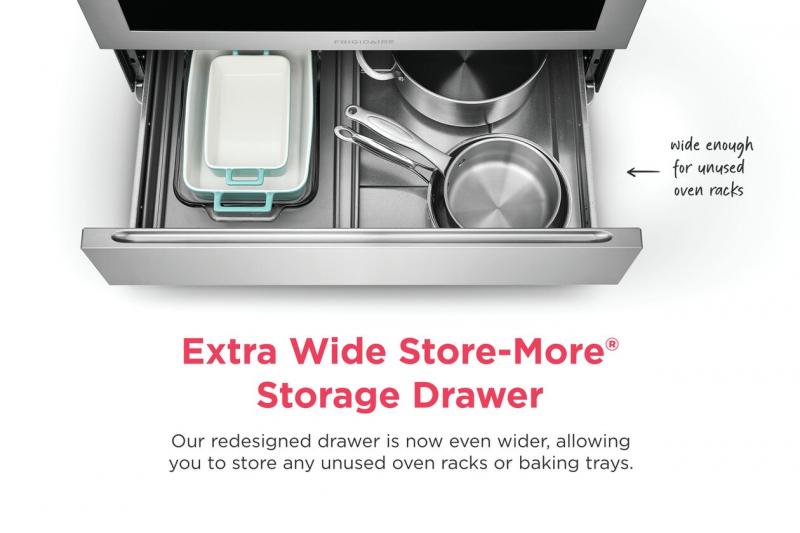

Extra Wide Store-More Storage Drawer
Our redesigned Store-More Storage drawer is now even wider - allowing you to store any unused oven racks or baking trays.

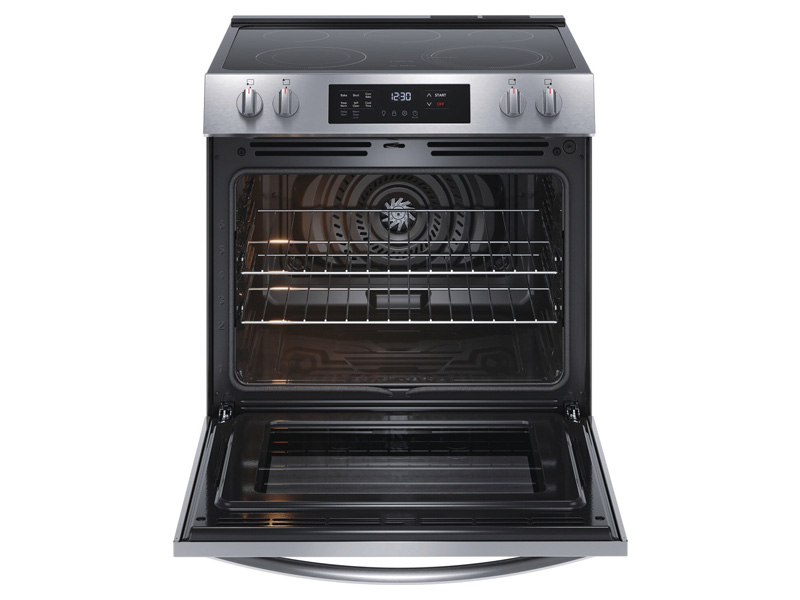

Extra Large Oven Capacity
Cook more at once with our extra-large, 5.3 cu.ft. capacity oven.

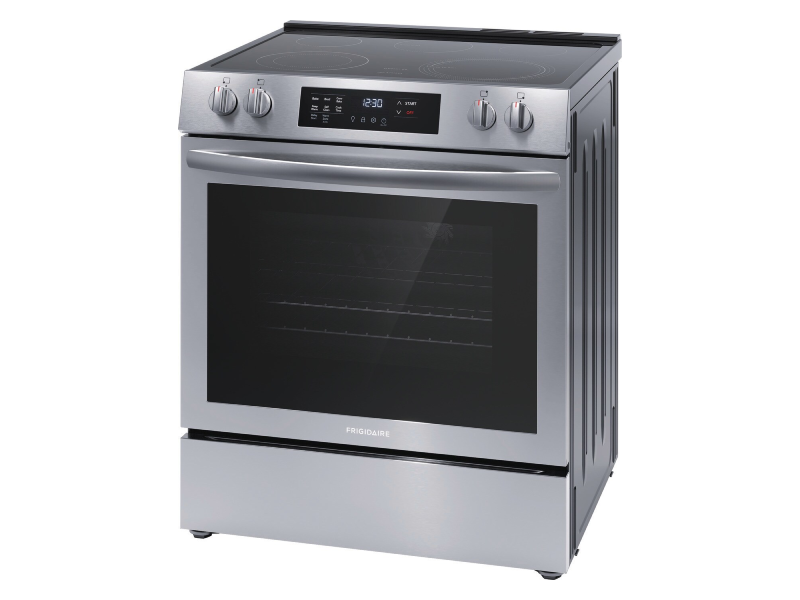

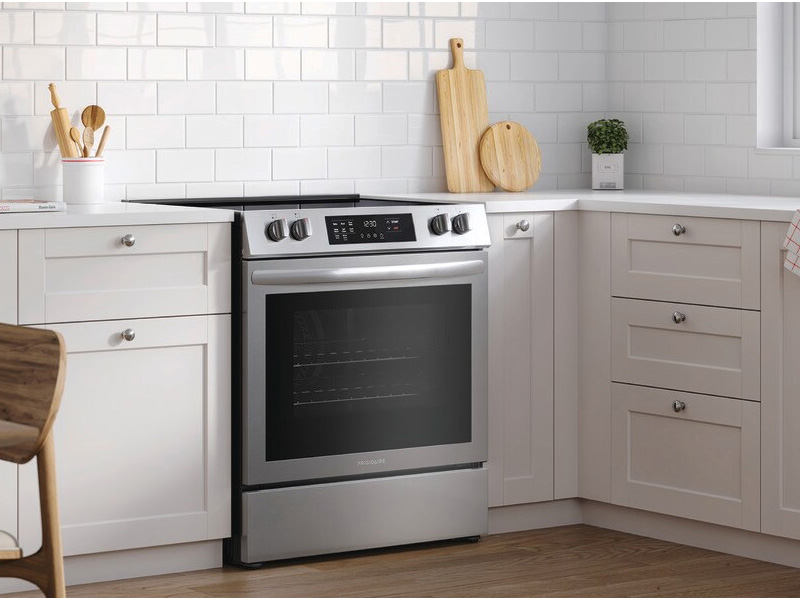

Upgrade your Kitchen with a Built-in Look
Get the look of a built-in range, without the remodel. This Front Control Range easily fits the space of your existing 30" range.
Peace of Mind with the Frigidaire Fit Promise
We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop. 1
Cleanup is easier with Hidden Bake
Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready.
| Dimensions and Volume | |
|---|---|
| Oven Interior Width | 25 3/16" |
| Oven Interior Depth | 19 7/8" |
| Capacity | 5.3 Cu. Ft. |
| Depth With Handle | 28 1/2" |
| Oven Interior Height | 18 1/8" |
| Depth With Door 90° Open | 47 5/16" |
| Depth | 26" |
| Maximum Height | 36 3/8" |
| Width | 30" |
| Minimum Height | 35 5/8" |
| Display | |
| Control Location | Front |
| Display Interface Color | White |
| Display Light Color | White |
| Display Type | LED |
| General Specifications | |
| Product Weight | 155 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Cooktop Performance | |
| Right Front Element Burner Size | 9" |
| Right Rear Element Burner Size | 6" |
| Left Front Element Burner Size (Small) | 6" |
| Left Front Element Burner Size (Large) | 9" |
| Left Rear Element Burner Size | 6" |
| Right Front Element Burner | 3,200 Watts |
| Right Rear Element Burner | 1,200 Watts |
| Left Front Element Burner (Small) | 1,400 Watts |
| Left Front Element Burner (Large) | 3,000 Watts |
| Left Rear Element Burner | 1,200 Watts |
| Center Rear Element Burner | 100 Watts |
| Keep Warm Burner Location | Center Rear |
| Safety Certifications and Approvals | |
| RoHS | Yes |
| UL Listed | Yes |
| DRAWER | |
| Drawer Type | Storage |
| COOKTOP | |
| Keep Warm Zone Light | Yes |
| Hot-Surface Indicator Light | Yes |
| Element On Indicator Light | Yes |
| Cooking Surface Type | Smooth |
| OVEN | |
| Rack Type 1 Quantity | 2 |
| Rack Type 1 | Flat |
| Rack Position Type | Embossed |
| Oven Light Watts | 40 Watts |
| Oven Light Type | Halogen |
| Oven Light Quantity | 1 |
| Oven Interior Color | Midnight Black |
| Number of Rack Positions | 6 |
| Convection Type | Fan |
| Number of Convection Fans | 1 |
| Broil System | Yes |
| Cleaning System | Yes |
| Convection Cooking Technology | Yes |
| Broil Element Pass | 6 |
| Broil Element | 4,000 Watts |
| Bake System | Yes |
| Bake Element Type | Hidden |
| Bake Element | 2,500 Watts |
| Bake Element Pass | 8 |
| Cooking Controls Function | |
| Timed Cooking | Yes |
| Program Fahrenheit or Celsius | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Amps @ 120 Volts | 10 Amps |
| Amps @ 240 Volts | 13 Amps |

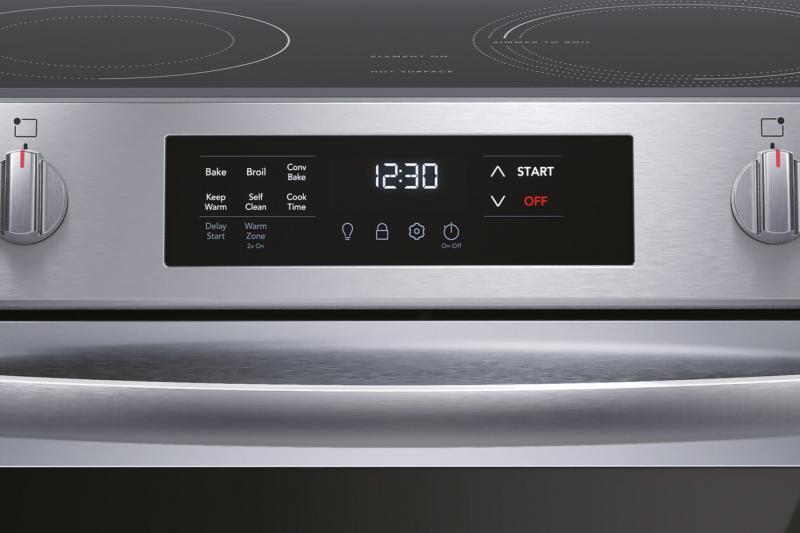

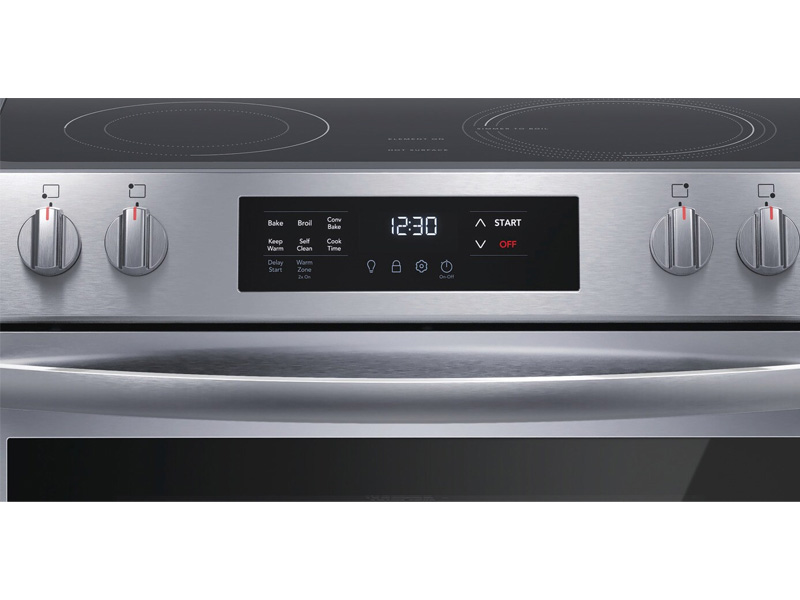

| Cooking Controls | |
| Timed Bake | Yes |
| Warm Zone | Yes |
| Up / Down Arrow | Yes |
| Temperature Display | Yes |
| Self Clean | Yes |
| Set Clock | Yes |
| Start | Yes |
| Oven Lock | Yes |
| Preheat | Yes |
| Lockout | Yes |
| Off | Yes |
| Oven Light | Yes |
| Kitchen Timer | Yes |
| Keep Warm | Yes |
| Cook Time | Yes |
| Delay Clean | Yes |
| Delay Start | Yes |
| Door Lock | Yes |
| Broil | Yes |
| Cancel | Yes |
| Clock | Yes |
| Convection Bake | Yes |
| Bake Time | Yes |
| Bake | Yes |
| CONTROLS | |
| Sabbath Mode | No |
| Control Lock | Yes |
