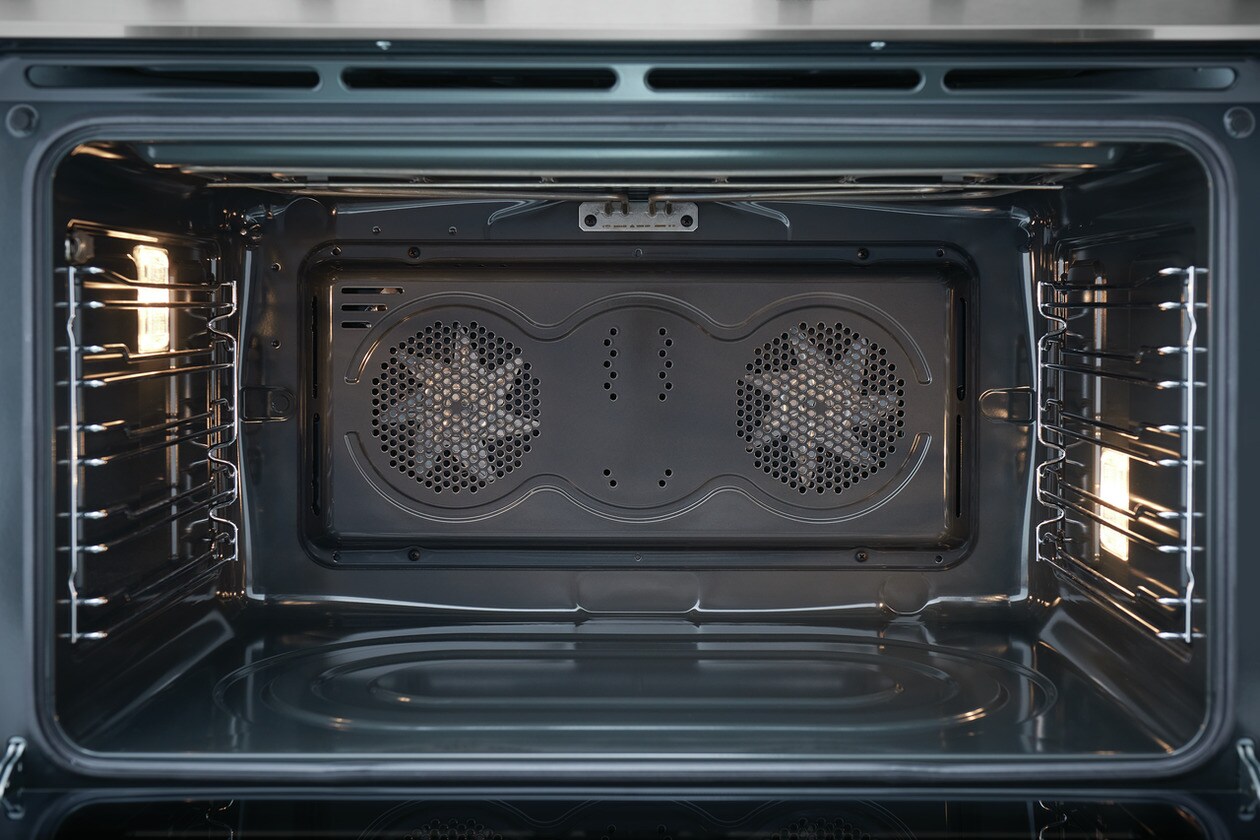

True Convection
Master even the most challenging recipes with true convection which uses three heating elements and a fan for even cooking results

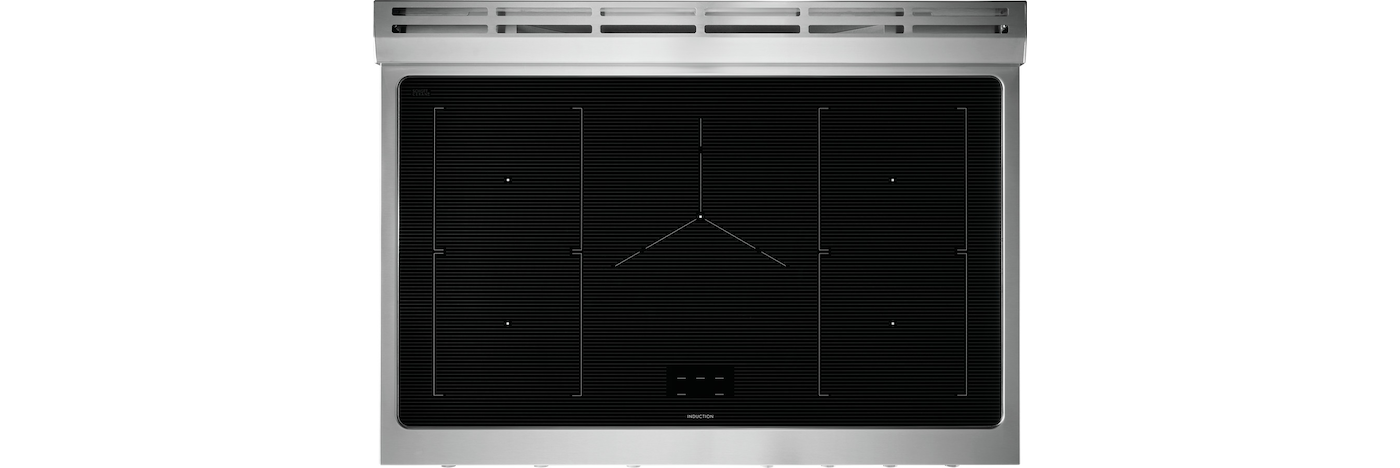

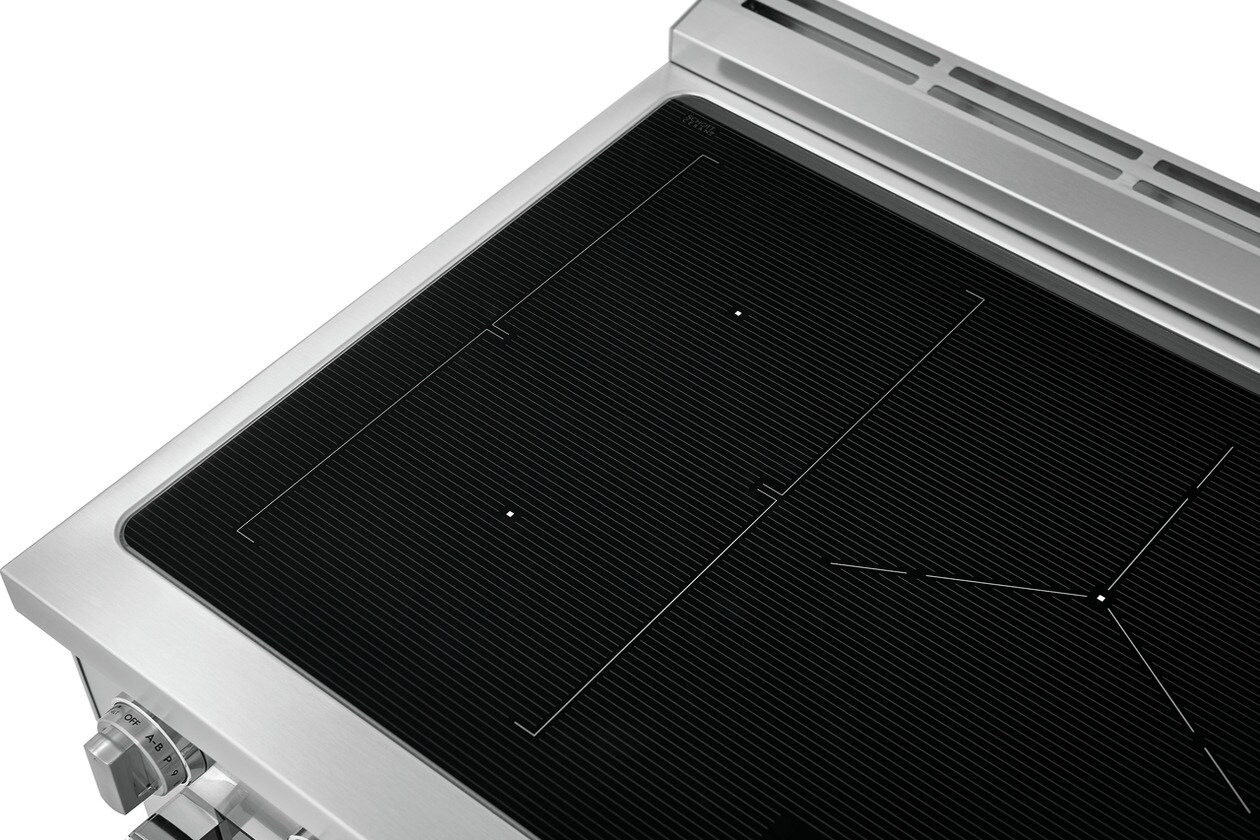

Bridge Features
Expand your culinary horizons to specialty foods like crepes and paninis with two bridge features that allows you to connect two cooking elements for even heat, even when using larger pans or griddles
Temperature Probe
Cook proteins to juicy perfection, never over or under cooked, with an integrated temperature probe which alerts you when your food has reached the desired temperature

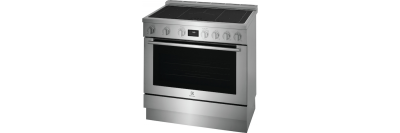

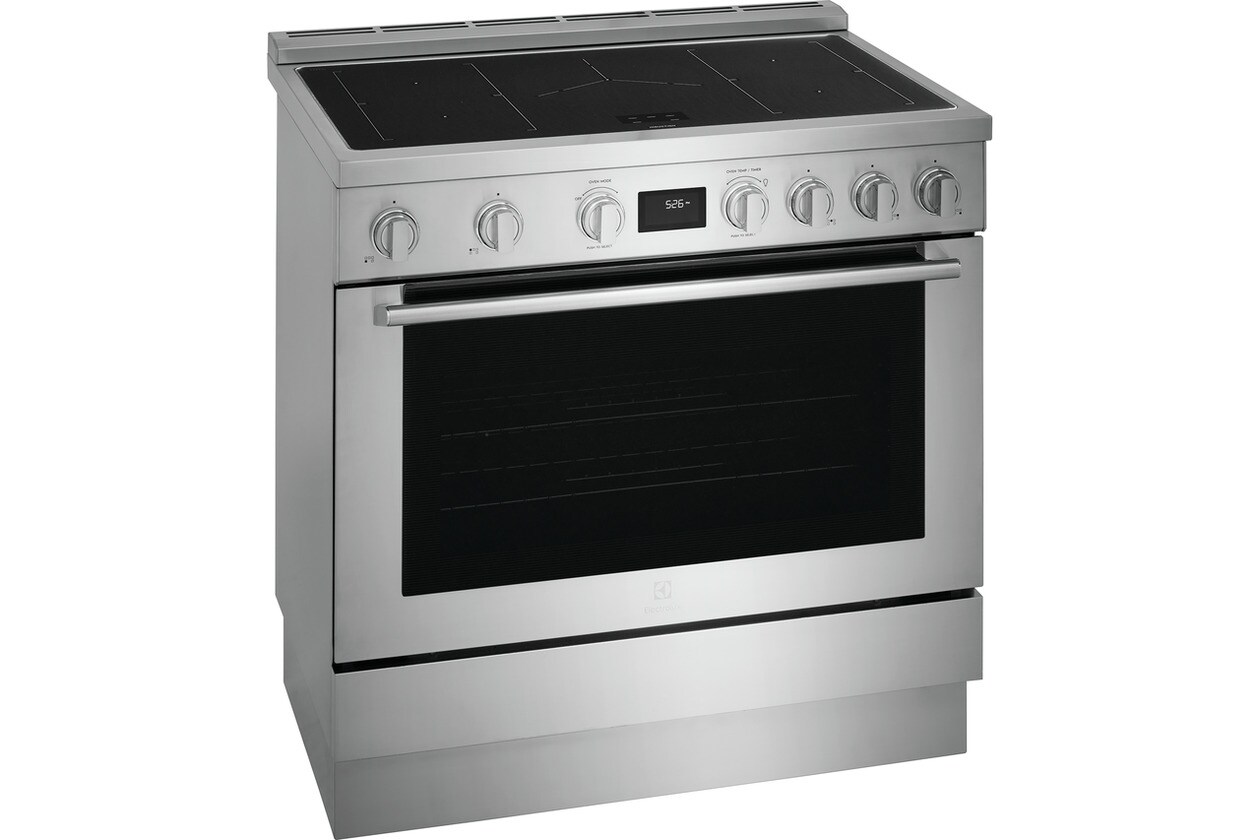

Sleek Design

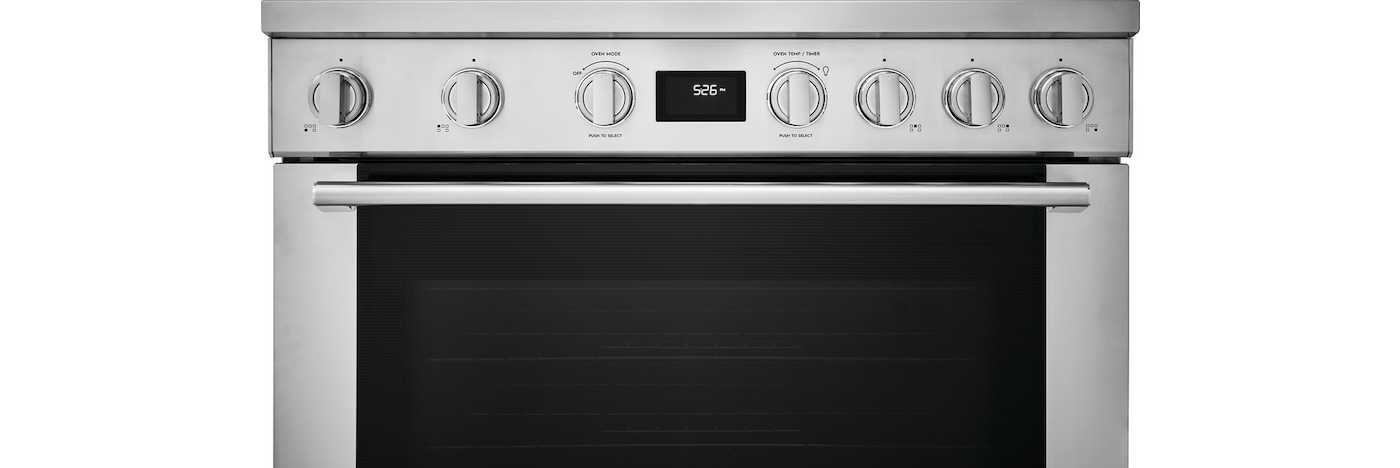

Edge-to-edge front controls with sturdy knobs and the Electrolux signature pinstriped glass lend to the sleek design that make this range a focal point of your kitchen
One Hour Steam Clean
Keep your oven looking its best with the one hour Steam Clean cycle that's chemical- and odor-free
Soft Close Door
Gently close the oven door even when your hands are full with the soft close door
Platinum Star Limited Warranty
Our exclusive warranty offers peace of mind for registered owners with two years of coverage on replacement parts. 1
| General Specifications | |
|---|---|
| Product Weight | 223 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Display | |
| Display Interface Color | White |
| Display Type | LED |
| Control Location | Front |
| Dimensions and Volume | |
| Oven Interior Depth | 16 1/2" |
| Capacity | 4.4 Cu. Ft. |
| Oven Interior Width | 28 1/4" |
| Oven Interior Height | 14 1/2" |
| Depth With Door 90° Open | 43 469/500" |
| Depth | 24 813/1000" |
| Width | 35 469/500" |
| Maximum Height | 36 563/1000" |
| Minimum Height | 35 563/1000" |
| Cooktop Performance | |
| Right Rear Element Burner Size | 7 1/10" |
| Center Front Element Burner Size | 10 1/4" |
| Left Rear Element Burner Size | 7 1/10" |
| Left Front Element Burner Size | 7 1/10" |
| Right Front Element Burner | 1,850 / 3,000 Watts (Boost) |
| Right Rear Element Burner | 1,850 / 3,000 Watts (Boost) |
| Left Front Element Burner | 1,850 / 3,000 Watts (Boost) |
| Left Rear Element Burner | 1,850 / 3,000 Watts (Boost) |
| Center Element Burner | 2,600 / 3,700 Watts (Boost) |
| Right Front Element Burner Size | 7 1/10" |
| OVEN | |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Ladder |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Rack Type 2 | Glide |
| Rack Type 2 Quantity | 1 |
| Window Type | Extra Large Window |
| Broil Element | 3,300 Watts |
| Bake Element Type | Hidden |
| Bake Element | 3,300 Watts |
| Convection Element | 3,380 Watts |
| Convection Type | True Dual |
| Number of Convection Fans | 2 |
| Number of Rack Positions | 5 |
| Oven Interior Color | Gray |
| Oven Light Quantity | 2 |
| Oven Light Type | Halogen |
| Installation | |
| Power Cord Included | Yes |
| Included Power Cord Type | 4-Prong Plug |
| Adjustable Leveling Legs | Yes |
| COOKTOP | |
| Bridge Element Location | Right and Left |
| Cooking Surface Type | Smooth |
| Hot-Surface Indicator Light | Yes |
| Safety Certifications and Approvals | |
| UL Listed | Yes |
| cUL Listed | Yes |
| RoHS | Yes |
| CONTROLS | |
| Sabbath Mode | Yes |
| Cooking Controls | |
| Bake | Yes |
| Child Lock | Yes |
| Convection Bake | Yes |
| Bread Proof | Yes |
| Broil | Yes |
| Cook Time | Yes |
| Convection Roast | Yes |
| Keep Warm | Yes |
| Delay Start | Yes |
| Kitchen Timer | Yes |
| Probe | Yes |
| Steam Clean | Yes |
| Temperature Display | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Amps @ 240 Volts | 50 Amps |
| Connected Load @ 240V | 15.1 kW |
| Voltage Rating | 240 V |
