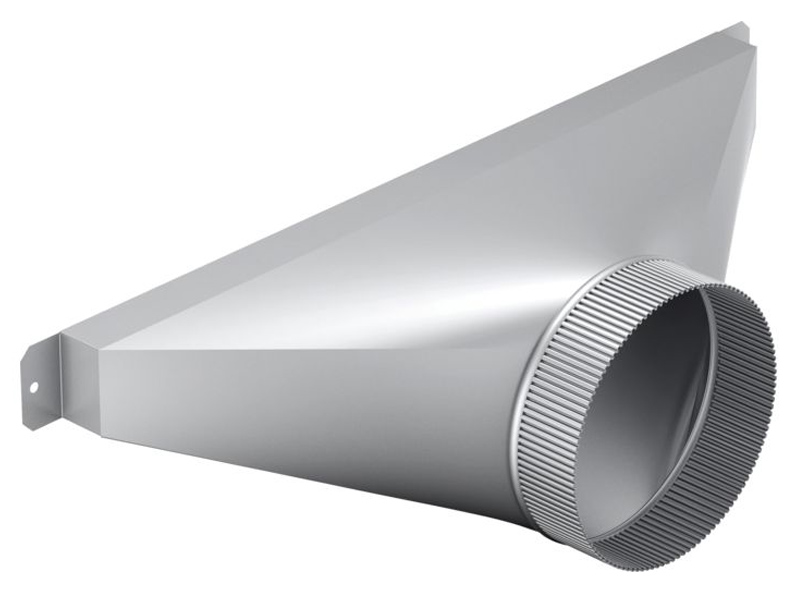

Bosch 6" Side/Rear Transition for Downdraft - HDDSTRAN6

SKU : HDDSTRAN6

WAS $205.00
$179.00 CAD
Sale Ends 01-01-2025

Literature

6" Round Transition Enable Ducting To Be At Sides Or Rear Of Downdraft For Flexible Configurations To Maximize Your Kitchen Design

  • Flexible Transition Design Allows For Left, Right Or Rear Venting
  • For Use With Downdraft Inline And Remote Blowers With 6" Round Duct
  • Some Blower Positions May Need Deeper Cabinets. See Installation Guide

Design

  • Customize The Direction Of Duct Discharge To Be Left, Right, Or Rear

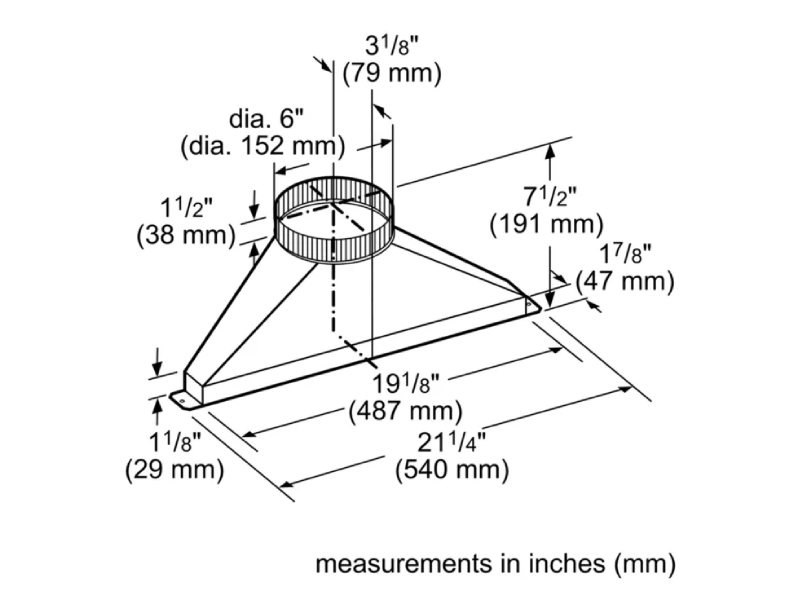

  • Rectangular 1-7/8" x 19" Transition To 6" Round
  • Ability To Use With Ducting Or Elbows With 6" Round Duct Connection
  • Some Blower Positions May Need Deeper Cabinets. See Installation Guide

Performance

  • Ability To Use With DHG6105NUC Inline or DHG6023RUC Remote Blowers
Technical data
BrandBosch
Name of product imageMCSA02476000_i3921_1849304_CVTSIDE6_def.jpg
Construction typeBuilt-in
Height of the packed product (mm)318 mm
Width of the packed product (mm)311 mm
Depth of the packed product (mm)641 mm
SKUHDDSTRAN6
Product name / series nameproduct line supplement cooker hood
EAN code4,242,002,910,758
Gross weight (kg)1.36 kg
Height of the product (mm)32 mm
Product groupHood
UPC code825225920731
EAN Barcode' 2E20AC-jbahfi
Standard number of units per pallet20
Internal article number000000000000777720
Net weight (kg)1.214 kg
Product group for which the accessory is availableHood
Product packaging dimensions (HxWxD) (mm)317 x 311 x 641 mm
Other data
EAN Barcode' 2E20AC-jbahfi
Standard number of units per pallet20
Country of originUS
Product packaging dimensions (HxWxD) (mm)317 x 311 x 641 mm
