54" Vent-A-Hood Designer Series Wall Mounted Hood - JPH454C2SS
![](/img/brandlogo/brand_logo_83.png)

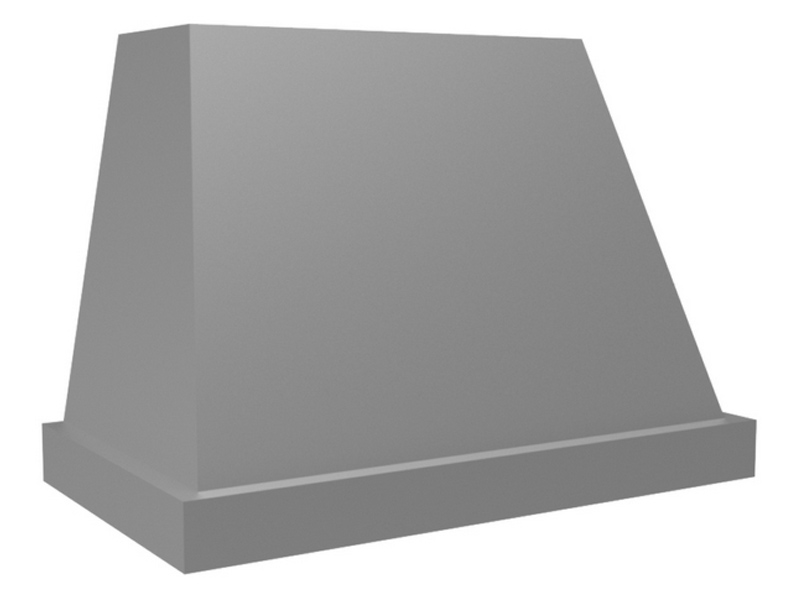

Pyramid with offset lip styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need. This model is available in stainless steel with standard mirror stainless trim. All Vent-A-Hood Magic Lung products are suitable for use in damp locations (outdoor applications such as a covered patio) when installed in a GFCI protected branch circuit. Recommended mounting height is 30" above the cooking surface.
+ This model is equipped with LED lighting: (2 lights: 30" - 41", 3 lights: 42" - 53", 4 lights: 54" - 66").
$ Because the Magic Lung® blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems. When comparing the Magic Lung® with other blower units made by other manufacturers, use the "Equivalent CFM".
# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.
Specification | |
---|---|
WIDTH : | 54" |
DEPTH : | 24" |
HEIGHT : | 30" |
CFM : | 1200 |
SONES : | 6.6 |
Amps : | 7.5 |
Num. Lights : | 4 |
