Key Features
- Four-Speed Fan
- Power Boost Function
- Requires a 585 or 1170 CFM Motor Class - Sold Separately
- Automatic Turn On
- Four LED Lights with Night Light Setting
Product Overview

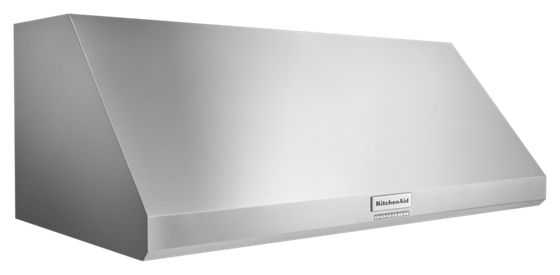

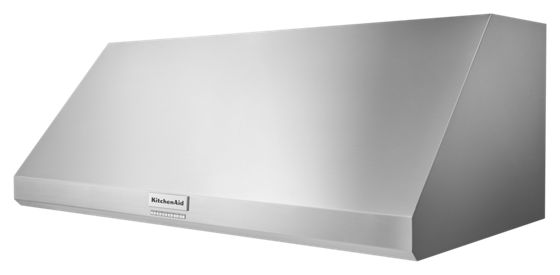

48'' 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood
Designed to pair with 48-inch KitchenAid® Commercial-Style Ranges and Rangetops, this 48-inch wall-mount canopy range hood equips your kitchen with powerful ventilation. A 105,000 BTU rating allows this vent hood to keep up with high-heat cooking on multiple burners at the same time. Four fan speeds let you choose the right setting for cooking adventures from simmering to searing.
Additional Features
Four-Speed Fan
Features low, medium, high and power boost settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
Power Boost Function
Assists high-heat cooking by activating maximum fan speed for five minutes to help quickly clear smoke and steam. This function turns on automatically if the hood's sensor detects high-heat cooking on multiple burners and can also be activated manually.
Requires a 585 or 1170 CFM Motor Class - Sold Separately
allowing you to customize a powerful ventilation system with your choice of commercial-style blowers (two blower options sold separately*).
Automatic Turn On
Provides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.

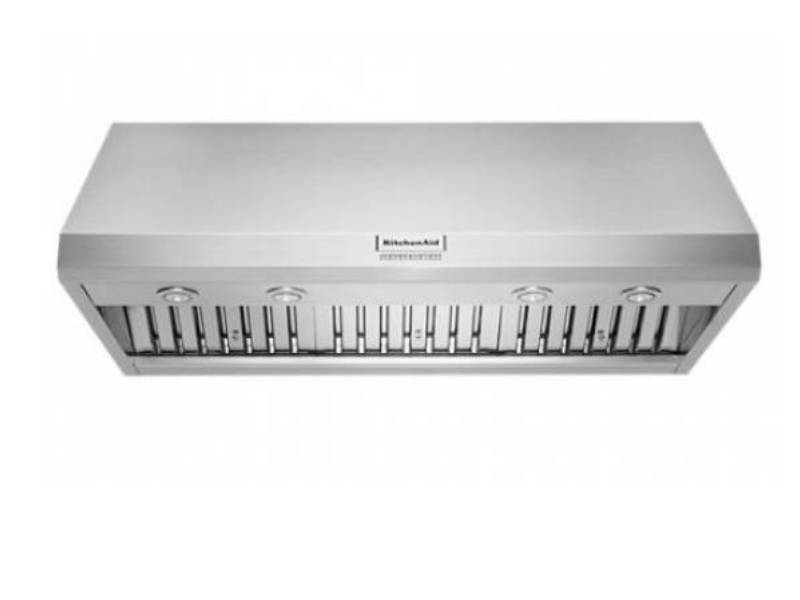

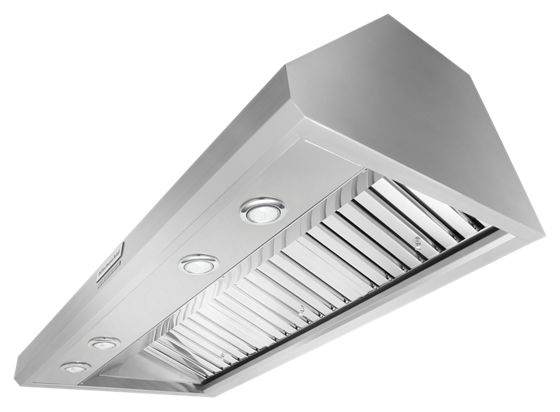

Four LED Lights with Night Light Setting
Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
Removable Stainless Steel Baffle Filters
Help capture the grease, steam and odors of high-heat cooking. The stainless steel design adds to the hood's bold commercial-style look and the filters are removable for easy cleaning with soap and water.
VENTILATION SYSTEM | |
---|---|
Maximum Motor Exhaust Rating Cubic Feet per Minute | 1170 |
Exhaust Vent Location | Top |
Duct Type | Round |
Duct Outlet Size | 10 |
Duct Length | 13.000 |
Duct Direction | Vertical or Horizontal |
Blower Type | Centrifugal |
Blower Motor | Blower Motor to be Purchased Separately |
Auto Function | Auto On |
Number of Speeds | 4 |
Sound Max Speed | 12-1/2 |
Sound Min Speed | 2-1/2 |
Vent Fan Location | Side |
Vent Material | Aluminum |
Venting | Exterior |
Details | |
Task Light Type | LED |
Features | |
Task Lighting | Yes |
Number of Task Light Settings | 1 |
Number of Night Light Settings | 1 |
Night Light Type | LED |
Night Light | Yes |
Auto On | Yes |
Lighting Control Type | Push Button |
Dimensions | |
Canopy Height | 3048.00 cm, 12.0 in |
Cutout Height | 4572.00 cm, 18.0 in |
Cutout Width | 12192.00 cm, 48.0 in |
Depth | 6350.00 cm, 25.0 in |
Maximum Height | 9144.00 cm, 36.0 in |
Net Weight | 17236496.00 kg, 38 lbs |
Width | 12192.00 cm, 48.0 in |
Description | |
Size | 48 |
Configuration and Overview | |
Installation Type | Wall-Mount Canopy |

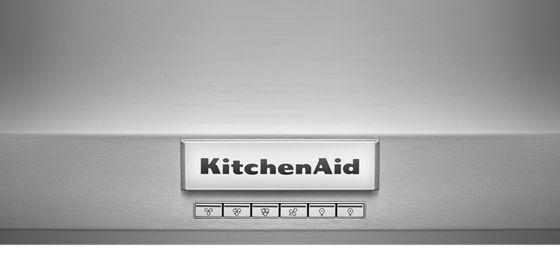

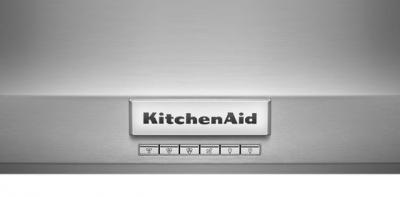

CONTROLS | |
Control Location | Front |
Control Type | Push Button |
Electrical | |
Amps | 4 (585 CFM)/7.7 (1170 CFM) |
Hz | 60 |
Power Cord Included | No |
Volts | 120 |
Watts | 926 |
Certifications | |
Energy Star | No |
Kosher Consumer Friendly | No |
UL | Yes |
