48" AGA Mercury Dual Fuel Range - AMC48DF

Category : Ranges
SKU : AMC48DF


Literature

Polished Refinement
With finely tuned performance, the stately AGA Mercury integrates contemporary details, like a sleek zero-clearance façade and Hi-Fi style cooking controls. Enjoy a generous 5-burner gas cooktop and three rapid-heat ovens in one dynamic 48” footprint.

A contemporary statement piece for any kitchen, the AGA Mercury range is built from the highest quality components. With over 6 cubic feet of cooking capacity among three separate ovens, Mercury offers multi-oven multi-tasking to produce some of the most complicated dinners.

The multifunction oven offers seven functions for flexible cooking which include Defrost, True European Convection, Convection Grilling, Fan Assisted Oven, Conventional Oven, Browning and Base Heat for slow cooking. And, the main oven’s True European Convection cooking is the optimal way to properly and evenly heat foods.

Powerful burners and interlocking cast iron grates provide a versatile cooking surface that is easy to clean. The exceptionally large center burner will cradle a wok ring and easily accommodates any over-sized stockpot or pan.

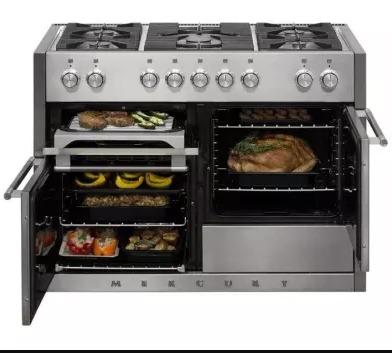

Multiple ovens with separate temperature control

  • 3 separate ovens totaling 6 cubic feet can cook as much or as little as you want. And don’t let the space-efficient size fool you — each oven can fit a 25-lb turkey!
  • One extra-large 7-Mode Multi-Function™ Oven (left oven) tailors to your cooking needs with 7 cooking options: Defrost, Convection, Convection Broiling, Fan Assist Bake, Conventional, Browning and Base Heat

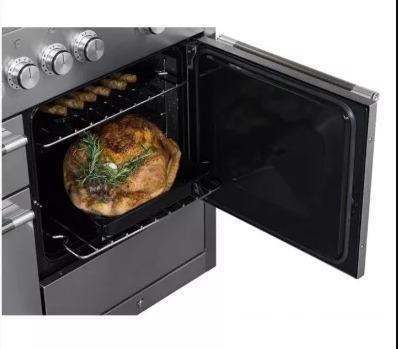

  • A second extra-large true European convection oven (right oven) evenly circulates heat
  • Each large oven has 5 rack positions; the range comes with 4 heavy duty steel racks and one telescoping steel rack for a total of 5 oven racks

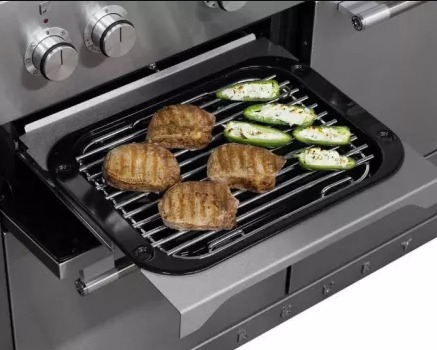

  • Dual-element Glide-Out™ Broiler System features full and half broil and an extendable gliding tray that adjusts to two heights and can cook as many as six 6-oz steaks at once. And with its 8-pass, 2,300 watt power, it’s ready to cook in just 5 minutes!
  • Spacious storage drawer with rubber mat to protect and store your cookware
  • EasyClean™ Technology with black enamel interior

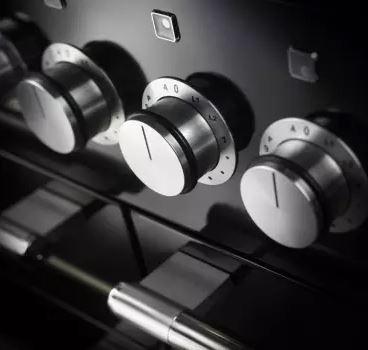

  • 9 eye-catching Hi-Fi Style Controls deliver precise power to each burner and oven with stereo-like grace

5-Burner Gas Cooktop

  • 5-burner gas cooktop features sealed brass burners with an exceptionally large center burner for oversized stockpots and wok cooking. Interlocking cast iron grates provide a continuous surface to slide pans across the cooktop – and can be removed for easier cleaning.
  • Each burner is topped with a porcelain enamel finish cast iron flame spreader to provide superb heat distribution and retention

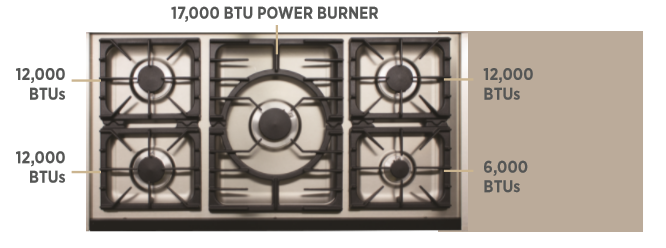

  • One center 17,000 BTU brass burner, three 12,000 BTU brass burners and one 6,000 BTU brass burner
  • Extra-large 11.75″ diameter power burner rated 17,000 BTUs perfect for rapid boiling, large stock pots and stir fry
  • Includes an 11″ diameter wok ring made of semi-gloss black enamel coated cast iron to cradle a large wok (not included) on the center burner keeping the wok at the perfect height for focused heat distribution
  • 6 interlocking matte finish cast iron grates easily lift for fast cleaning
  • Extra-large two-piece interlocking center grate
  • Four grates interlock above each side burner providing ample space for any pan
  • LP Conversion Kit included
DIMENSIONS & WEIGHTS
Package Dimensions 49-1/4″ W x 31″ D x 46-1/2″ H
Shipping Weight 390 lbs.
Appliance Weight 357 lbs.
Depth with Door Open 46-1/8″
Appliance Dimensions to Handles 47-9/16″ W x 28-7/16″ D x 36-1/8″ H
Appliance Dimensions to Fascia 47-9/16″ W x 26″ D x 36-1/8″ H
ACCESSORIES INCLUDED
1 broiler pan insert1 storage drawer mat
1 enameled broiler pan1 LP conversion kit
1 cast iron wok ring -
TECHNICAL DETAILS
Alternative Gas Type Liquid Propane
Gas Type Natural Gas with LP Conversion Kit Included
Energy Source Electric Ovens and Gas Cooktop
Power Cord Length 48″
Frequency (Hz) 60Hz
Plug Type 4 Wire
Volts (V) 240V
Circuit Breaker (A) 40A
Cooktop Performance
Power of Back Right Burner BTU 12,000 BTU High, 2,400 BTU Low
Power of Front Right Burner BTU6,000 BTU High, 1,200 BTU Low
Power of Center Burner BTU17,000 BTU High, 3,400 BTU Low
Power of Back Left Burner BTU 12,000 BTU High, 2,400 BTU Low
Power of Front Left Burner BTU 12,000 BTU High,2,400 BTU Low
Number of Brass Burners 5
Oven Performance
Third Cavity – Broiler 2,300W
Broiler Type 8-Pass Radiant Heat
Main Cavity – Right Side 2,500W
Second Cavity – Left Side 2,500W
Specifications
Controls Metal Hi-Fi Style with Nitrile Grip
Sealed Burners Yes
Total Oven Capacity 6 cu. ft.
Cleaning TypeEasyClean™ Enamel
Grate Type Interlocking matte cast iron
Cooking Modes Third Cavity – BroilerDual-element with 8-pass 2,300W, 0.5 cu. ft.
Cooking ModesSecond Cavity – Left Side Multi-function oven with 7 cooking modes, 2.8 cu. ft. (17″W x 14″D x 14.5″H usable space)
Cooking Modes Main Cavity – Right SideConvection Bake 2.8 cu. ft. (17″W x 14″D x 14.5″H usable space)
Warranty
1 Year Warrantyentire appliance, parts and labor
