Under-cabinet or stand-alone installation

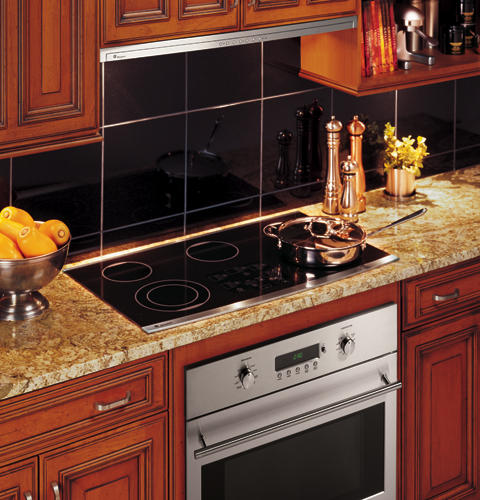

The chimney hood installs flush under a cabinet, above most cooktops and ranges. For a more contemporary look, the system can be wall-mounted with matching 8-to-10-foot duct cover
Low-profile design, high-impact style

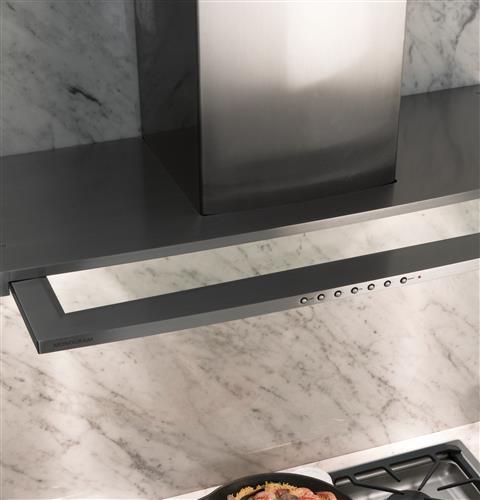

The retractable, glass canopy is sleekly styled with a streamlined design, seamlessly finished edges and front-mounted touch controls
Powerful ventilation

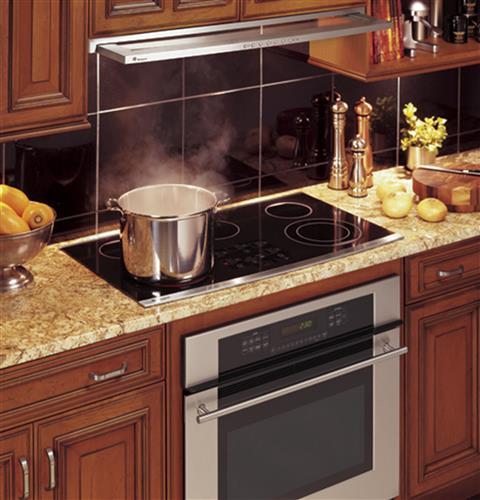

A four-speed, 460-CFM fan blower with boost option captures the smoke and steam produced by high-performance cooking equipment

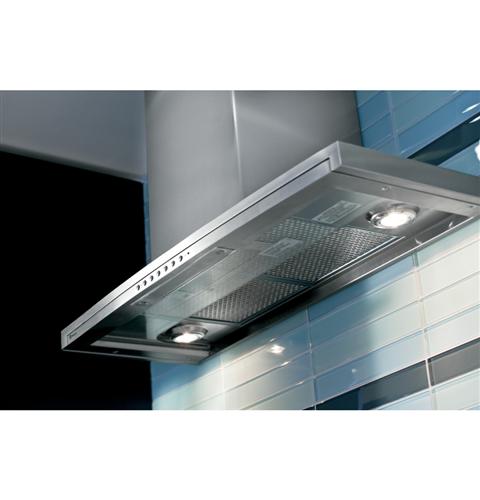

Multilevel halogen lighting
Six levels of intensity, from accent to ambient settings, allow you to choose the lighting to match the cooking task or occasion
Easy maintenance

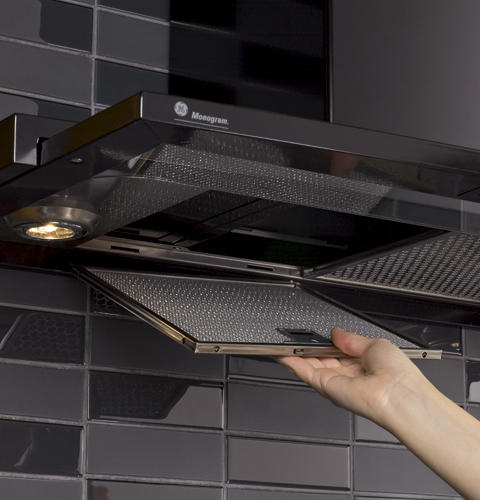

Stainless steel filters can be easily removed for safe cleaning in your dishwasher
Recirculating kit
Included for applications that do not allow outside venting
Weights & Dimensions | |
---|---|
Overall Depth (hood retracted) | 13.6875 |
Overall Depth (hood extended) | 18.9375 |
Overall Depth | 13.6875 |
Net Weight | 60.0 |
Cabinet Width | 36.0 |
Approximate Shipping Weight | 81.0 |
Overall Height | 1.5 |
Overall Width | 35.875 |
Appearance | |
Installation | Under Cabinet, Wall Mounted |
Design Style | Chimney |
Colour | Stainless Steel |
Inputs & Outputs | |
Indicator Lights | "ON" |
Welded / Finished Seams | Yes |
Vertical Exhaust-Round (Cubic Feet / Minute) | 460 |
Variable Speed Fan | Yes |
Stainless Steel Mesh Filters | Yes |
Recirculating Capable | Yes |
Fan Speed Control | 4-Speed |
Exhaust Options | 6" Round Duct |
Damper in Transition | Yes |
Cooktop Lighting | 2, Halogen |
Lighting Levels | 6 |
Control Type | Electronic, Pushbutton |
Automatic Light/Fan Activation | Yes |
Accessories | |

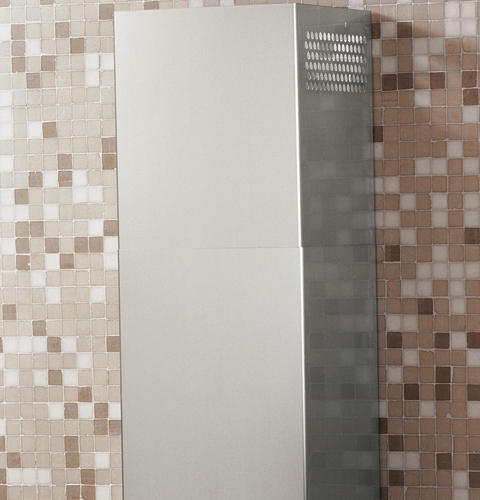

8'-10' Ceiling Duct Cover | Included |
Recirculating Charcoal Filter Kit | Included |
Warranty | |
Labor Warranty | Limited 1-year entire appliance |
Parts Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
