Features
Get to mealtime faster with the Quick Boil Burner
Experience faster boil times and more powerful cooking with the 18,000 BTU burner. Backlit LED knobs light up when the cooktop is in use.
Flexible Five Burner Cooktop
This cooktop features five burners designed to fit all of your cooking needs, including a 5,000 BTU simmer burner perfect for delicate foods and our powerful 18,000 BTU Quick Boil Burner that gets meals on the table, faster.

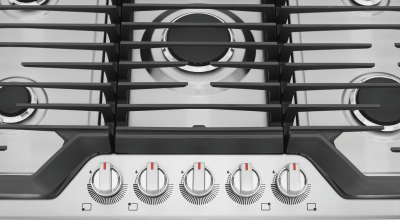

Bright, backlit LED Knobs
Backlit LED knobs light up when the cooktop is in use.
Low Simmer Burner
Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
Dishwasher Safe Burners Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Keep your cooktop looking beautiful with the Spill Safe Cooktop
Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.
Peace of Mind with the Frigidaire Fit Promise
We promise that your new 36" Frigidaire Gallery gas cooktop will fit your existing cut-out, or we will reimburse you up to one hundred dollars for professionally modifying the countertop. 1
Approved over Frigidaire Electric Wall Ovens
Cooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
| Dimensions and Volume | |
|---|---|
| Minimum Cutout Width: | 33 7/8" |
| Cutout Height: | 7 1/2" |
| Depth: | 21" |
| Width: | 36" |
| Height: | 2 7/16" |
| Minimum Cutout Depth: | 19" |
| Maximum Cutout Width: | 35 5/8" |
| Maximum Cutout Depth: | 20" |
| Display | |
| Control Location | Front |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 51 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Cooktop Performance | |
| Right Front Element Burner | 12,000 BTU |
| Center Front Element Burner | 18,000 BTU |
| Left Rear Element Burner | 9,500 BTU |
| Left Front Element Burner | 9,500 BTU |
| Right Rear Element Burner | 5,000 BTU |
| ELECTRICAL SPECIFICATIONS | |
| Voltage Rating | 120 V |
| Minimum Circuit Required | 5 Amps |
| Installation | |
| Gas Supply Connection Location | Top Right |
| Installed Over a Wall Oven | Yes |
| LP Conversion Kit Included | Yes |
| Power Cord Included | Yes |
| Power Supply Connection Location | Right Center |
| COOKTOP | |
| Surface | Gas |
| Grate Material | Cast Iron |
| Grate Quantity | 3 |
| Grate Style | Continuous |
| Exterior | |
| Backlit Knobs | Yes |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |
