Your temperature, your way.
Juggling multiple pots and pans on different power levels can be confusing and frustrating. With PreciseSelect an intuitively designed control panel allows you to select the cooking zones and set the specific power level you want – quickly and easily.
Boost your cooking.

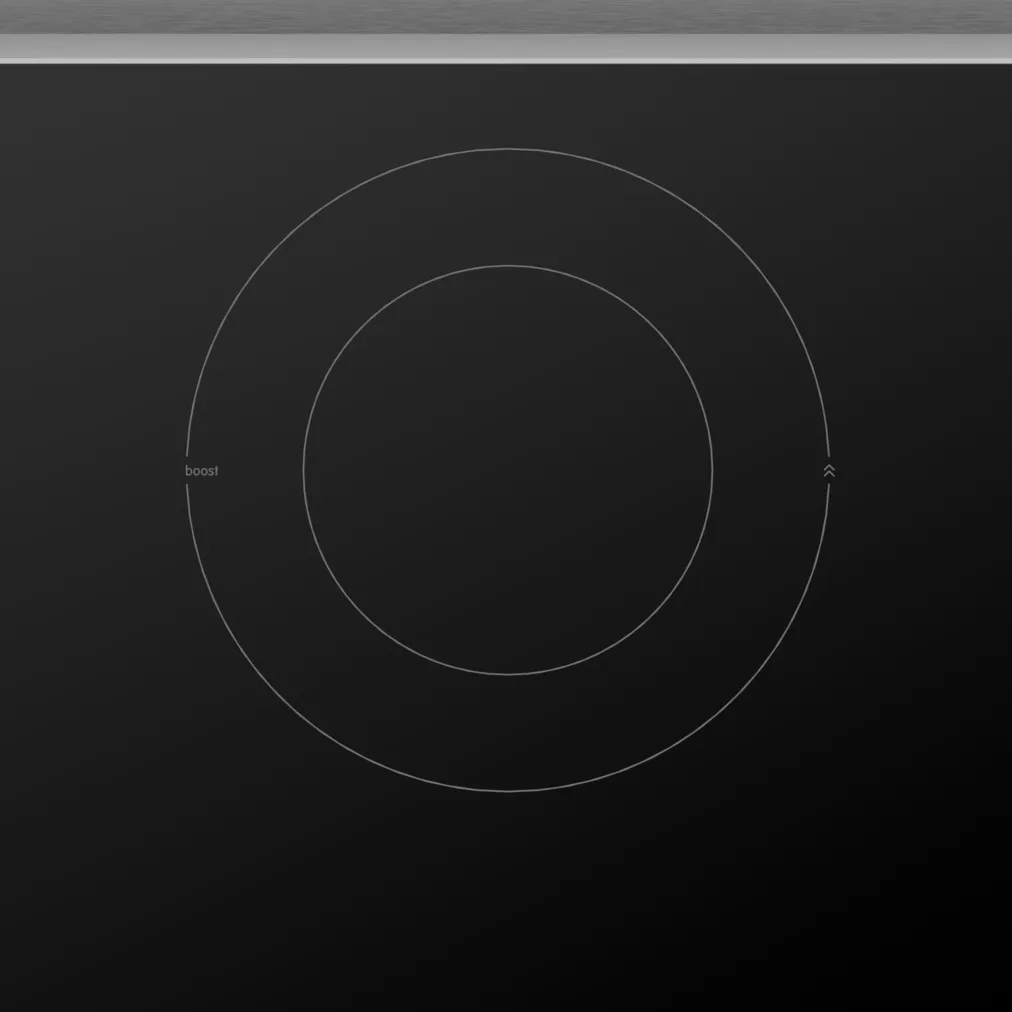

Sometimes you just need a little extra boost when cooking. The improved SpeedBoost® function in our electric cooktops adds even more power to speed up the cooking process.
Smooth Ceramic Glass
The smooth ceramic glass surface makes cooking and cleaning especially easy.

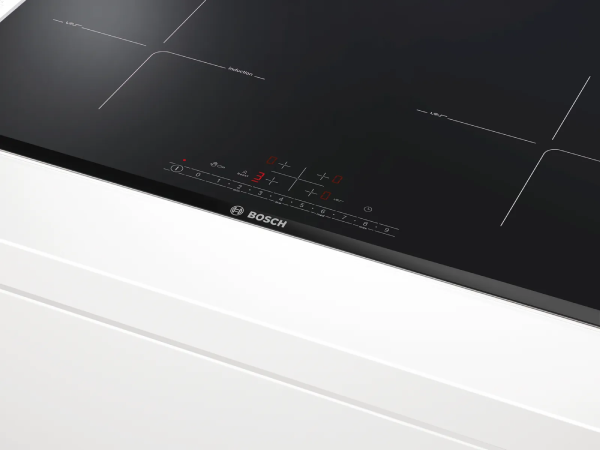

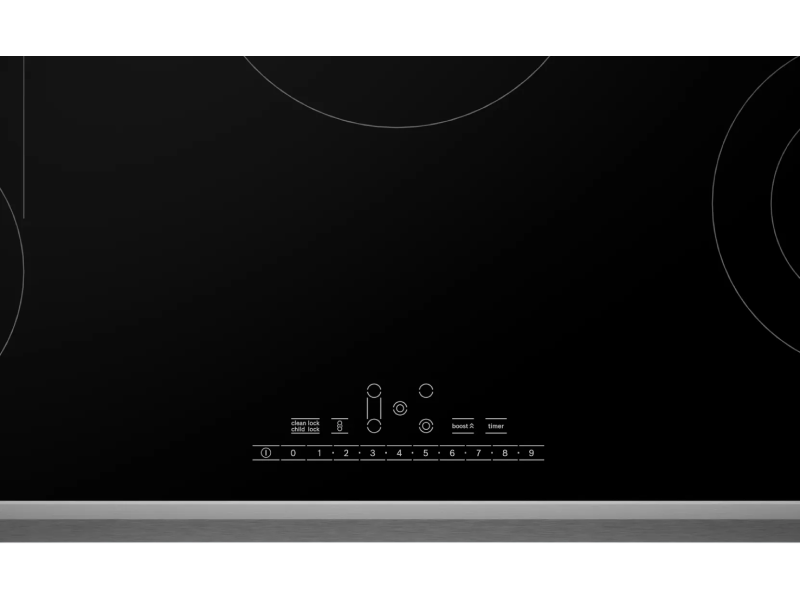

Control at your fingertip.
PreciseSelect Premium controls on our induction and electric cooktops offer premium usability during cooking. The choice of desired cooking zones, power levels and individual functions are direct and intuitively easy together with a wider LED illuminated display. The light line on power level bar and cooking zones illuminate in a more intense way when one of them has been selected.
- PreciseSelect® - direct cooking level selection.
- SpeedBoost offers shorter heat-up times for liquids.
- The smooth ceramic glass surface makes cooking and cleaning especially easy.
- Bridge Element Accommodates Oblong Pans and Many Diameters of Cookware.
- Each Zone's Timer Automatically Shuts Off When Cooking is Done.
Design
- Front and Back Stainless Steel Strip for a Premium Look
- Cooktop Design Coordinates with Bosch Ovens and Ventilation
Performance

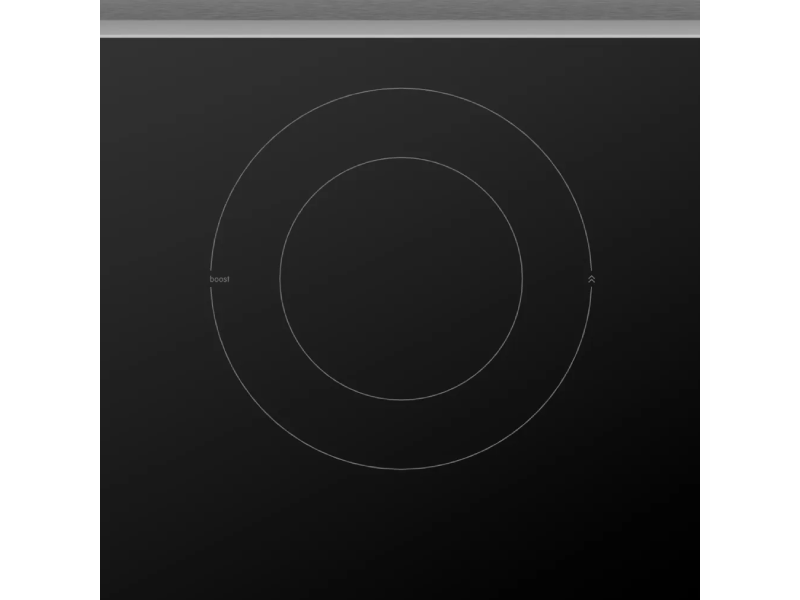

- Dual Element Offers the Capability to use Multiple Pan Sizes
- Bridge Element Accomodates Oblong Pans and Multiple Diameter Sized Cookware
- SpeedBoost® - Delivers More Power to Speed Up the Cooking Process
Convenience

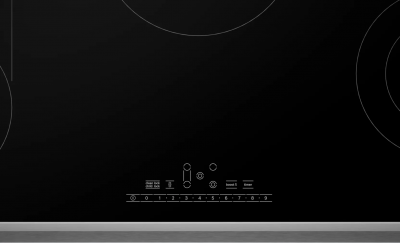

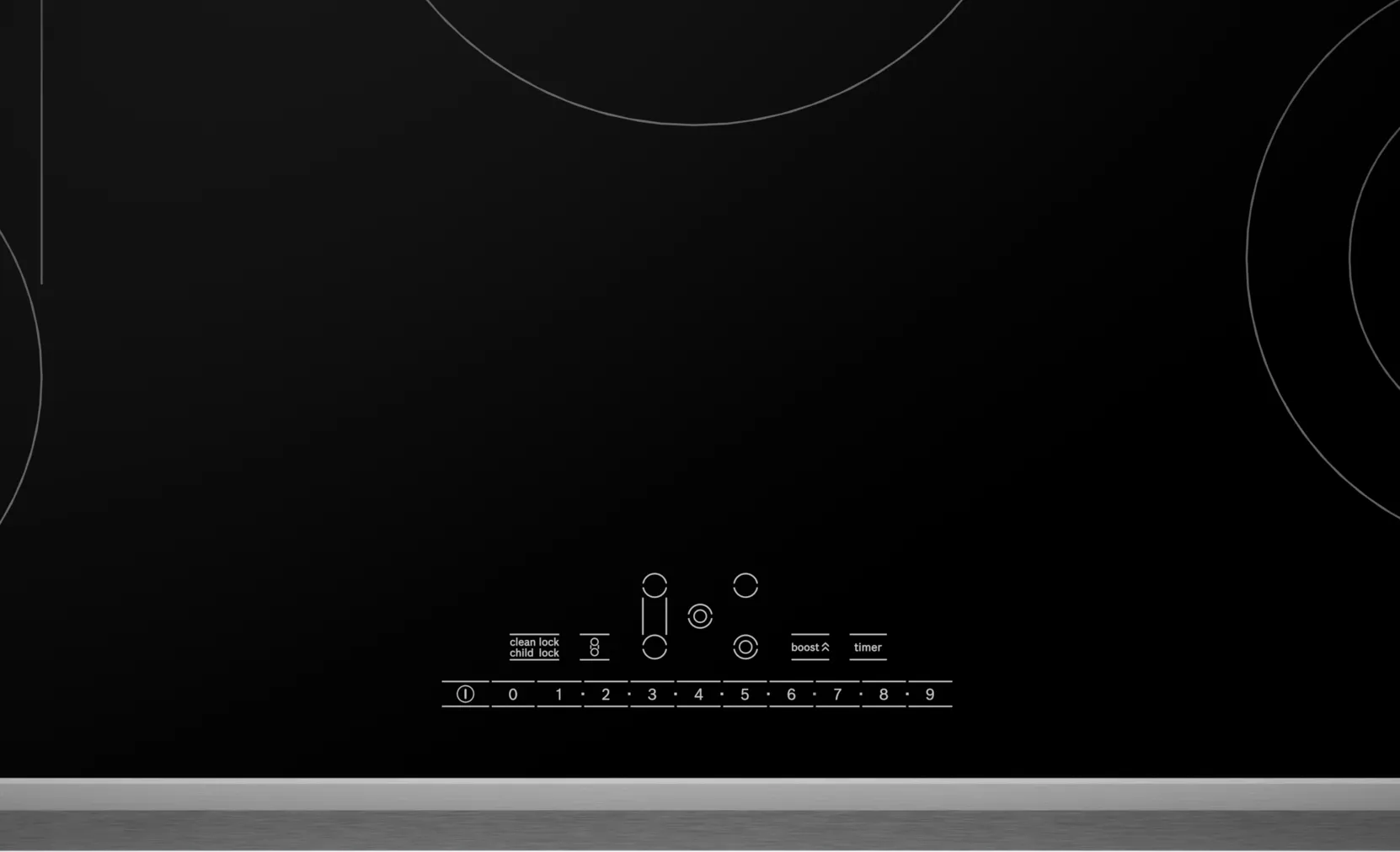

- PreciseSelect® - Direct Cooking Level Selection - 17 Settings for Precise Control
- Use the Kitchen Timer to Measure Cooking Time or as a Reminder
- Clean Lock - Prevents Unwanted Changing of Settings while Cleaning Spill-Overs.
Safety
- 2-Level Heat Indicator - Warns if Cooktop is Warm or Hot
- ChildLock - Prevents the Cooktop from Being Accidentially Switched on. Locks Temperature Settings if in Use.
| Cooking zone 7 | |
|---|---|
| Dimension of 7th heating element | 120 ; 195 mm |
| Location of 7th heating element | front right |
| Type of 7th heating element | Radiant heating |
| Dimension of 7th heating element (in) | 5" ; 8" |
| Power of 7th heating element (kW) | 0.8 ; 1.9 kW |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Dimension of 9th heating element | 140 ; 230 mm |
| Location of 9th heating element | front centre/cent |
| Type of 9th heating element | Radiant heating |
| Dimension of 9th heating element (in) | 6" ; 9" |
| Power of 9th heating element (kW) | 1.4 ; 3.6 kW |
| Construction type | |
| Color of frame | Stainless steel |
| Construction type | Built-in |
| Number of electric cooking zones | 5 |
| Number of gas burners | 0 |
| Number of radiant elements | 5 |
| Installation Type | Built-in |
| Color of surface | Black, Stainless steel |
| Number of electric elements | 0 |
| Number of halogen elements | 0 |
| Type of frame | Profiles front+rear |
| Number of electric warming zones | 0 |
| Total number of cooktop burners | 5 |
| Safety | |
| Residual heat indicator | Separate |
| Connection | |
| Frequency | 60 Hz |
| Watts | 10,200 W |
| Heating Technology | Electric |
| Power cord length | 96 cm |
| General | |

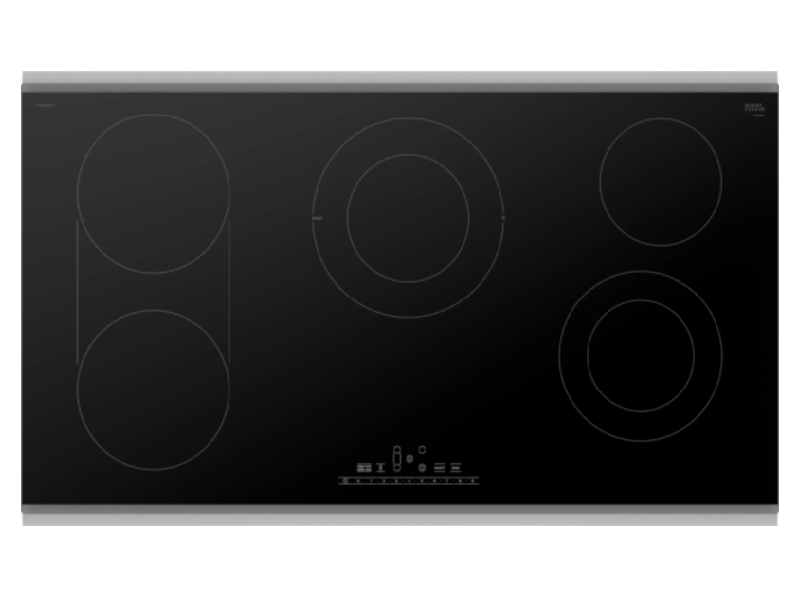

| Cooktop type | Radiant cooktop |
| Type of appliance width | 90 cm |
| Basic surface material | Ceramic |
| Dimensions of the heating elements | 1 x 14,0 cm Ø, 1 x 19,5 cm Ø, 1 x 23,0 cm Ø, 2 x 18,0 cm Ø |
| Number of Burner | 5 |
| Self-sufficient cooker control | Self-sufficient electro hobs |
| Variant color | Black |
| Power of the heating elements | 1 x 1.2 KW, 1 x 1.9 KW, 1 x 3.6 KW, 2 x 1.8 KW |
| Connectivity | |
| Home Connect | No |
| Cooktop-based hood control | No |
| Size and Weight | |

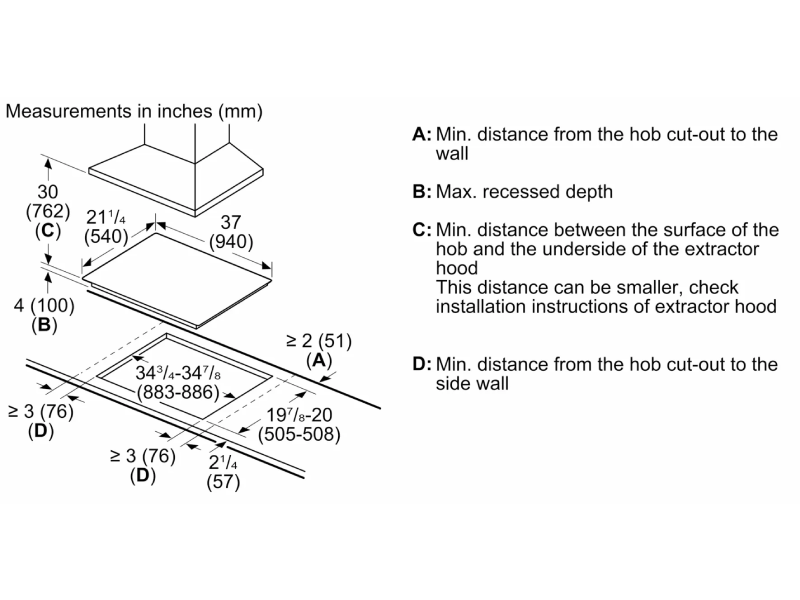

| Dimensions | 100 x 940 x 540 mm |
| Net weight | 14.0 kg |

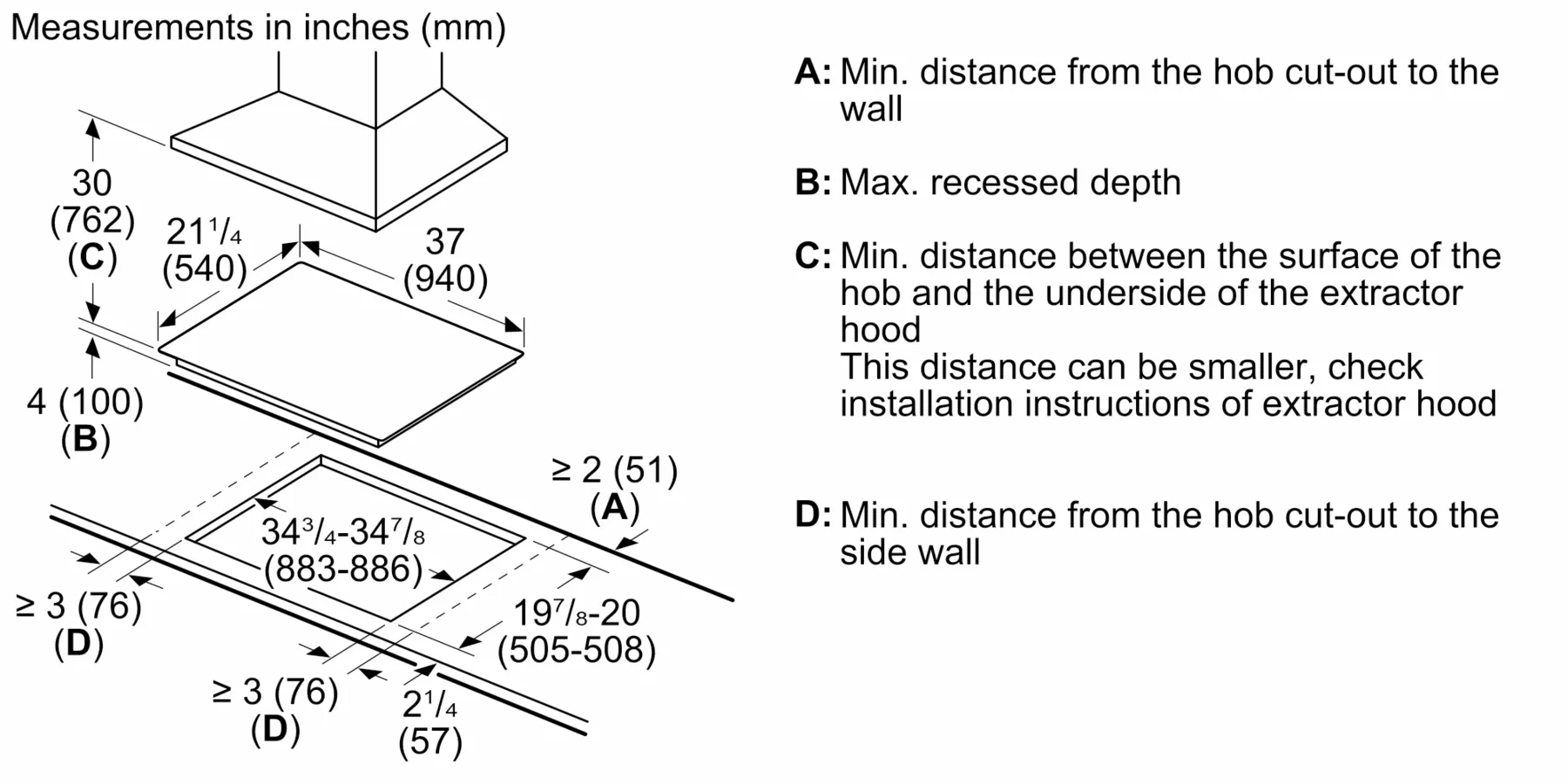

| Minimum distance from counter front (in) | 2 1/4 |
| Overall appliance dimensions (HxWxD) (in) | 1/4" + 4 " x 37" x 21 1/4" |
| Net weight | 31.000 lbs |
| Minimum distance from rear wall (in) | 2 |
| Cooking zone 1 | |
| Dimension of 1st heating element (in) | 7" |
| Location of 1st heating element | front left |
| Power of heating element (W) | 1.8 kW |
| Type of heating element | Radiant heating |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Dimension of 3rd heating element | 180 mm |
| Location of 3rd heating element | back left |
| Type of 3rd heating element | Radiant heating |
| Dimension of 3rd heating element (in) | 7" |
| Power of 3rd heating element (W) | 1.8 kW |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Dimension of 5th heating element | 140 mm |
| Location of 5th heating element | back right |
| Dimension of 5th heating element (in) | 6" |
| Power of 5th heating element (W) | 1.2 kW |
| Type of 5th heating element | Radiant heating |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
