Features

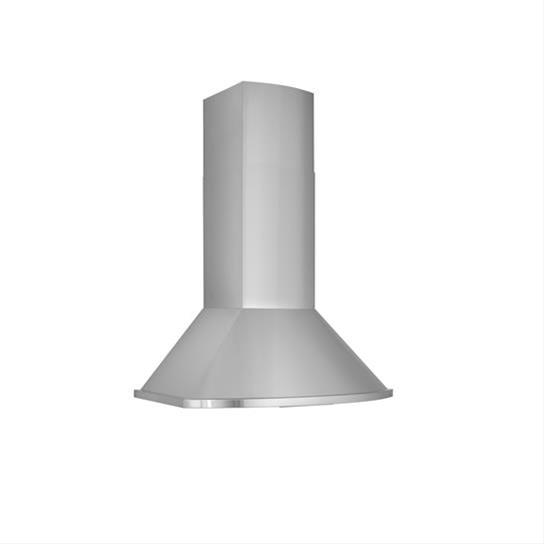

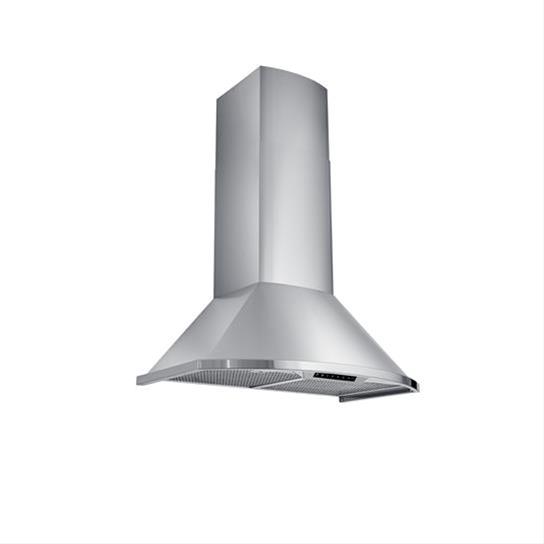

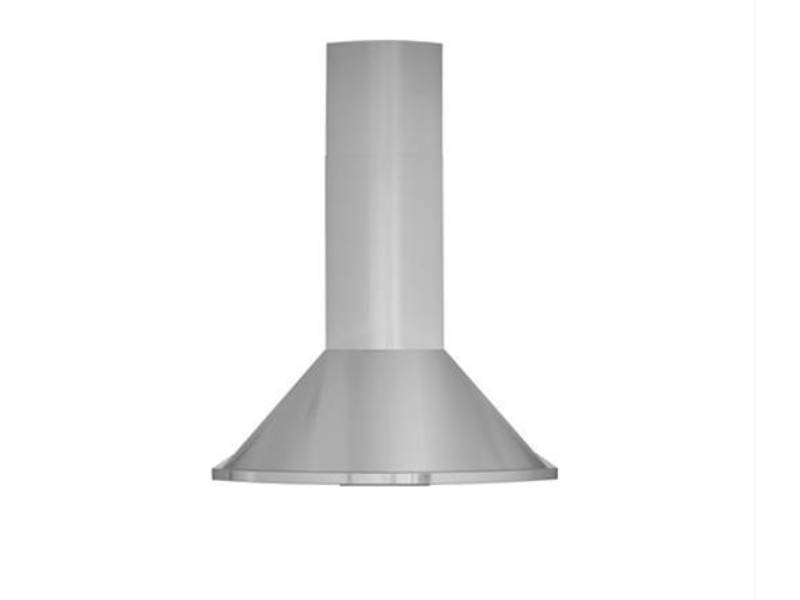

WCN1’s sleek, gently curving profile will match perfectly with your modern décor. The powerful 4-speed blower with 685 MAX CFM quickly eliminates smoke and odors to keep your kitchen fresh and clean. Brilliant LED lighting with three intensity options and attractive, dishwasher-safe filters with quick-release latches make this hood a pleasure to use.
- 4-speed high performance blower features a MAX blower CFM of 685
- Integrated LED modules offer 3 intensity levels
- Tap-touch control features an easy to clean surface

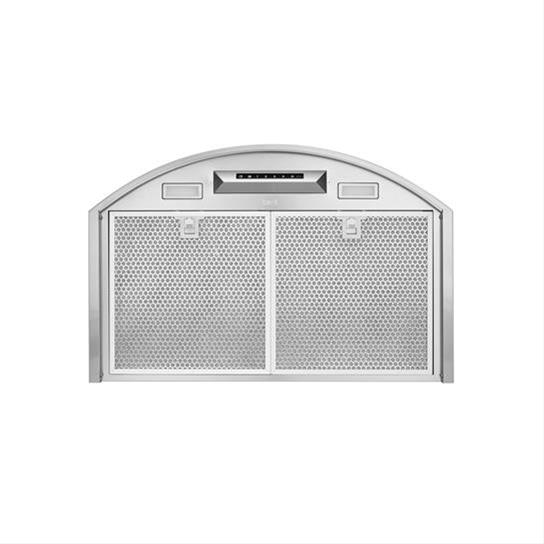

- Quick release, dishwasher-safe decorative mesh grease filters
- Telescopic chimney for 8' to 9' ceiling features vents to allow for non-ducted operation. Reversible design allows openings to be hidden in most ducted applications.
- With Code Ready Technology (CRT) code compliance has never been easier. CRT allows the installer to set the maximum blower speed to achieve the right level of performance offering another solution to address local codes or make-up air requirements
- Non-duct recirculation capable with optional kit. (Model ANKWCN1)
- Optional flue extension available for 10' to 11' ceilings. (Model AEWCN1SS)
- Works with optional Universal Make-Up Air Dampers
| Inputs & Outputs | |
|---|---|
| LIMITED WARRANTY | 5-year , 2-year (labour only) |
| RECOMMENDED MOUNTING HEIGHT | 24-in min. to 30-in. max. from cooktop to bottom of hood |
| AC INPUT | 120V, 60 Hz - 3.6 AMPS |
| Grease Filters | Dishwasher-safe, mesh with decorative stainless steel plate |
| Lighting | 2 LED modules, 6 W per module |
| Control type 4-Speed Capacitive Control | Lights, low/medium/high , Blower, 4-speed selection , Delay-off Timer |
| Blower Type | Centrifugal |
| Telescopic Flue | Accomodates 8-ft. to 9-ft. ceilings |
| Installation Type | Wall |
| Colour | 430 Stainless Steel no. 4 Brushed |
| Max. Blower Airflow | 685 CFM* |
| OPTIONAL ACCESSORIES (sold separately) | |
| Make-up Air Damper | MD6TU, MD8TU |
| Baffle Filters Kit (set of 2) | AFBWCN1 |
| Non-Duct Recirculation Filters | S99010512 |
| Non-Ducted Recirculation Kit | ANKWCN1 |
| 10’-11’ Flue Extension | AEWCN1SS |
