Key Features
- 3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.)
- Grease Filter
- LED Task Lighting
- 65K BTU Cooktop Threshold
- 7.5 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)
Product Overview

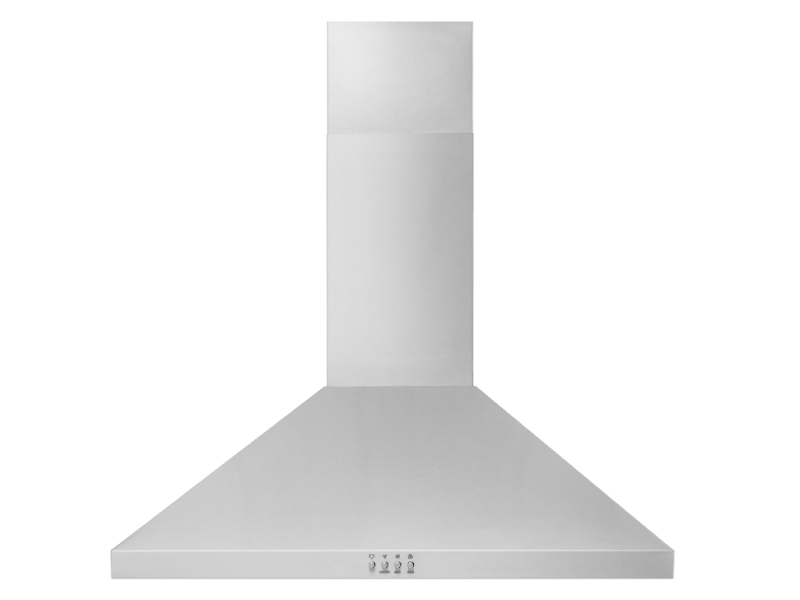

30" Chimney Wall Mount Range Hood
Easily vent smoke and odors with this 400 CFM Motor Class range hood that comes equipped with a 3-speed kitchen exhaust fan for powerful ventilation. This 30" wall mount range hood also comes with a detachable grease filter for convenient cleaning, LED range hood lights and a 65K BTU cooktop threshold. (Performance varies based on installation. Resources available at aham.org.)
Additional Features
3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.)
Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.
Grease Filter
Help trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.
LED Task Lighting
Efficient LED task lighting makes it easy to see what you're cooking by casting an even and bright glow on your cooktop.
65K BTU Cooktop Threshold
Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
7.5 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)
Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7.5 Sones. (When configured for outside ventilation. Published by aham.org.)
Push Button Controls
Use Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
VENTILATION SYSTEM | |
---|---|
Minimum Motor Exhaust Rating Cubic Feet per Minute | 80 |
Venting | Exterior or Recirculating |
Duct Outlet Size | 6 |
Duct Length | 42.000 |
Duct Direction | Vertical |
Duct Type | Round |
Vent Material | Metal |
Sound Min Speed | 0-7/10 |
Maximum Motor Exhaust Rating Cubic Feet per Minute | 350 |
Sound Max Speed | 7-1/2 |
Number of Speeds | 3 |
Blower Motor | NA |
Exhaust Vent Location | Top |
CFM Motor Class | 400.0 |
Blower Type | Centrifugal |
Certifications | |
UL | Yes |
Energy Star | No |
Features | |
Lighting Control Type | Push Button |
Task Lighting | Yes |
Number of Task Light Settings | 1 |
Night Light Type | N/A |
CONTROLS | |
Control Type | Push Button |
Dimensions | |
Depth | 17-9/10 in |
Cutout Height | 11-4/5 in |
Maximum Height | 42-3/10 in |
Canopy Height | 11-4/5 in |
Width | 30.0 in |
Minimum Height | 28-3/5 in |
Description | |
Size | 30 |
Configuration and Overview | |
Installation Type | Wall-Mount Canopy |
Details | |
Task Light Type | LED |
Electrical | |
Hz | 60 |
Power Cord Included | No |
Volts | 120 |
