External Dimensions
Dimensions shown are for planning purposes only. For complete information, see Installation Instructions packed with product.
Height : 47 3/8
Width : 29 15/16
Key Features
Even-Heat True Convection : Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
6.7 Cu. Ft. Total Capacity : Provides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.

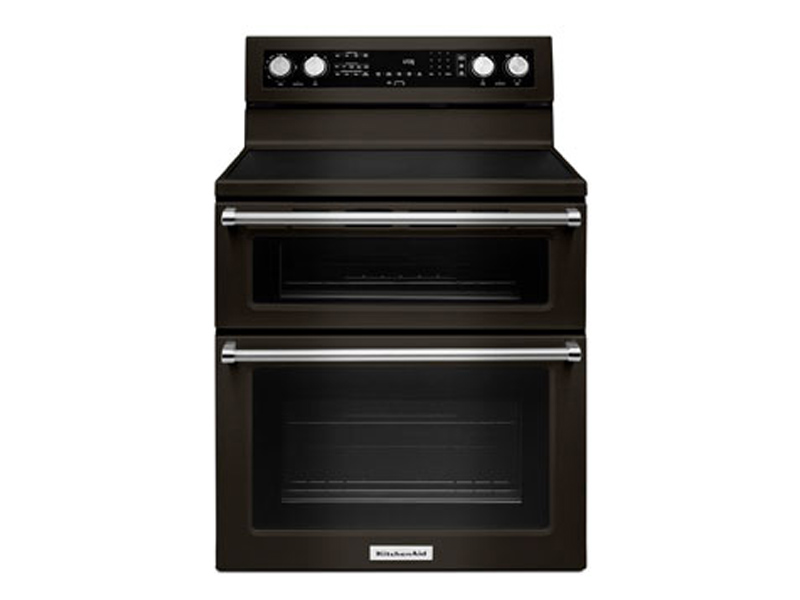

Professionally-Inspired Design : Combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid Badge, a symbol of uncompromised quality.
5 Cooking Elements Including a Warm Zone : Provides five independent cooking surfaces that allow you to do more on your range. It features a triple cooking zone of 6, 9 and 12 inches, one 10 inch zone and two 6 inch cooking zones, plus a dedicated warming zone.
EasyConvect Conversion System : Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
SatinGlide Rack : Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Hidden Bake : Covers up the baking element, making it easier to wipe away spills.
Triple-Ring Element : With three element sizes at one location, you get the versatility to match cooking surface to cookware size.
10" Even-Heat Ultra Element : Delivers consistent heat across the cooktop, including fast boils, precise simmering and exceptional melting.
Stainless Steel Cooktop Trim : Provides a seamless transition to other surfaces and enhances the look of edges around stainless steel cooktops.
| CONTROLS | |
|---|---|
| Handle Material | Metal |
| Selections | Control Lock, Cook Time Indicator, Delay Start, Easy Convect Conversion, Keep Warm Setting, Proofing, Sabbath Mode, Slow Cook |
| Drawer Type | None |
| UL | UL |
| Star K Compliant | Sabbath Mode |
| Oven Features | |
| Oven Rack Type | 1 Gliding Roll-Out, 2 Heavy Duty |
| Number of Rack Guides | 2 Upper-5 Lower |
| Convection Cooking Technology | Thermal Upper-Convection Lower |
| Number of Oven Racks | 1 Upper-2 Lower |
| Convection Cooking Technology | Bake, Broil, Roast |
| Convection Cooking Technology | Fan |
| Convection Element Power (watts) | 1600 |
| Broiler Location | Top of Oven |
| Broiler Element Power | 3600W Both |
| Hidden Bake Element | Yes |
| Bake Element Power | 2000W Both |
| Self-Cleaning | Self-Cleaning |
| Light Type | Incandescent |
| Power On Indicator Light | Yes |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Number of Oven Lights | 1 |
| Cooktop Features | |
| Right Rear Element-Burner Power | 1200W |
| Right Rear Element-Burner Size | 6" |
| Right Rear Element-Burner Type | Single |
| Right Front Element-Burner Type | Radiant Hyper |
| Right Front Element-Burner Power | 3200W |
| Right Front Element-Burner Size | 10" |
| Left Rear Element-Burner Type | Single |
| Left Rear Element-Burner Power | 700W |
| Left Rear Element-Burner Size | 6" |
| Left Front Element-Burner Type | Triple |
| Left Front Element-Burner Size | 12"/9"/6" |
| Center Rear Element-Burner Size | 6" |
| Center Rear Element-Burner Type | Warming |
| Left Front Element-Burner Power | 2700W/1950W/1050W |
| Number of Burner | 5 |
| Center Rear Element-Burner Power | 100W |
| Cooktop Surface Material | Ceramic Glass |
| Cooktop Surface Color | Black |
| Cooktop Element Style | Radiant |
| Configuration and Overview | |
| Size | 30 |
| Capacity | 6.70 |
| Star K Compliant | Sabbath Mode |
| Range Type | Freestanding Double Oven |
| Fuel Type | Electric |
