Product Overview

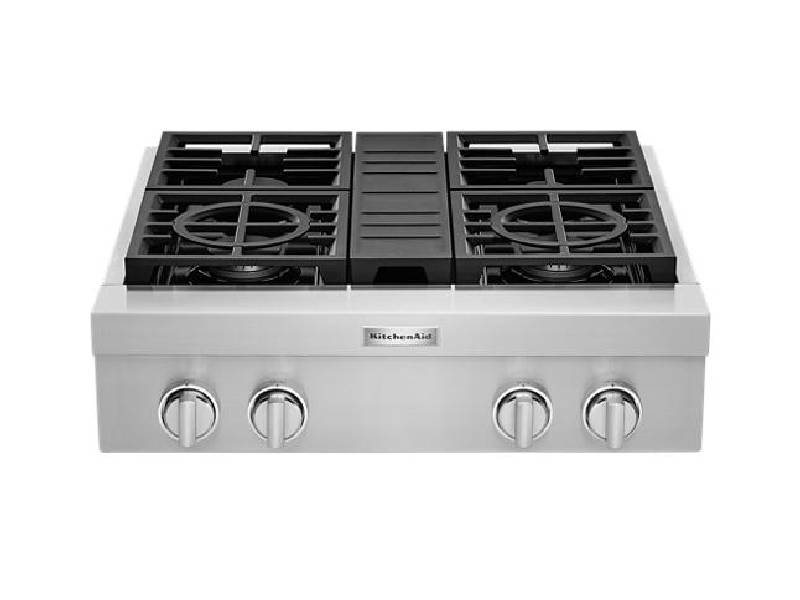

KitchenAid® 30'' 4-Burner Commercial-Style Gas Rangetop
Two 20,000 BTU Ultra Power™ Dual-Flame Burners
give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.
5,000 BTU Simmer & Melt Burner
with a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.
Three-Level Convertible Grates
with removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.
Additional Features
One 15,000 BTU Burner
delivers the high-heat you need for successful searing, sautéing, stir-frying and quickly bringing large stock pots to a rolling boil.
| Cooktop Details | |
|---|---|
| NUMBER OF OPEN BAYS | NA |
| LEFT FRONT ELEMENT-BURNER POWER | 20,000 BTU |
| AUTOMATIC PAN DETECTION | No |
| COOKTOP CONFIGURATION | All Burners |
| COOKTOP ELEMENT STYLE | Sealed Burner |
| COOKTOP SURFACE COLOR | Black |
| Surface | Porcelain Coated Steel |
| DOWNDRAFT VENT | No |
| GRATE DETAILS | Dishwasher Safe, Matte Finish, Porcelain Coated Cast Grates, Individual |
| HEATING ELEMENT ON INDICATOR LIGHT | No |
| HOT SURFACE INDICATOR LIGHT | No |
| IGNITION TYPE | Flame-Sensing™ Re-ignition |
| RIGHT FRONT ELEMENT-BURNER TYPE | Dual-Stacked Burner |
| Number of Burner | 4 |
| NUMBER OF GRATES | 4 |
| RIGHT FRONT ELEMENT-BURNER POWER | 20,000 BTU |
| LEFT FRONT ELEMENT-BURNER TYPE | Dual-Stacked Burner |
| LEFT REAR ELEMENT-BURNER POWER | 15,000 BTU |
| RIGHT REAR ELEMENT-BURNER TYPE | Simmer/Melt |
| Appearance | |
| DIGITAL DISPLAY | No |
| CONTROLS | |
| KNOB COLOR | Stainless Steel |
| KNOB TYPE | Metal |
| INFINITE HEAT CONTROLS | No |
| CONTROL LOCATION | Front |
| Specification | |
| DEPTH | 70.80 cm, 27-7/8 in |
| HEIGHT | 18.89 cm, 7-7/16 in |
| WIDTH | 75.56 cm, 29-3/4 in |
| CUTOUT DEPTH MIN | 56.52 cm, 22-1/4 in |
| CUTOUT WIDTH | 75.56 cm, 29-3/4 in |
| CUTOUT WIDTH MAX | 75.88 cm, 29-7/8 in |
| CUTOUT WIDTH MIN | 74.30 cm, 29-1/4 in |
| Configuration and Overview | |
| CUL | CUL |
| COOKTOP TYPE | Commercial Style |
| Heating Technology | Gas |
| INSTALLS OVER BUILT-IN OVEN | No |
| LP CONVERTIBLE | Yes - Kit Included |
| POWER BOOST | No |
| SIZE | 76.20 cm, 30 in |
| Features | |
| POWER OUTAGE COMPATIBLE | Yes |
| Connectivity | |
| ADA COMPLIANT | No |
| UL | UL |
| Electrical | |
| 208V COMPATIBLE | No |
| HZ | 60 |
| POWER CORD INCLUDED | Yes |
| VOLTS | 120 |
| EndecaProps | |
| PRODUCTOUTLETCATEGORIES | Cooking |
