Discontinued

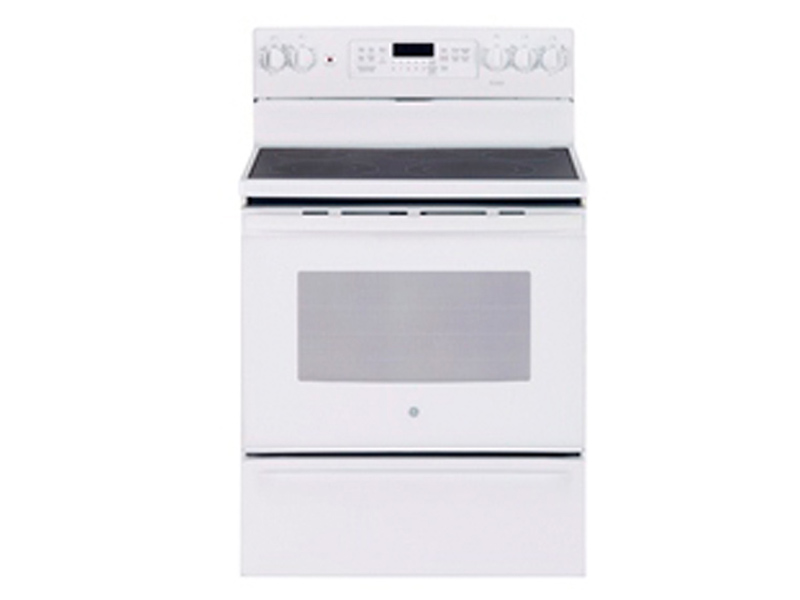

30" GE 5.0 Cu. Ft. Free Standing Electric Self Cleaning Convection Range - JCB840DKWW

Category : Ranges
SKU : JCB840DKWW

$1,649.00 CAD

Literature

Hot Surface Indicator Lights

Heating Elements have a "hot surface" indicator light to let you know when the element is too hot to touch (it continues to work if the element has been turned off.)

One-Piece Upswept Cooktop.

The CleanDesignTM upswept cooktop eliminates crevices so dirt has nowhere to hide. Cleaning is fast and easy.

True European Convection Mode

An element located next to the convection fan ensures hot air is evenly circulated throughout the oven. True European Convection allows for a superior cooking, roasting, and baking experience.

Warranty
Full 1 YearEntire Appliance; In Home; Parts & Labour
Power & Ratings
KW Rating at 240V11.3
KW Rating at 208V8.6
Amps @ 240V/208V40
Inputs & Outputs
Surface Unit On3
Start PadYes
Self-Clean Cool Down Time DisplayYes
Removable Full-Width Storage DrawerYes
Self CleanYes
Oven Temperature DisplayDigitemp
Cleaning TypeSelf-Clean / Steam Clean
Oven ShelvesChrome
Oven Shelves3
Oven Interior LightAutomatic
Oven Rack Positions6
One-Piece Upswept CooktopPorcelain Enamel
Infinite Heat ControlsYes
Melt SettingYes
Hot Surface1
Hi / Low BroilYes
Fuel TypeElectric
Glass-Ceramic CooktopGraphite on Black Glass
Element - Right Rear6" 1500W
Element - Right Front12"/9" 3000W
Element - Left Rear6" 1500W
Element - Left Front6"/9" 3000W
Element - Center6" 120W Warming Zone
Electronic Oven ControlYes
Dishwasher Safe KnobsYes
Dual Element BakeYes
DigipadYes
Delay Oven StartYes
Delay Self-CleanYes
Delay Bake Option (Time Bake)Yes
Cooktop TypeSmoothtop
Cooking SystemTrue European Convection
Convection Element1200 W
Convection ConversionYes
Control Lock CapabilityYes
Clock & Kitchen TimerYes
C° or F° ProgrammableYes
Automatic Self-Clean Oven Door LockYes
Backguard TypeSlim Line Colour Matched
Auto Self-CleanYes
Auto Oven Shut-Off with OverrideYes
Auto Oven Shut-Off With OverrideYes
Audible pre-heat signalYes
6 Pass Hidden Bake Element2850 watt
6 Pass Broil Element3800 watt
Weights & Dimensions
Approximate Shipping Weight (lbs.)175
Depth with Door Open (in.)47 1/8
Overall Depth (in.)26 1/4
Overall Depth Including Handle (in.)29 7/16
Overall Height (in.)46-1/8
Overall Width (in.)29-7/8
Capacity
Capacity5.0
Appearance
WindowNew GE Large Viewing Window
Textured Steel Side PanelsWhite
Storage Drawer HandleRecessed
Oven Door TypeStainless Steel Glass
Other Colours AvailableStainless Steel / Slate
Handle StyleDesigner-Style
HandleColour Matched
Easy Level System4 Leveling Legs
Colour AppearanceWhite
