Get to mealtime faster with the Quick Boil Burner
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

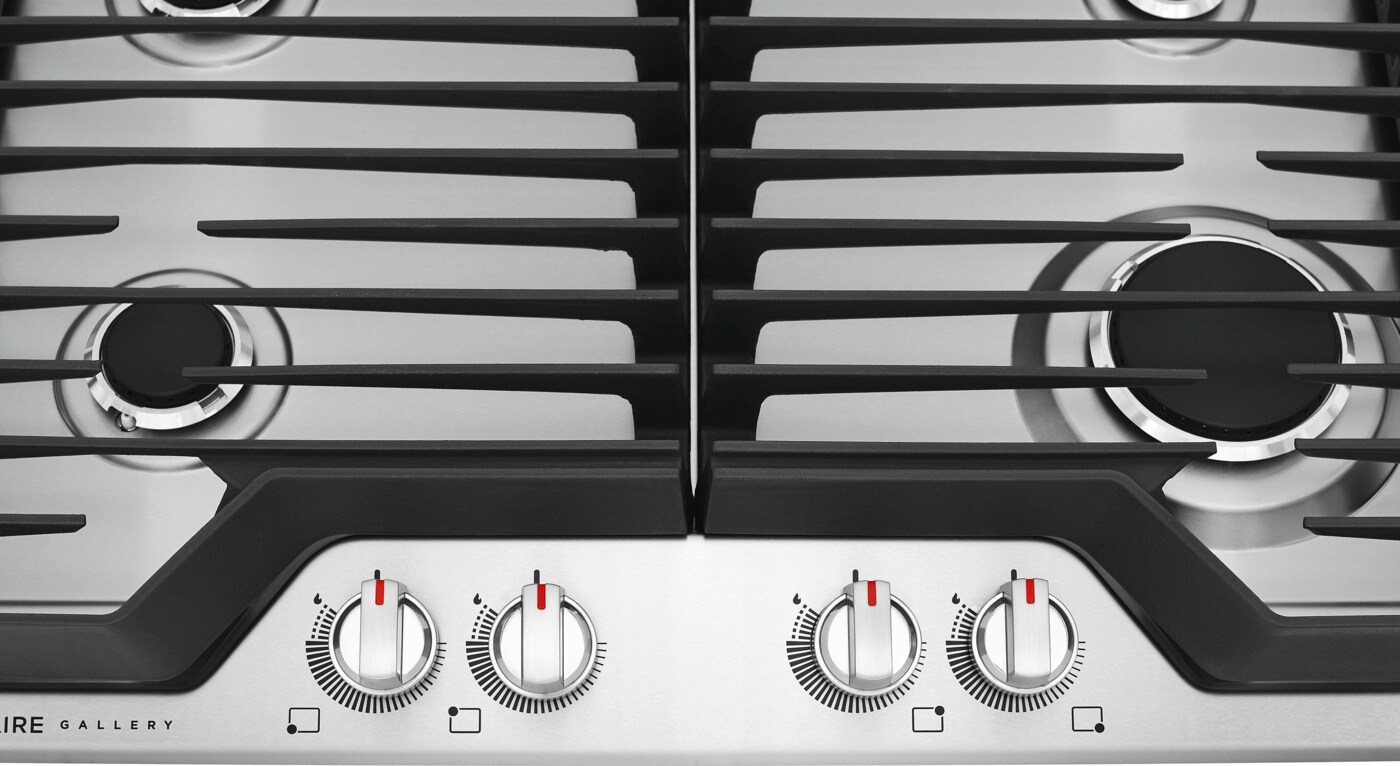

Bright, backlit LED Knobs
Backlit LED knobs light up when the cooktop is in use.
Low Simmer Burner
Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
Keep your cooktop looking beautiful with the Spill Safe Cooktop
Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.
Dishwasher Safe Burners Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Peace of Mind with the Frigidaire Fit Promise
We promise that your new 30" Frigidaire Gallery gas cooktop will fit your existing cut-out, or we will reimburse up to one hundred dollars for professionally modifying the countertop. 1
Approved over Frigidaire Electric Wall Ovens
Cooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
| General Specifications | |
|---|---|
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Product Weight | 40 lbs |
| Frigidaire Fit Promise | Yes |
| Cooktop Performance | |
| Right Front Element Burner | 18,000 BTU |
| Right Rear Element Burner | 5,000 BTU |
| Left Front Element Burner | 9,500 BTU |
| Left Rear Element Burner | 9,500 BTU |
| ELECTRICAL SPECIFICATIONS | |
| Minimum Circuit Required | 5 Amps |
| Voltage Rating | 120 V |
| Installation | |
| Gas Supply Connection Location | Top Right |
| Installed Over a Wall Oven | Yes |
| LP Conversion Kit Included | Yes |
| Power Cord Included | Yes |
| Power Supply Connection Location | Top Right |
| COOKTOP | |
| Surface | Gas |
| Grate Material | Cast Iron |
| Grate Quantity | 2 |
| Grate Style | Continuous |
| Exterior | |
| Backlit Knobs | Yes |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |
| Display | |
| Control Location | Front |
| Dimensions and Volume | |
| Maximum Cutout Depth | 20 |
| Maximum Cutout Width | 29 5/16 |
| Minimum Cutout Depth | 19 |
| Minimum Cutout Width | 27 1/4 |
| Depth | 21 |
| Cutout Height | 7 1/2 |
| Width | 30 |
| Height | 2 7/16 |
