Features

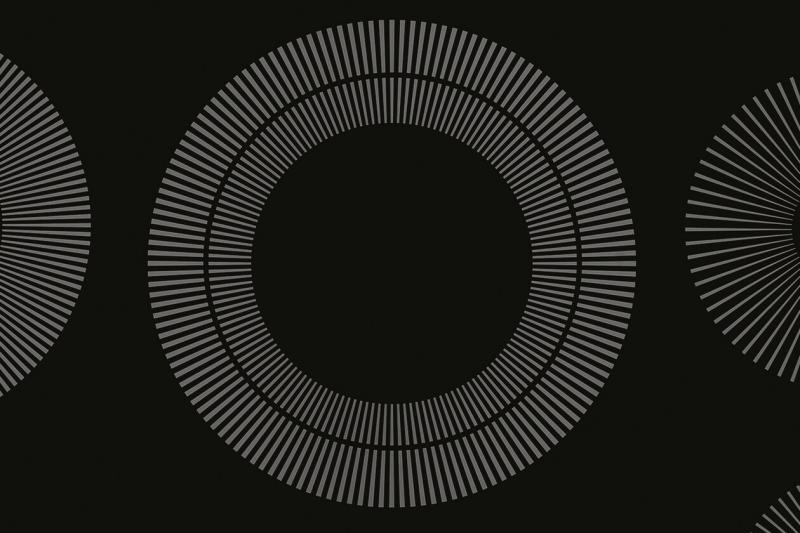

Consistent Results with the EvenTemp Element
With our EvenTemp cooktop technology, heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

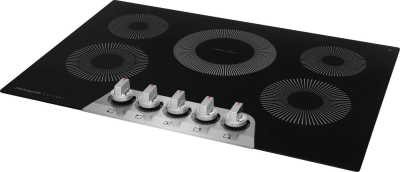

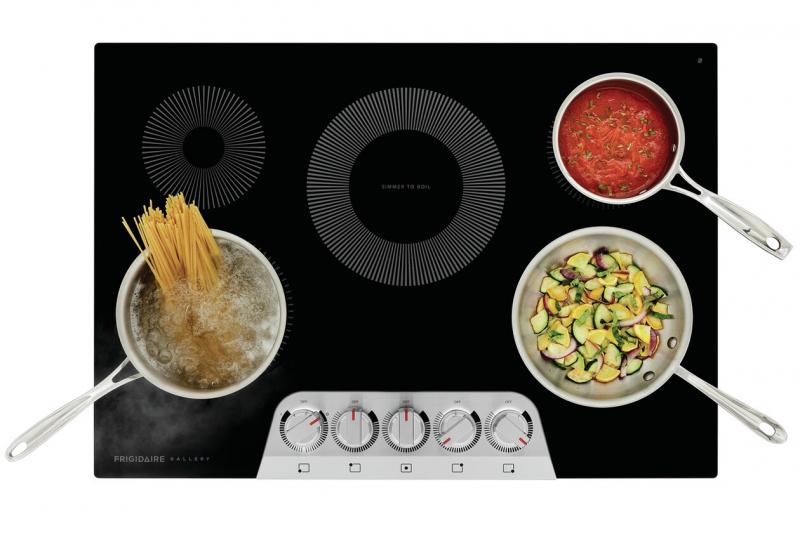

Flexible Five Element Cooktop
With five elements, this cooktop is designed to handle all of your cooking needs, including our powerful 3,200 Watt EvenTemp Element, a Dual Expandable Element, and convenient Keep Warm Zone.

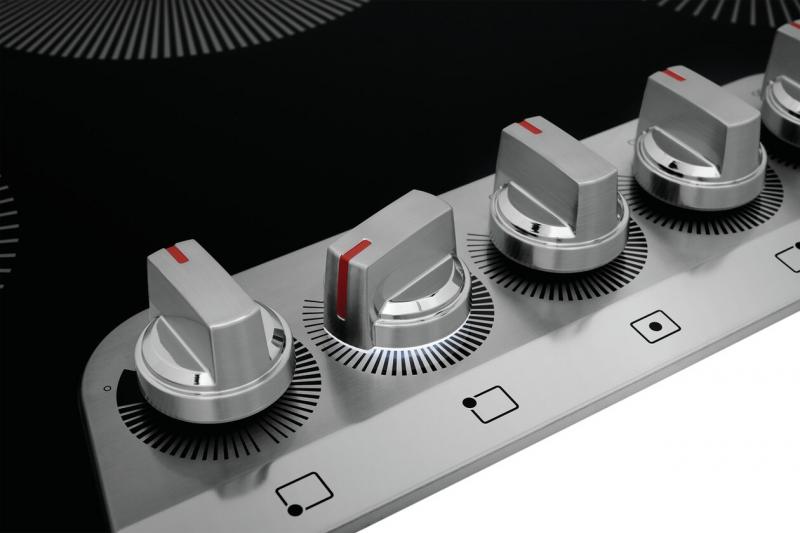

Backlit LED Knobs
Backlit LED knobs light up when your element is in use.
Peace of Mind with the Frigidaire Fit Promise
We promise that your new 30" Frigidaire radiant cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100. 1

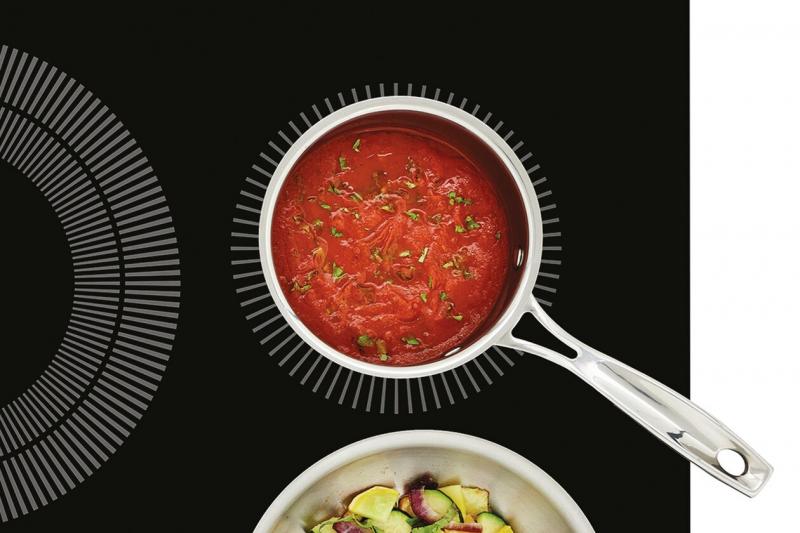

SpaceWise Dual Expandable Element
Our convenient 2-in-1 element expands from 5" for smaller pots to 7" for larger cookware, providing more cooktop flexibility.
Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready.

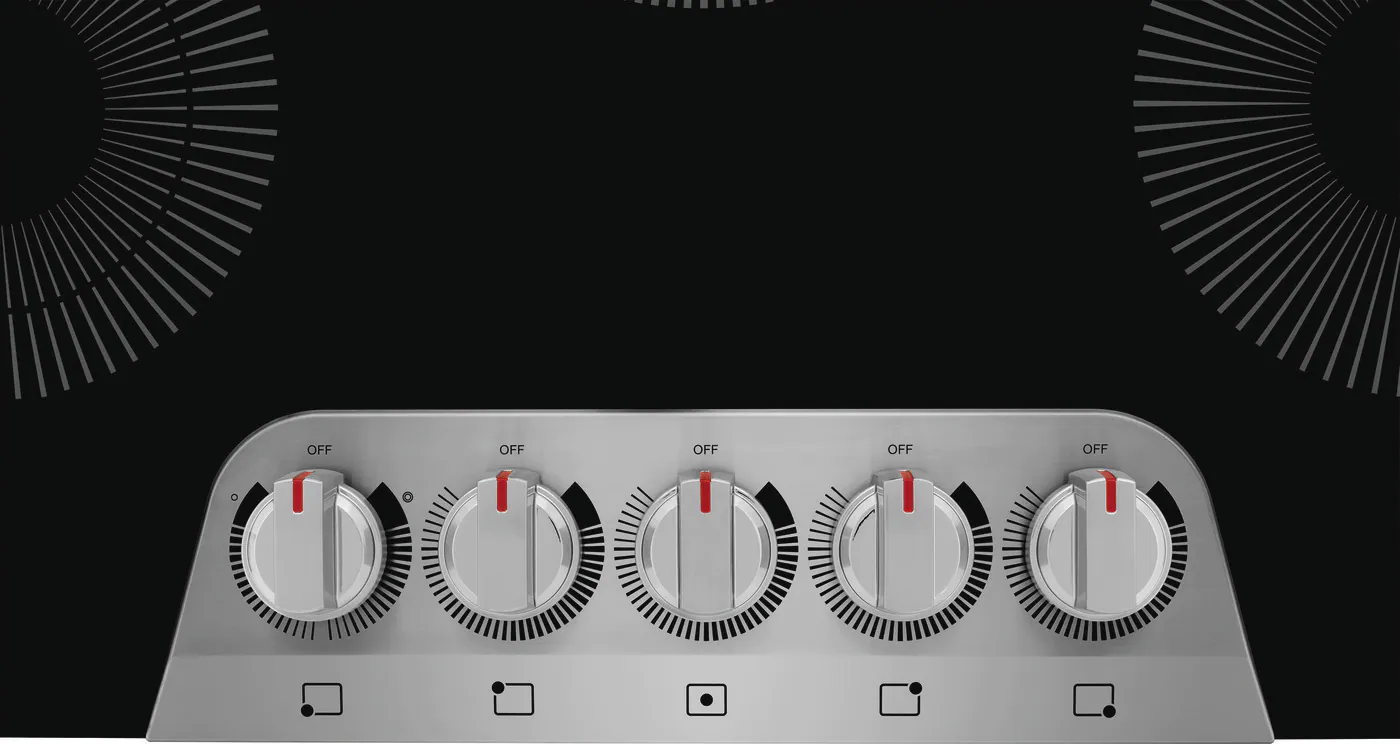

Easy to Use Front Controls
Controls that are located on the front of the cooktop allow you to adjust the temperature without reaching over hot items.
Clean Up is Easier with the Ceramic Glass Cooktop
Wipe away spills more easily with the smooth ceramic glass cooktop.
Approved Over Frigidaire Electric Wall Ovens
Cooktops are approved for installation above any of our Frigidaire electric wall ovens.
| Cooktop Performance | |
|---|---|
| Center Rear Element Burner | 3,200 Watts |
| Left Rear Element Burner | 1,200 Watts |
| Left Front Element Burner (Large) | 1,800 Watts |
| Left Front Element Burner (Small) | 750 Watts |
| Right Rear Element Burner | 1,200 Watts |
| Right Front Element Burner | 1,800 Watts |
| Center Rear Element Burner Size | 9 |
| Left Rear Element Burner Size | 6 |
| Left Front Element Burner Size (Large) | 7 |
| Left Front Element Burner Size (Small) | 5 |
| Right Rear Element Burner Size | 6 |
| Right Front Element Burner Size | 7 |
| General Specifications | |
| Warranty - Parts | 1 Year |
| Warranty - Labor | 1 Year |
| Prop 65 Label | Yes |
| Product Weight | 31 lbs |
| Frigidaire Fit Promise | Yes |
| Display | |
| Display Type | Mechanical |
| Control Location | Front |
| Dimensions and Volume | |
| Maximum Cutout Depth | 20 1/2" |
| Maximum Cutout Width | 29 7/8" |
| Minimum Cutout Depth | 19 5/8" |
| Minimum Cutout Width | 28 1/2" |
| Cutout Height | 5" |
| Depth | 21 3/8" |
| Width | 30 5/8" |
| Height | 2 5/8" |
| CONTROLS | |
| Sabbath Mode | No |
| ELECTRICAL SPECIFICATIONS | |
| Amps @ 240 Volts | 38.3 Amps |
| Connected Load @ 240V | 9.2 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Installation | |
| Installed Over a Wall Oven | Yes |
| Power Supply Connection Location | Right Center |
| COOKTOP | |
| Surface | Smooth |
| Hot-Surface Indicator Light | Yes |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |
