Features
Consistent Results with the EvenTemp Element
With our EvenTemp cooktop technology, heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

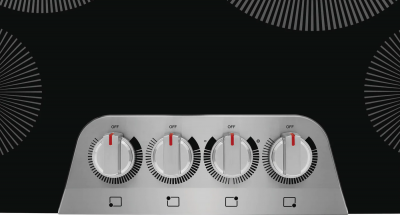

Backlit LED Knobs
Backlit LED knobs light up when your element is in use.
Peace of Mind with the Frigidaire Fit Promise
We promise that your new 30" Frigidaire radiant cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100. 1
SpaceWise Dual Expandable Element
Our convenient 2-in-1 element expands from 9" for smaller pots to 12" for larger cookware, providing more cooktop flexibility.
Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready.
Easy to Use Front Controls
Controls that are located on the front of the cooktop allow you to adjust the temperature without reaching over hot items.
Clean Up is Easier with the Ceramic Glass Cooktop
Wipe away spills more easily with the smooth ceramic glass cooktop.
Approved Over Frigidaire Electric Wall Ovens
Cooktops are approved for installation above any of our Frigidaire electric wall ovens.
| Cooktop Performance | |
|---|---|
| Left Rear Element Burner | 3,200 Watts |
| Left Front Element Burner | 1,200 Watts |
| Right Rear Element Burner (Large) | 3,000 Watts |
| Right Front Element Burner Size | 6 |
| Right Rear Element Burner Size (Small) | 9 |
| Right Rear Element Burner Size (Large) | 12 |
| Left Front Element Burner Size | 6 |
| Left Rear Element Burner Size | 9 |
| Right Front Element Burner | 1,200 Watts |
| Right Rear Element Burner (Small) | 1,800 Watts |
| Dimensions and Volume | |
| Height | 2 5/8" |
| Width | 30 5/8" |
| Depth | 21 3/8" |
| Cutout Height | 5" |
| Minimum Cutout Width | 28 1/2" |
| Minimum Cutout Depth | 19 5/8" |
| Maximum Cutout Width | 29 7/8" |
| Maximum Cutout Depth | 20 1/2" |
| Display | |
| Control Location | Front |
| Display Type | Mechanical |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 31 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| CONTROLS | |
| Sabbath Mode | No |
| ELECTRICAL SPECIFICATIONS | |
| Amps @ 240 Volts | 35.8 Amps |
| Connected Load @ 240V | 8.6 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Installation | |
| Installed Over a Wall Oven | Yes |
| Power Supply Connection Location | Right Center |
| COOKTOP | |
| Surface | Smooth |
| Hot-Surface Indicator Light | Yes |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |
