True Convection
Conquer even the most challenging recipes with True Convection, which uses three heating elements and a fan for even cooking results
Two Dual Brass Power Burners
Achieve accurate, efficient temperature control - whether you need a roaring boil or a bare simmer – with Two Dual Brass Power Burners

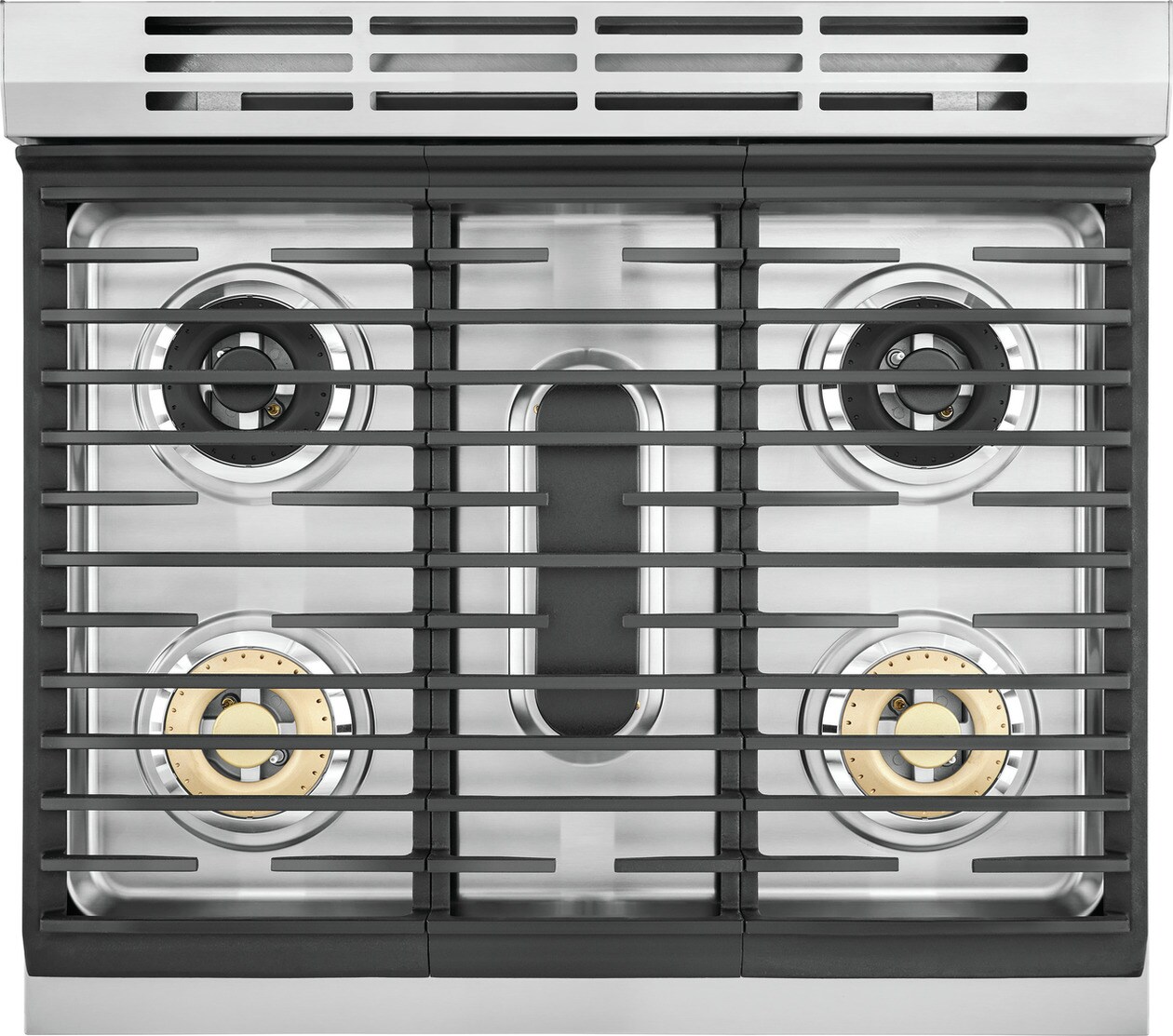

Oval Burner
Get the flexibility to use a griddle to cook multiple foods at the perfect temperature with the unique oval burner with two separate temperature controls

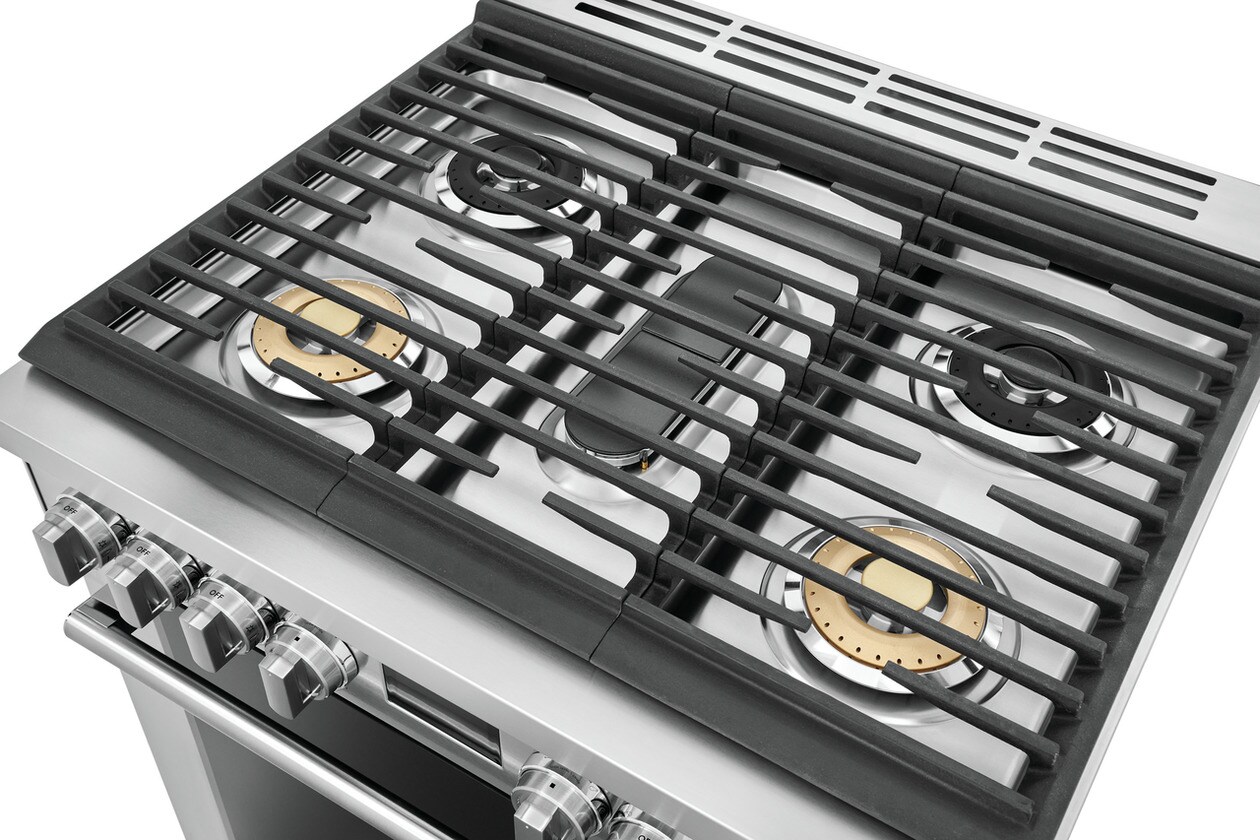

Continuous Grates
Easily slide even your heaviest cookware from burner to burner with our continuous grates that also lend to the sleek look of the cooktop
Additional features
Temperature Probe
Cook proteins to juicy perfection, never over or under cooked, with an integrated Temperature Probe which alerts you when your food has reached the desired temperature
Sleek Design

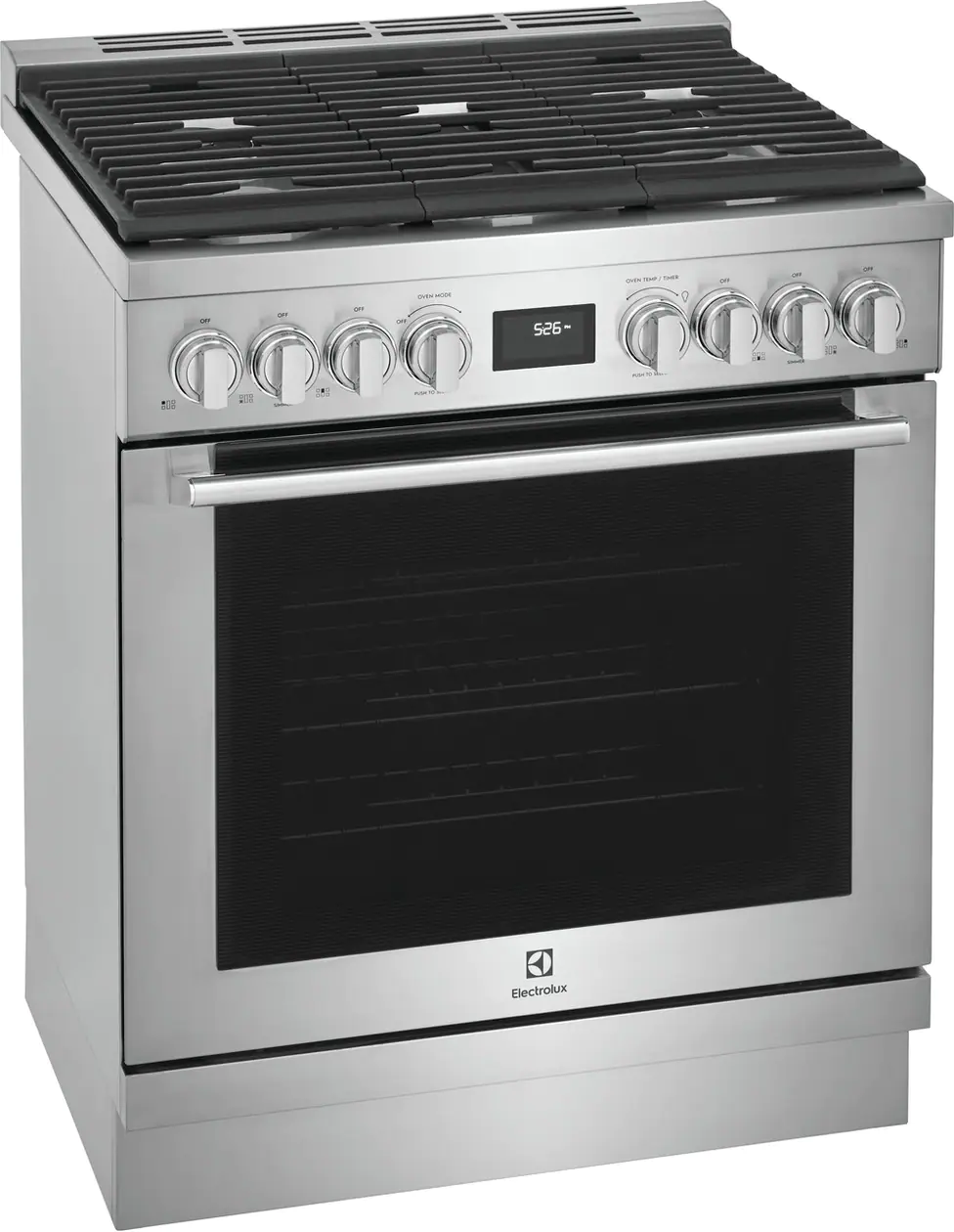

Full-framed linear grates, sturdy knobs, premium brass burner accents and the Electrolux signature pinstriped glass lend to the sleek design that make this range a focal point of your kitchen
Soft Close Door
Gently close the oven door even when your hands are full with the soft close door
7 Cooking Modes
Bake, Convection Bake, Roast, Convection Roast, Broil, Proof, Keep Warm
Platinum Star Limited Warranty
Our exclusive warranty offers peace of mind for registered owners with two years of coverage on replacement parts. 1
| Display | |
|---|---|
| Control Location | Front |
| Display Light Color | White |
| Display Type | LED |
| Dimensions and Volume | |
| Capacity | 4.5 Cu. Ft. |
| Oven Interior Depth | 18 7/16" |
| Oven Interior Width | 24 5/16" |
| Oven Interior Height | 17 3/8" |
| Depth | 25 7/8" |
| Depth With Door 90° Open | 46 86/125" |
| Width | 29 469/500" |
| Minimum Height | 35 3/8" |
| Maximum Height | 36 5/8" |
| Cooktop Performance | |
| Right Rear Element Burner | 12,000 BTU |
| Left Rear Element Burner | 12,000 / 3,000 BTU |
| Left Front Element Burner | 18,000 / 750 BTU Dual |
| Right Rear Element Burner | 12,000 / 3,000 BTU |
| Right Front Element Burner | 18,000 / 750 BTU Dual |
| Left Rear Element Burner | 12,000 BTU |
| Center Element Burner | 10,000 BTU |
| General Specifications | |
| Warranty - Parts | 1 Year |
| Warranty - Labor | 1 Year |
| Prop 65 Label | Yes |
| Product Weight | 240 lbs |
| CONTROLS | |
| Sabbath Mode | Yes |
| Cooking Controls | |
| Bake | Yes |
| Broil | Yes |
| Bread Proof | Yes |
| Convection Bake | Yes |
| Child Lock | Yes |
| Convection Roast | Yes |
| Cook Time | Yes |
| Delay Start | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Probe | Yes |
| Self Clean | No |
| Temperature Display | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Amps @ 120 Volts | 9.2 Amps |
| Connected Load @ 120V | 1.1 kW |
| Minimum Circuit Required | 15 Amps |
| OVEN | |
| Bake Element | 17,000 BTU |
| Bake Element Type | Hidden |
| Broil Element | 11,500 BTU |
| Broil System | Yes |
| Convection Element | 1,000 Watts |
| Convection Cooking Technology | Yes |
| Number of Rack Positions | 6 |
| Oven Light Quantity | 2 |
| Oven Light Type | Halogen |
| Oven Interior Color | Gray |
| Oven Light Watts | 40 Watts |
| Rack Type 1 | Flat |
| Rack Position Type | Ladder |
| Rack Type 1 Quantity | 1 |
| Rack Type 2 | Glide |
| Rack Type 2 Quantity | 1 |
| Window Type | Large |
| Convection Type | True |
| Number of Convection Fans | 1 |
| Installation | |
| LP Conversion Kit Included | Yes |
| Adjustable Leveling Legs | Yes |
| Plinth | Yes |
| Power Cord Included | Yes |
| Included Power Cord Type | 3-Prong Plug |
| COOKTOP | |
| Cooking Surface Type | Gas |
| Grate Material | Cast Iron |
| Grate Quantity | 3 |
| Sealed Burners | Yes |
| Grate Style | Continuous |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| RoHS | Yes |
