Features

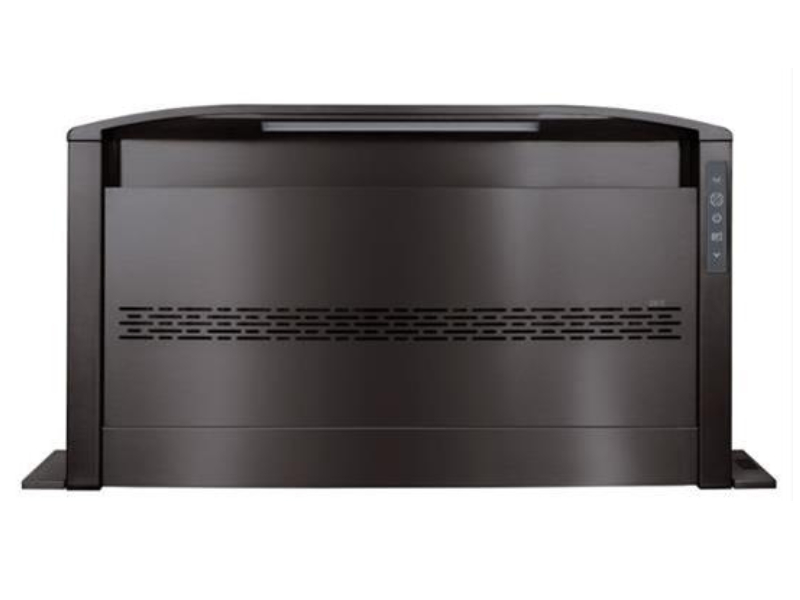

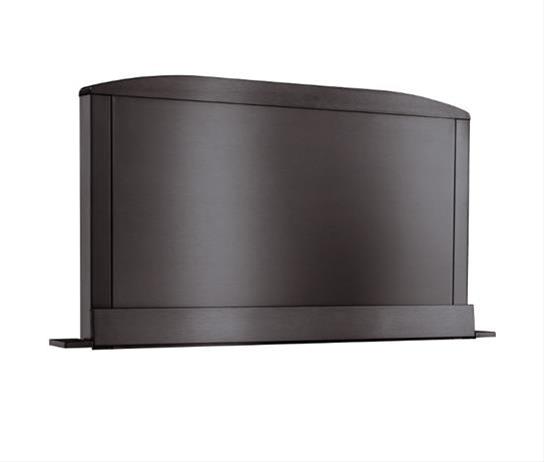

Designing a dream kitchen doesn’t have to include compromises. With Cattura, the groundbreaking new downdraft from BEST, you can design confidently, knowing it will pair with a broad range of cooktop appliances—aesthetically and mechanically—in virtually any installation configuration.
- At the touch of a button the Cattura downdraft quickly rises to a height of 18" to handle serious cooking ventilation requirements and tall pots—even on the front burners
- The integral, self-closing cap hides the lowered downdraft completely, leaving your counter unobstructed and clear
- Realize design aspirations utilizing your favorite cooking appliances. For the first time, a downdraft can be installed with a free-standing range, gas or electric cooktop, rangetop, slide-in range or a built-in oven with a cooktop
- With the use of VERTEX™ Complete Capture Design technology, Cattura provides up to 100% capture - equal to comparable island hoods
- Up to 35% quieter operation than any other downdraft
- Long-lasting two-level LED task lighting provides impressive cooktop illumination, even on the front burners
- Four-speed glass touch control is easy to clean and includes convenient 10-minute time-delay shut-off feature and filter maintenance reminder light for a fresh kitchen
- Heat Sentry™ detects excessive temperature and adjusts speed to high automatically to prevent the damaging effects from heat and increase the life of the product
- Optional remote control raises or lowers downdraft from another location
- Works with optional Automatic Make-Up Air Dampers
- Available in Black Stainless Steel finish in 30" and 36" widths and in Stainless Steel in 30", 36" and 48" widths
- New vertical installation outlet option provides the capability to duct directly out of the bottom of the unit. This now allows for applications with virtually zero impact on surrounding cabinets. This new outlet option adds to the ducting flexibility the Cattura™ offers; expanding the number of ducting outlets to 10.
| Accessories | |
|---|---|
| Fresh Air Inlet | 641FA, 643FA, 610FA |
| Automatic MUA Damper | MD6T, MD8T, MD10T (Requires Fresh Air Inlet) |
| Black Stainless End Cap Extension | ATTD1BLS |
| Stainless End Cap Extension | ATTD1 |
| Black Stainless Range Trim Kit (1/2'' depth) | ATKDB30BLS, ATKDB36BLS |
| Stainless Range Trim Kit (1/2" depth) | ATKD30SB, ATKD36SB, ATKD48SB |
| Charcoal Filter | AFCD |
| Transition to 10" Round | AVDKD10 |
| Transition to 8" Round | AVDKD8 |
| Non-ducted Recirculating Kit | ANKD |
| SPECIFICATION RANGES | |
| Non-ducted Capability | Yes |
| Filter Type | Mesh Grease Filter |
| Remote Control | Optional ACRD, ACRDBLS |
| Control Features | Heat Sentry™, Delay Off, Filter Timer |
| Control Type | 4-speed Capacitive Glass |
| Inputs & Outputs | |
| Lighting Lamps Included | Yes |
| Lighting Levels | 2 |
| Lighting Type | LED, 7W (30"); 14W (36"); 18W (48") 3000K |
| Hood Sizes | |
| Depth | 2-1/4" |
| Width | 30" |
| Installation Requirements | |
| Amps @ 120V: Internal Blower | 6.0 Max |
| Electrical Connection | Plug In |
| Duct Size: Internal Blower | 8" |
| Duct Size: External Blower | 10" at hood |
| Duct Direction | Front, Left, Right, Rear or Down |
| Backdraft Damper | Not Included |
