![](/desc_images/9641/STU82220.jpg)

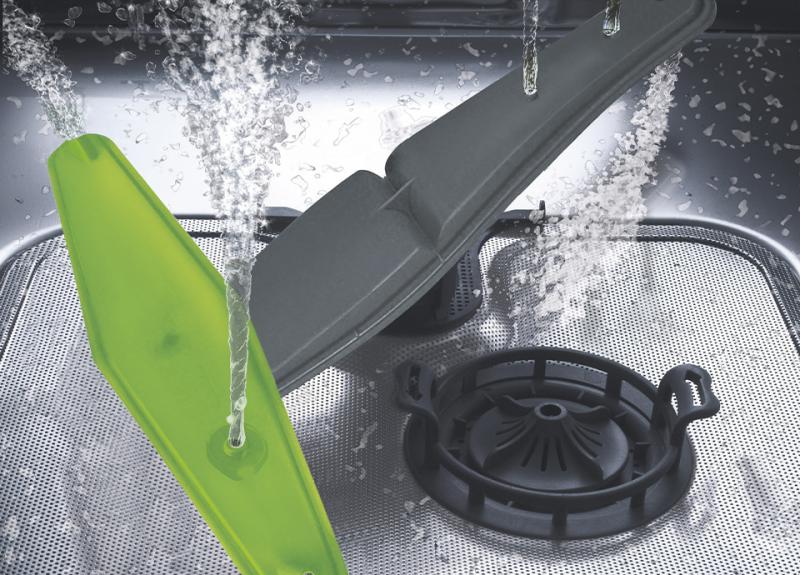

ORBITAL WASHING SYSTEM
The Orbital Wash System, a feature of 24" SMEG dishwashers, consists of a double spray arm with contra-action rotation which distributes water evenly throughout the cavity. This ensures excellent wash quality, and a greatly-reduced noise level.
![](/desc_images/9641/STU82221.jpg)
MADE IN ITALY EXCELLENCE
SMEG dishwashers stand out for their uniqueness in terms of technological innovation and washing performance. With a sixty years' experience in the production of washing appliances, SMEG offers a full line of Made in Italy dishwashers: from full-size to ADA-compliant models, from panel-ready to pre-finished, from stainless steel to color options, we always have the right option for our customers' kitchen spaces.
ELECTRICAL CONNECTION | |
---|---|
Connected power | 1800 W |
Voltage | 115 V |
Type of connection | Single-phase |
Frequency (Hz) | 60 Hz |
Power supply cable length | 140 " |
PERFORMANCE / ENERGY LABEL - REG. 2019 | |
Airborne acoustical noise emissions | 49 dB(A) re 1 pW |
PERFORMANCE / ENERGY LABEL | |
Annual energy consumption | 260 KWh/year |
Energy Star | Yes |
Water consumption per cycle (l/cycle) | 3.2 gal |
Noise level (dBA) | 49 dB(A) re 1pW |
Cleaning performance | A |
Technical Features | |
Adjustable feet | 7cm, from 820 to 890 mm |
Min. and max plinth height | 100 - 228 mm |
Hinges | Self balancing with fixed hinges |
Min. and max. frontal panel weight | 2 - 9 lbs |
Concealed heating element | Yes |
Tub Material | Stainless steel |
Filter | Stainless steel |
Max water hardness | 100°fH;58°dH |
Turbidity sensor Aquatest | Yes |
Flood protection system | Total Acquastop |
Third spray arm | Single |
Drying system | Natural condenser drying |
Motor | Single phase |
Washing system | Orbital |
End of cycle indicator | Acoustic signal |
Rinse aid indicator | Light |

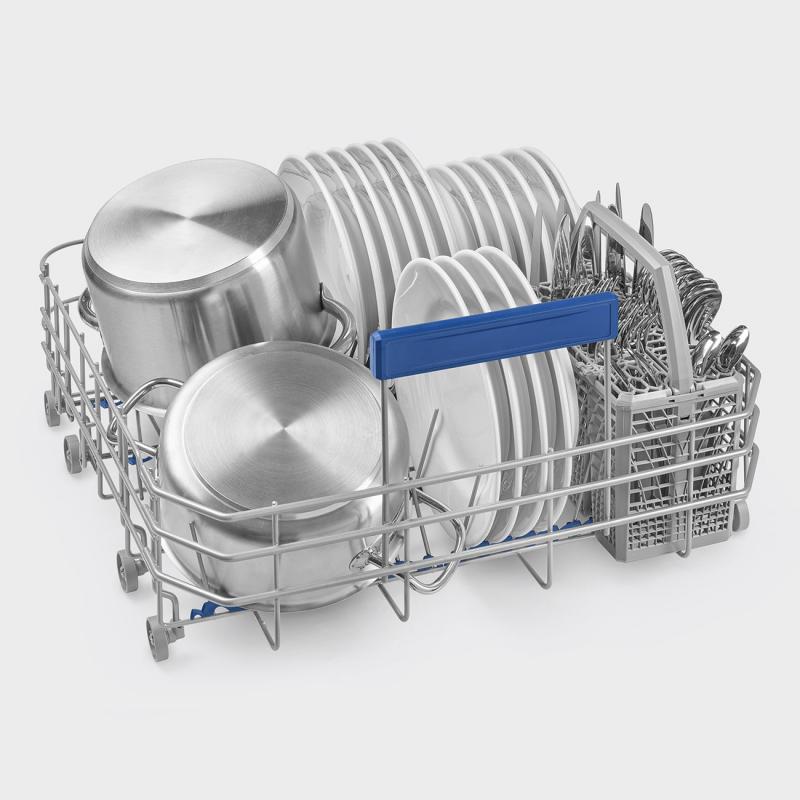

Baskets | |
Colour Inner Components | Blue |
Cutlery basket | 13 place settings sliding |
Largest loadable dish in lower basket | 35,0 inches |
Lower basket with anti-drip inserts | Yes |
Largest loadable dish in upper basket | 25,0 inches |

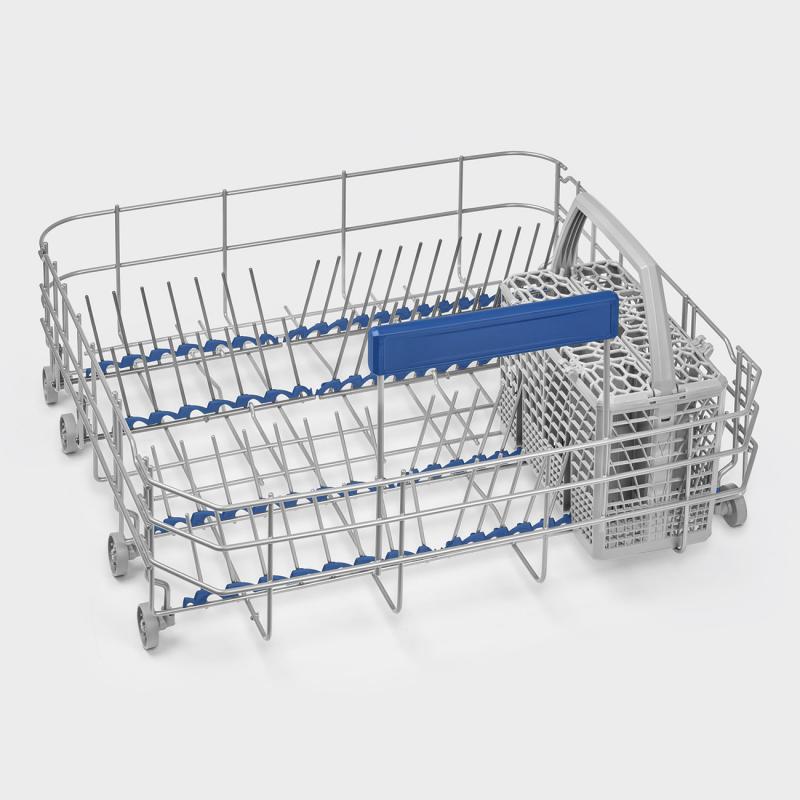

Lower Basket | With 2 foldable racks |
Sliding Guides Extra Glide | Yes |
Height adjustment of the upper basket | On three levels (5 cm) |

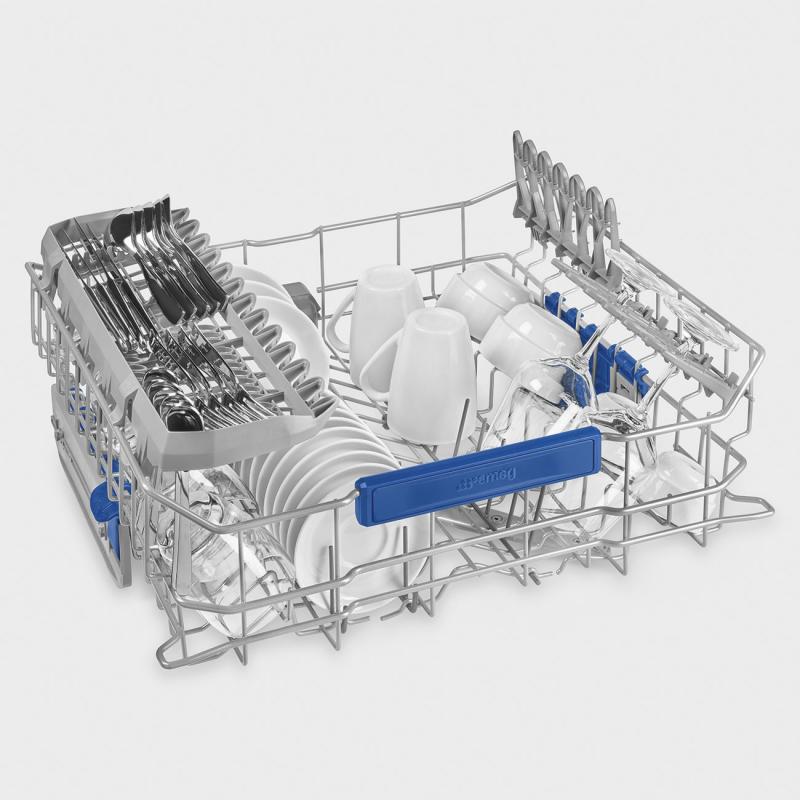

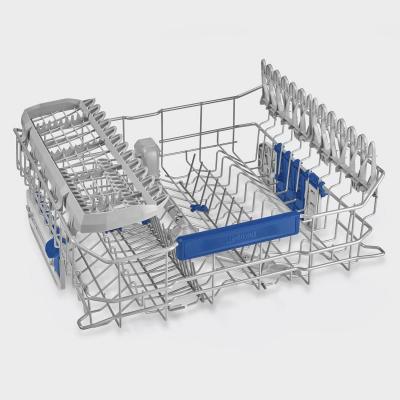

Upper Basket | With 1 foldable rack |
Basket colour | Grey |
N° baskets | 2 |
Options | |
Special programs option | Yes |
Delay timer option | 3-6-9 hours |
Programs / Functions | |
Washing temperatures | 38, 45, 50, 55, 65, 70, 75 °F |
Express 60' | Yes |
Pots & Pans | Yes |
Auto | Yes |
Eco express | Yes |
1/2 load | Yes |
Delicate | Yes |
Sterilise | Yes |
Mix | Yes |
Express 27' | Yes |
Soak | Yes |
N. of programmes | 10 |
AESTHETICS | |
Buttons colour | Black |
LED/display colour | White |
Front panel colour | Black |
Type | |
EAN code | 8017709303686 |
Commercial width | 60 cm |

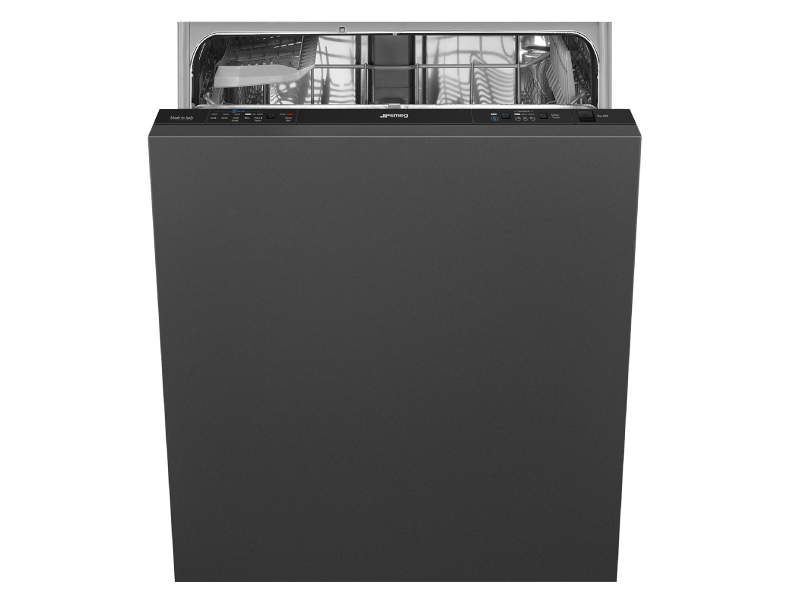

Installation | Fully-integrated built-in |
Number of place settings | 13 |
Commercial height | 82 cm |
Product Family | Dishwashers |
LOGISTIC INFORMATION | |
Net weight (kg) | 99 lbs |
