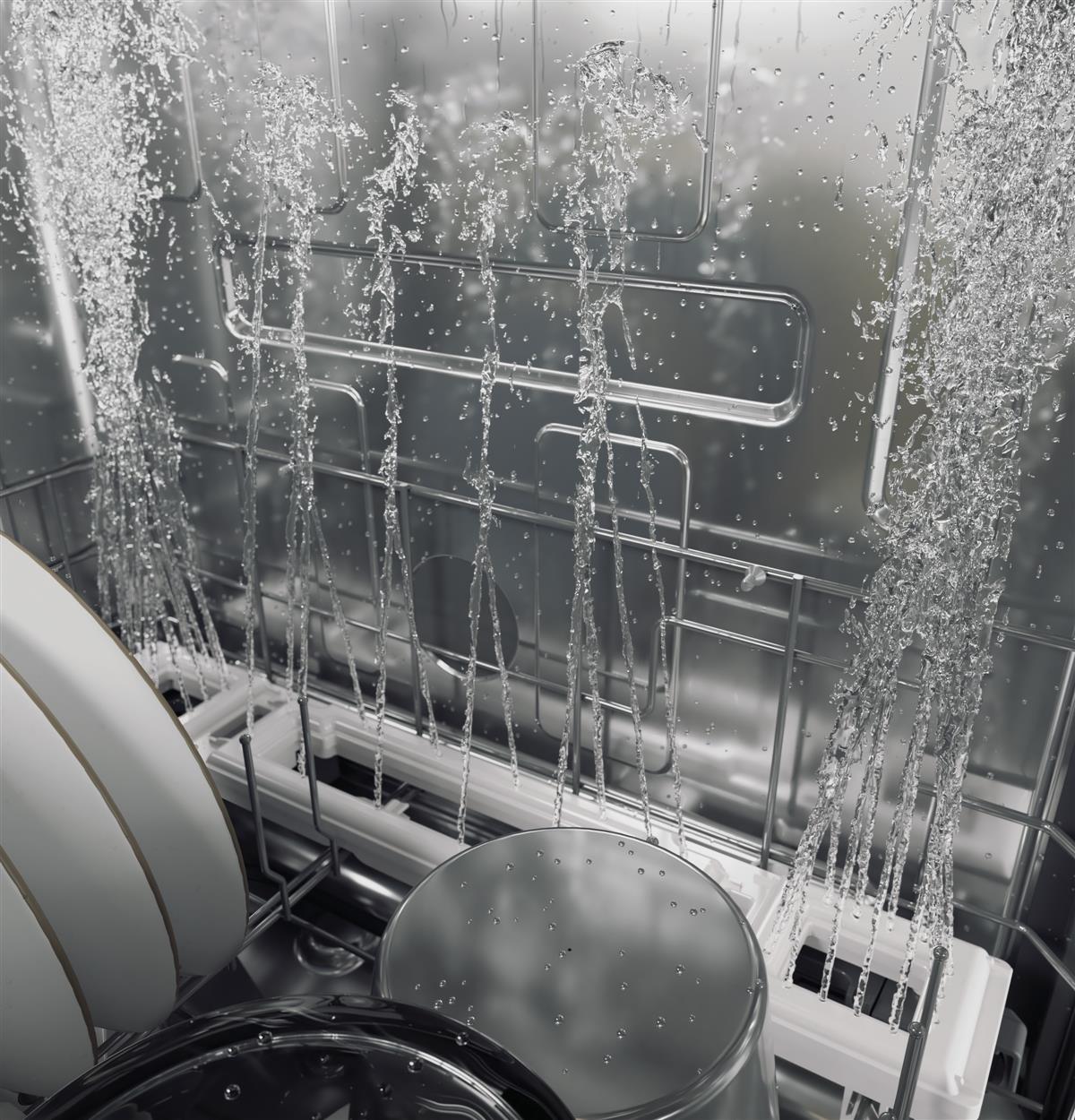

Ultra Wash & Dual Convection Ultra Dry
Expect precision cleaning and superior dryness on fine china, dinnerware and even dishwasher-safe plastics, with exceptional features like Variable-Pressure Jets and Dual-Convection Ultra Dry.

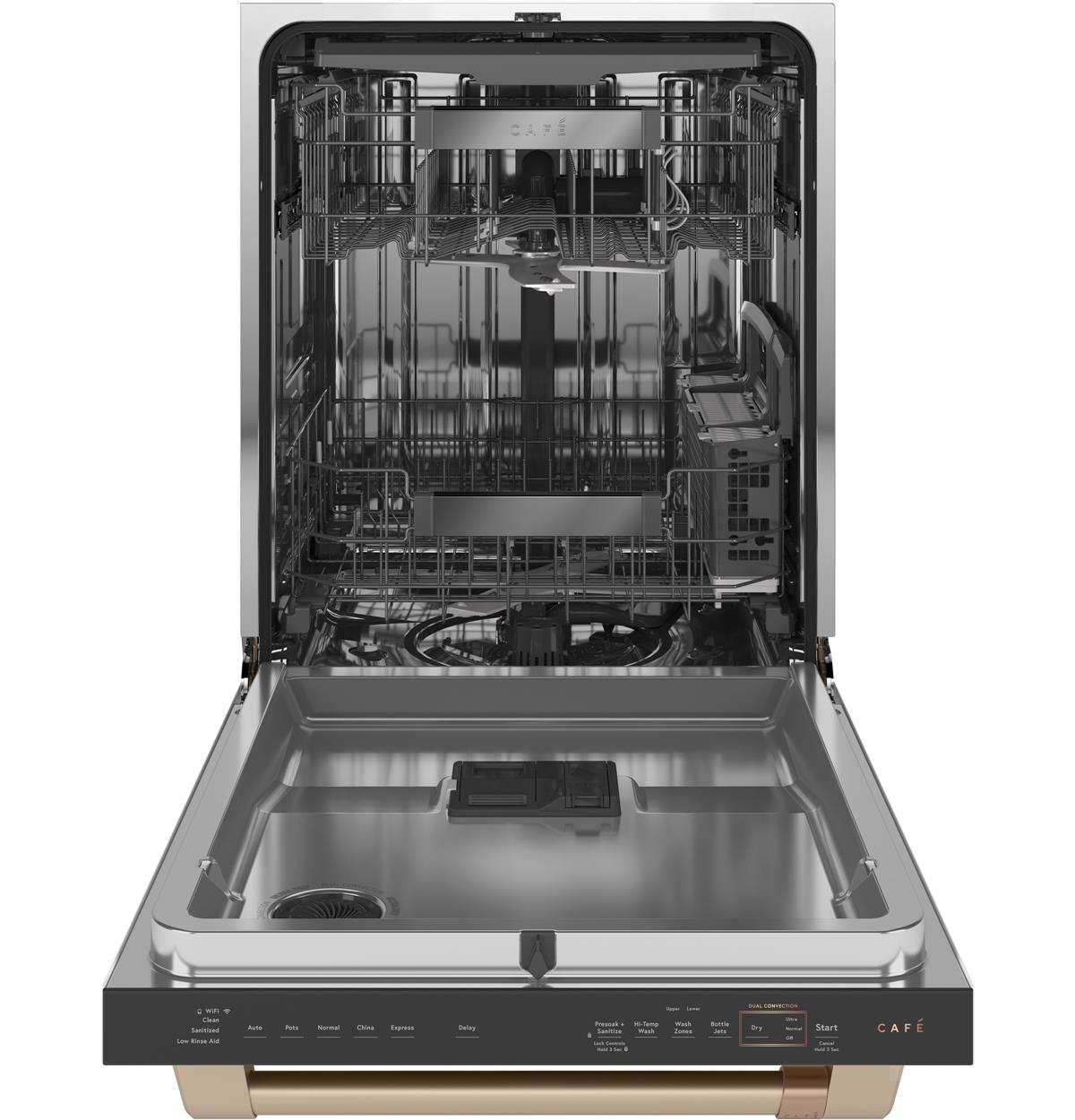

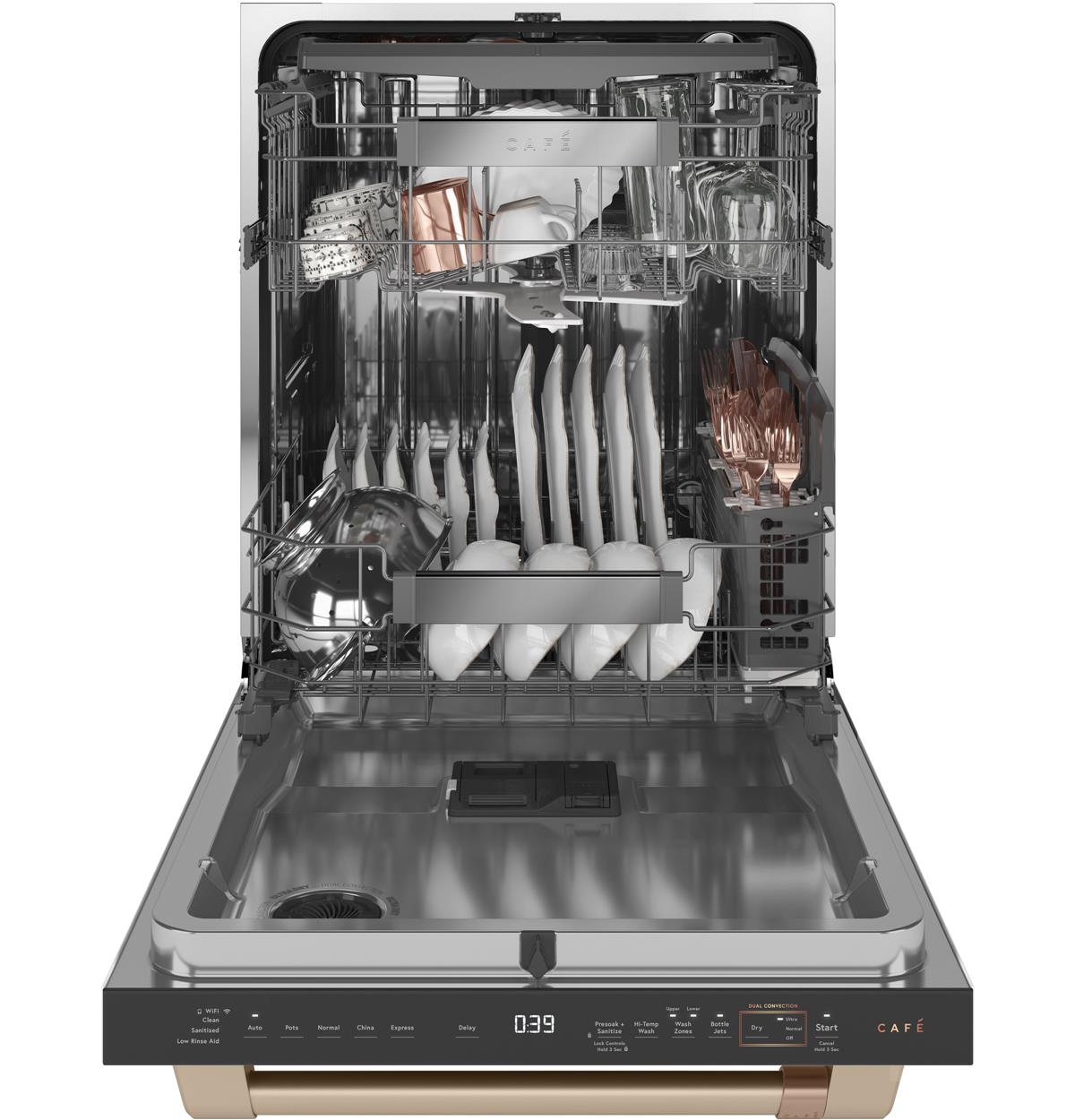

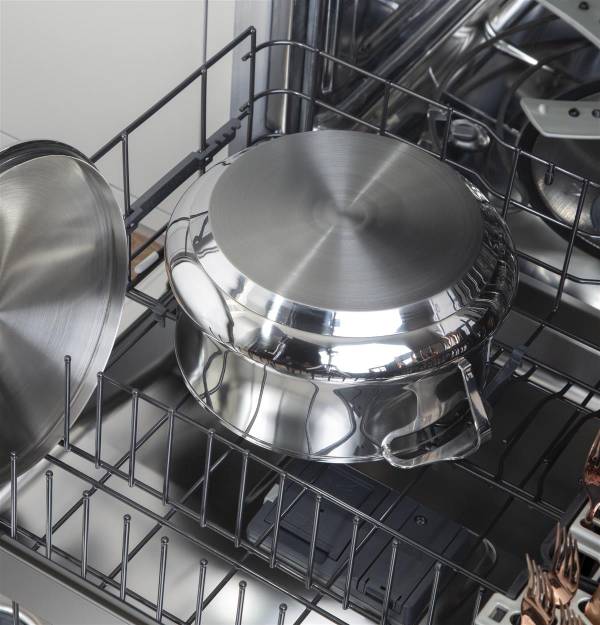

Loading Flexibility
Clean up quickly after hosting any event with a dishwasher that accommodates large items – like charcuterie platters – and dishwasher-safe plastics, like storage containers, conveniently in the lower rack

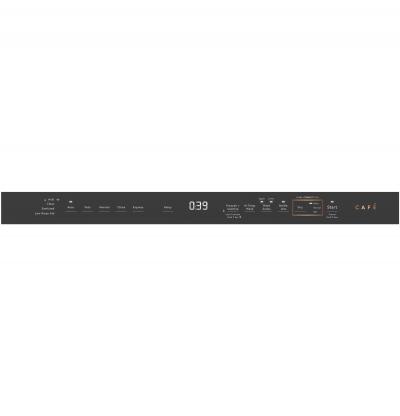

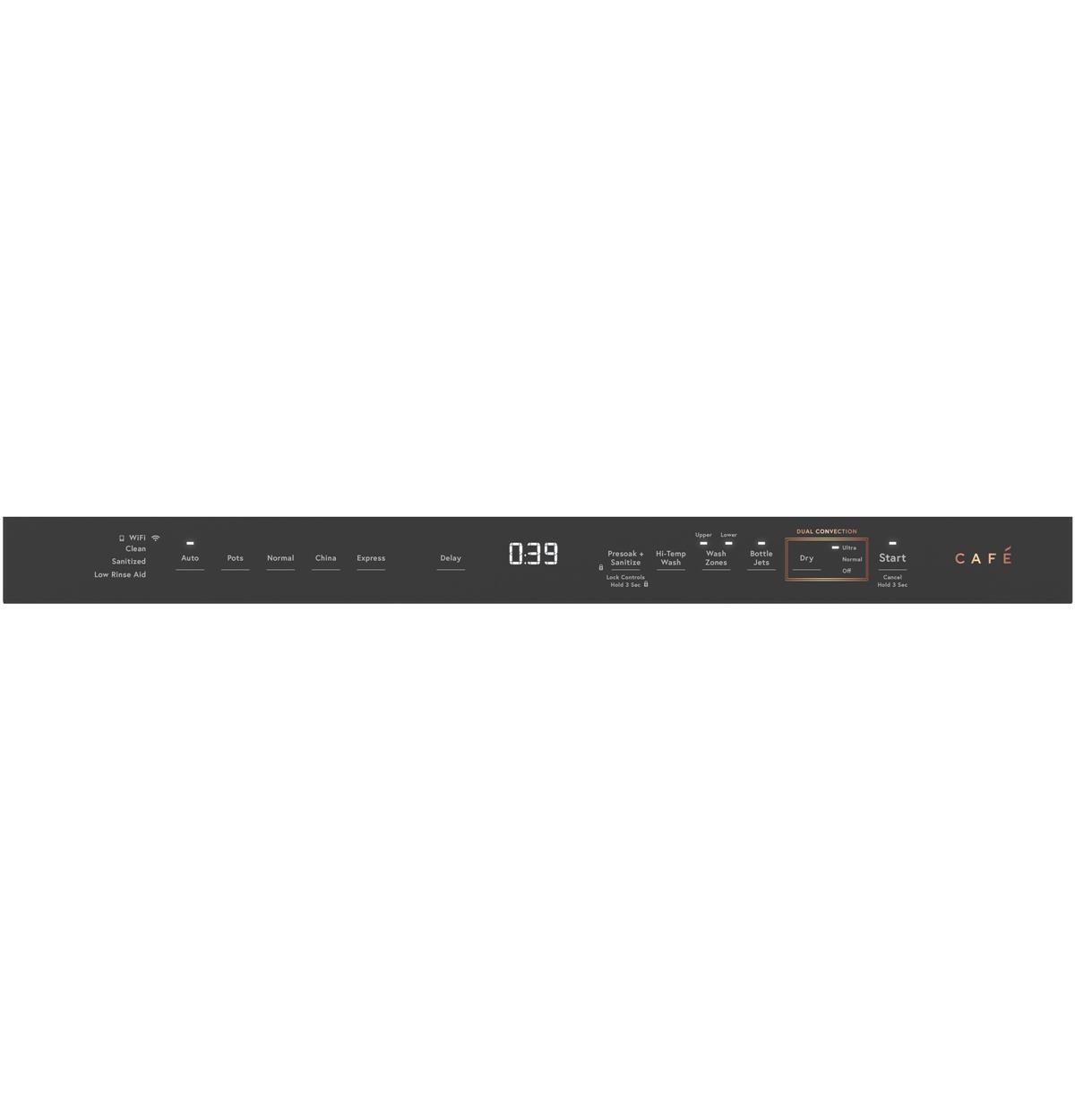

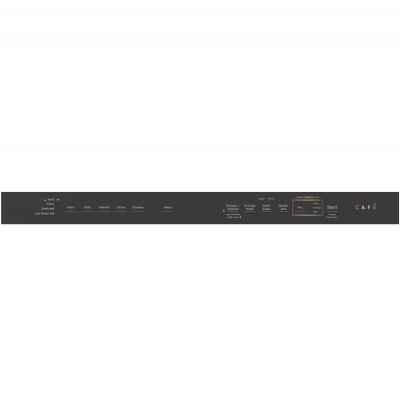

Status Center
Continue conversations without interruption and easily know when extra dinnerware is available via an LCD screen that displays the dishwasher cycle status.

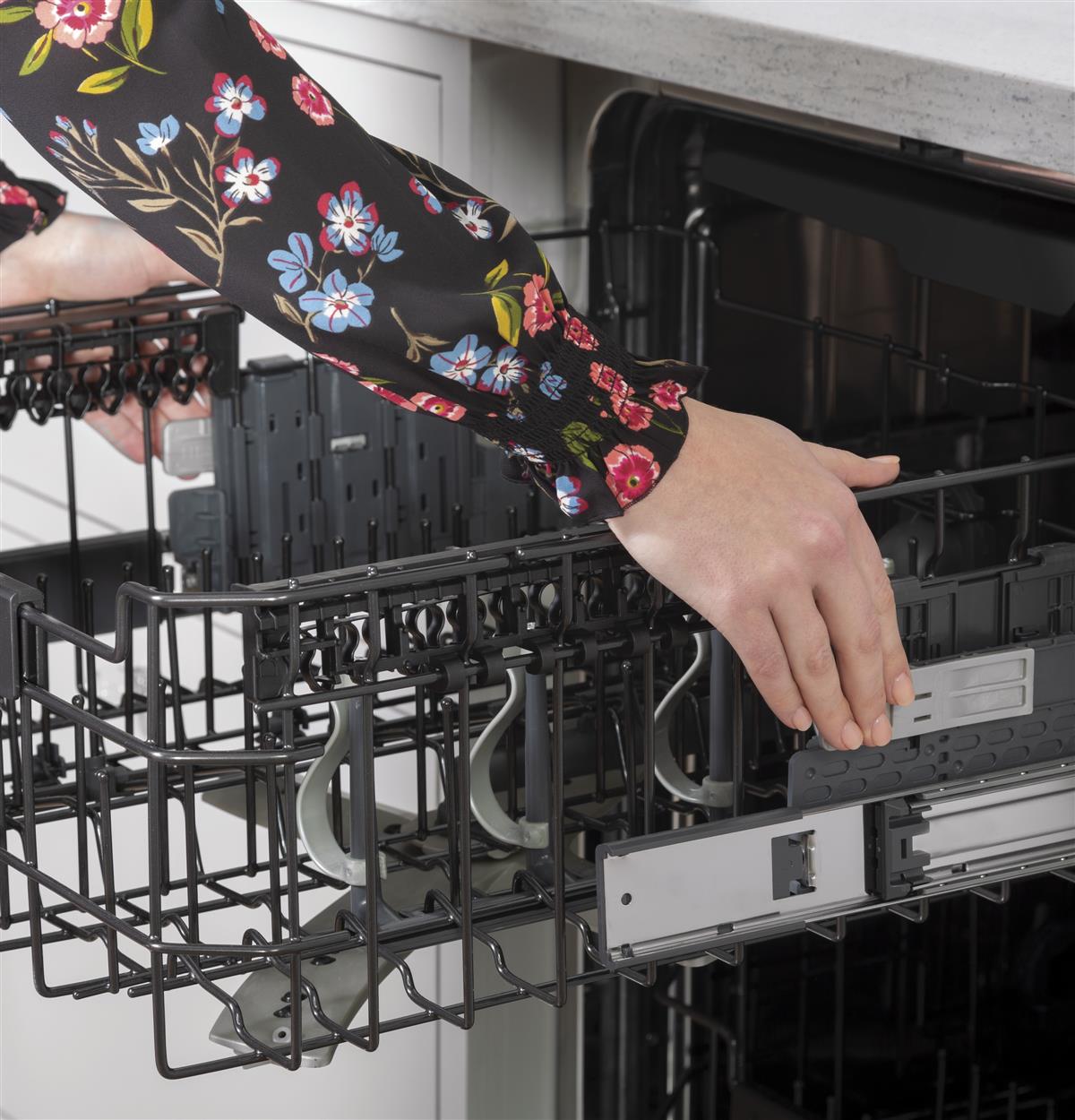

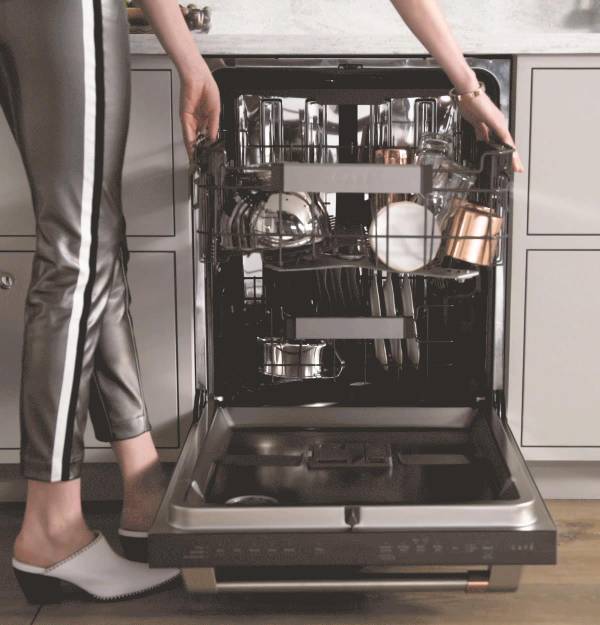

Adjustable Upper Racks
You’ll have room for your finest stemware and space for tall bakeware with a rack that can be moved two inches up or down, creating ultimate loading flexibility
WiFi
Always have clean dishes ready for surprise guests with WiFi Connect, which lets you operate your dishwasher from your smartphone. Track and automatically reorder detergent and rinse aid with just the tap of an app

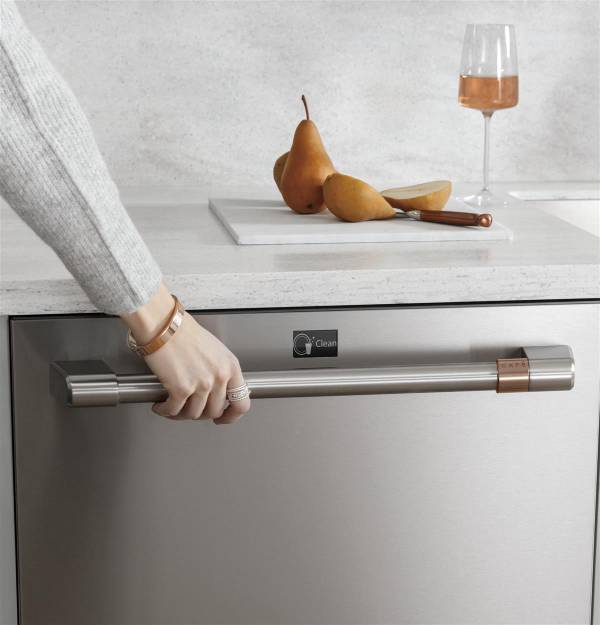

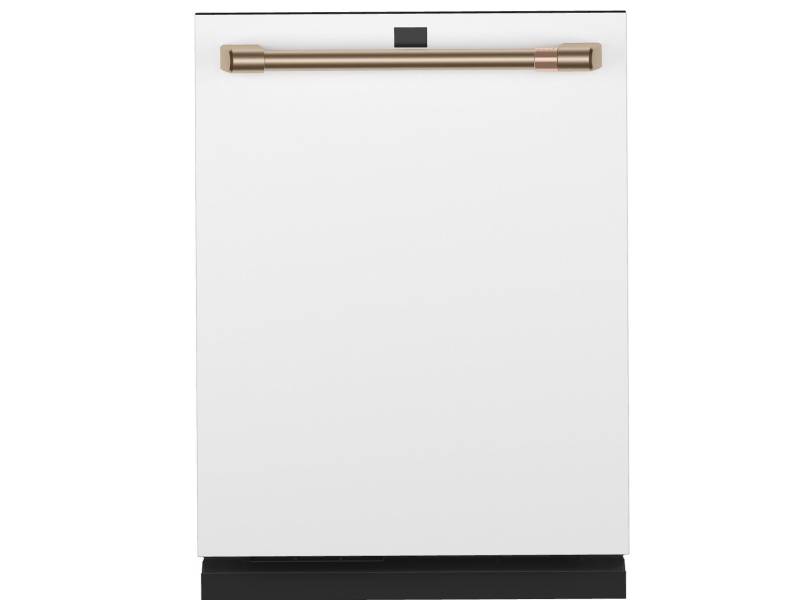

Create a look that matches your personal style
Select any combination of premium finishes and hardware options to create a stunning look customized to any owner’s taste
| Warranty | |
|---|---|
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Weights and Dimensions | |
| Height w/Legs Extended - Maximum Height | 34 5/8 in |
| Approximate Shipping Weight | 137 lb |
| Overall Height | 34 in |
| Overall Width | 23 3/4 in |
| Net Weight | 124 lb |
| Cabinet Width | 24 in |
| Overall Depth | 24 in |
| Height w/ Legs Retracted - Minimum Height | 33 3/8 in |
| Economical/Quiet | |
| Motor Type | Variable Speed |
| Quiet Features | Quiet Water Valve Sealed Toe Kick Tub Collar Trim |
| Outer Wrap | Bitumen Full-wrap Blanket |
| Quiet Package | 39 dBA |
| Door Insulation | Insulation Mastic |
| Power/Ratings | |
| Calrod Heater Watts | 1200/400 |
| Volts/Hertz/Amps | 120V; 60Hz; 10.2A |
| Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
| Appearance | |
| Colour | Matte White |
| Handle Design | Customizable |
| Door Appearance | Full-length flat door |

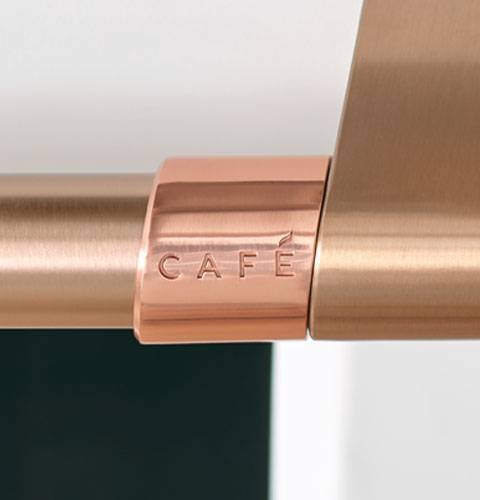

| Handle | Café™ |
| Installation | Built-Up Floor Capable Flush Cabinet Installation Side Installation or Top Installation Included |
| Handle Color | Brushed Bronze |
| Door Style | Long Door with Top Controls |
| System | |
| Dishwasher Control Features | Audible End-of-Cycle Signal Cycle Countdown with LCD Status Center on door Last Cycle Memory Multi function display |
| Number of Cycles | 5 |
| Tub and Door Liner | Stainless Steel |
| Showroom Power Mode | Yes |
| Exterior Style | Traditional |
| Upper Rack | 1 Rack handle 1/2 fixed tines, 1/2 fold down tines 2 Stem Safe Shelves Ball-Tip Tines Chop stick slots Fixed tines with Bottle Jets Premium Height Adjustable |

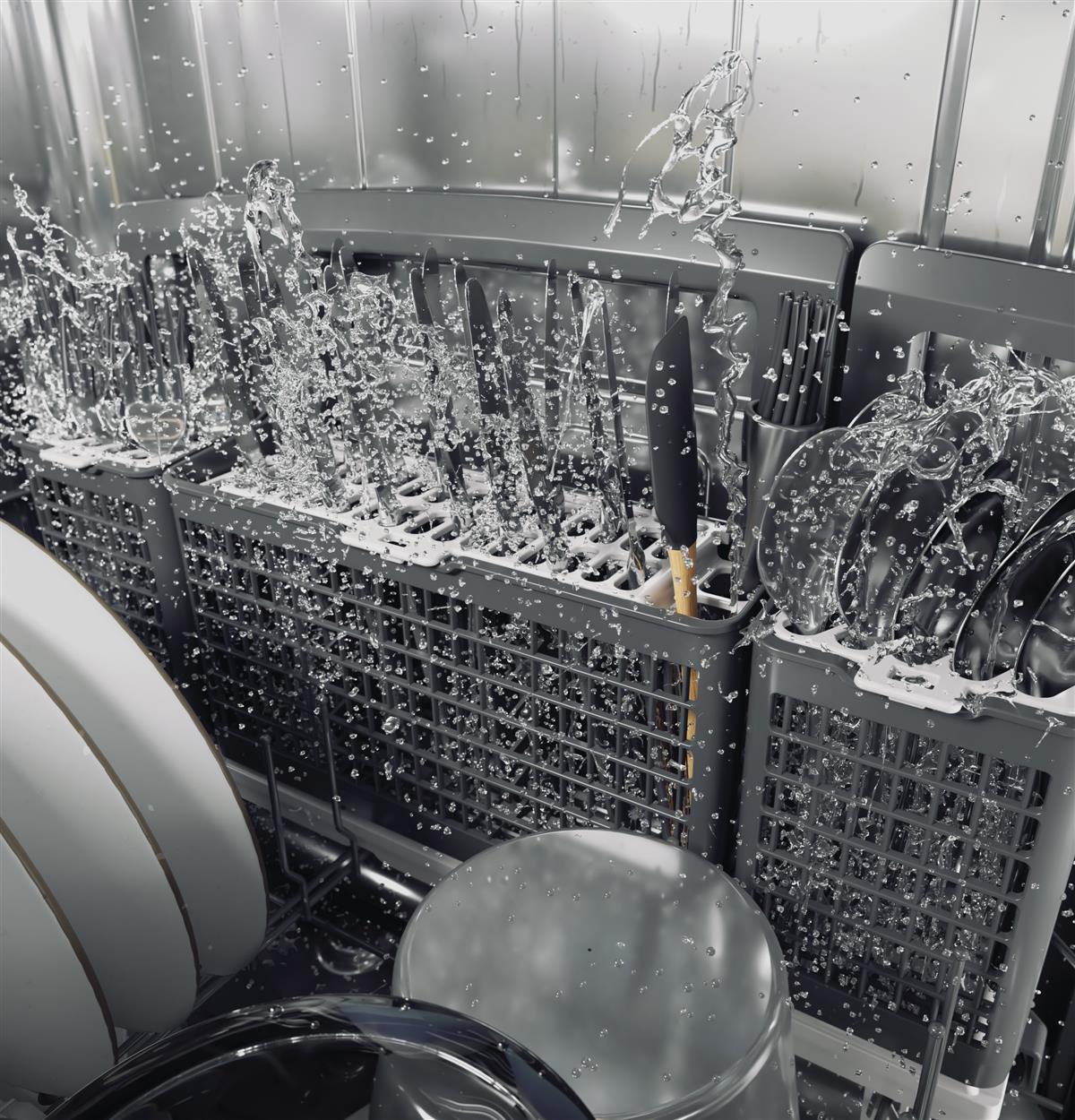

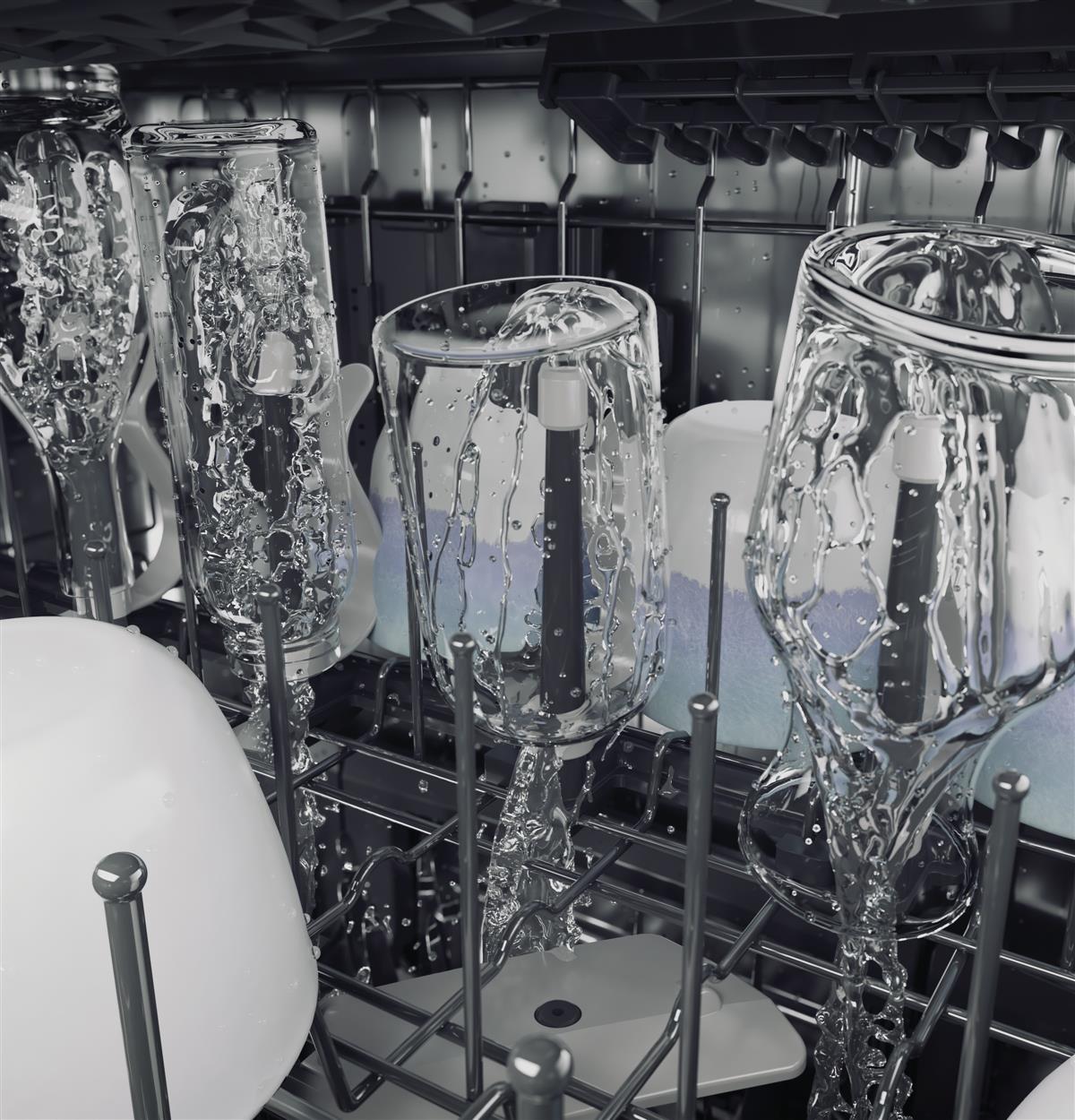

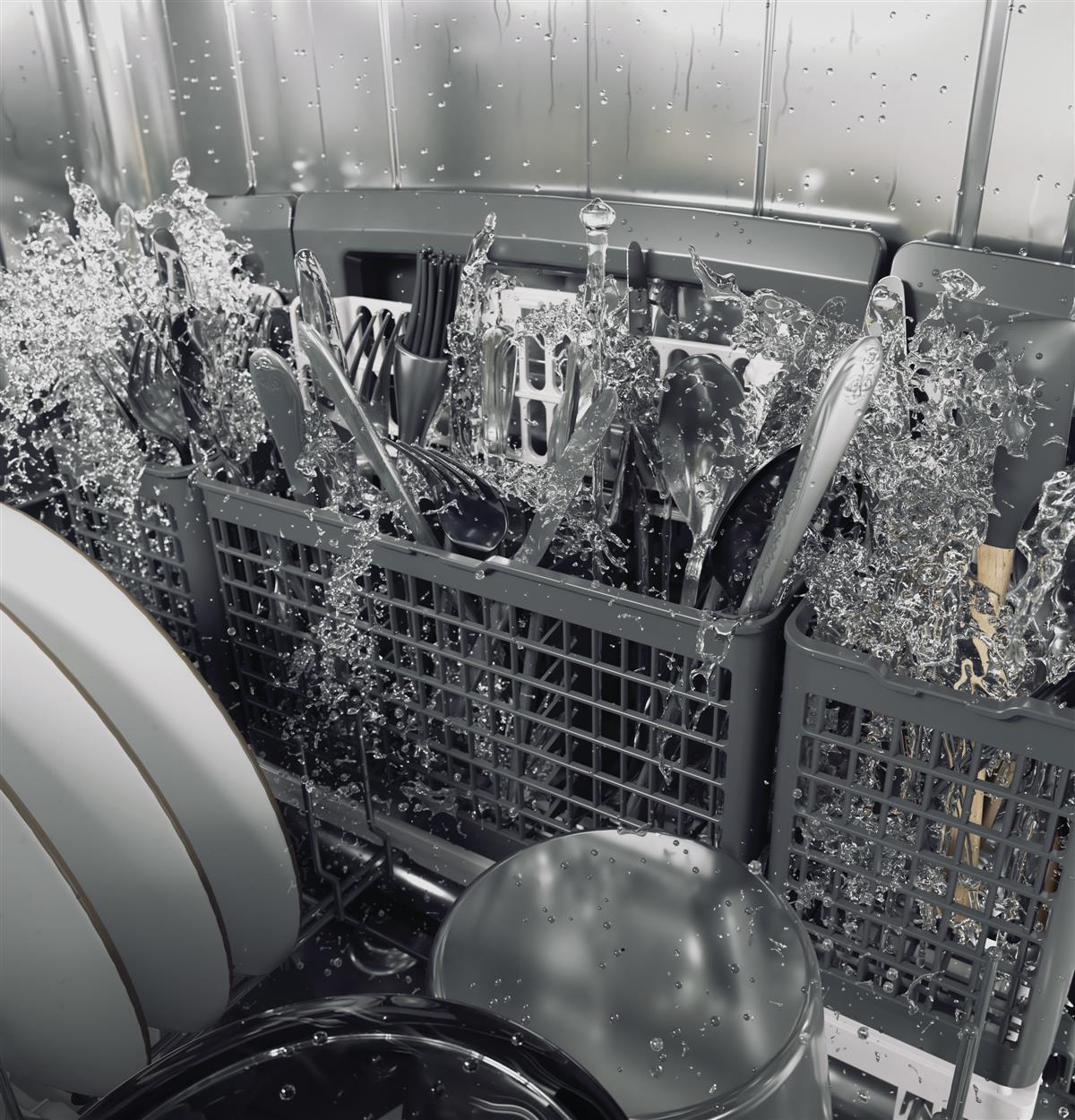

| Wash System Features | 90+ Spray Jet Wash System Automatic HotStart Automatic Temperature Control Bottle Jets (4) Deep Clean Silverware Jets Drain Pump Hard Food Disposer with removable filter Hidden Heater Quad Blade Middle Wash Arm Reversing Quad Blade Lower Wash Arm Side Jets Variable Speed Dual Pumps and Motors |
| Dishwasher Drying Features | Dual Convection Ultra Dry Fan Assist Dry Ultra/Normal/Off |

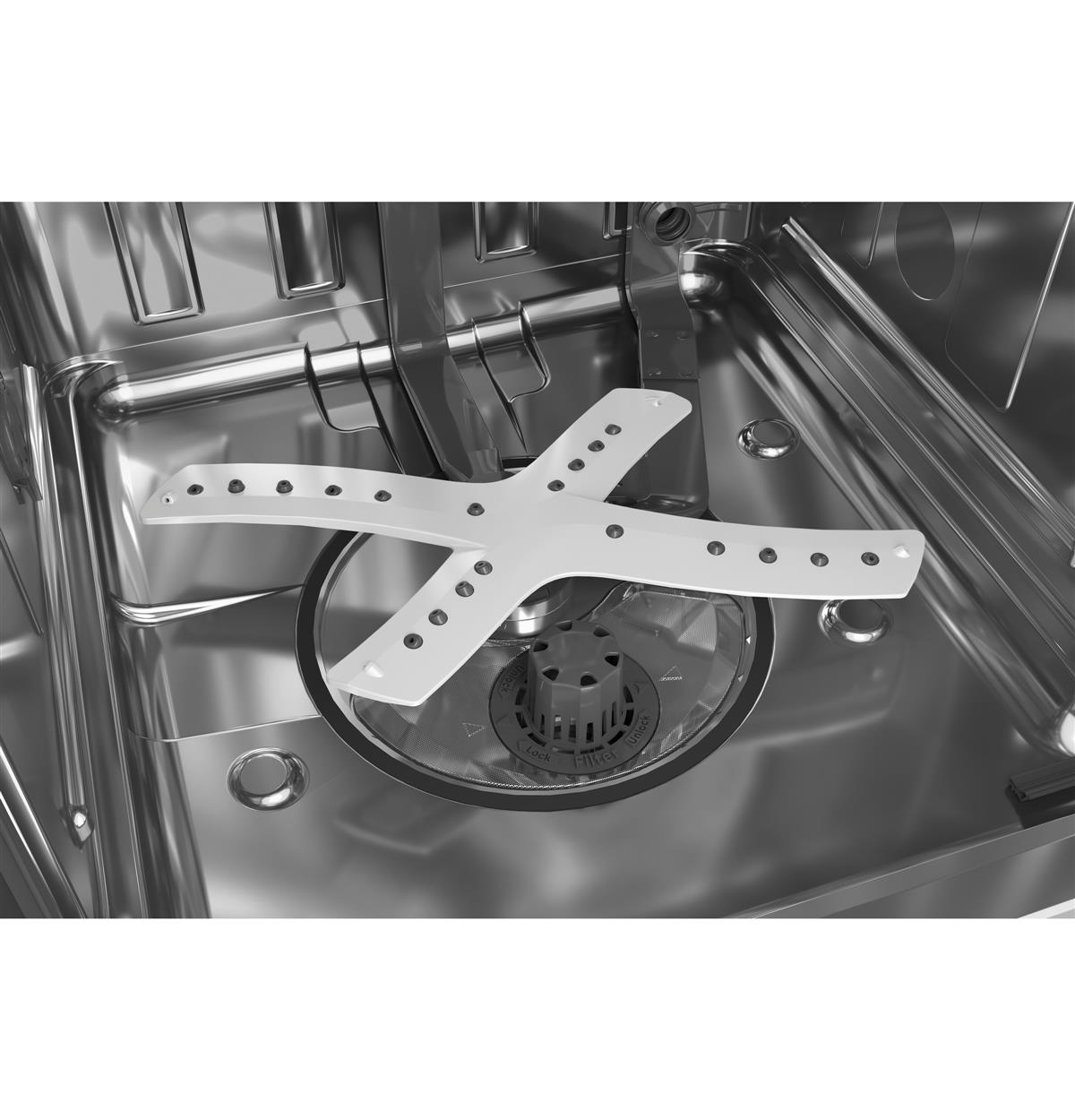

| Wash Arms | 3 Wash Levels Bottle Jets Deep Clean Silverware Jets Jets - Variable Pressure Lower- Reversing Quad Blade Middle - Quad Blade |

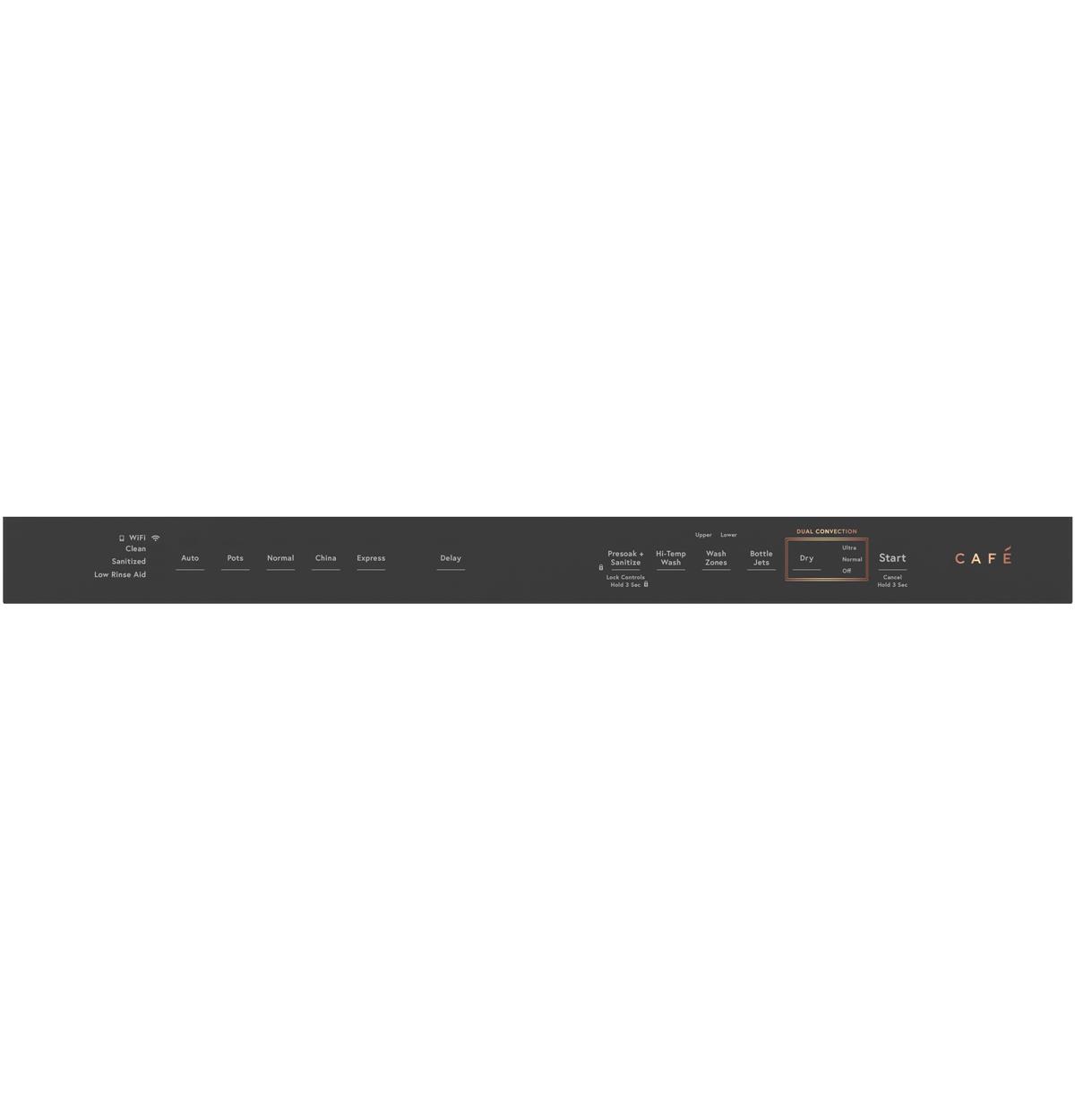

| Control Type | 12 Touchpads Cap Touch Controls Top Controls |
| Racking System | Full 3rd rack |
| WiFi Connect | Built-In |
| Dispenser | Electronic Low Rinse Aid Sensor Rinse Aid with Indicator and Adjustment |
| Floor Protection | Leak Defense with Active Flood Protect - Leak Pan with Sensor |
| Dishwasher Cycles | Auto China Express Normal Pots |
| Rack Color | Black Pearl |
| Racking Material | Nylon |
| Rack Features | 2 Utility Shelves with Stem Safe and Chop-stick slots - Upper 3-Piece Silverware Basket with Cell Covers Adjustable Upper Rack Ball-Tipped Tines Full Extension Slides - Upper |
| Cutlery Tray | One piece removable 3rd rack |
| Water Filtration System | 100% Filtration with Hard Food Disposer and Removable Filter |
| Style | Built-In Top Control |
| Number of Options | 10 |
| Latch | Pull with Handle |
| Dishwasher Options | Bottle Wash Delay Start 1-12 Hr. Dual Convection Ultra Dry Heated Dry Off Hi-Temp Wash Lock Controls Normal Dry Presoak + Sanitize (NSF Certified) Start/Reset Wash Zone Lower Only Wash Zone Upper Only |
| Number of Place Settings | Up to 16 |
| Additional Protection | Active Flood Protect Leak Defense with Active Flood Protect |
| Tub Type | Tall Tub |
| Lower Rack | 1/2 fixed tines, 1/2 fold down tines Ball-Tip Tines |
| Wash System | 3-Level 800 Series |
| Sensor | Clean Sensor |
| FeaturesWash System 3-Level 800 Series Sensor Clean Sensor | |
| Leveling System | 3 Point Leveling |
| Accessories | |
| Optional Kits | CXADTH1PMBT Brushed Black CXADTH1PMCU Brushed Copper CXADTH1PMSS Brushed Stainless |
