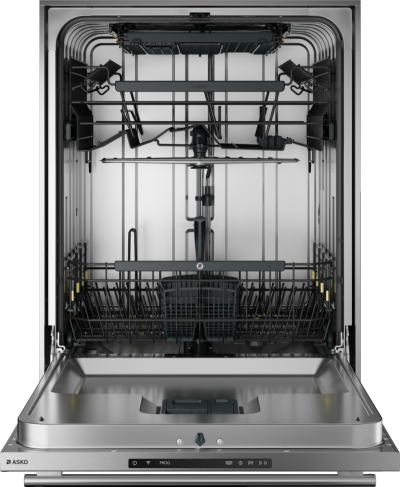

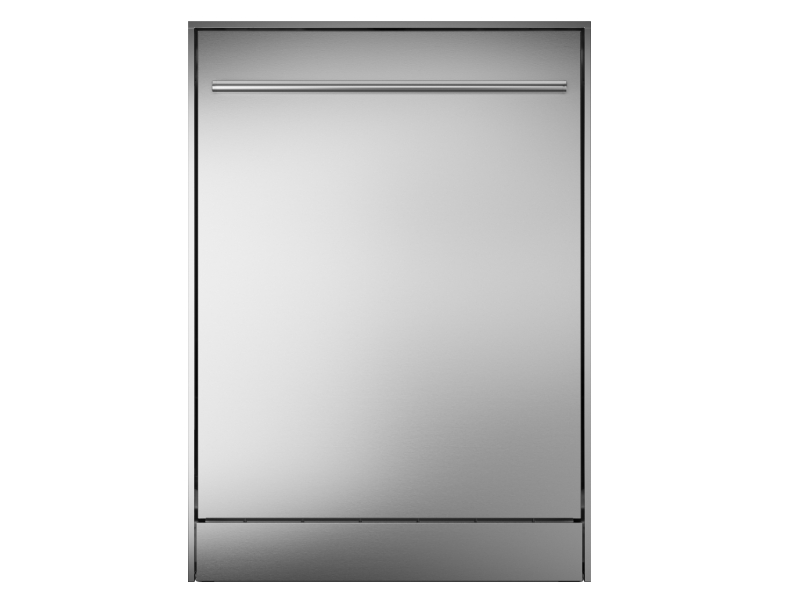

24" Asko Outdoor Built-In Dishwasher with Pro Handle - DOD561TXXL.S

Category : Dishwashers
SKU : DOD561TXXL.S

WAS $6,029.00
$5,349.00 CAD
Sale Ends 13-01-2025

Literature
  • Number of place settings: 16 pcs
  • Number of racks: 3
  • Upper basket type: Premium - Nylon coated steel baskets, fixed tine rows and foldable wine shelves for maximum longevity
  • Size: XXL
  • Residual heat
  • Auto Door Open Drying™
  • Automatic dosing system: No
  • Installation: Freestanding outdoor
  • Series: Logic
  • Colour of the product: Stainless steel

Features

SCS - Super Cleaning System™

Rinse the dishes. Clean the interior, including the filter. Choose the best program. How many steps is that? One – and we call it the Super Cleaning System – or our best invention.

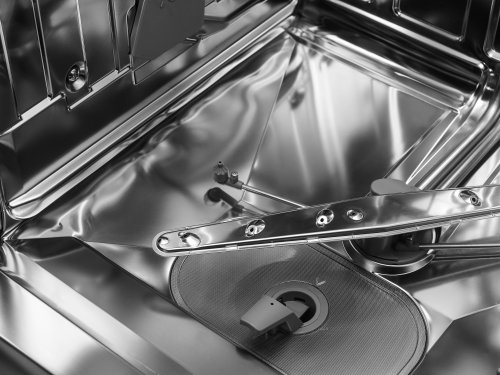

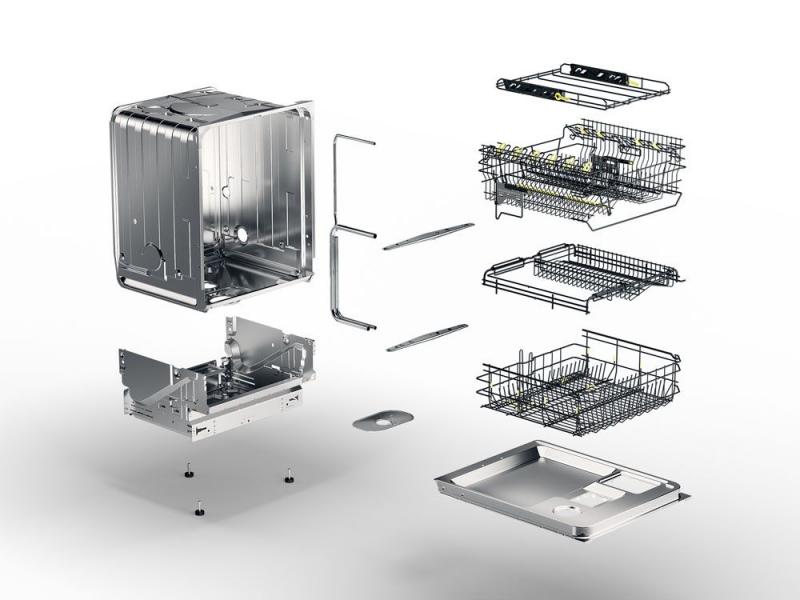

8 Steel™

8 Steel™ - more steel less plastic No other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.



Aqua Safe™ system

Aqua Safe™, is an advanced water safety system encompassing both a sturdy construction like PEX hose and seam-welded stainless container as well as smart systems as anti-block drain pump, Aqua Detect sensor and stand-by water protection. Few sealing points outside the container Seem-welded container in stainless steel Waterproof external base Exterior Float Aqua Detect™ Sensor Stand by water protection PEX inlet hose Maximum time for water intake Light and sound alarm Anti-block drain pump Safety Inlet Valve



Flexiracks™

ASKO Flexiracks™ from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.



XXL dishwashers

Our XXL dishwashers have an loading height of 23". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.



Self cleaning

ASKO’s dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned. Use a recommended cleaning agent and the program on a regular basis for best result.

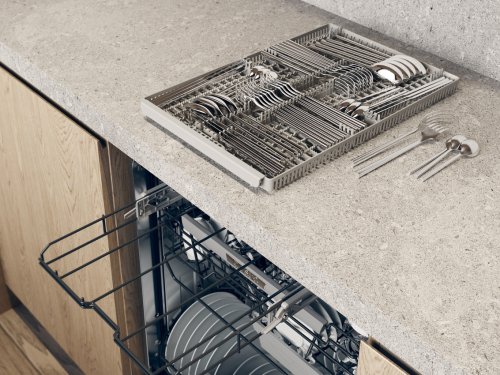

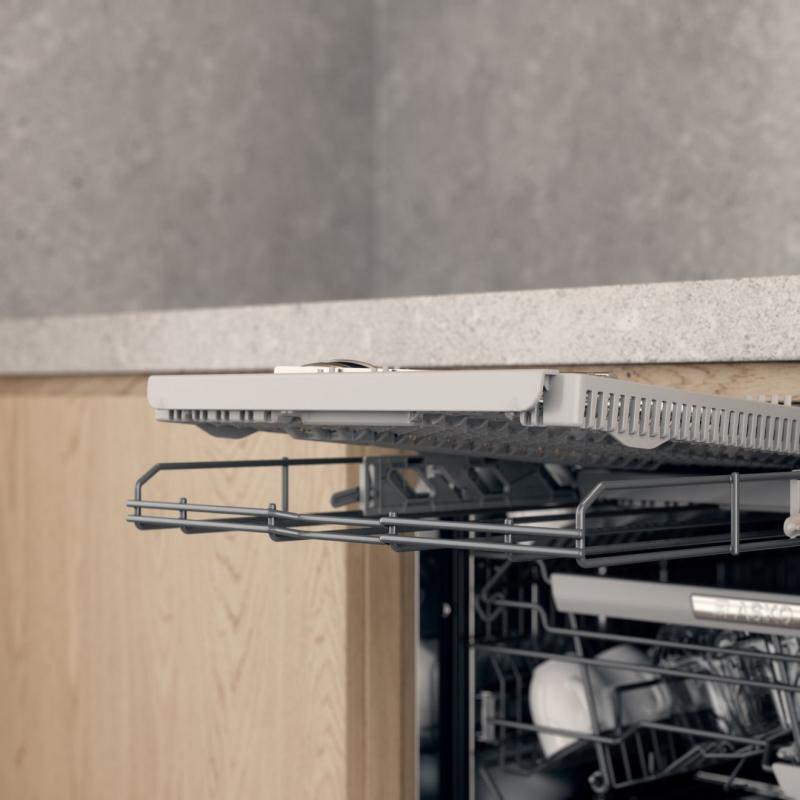

Top cutlery tray

The top tray for cutlery and kitchen utensils is easy to remove for easy unloading. With a width of 12-3/4" the centred tray leaves plenty of room for tall wine glasses in the upper rack on each side of the tray. And with the Instant Lift™ you have the freedom to adjust the upper rack to be 1-1/2" or 2-1/4".

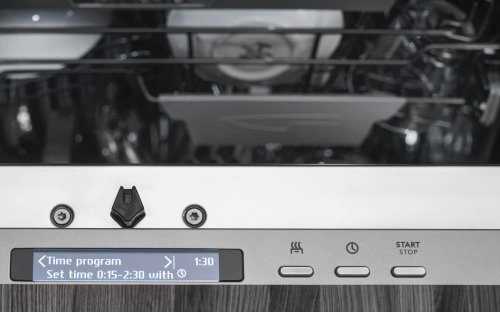

Time program

When you need clean plates in a hurry, just tell the machine how dirty the dishes are and how much time you have. The program then adjusts washing and rinsing to match your needs.

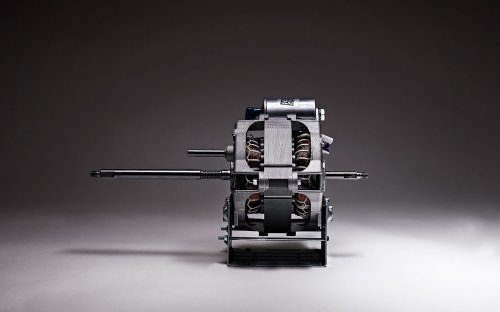

Brushless motor

A brushless motor is not only quieter and more reliable. It also consumes less energy. You want your dishwasher to work forever. So do we.



Speed mode

When you need to get things cleaned in a hurry, the Speed mode is useful. It saves up to 50% of the normal time, by using more water and increased heating.



Night mode

Night mode reduces the noise by 2 dB thanks to lower pressure in the spray arm. Perfect at night or in a house with an open plan living area.



Rinse & hold

The Rinse and hold program allows for you to avoid dried leftovers while you wait for the dishwasher to get fully loaded. Saves time and energy over time.



Aqua Level™Sensor

The Aqua Level™ Sensor ensures the exact amount of water. For example, if a plastic bowl turns over and is filled with water, the sensor automatically adds extra water to the process for a premium cleaning result.



Aqua Detect™ Sensor

The Aqua Detect™Sensor monitors the inlet valves and the water level while the machine operates. For safety reasons, the drain pump’s capacity is five times the inlet valve’s.

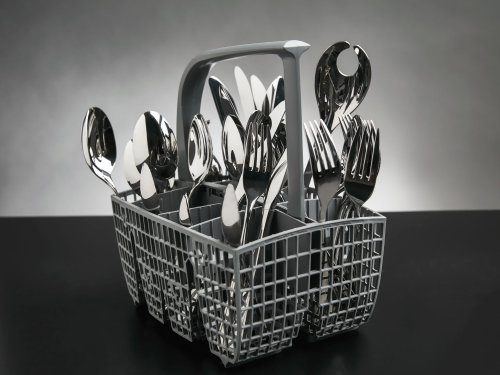

Power Zone Cutlery™

Power Zone Cutlery™ is a special nozzle spray zone for the cutlery basket that will make your cutlery dazzling clean. And, there is a similar nozzle for the knife basket.



Kid Safe™

To stop small fingers from starting the dishwasher the Kid Safe™ makes the control panel easy to lock. This also prevents altering any settings by mistake.



Instant Lift™

Our InstantLift™ height adjustment system, allows for freeing up between 1-1/2" or 2-1/4" in the upper rack,. A simple and flexible way to make room for it all.



7 Spray™

ASKO’s spray system consists of up to 7 effective spray zones to ensure a totally clean load. In the lower rack there are two power zones to take care of the dirtiest parts.

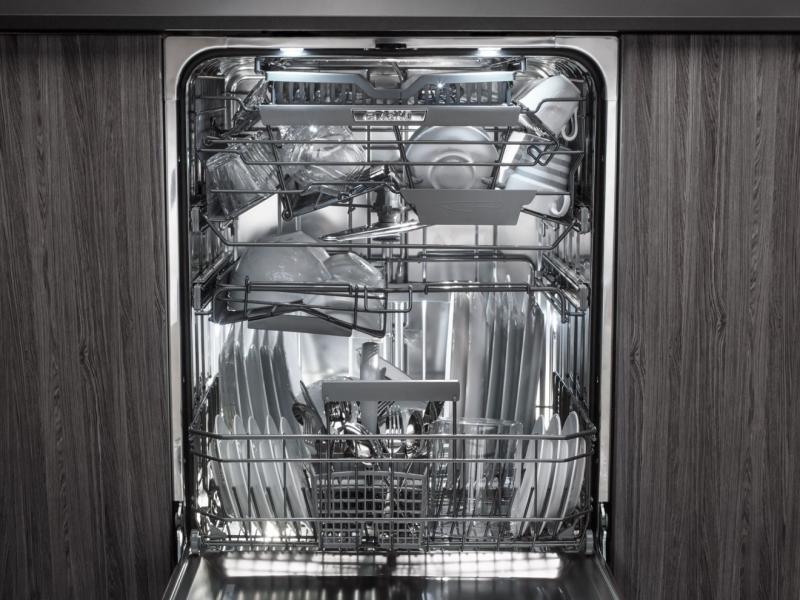

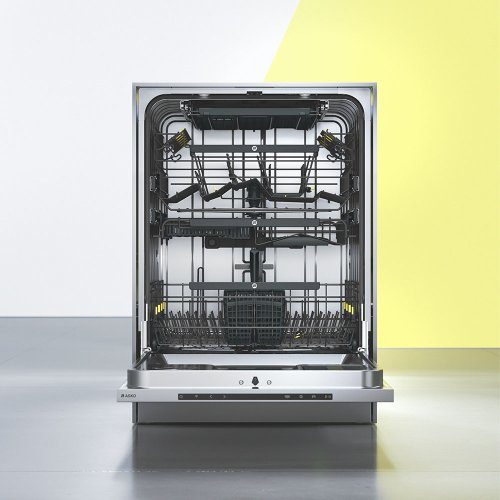

3 Level rack

ASKO’s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.

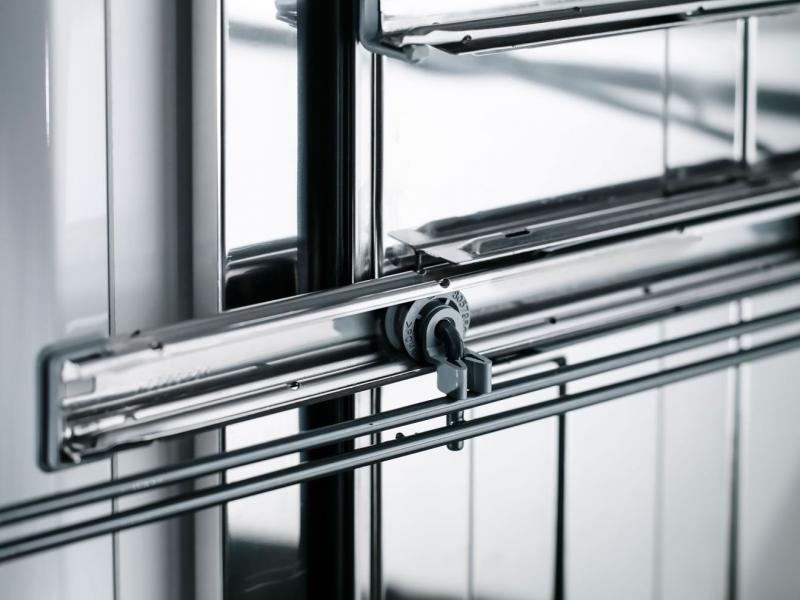

Telescopic rails

ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.

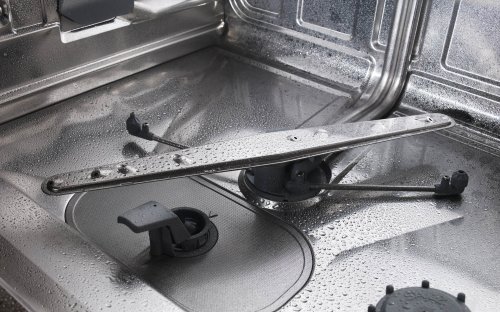

3 Spray arms

The 3 spray-arm technique reaches every corner and with up to 10 highly effective spray zones, no dirt can escape. Not even your lasagne baking dish.



Condensation dry

ASKO dishwashers are some of the most advanced in the world. They’re packed with innovative features that make light work of all types of loads. Like our pre-rinse that saves you having to clean dishes before loading. Also, our Turbo Drying system that rapidly extracts condensation after the final wash so your dishes dry much faster. All these handy features help to make ASKO dishwashers a favourite around the World.

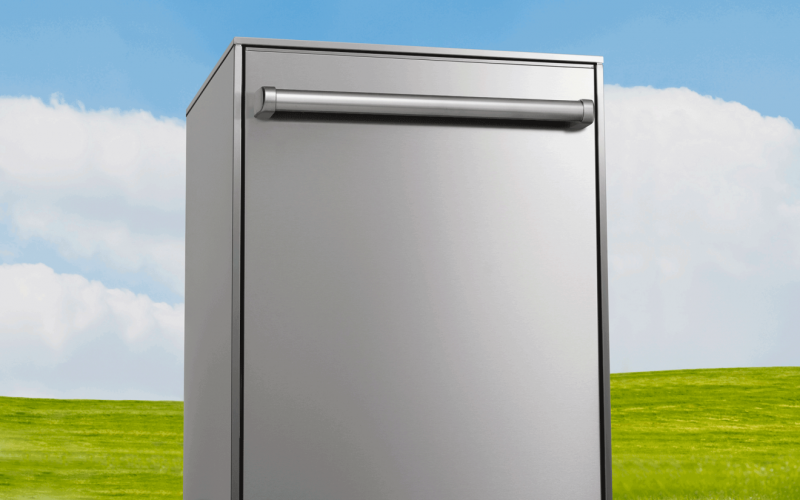

Outdoor model

The durable outdoor version is made of stainless steel in all vital parts to protect it from the elements. Perfect for small summer houses or when you want to upgrade your outdoor kitchen.



Touch Proof™

The ultra-thin, transparent TouchProof™ coating protects your dishwasher stains and grease Easy to clean, scratch resistant it will keep your dishwasher looking brand new year after year.

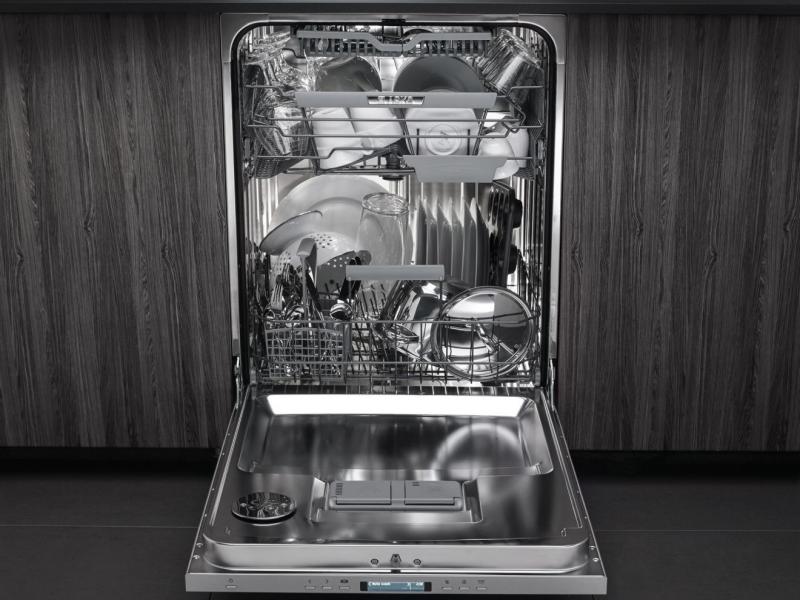

16 - Loading capacity

The world’s biggest load capacity. The latest addition to our rack system is a flexible top cutlery tray with its own spray arm and space for sixteen sets of cutlery, small bowls, or other utensils that can be difficult to load. The width of the top cutlery tray has been optimised to make room for tall glasses in the upper rack and, if more space is needed simply take the top cutlery tray out.



15-3/4" plates in lower rack

Our XXL dishwashers have room for a 40 cm big plate in the lower rack when the middle rack is removed and the upper rack in the upmost position.



Pop Out Door

When a program is completed, the Door Pop-Out function opens the dishwasher door automatically to remove the steam inside.

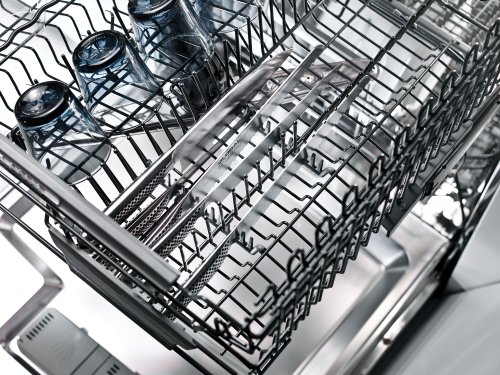

Knife holders

Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.

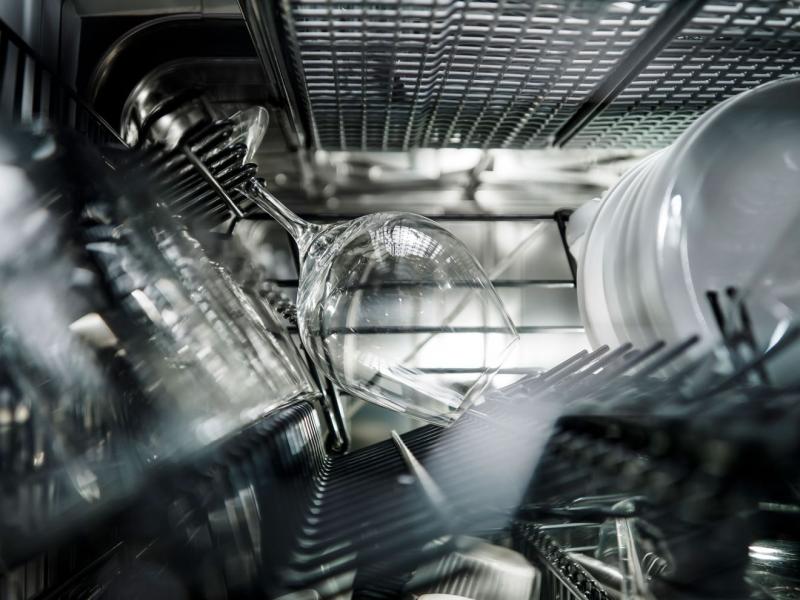

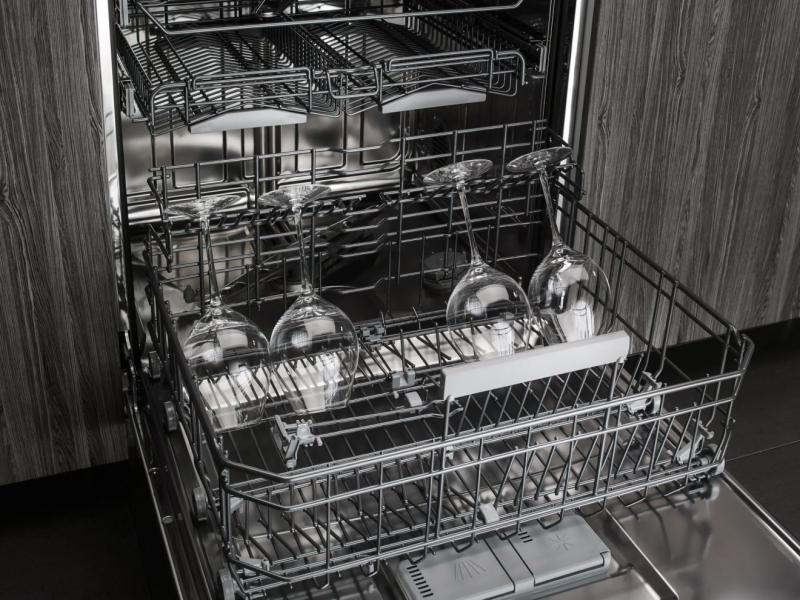

Multi position glass rack

The Multi position glass rack is a very practical rack that can be mounted in three different positions – all depending on your needs.

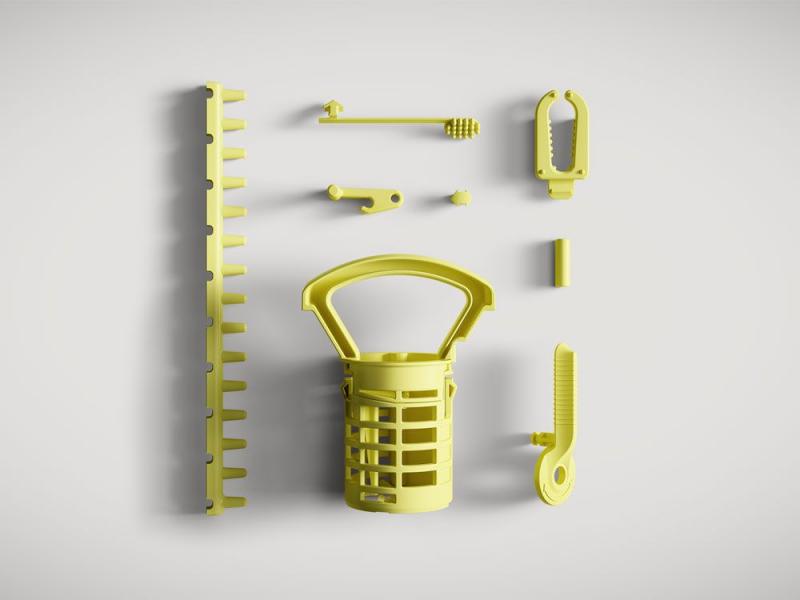

Focus points

Focus points - a hint of nature Opening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine’s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place – where it doesn’t compete for space or attention – instead, it makes the room.



20 years

Today, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better – for our customers and for the planet. Designed to make a difference. And built to be enjoyed for the next 20 years.


LOGISTIC INFORMATION
EAN code3838782688058
Product code740110
Gross weight81 kg
Packaging depth750 mm
Packaging height1010 mm
Packaging width670 mm
Dimensions

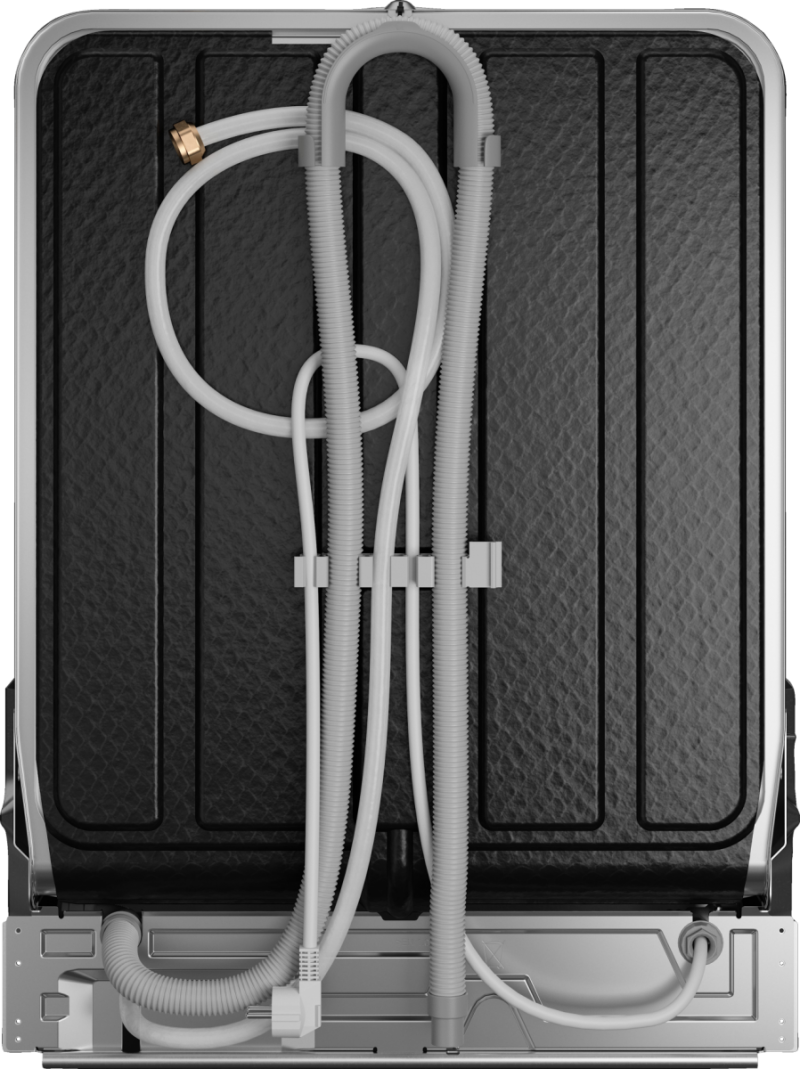

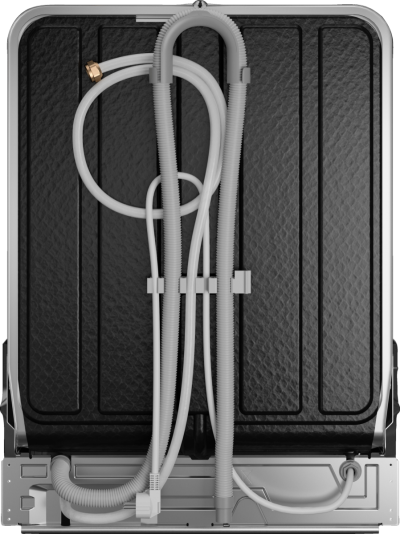

Length inlet hose163 cm
Length outlet hose107 cm
Depth with door open1310 mm
Maximum product height906 mm
Length of electrical cord1815 mm
Depth633 mm
Height881 mm
Width623 mm
Technical data
Net weight72 kg
Required inlet water pressure MPa0,03-1
Frequency60 Hz
Fuse15 A
Number of phases1
Voltage (V)120 V
Plug typeUSA
Connected load1300 W
Power consumption in standby mode0.5 W
Water consumption11.4 l
Estimated annual water consumption2451 l
Energy consumption - normal program1 kWh
Estimated yearly energy consumption220 kWh
Duration of standard programme125 min
Reference programme1
Water connectionHot&cold water
Noise level (dBA)48 dB(A)
Max. temperature of inflow water60 °C
Adapter for water connectionNo
Safety and maintenance
Aqua Safe™ systemYes
Child safetyKid Safe™ - Lockable controls
Rinse-aid IndicatorNotification in display
Aqua Safe™Sealing points outside container Extra durable stainless steel container Waterproof bottom plate Detection of water leakage on the bottom plate Aqua Detect™ - Instant recognition of any leakage in the motor compartment Aqua Level™ Sensor - Ensures an optimized water level Stand-by water protection - Leakage detection when machine is off Extra durable PEX inlet hose Maximum time for water intake Light and sound alarm Anti Block™ - Self cleaning drain pump
Design and integration
Height setting25 mm
Adjustable kick plateNo
InstallationMulti fit outlet hose Fixed high loop outlet hose Tip guard
Sliding doorNo
Possible to install elevatedNo
From the front adjustable door springNo
Rear leg is adjustable from the frontNo
Functions, programs and modes
Delayed startPossible to delay up to 24 hours
Options and modesTime set Heat Boost Mode Enable/disable automatic door opening Speed mode - The program time is shortened. More energy is used. Night mode - Lower noise level. The program time is extended. Super Rinse™ - Two extra rinses
Main wash temperature (°C)55/60/65/70
ProgramsRinse and hold program Intensive program Sanitize Standard Time program Self cleaning Light wash
Interaction and control
Language settingsNorwegian German Russian Finnish Swedish Portuguese Lithuanian English Latvian Croatian Italian French Chinese traditional Spanish Estonian Czech Ukrainian Japanese Slovak Slovenian Chinese simpified Polish Danish Dutch
Remaining time indicatorYes
End wash indicatorDisplayed with sound and light
Status Light™ - Visual indication of dishwashing progressNo
Type of displayLCD display
Possible to control via Wi-FiNo
Use and flexibility
Automatic dosing systemNo
Interior lightNo
Lower basketFoldable/divisible rear tine row Cutlery basket Small distance between the basket threads - makes loading easy and prevents small items to fall through. Handle with plastic logotype
Middle basketWithout middle basket
Lower basket typePremium - Basket wiring in steel, fixed tine rows and removable cutlery basket
Upper basketSmall distance between the basket threads - makes loading easy and prevents small items to fall through Handle with plastic logotype Foldable wine shelves to left Standard knife stand Fixed glass support Foldable wine shelves to right Fixed tine rows
Upper basket height adjustableNo
Number of place settings16 pcs
Number of racks3
Top trayEasy height adjustment Handle Removable
Upper basket typePremium - Nylon coated steel baskets, fixed tine rows and foldable wine shelves for maximum longevity
Construction and performance
Exterior handleT-Bar
Number of spray arms3 pcs
Number of spray zones7
Cleaning systemsCutlery Spray™ - Extra dishwashing power for the cutlery basket No need to rinse the dishes thanks to Super Cleaning System™ Aqua Level™ Sensor Stainless steel spray arms
Automatic water-softener for better washing performanceNo
No need to rinse the dishes thanks to Super Cleaning System™Yes
8 Steel™ - Vital parts of the dishwasher made in stainless steelYes
