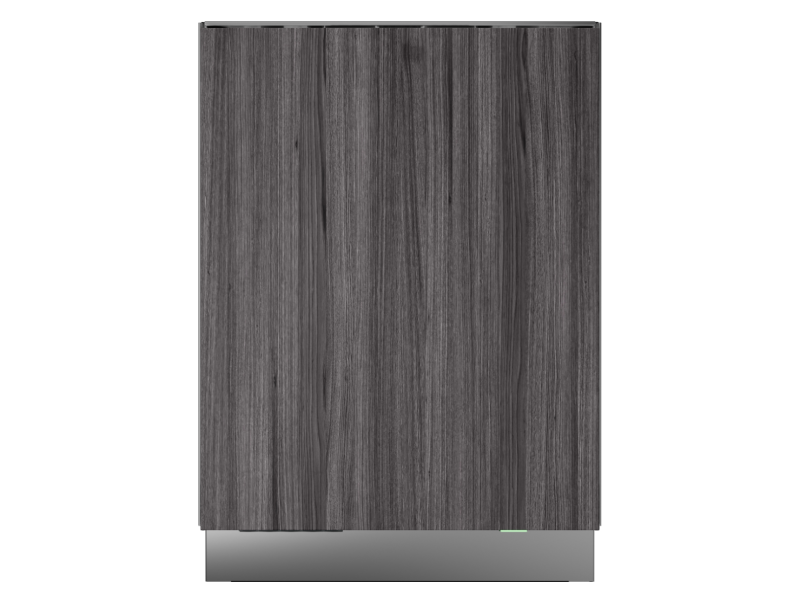

24" Asko Built- in Fully Integrated Dishwasher with LCD Display - DFI776XXL.SOF

Category : Dishwashers
SKU : DFI776XXL.SOF

WAS $3,459.00
$2,999.00 CAD
Sale Ends 13-01-2025

Literature
  • Number of place settings: 17 pcs
  • Number of racks: 3
  • Upper basket type: Exclusive - Nylon coated steel baskets, all tines rows are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
  • Size: XXL
  • Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening
  • Automatic dosing system: Yes, integrated
  • Installation: Panel ready
  • Series: Style

Features

SCS - Super Cleaning System™

Rinse the dishes. Clean the interior, including the filter. Choose the best program. How many steps is that? One – and we call it the Super Cleaning System – or our best invention.

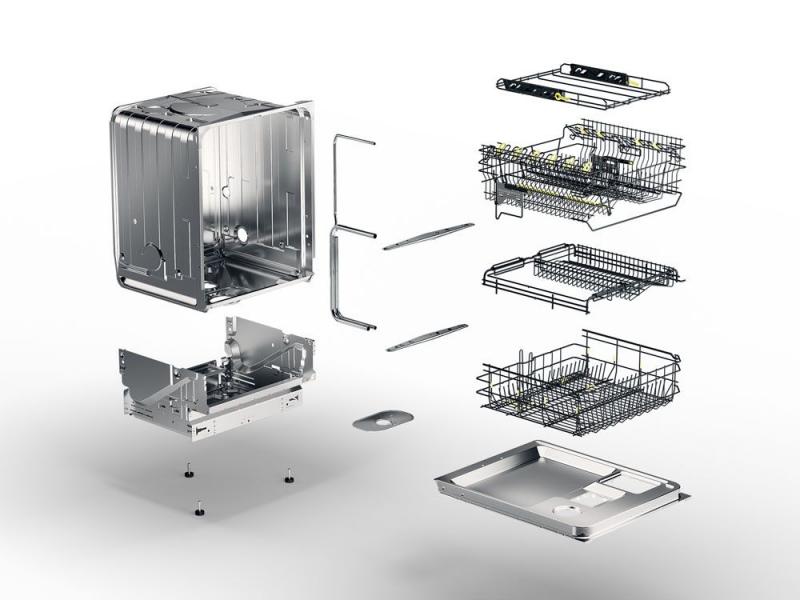

8 Steel™

8 Steel™ - more steel less plastic No other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.

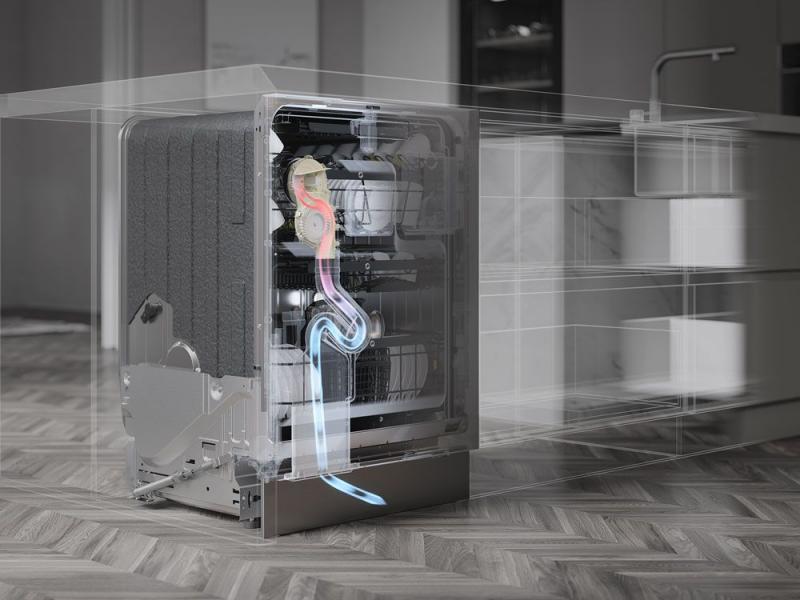

Turbo Combi Drying™

Turbo Combi Drying™ benefits from both the innovative Turbo Drying™ system and natural drying with dry indoor air. Our Turbo Drying™ system begins the drying process and is followed with the door automatically opens to finish the drying with indoor air.



Aqua Safe™ system

Aqua Safe™, is an advanced water safety system encompassing both a sturdy construction like PEX hose and seam-welded stainless container as well as smart systems as anti-block drain pump, Aqua Detect sensor and stand-by water protection. Few sealing points outside the container Seem-welded container in stainless steel Waterproof external base Exterior Float Aqua Detect™ Sensor Stand by water protection PEX inlet hose Maximum time for water intake Light and sound alarm Anti-block drain pump Safety Inlet Valve



Flexiracks™

ASKO Flexiracks™ from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.

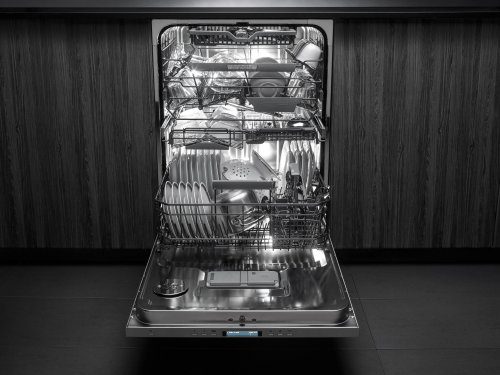

XXL dishwashers

Our XXL dishwashers have an loading height of 23". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.

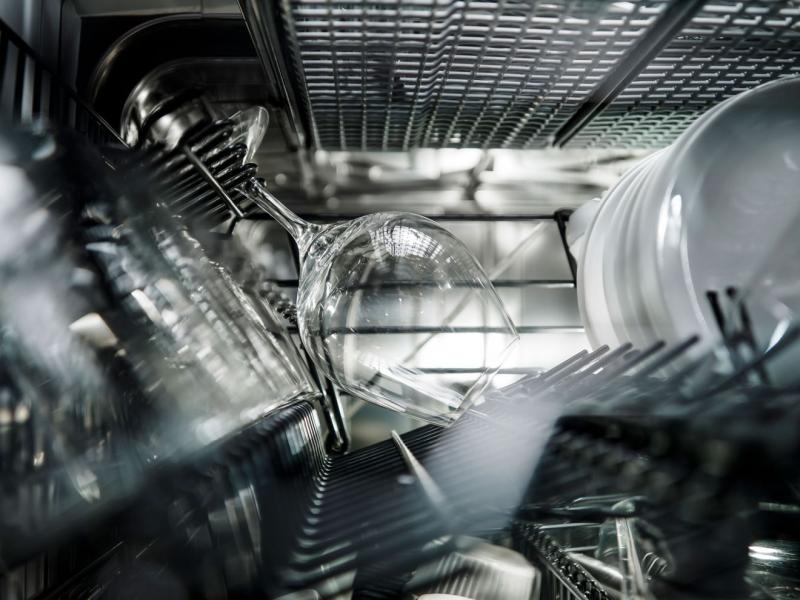

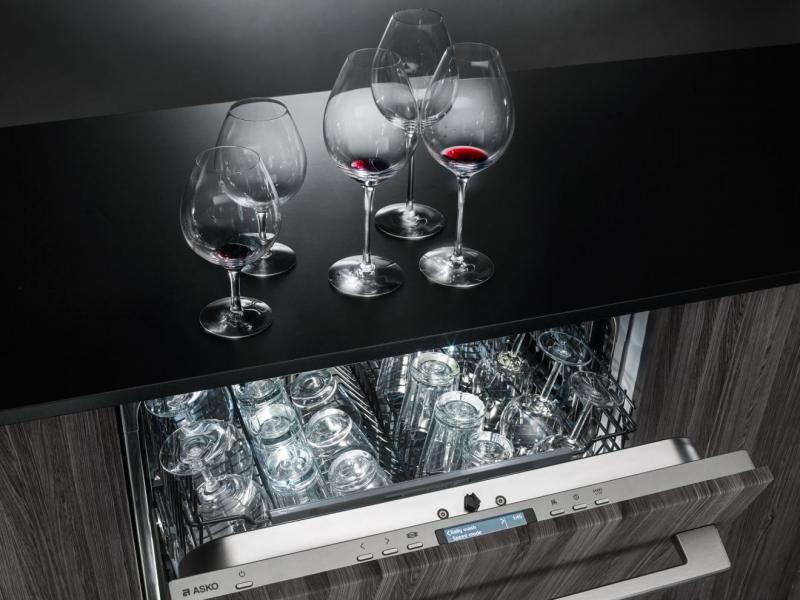

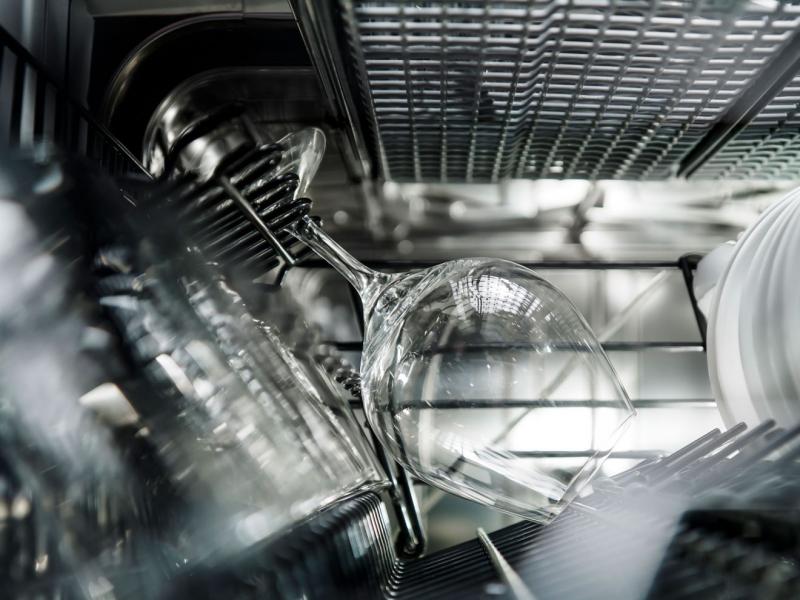

Chrystal glass

Wash fragile items made of crystal/glass, such as crystal glass from Orrefors, using the gentle dishwashing programme Crystal glass.

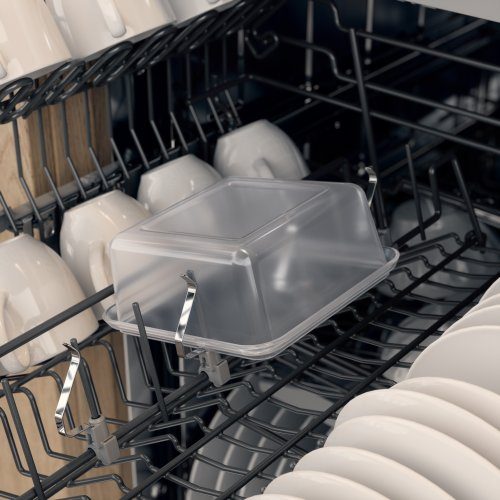

Light Lock™

Light plastic cans and bowls are easily flipped over and filled with water. The LightLock™ smart fixation helps them to retain their position throughout the program.



Self cleaning

ASKO’s dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned. Use a recommended cleaning agent and the program on a regular basis for best result.

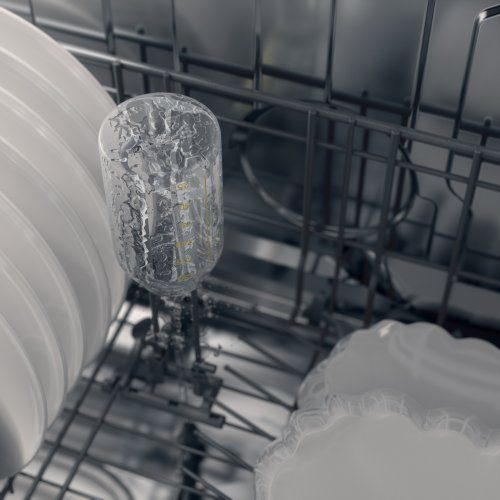

Vase/bottle holder

Our special holder for tall, narrow objects like baby bottles, vases and bottles is combined with a special power zone that makes sure that the cleaning result is perfect.

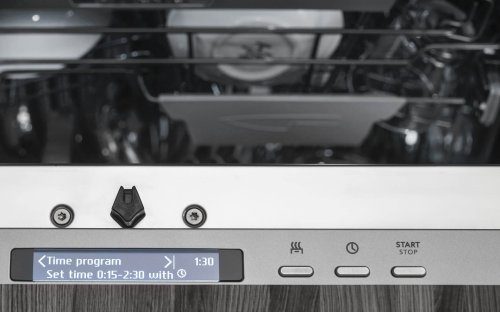

Time program

When you need clean plates in a hurry, just tell the machine how dirty the dishes are and how much time you have. The program then adjusts washing and rinsing to match your needs.

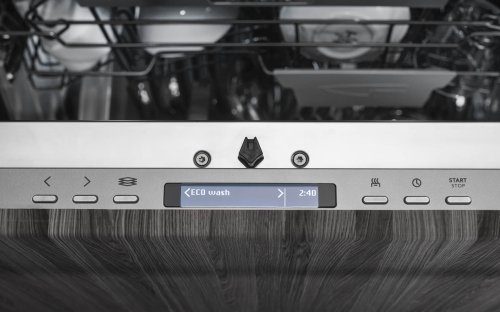

Eco

Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes, cups, glasses and so on.

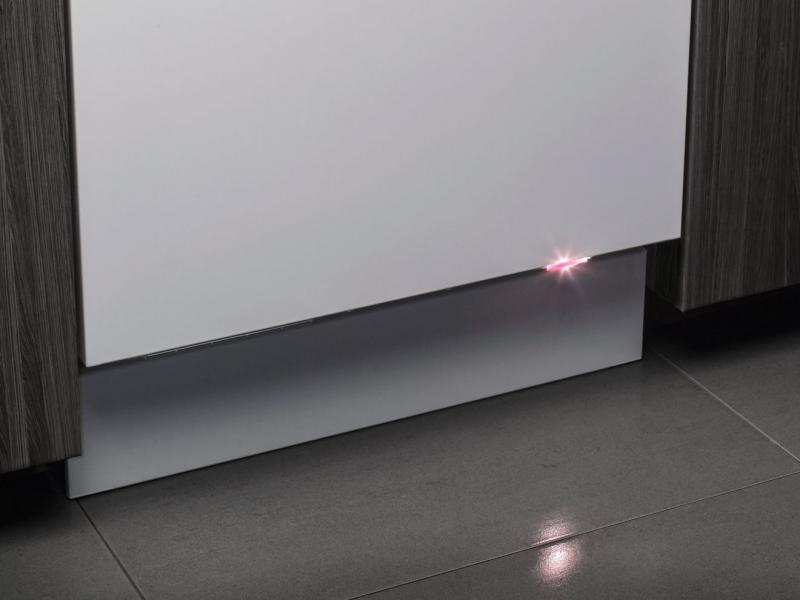

Status Light™

ASKO’s new generation dishwashers have Status Light™ -a small light placed in the bottom right corner to let you know the actual status of the program.



Brushless motor

A brushless motor is not only quieter and more reliable. It also consumes less energy. You want your dishwasher to work forever. So do we.

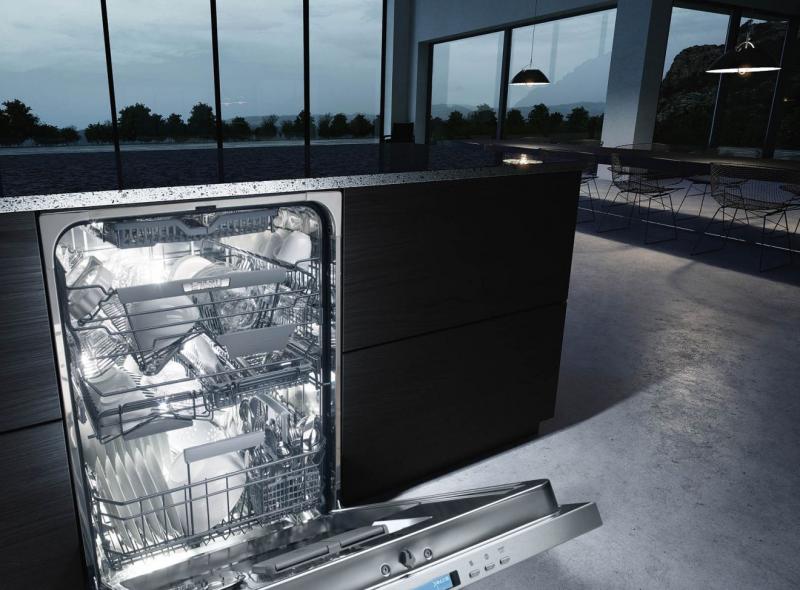

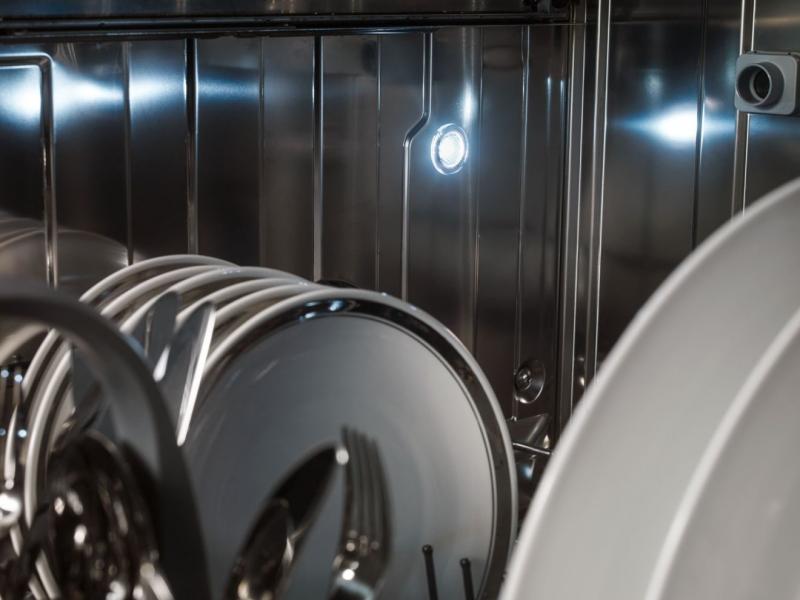

LED interior light

The combination of outer and inner LED-lights is designed for best intensity and durability. It gives you a good overview of the door area as well as the inside of the dishwasher.



Green mode

The Green mode saves water and energy by lowering the temperature and extending the washing cycle. Still, the result is just as perfect as the Normal program. Let’s go greener!



Speed mode

When you need to get things cleaned in a hurry, the Speed mode is useful. It saves up to 50% of the normal time, by using more water and increased heating.



Night mode

Night mode reduces the noise by 2 dB thanks to lower pressure in the spray arm. Perfect at night or in a house with an open plan living area.



Auto

ASKO’s Auto program with the SensiClean™ sensor ensures the right temperature, washing cycle and drying regardless of what you have put in the machine. Every time.



Preheated

Sometimes you need to use the same kitchen ware with short intervals. The Preheated program only takes half an hour – perfect at the dinner party or when you bake.



Plastic

The Plastic program washes and dries your plastic kitchen ware. And, if there’s room left you can of course wash the ordinary porcelain and glass at the same time.

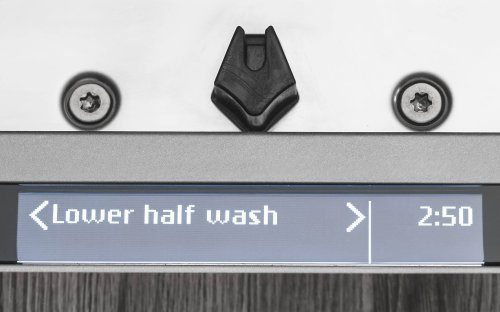

Lower half

The Lower half program only sprays the bottom half of the machine which means less water and energy is used. An more environmentally friendly way to clean your plates and cutlery.

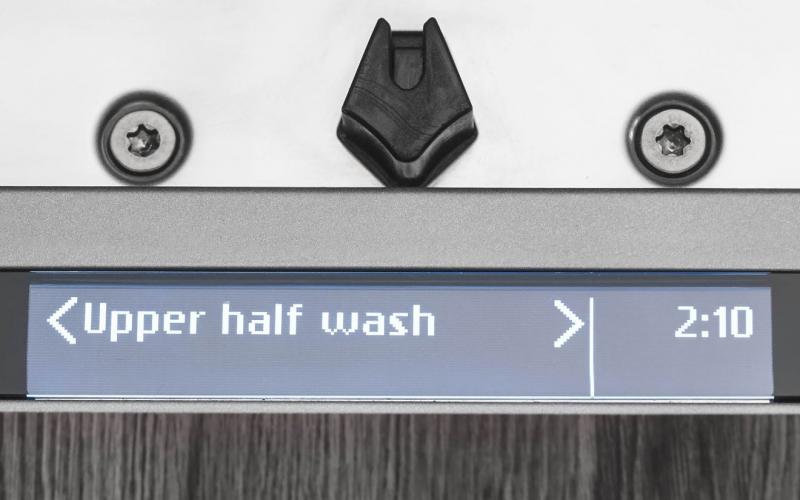

Upper half

The Upper half program sprays only the top part of the machine and uses less water and energy than a normal program. Saves both your time and the environment.



Rinse & hold

The Rinse and hold program allows for you to avoid dried leftovers while you wait for the dishwasher to get fully loaded. Saves time and energy over time.



Aqua Level™Sensor

The Aqua Level™ Sensor ensures the exact amount of water. For example, if a plastic bowl turns over and is filled with water, the sensor automatically adds extra water to the process for a premium cleaning result.



Aqua Detect™ Sensor

The Aqua Detect™Sensor monitors the inlet valves and the water level while the machine operates. For safety reasons, the drain pump’s capacity is five times the inlet valve’s.

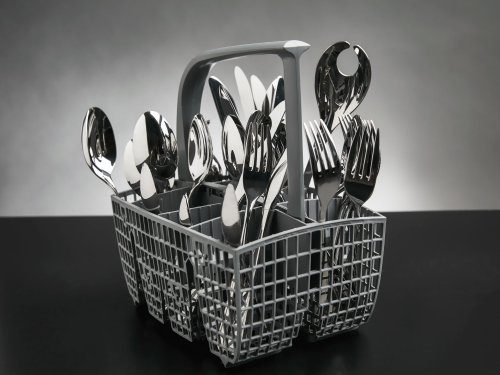

Power Zone Cutlery™

Power Zone Cutlery™ is a special nozzle spray zone for the cutlery basket that will make your cutlery dazzling clean. And, there is a similar nozzle for the knife basket.



Kid Safe™

To stop small fingers from starting the dishwasher the Kid Safe™ makes the control panel easy to lock. This also prevents altering any settings by mistake.



Anti siphon

For our fully integrated dishwashers, the Anti-siphon solution safely keeps the water inside the machine. This is especially important if the dishwasher is placed above floor level.

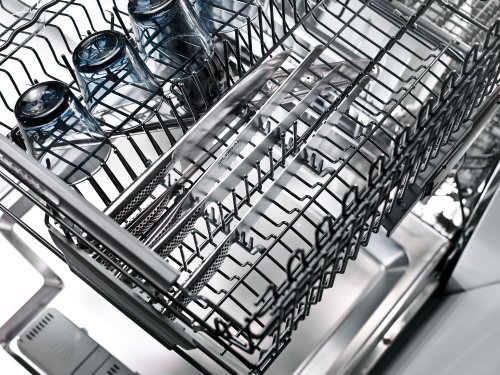

Extra wide knife stand

Our smart knife holders are found in the middle, upper, and the top basket. They are all are extra deep so that the blades remain steady. Cutting edge, not fingers.



10 Spray™

ASKO’s spray system consists of up to 10 effective spray zones to ensure a totally clean load. In the lower rack there are three power zones to take care of the dirtiest parts.

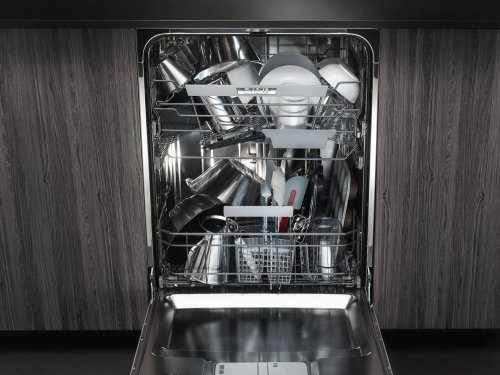

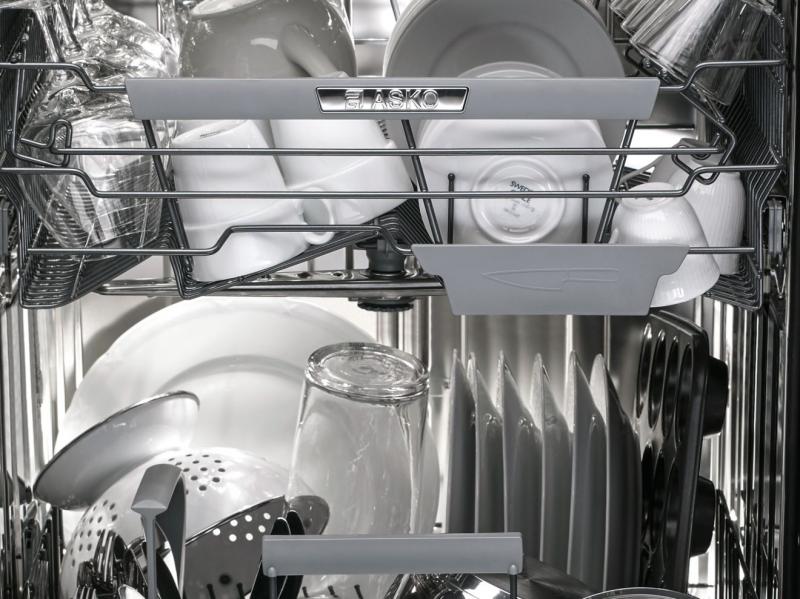

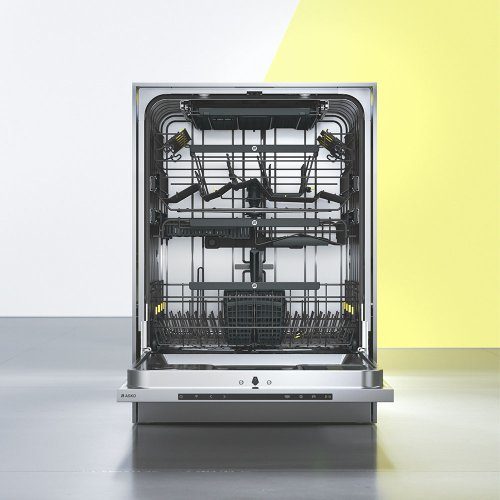

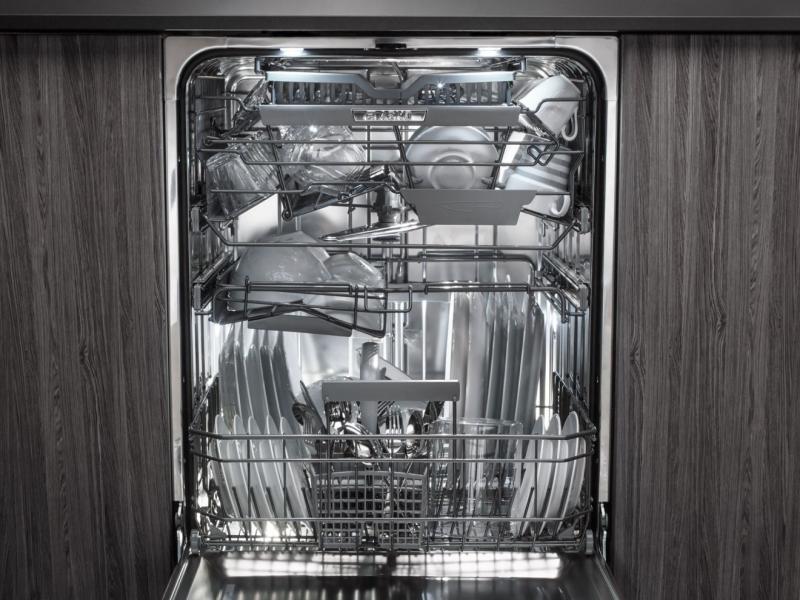

3 Level rack

ASKO’s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.

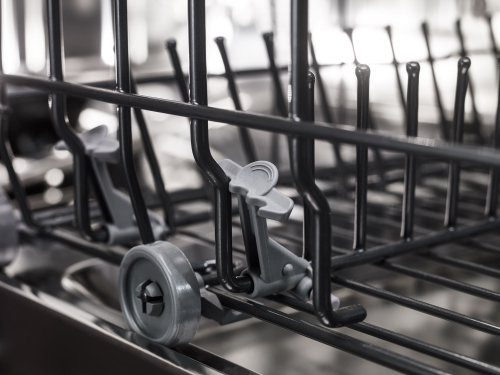

Folding tines

The foldable tines in the lower tray makes it easy to load different sizes of pots and pans. Flexibility at its best.



Foldable Glass support

Sometimes you need the space of the upper rack for other items than glasses. Good thing that the tines are foldable here as well.

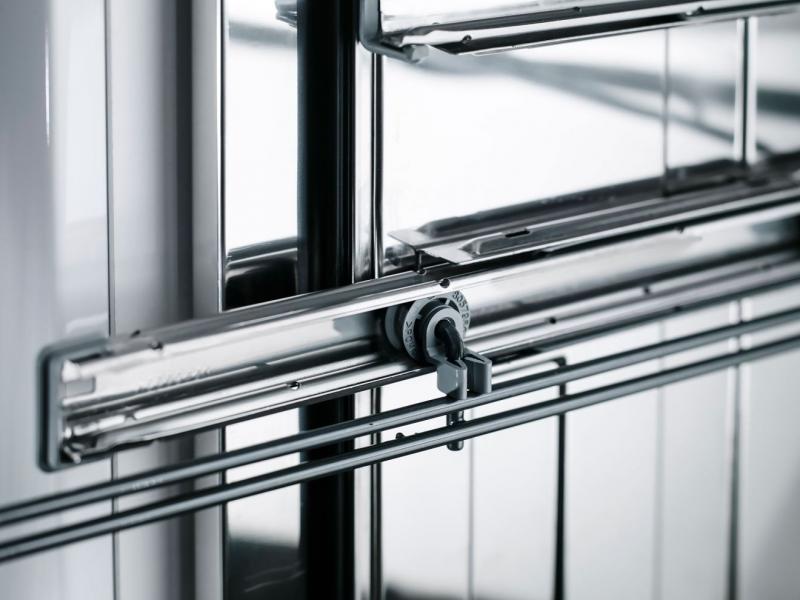

Telescopic rails

ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.



Removable middle rack

The Twin Tubes™ spray zone makes the middle rack perfect for lightly soiled glasses etc. Easy to remove if you need more space. Spray pressure is retained if the basket is removed.

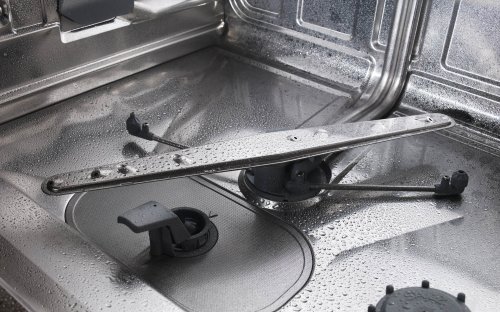

2 Spray arms

The 2 spray-arm technique reaches every corner and with up to 10 highly effective spray zones, no dirt can escape. Not even your lasagne baking dish.



Touch Proof™

The ultra-thin, transparent TouchProof™ coating protects your dishwasher stains and grease Easy to clean, scratch resistant it will keep your dishwasher looking brand new year after year.

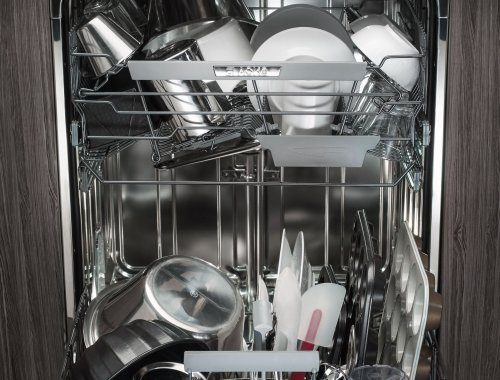

17 - Loading capacity

Room for 17 place settings, fit larger pots and plates in the upper rack. Our XXL dishwasher have four level rack system including; Knife rack, Upper rack, Middle rack, Lower rack.



China Guard

Our china guard ensures secure rotation of the upper sprayarm.



15-3/4" plates in lower rack

Our XXL dishwashers have room for a 40 cm big plate in the lower rack when the middle rack is removed and the upper rack in the upmost position.

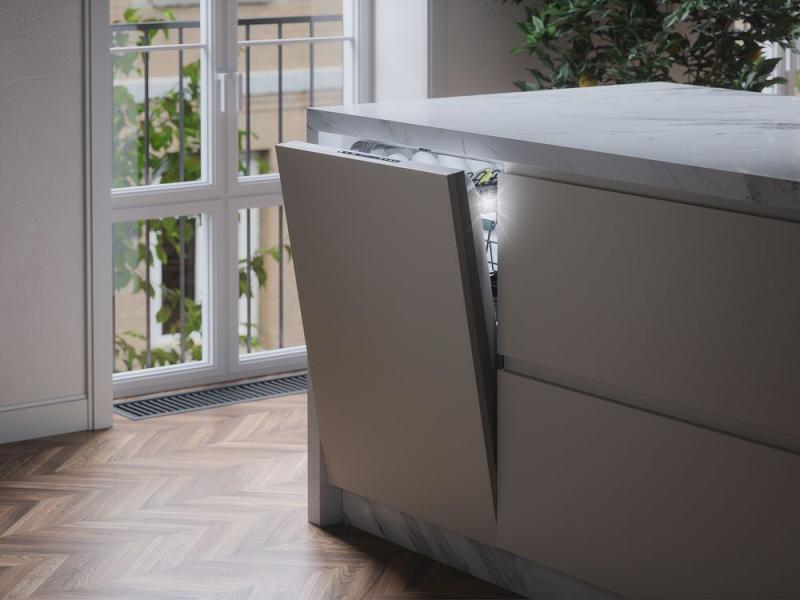

Pop Out Door

When a program is completed, the Door Pop-Out function opens the dishwasher door automatically to remove the steam inside.



Knife holders

Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.

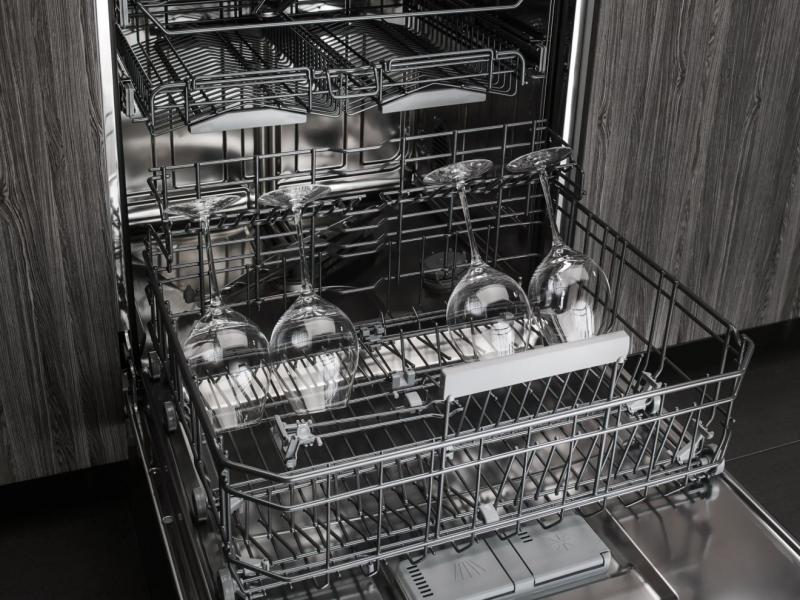

Multi position glass rack

The Multi position glass rack is a very practical rack that can be mounted in three different positions – all depending on your needs.

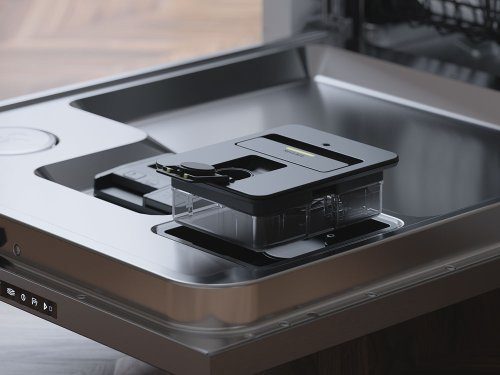

Auto Dose

Through years of research, we have identified the exact amount of detergent needed to deliver consistently perfect cleaning results. That’s our job. Of course, we don’t expect you to spend time thinking about this. That’s why we designed Auto Dose. The auto dosing compartment in our dishwashers stores up to 30 days’ worth of detergent. This means you only need to fill it once a month. Just load your dishes, choose your program, and you’re ready to go. Hassle-free, as it should be.

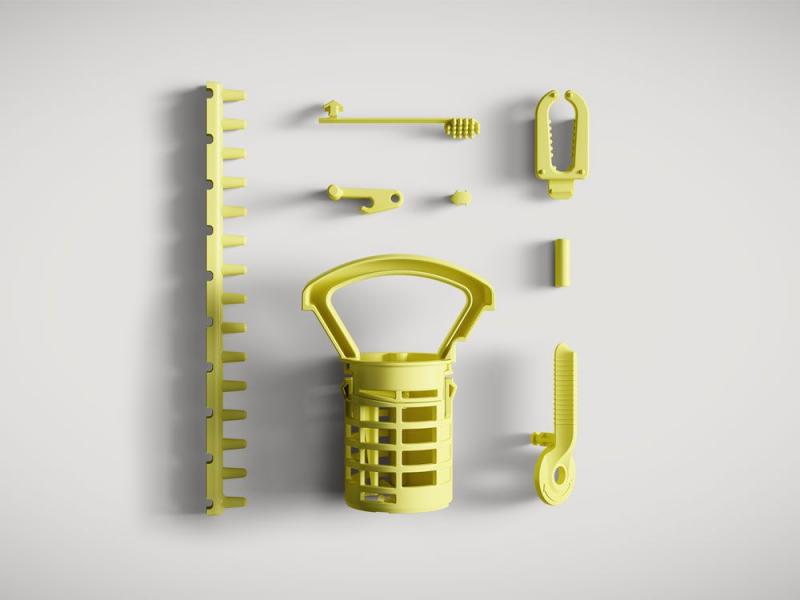

Focus points

Focus points - a hint of nature Opening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine’s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place – where it doesn’t compete for space or attention – instead, it makes the room.

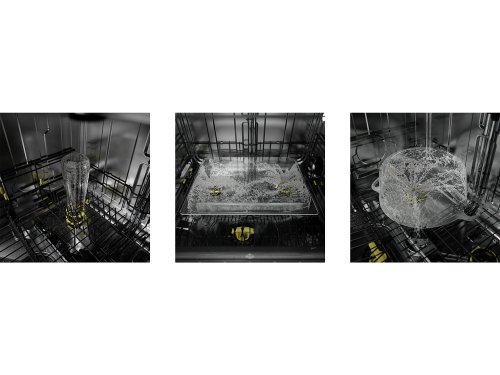

Adjustable power zones

To make an already powerful cleaning system even more powerful, we have created two adjustable "power zones" with two different spray patterns. The power zones either produce a concentrated highpressure hard jet for extra dishwashing power on tall, narrow objects like bottles and vases, or a wider spray for larger dishes, pots and pans. There’s also a "bridging function" where both power zones are set to the wide spray mode for very large dishes or utensils. The power zones are operated manually, so when you don’t need them simply switch them off

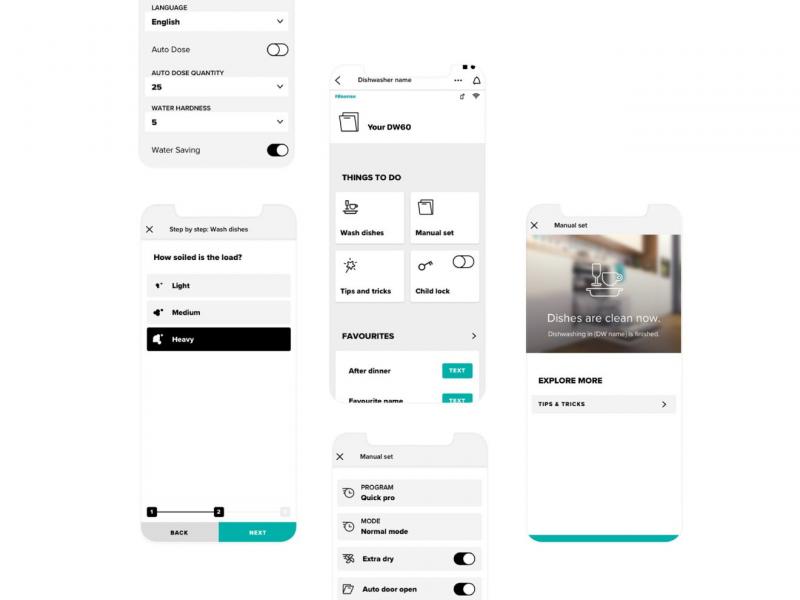

Connected

The ConnectLife app lets you control and monitor your ASKO dishwasher remotely via your smartphone or tablet. You can look up the online user manual, change settings, check the machine’s status and more. You can even start, stop and pause programs on the move. The app includes a step-by-step guide to help you find the best programs for you depending on what you’re washing and how you prefer to wash it.

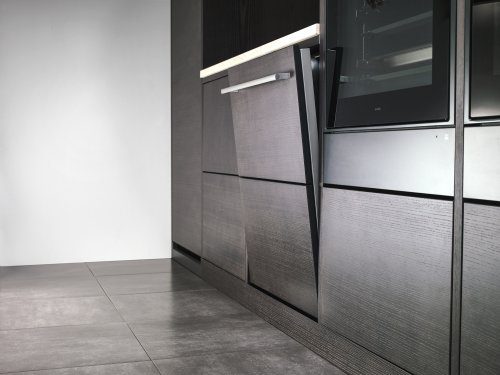

Push to open door

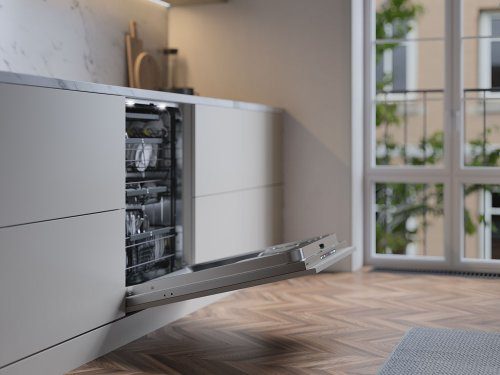

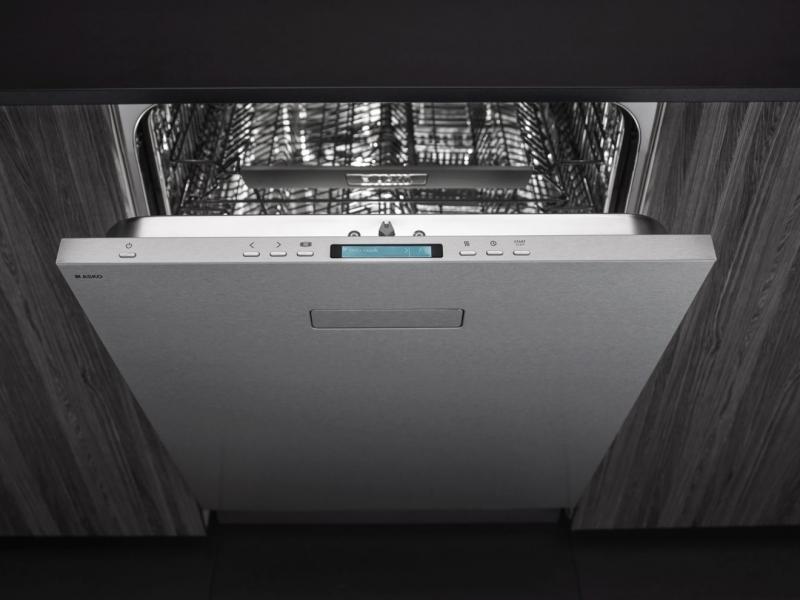

Our fully integrated dishwashers with push-to-open mechanism are ideal for open minimalistic kitchens, where the subtle handleless door contribute to a contemporary feel to your home. You simply give the door’s upper part a light push and the mechanism will then open the door for you. A function for your convenience that also offers the opportunity to integrate your dishwasher in a nice way in your kitchen.

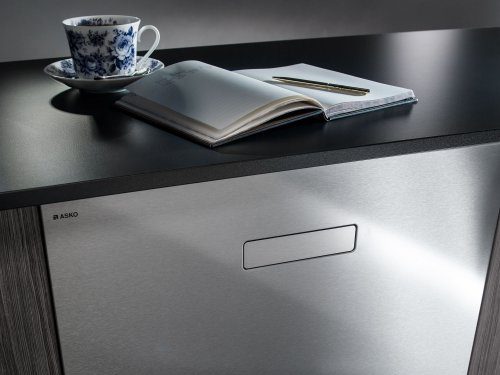

Style™

For those with a sense of style, but who also appreciate the value of functional, user-friendly design. Our top-of-the-line Style models naturally combine functionality with clean lines and a stylish minimalism. They feature superior programs, endless flexibility and high quality, while the attractive and unique full colour/easy-to-read (TFT) display highlights the well thought-out and user-friendly design.



20 years

Today, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better – for our customers and for the planet. Designed to make a difference. And built to be enjoyed for the next 20 years.



Quick Pro

A fast and effective program using variable water pressure to boost cleaning performance and that quickly takes care of slightly dried leftovers. When combined with Speed mode, the program cycle is even shorter – as fast as 39 minutes.



Turbo Combi Drying™ with sensor control

This is our most advanced drying method. It is based on the same principles as Turbo Combi Drying, but the automatic door opening is regulated by a sensor that measures the temperature in your kitchen. If the kitchen is colder than normal, the door will open at a later stage. If it is warmer, the door opens earlier. This means that energy for drying is used more efficiently.


LOGISTIC INFORMATION
Packaging width640 mm
Packaging height930 mm
Packaging depth680 mm
Gross weight48.3 kg
Product code740096
EAN code3838782634703
Dimensions

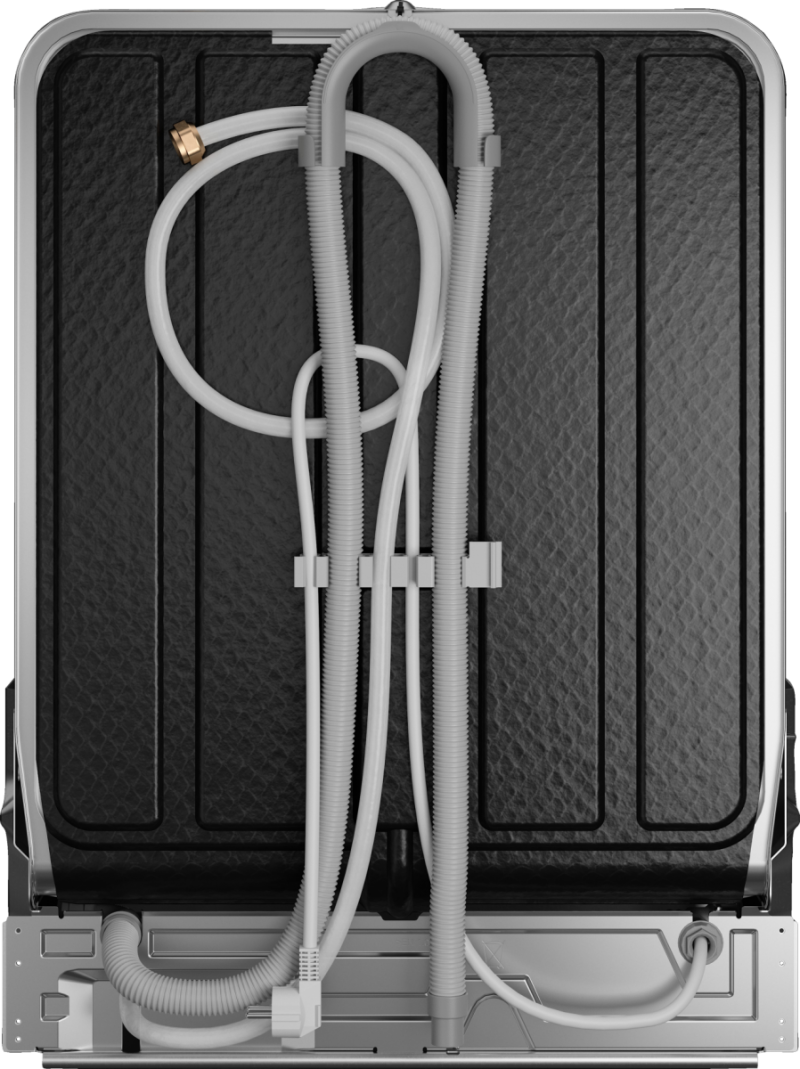

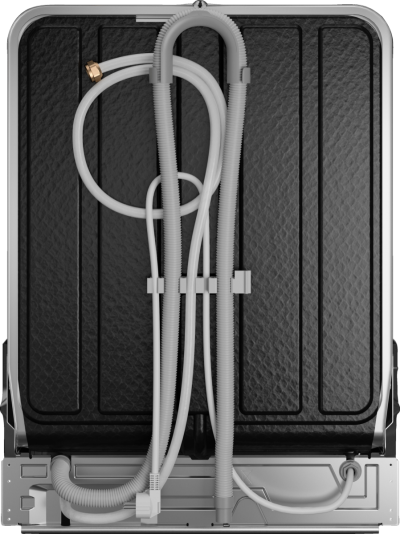

Length inlet hose163 cm
Length outlet hose230 cm
Depth with door open1231 mm
Length of electrical cord1815 mm
Maximum product height912 mm
Depth554 mm
Height859 mm
Width608 mm
Technical data
Adapter for water connectionNo
Max. temperature of inflow water60 °C
Net weight45 kg
Required inlet water pressure MPa0,03-1
Frequency60 Hz
Fuse15 A
Number of phases1
Voltage (V)120 V
Connected load1300 W
Plug typeUSA
Power consumption in standby mode0.5 W
Water consumption11.4 l
Estimated annual water consumption2451 l
Energy consumption - normal program1 kWh
Estimated yearly energy consumption220 kWh
Duration of standard programme125 min
Reference programme1
Noise level (dBA)39 dB(A)
Water connectionHot&cold water
Safety and maintenance
Aqua Safe™Sealing points outside container Extra durable stainless steel container Waterproof bottom plate Detection of water leakage on the bottom plate Aqua Detect™ - Instant recognition of any leakage in the motor compartment Aqua Level™ Sensor - Ensures an optimized water level Stand-by water protection - Leakage detection when machine is off Extra durable PEX inlet hose Maximum time for water intake Light and sound alarm Anti Block™ - Self cleaning drain pump
Salt refill indicatorNotification in display
Rinse-aid IndicatorNotification in display
Child safetyKid Safe™ - Lockable controls
Aqua Safe™ systemYes
Design and integration
Adjustable kick plate30-94/0
Height setting53 mm
Depth (incl. wall spacing)555 mm
Sliding doorNo
Possible to install elevatedYes
Min. niche height860 mm
Custom door sizeCustom door size 700-800
Min. niche width609 mm
Rear leg is adjustable from the frontYes
From the front adjustable door springYes
InstallationVelcro strips for easy mounting and adjustment of the separate custom door Multi fit outlet hose Integrated anti-siphon - Safely keeps the water inside the machine especially important if the dishwasher is placed above floor level. Trim kit Steam protection strip
Functions, programs and modes
Delayed startPossible to delay up to 24 hours
Options and modesSensor controlled door opening - Optimizes the drying process according to the room temperature Time set Push to open - Handle-free door opening Heat Boost Mode Green mode - Less energy and water is used. The program time is extended Enable/disable automatic door opening Speed mode - The program time is shortened. More energy is used. Night mode - Lower noise level. The program time is extended. Super Rinse™ - Two extra rinses
Main wash temperature (°C)45/50/55/60/65/70
ProgramsRinse and hold program Upper half Sanitize Lower half Crystal glass Time program Intensive program Auto wash Standard ECO wash Anti odour Quick Pro wash Self cleaning Light wash Plastic wash
Interaction and control
Remaining time indicatorYes
End wash indicatorDisplayed with sound and light
Language settingsNorwegian German Russian Finnish Swedish Portuguese Lithuanian English Latvian Croatian Italian French Chinese traditional Spanish Estonian Czech Ukrainian Japanese Slovak Slovenian Chinese simpified Polish Danish Dutch
Status Light™ - Visual indication of dishwashing progressYes
Possible to control via Wi-FiYes, integrated
Type of displayGraphic TFT display
Use and flexibility
Automatic dosing systemYes, integrated
Interior lightYes, 4 LED lights
Middle basketErgonomically designed telescopic rails for easy sliding. Removable rack for bowls, cups and glasses Removable rack for large utensils Middle basket connection fitted with non-return valve Handle
Lower basket typeExclusive
Lower basketFoldable/divisible rear tine row Vase/bottle holder for cleaning vases/baby bottles Foldable/divisible front tine row Cutlery basket Small distance between the basket threads - makes loading easy and prevents small items to fall through. Handle with ASKO logo Sliding tines for easy adaptation to stone ware etc.
Upper basketPerfect ergonomy with easy sliding telescopic rails Small distance between the basket threads - makes loading easy and prevents small items to fall through Light Lock™ for fastening lightweight items China Guard - Protects fragile load from the rotating spray arm Extra wide knife stand Dividable pin rows Wine glass fixings in TPE Two foldable glass supports Handle with ASKO logo Sliding tines for easy adaptation to stone ware etc. Foldable wine shelves to right Divisble/foldable wine shelves to left
Upper basket height adjustableYes
Number of place settings17 pcs
Number of racks3
Top trayWithout top tray
Upper basket typeExclusive - Nylon coated steel baskets, all tines rows are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
Construction and performance
Number of spray zones10
Cleaning systemsTwin Tubes™ - separate spray zone for the middle basket Cutlery Spray™ - Extra dishwashing power for the cutlery basket No need to rinse the dishes thanks to Super Cleaning System™ Aqua Level™ Sensor Sensi Clean™ Sensor - measures dirtiness level Stainless steel spray arms Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off. The water pressure is adapted depending on program, type of dishes and dirtiness level.
Number of spray arms2 pcs
No need to rinse the dishes thanks to Super Cleaning System™Yes
Automatic water-softener for better washing performanceYes
8 Steel™ - Vital parts of the dishwasher made in stainless steelYes
